Base class for classes implementing interface iqtgui::IGuiObject. More...

#include <CGuiComponentBase.h>

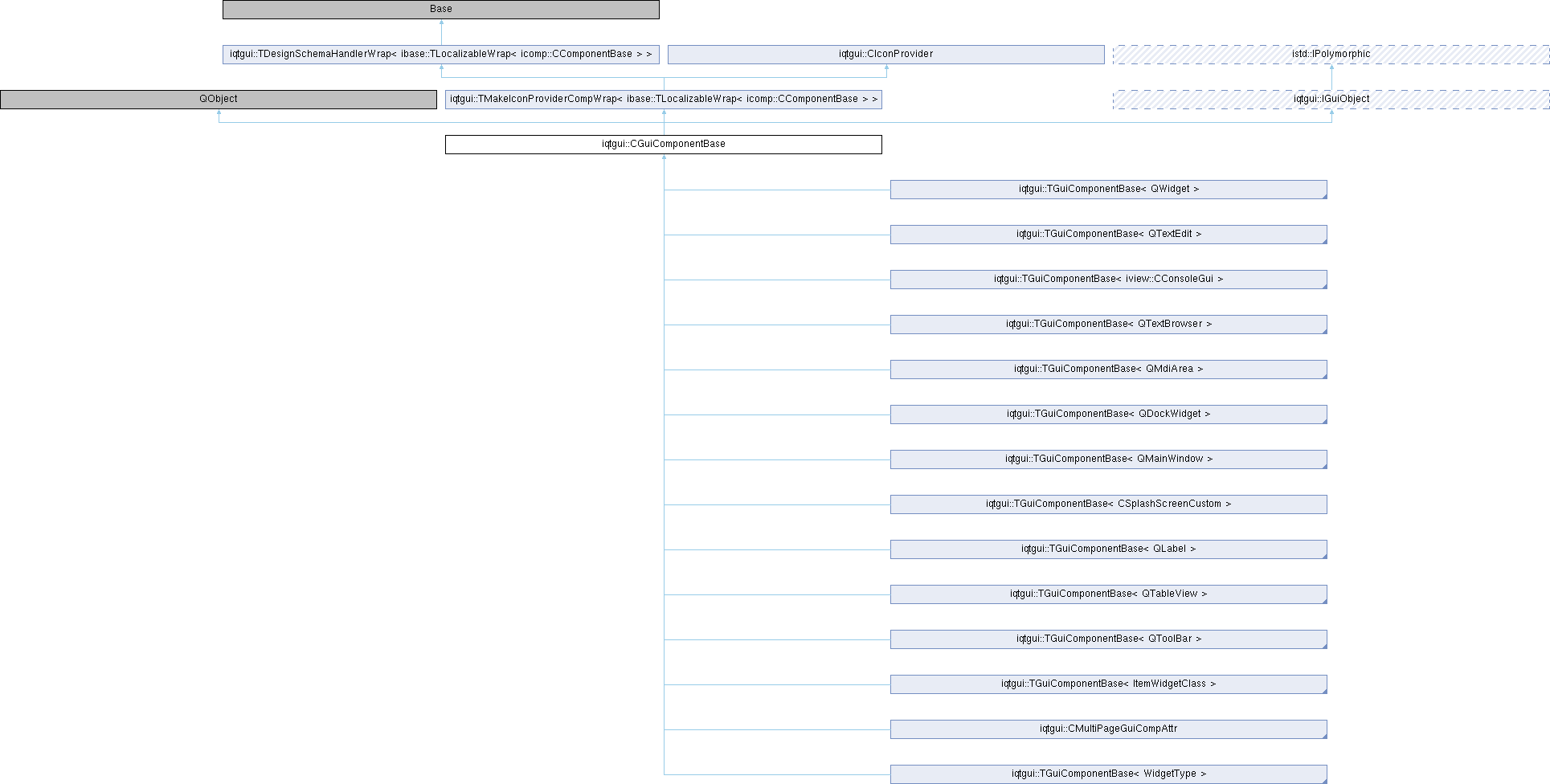

Inheritance diagram for iqtgui::CGuiComponentBase:

Classes
class	VisualStatus

Public Types
typedef TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >	BaseClass

Public Types inherited from iqtgui::TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >
typedef ibase::TLocalizableWrap< icomp::CComponentBase >	BaseClass

Public Types inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
typedef Base	BaseClass

Public Member Functions
	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, IVisualStatus, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, istd::IChangeable, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, imod::IModel, ExtractVisualStatus)

	CGuiComponentBase ()

bool	IsGuiShown () const

virtual bool	IsGuiCreated () const override
	Checks if the GUI has been initialized and created.

virtual bool	CreateGui (QWidget *parentPtr) override
	Initializes the GUI and connects it to the parent widget.

virtual bool	DestroyGui () override
	Releases GUI resources and disconnects from the parent.

virtual QWidget *	GetWidget () const override
	Gets access to the internal QWidget object.

virtual void	OnTryClose (bool *ignoredPtr=NULL) override
	Called when the application is attempting to close.

Public Member Functions inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
	TDesignSchemaHandlerWrap ()

virtual void	EnableDesignHandler (bool enable=true)
	If enabled, listen to the design schema change events from the application context.

Public Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	GetIcon (const QString &iconName) const

virtual QString	GetIconPath (const QString &iconName) const

virtual QString	GetStyleSheetPath (const QString &styleSheetPath) const

QByteArray	GetCurrentThemeId () const

void	SetThemeId (const QByteArray &themeId)

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnGuiDesignChanged ()

virtual void	OnGuiShown ()
	Called from widget event filter when slave widget is shown.

virtual void	OnGuiHidden ()
	Called from widget event filter when slave widget is hidden.

virtual bool	OnKeyPressed (QKeyEvent *event)
	Called from widget event filter when key is pressed.

virtual void	OnRetranslate ()
	Called when non-GUI elements (like commands) should be retranslated.

virtual void	OnGuiRetranslate ()
	Called from widget event filter when GUI should be retranslated.

virtual void	OnGuiCreated ()
	Called just after GUI is initialized.

virtual void	OnGuiDestroyed ()
	Called just before GUI is released.

void	SetStatusIcon (const QIcon &icon)
	Set status icon;.

void	SetStatusText (const QString &text)
	Set status text;.

void	SetDefaultVisualStatus ()

virtual void	OnLanguageChanged () override

virtual void	OnDesignSchemaChanged (const QByteArray &themeId) override

virtual bool	eventFilter (QObject sourcePtr, QEvent eventPtr) override

virtual void	OnComponentCreated () override

virtual void	OnComponentDestroyed () override

virtual QWidget *	CreateQtWidget (QWidget *parentPtr)=0
	Create slave widget object.

Protected Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	CreateIcon (const QString &iconName) const

Protected Attributes
imod::TModelWrap< VisualStatus >	m_visualStatus

Detailed Description

Base class for classes implementing interface iqtgui::IGuiObject.

Definition at line 26 of file CGuiComponentBase.h.

Member Typedef Documentation

◆ BaseClass

typedef TMakeIconProviderCompWrap<ibase::TLocalizableWrap<icomp::CComponentBase> > iqtgui::CGuiComponentBase::BaseClass

Definition at line 32 of file CGuiComponentBase.h.

Constructor & Destructor Documentation

◆ CGuiComponentBase()

iqtgui::CGuiComponentBase::CGuiComponentBase ( )

Member Function Documentation

◆ CreateGui()

virtual bool iqtgui::CGuiComponentBase::CreateGui ( QWidget * parentPtr )

overridevirtual

Initializes the GUI and connects it to the parent widget.

This method creates and initializes all Qt widgets that form the GUI component. It should only be called once; subsequent calls should be ignored or return false. The created widgets become children of the specified parent widget.

Parameters

parentPtr Pointer to the parent QWidget. The created GUI will be a child of this widget. Can be nullptr for top-level widgets.

Returns: true if initialization succeeded, false if it failed or was already created.

Note: After successful creation, IsGuiCreated() should return true.; This method should be idempotent - calling it multiple times should not create multiple GUI instances.

See also: DestroyGui(), IsGuiCreated(), GetWidget()

Implements iqtgui::IGuiObject.

Reimplemented in iqtgui::TRestorableGuiWrap< CMultiPageGuiCompBase >, iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMainWindow > >, iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMdiArea > >, and iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QWidget > >.

◆ CreateQtWidget()

virtual QWidget * iqtgui::CGuiComponentBase::CreateQtWidget ( QWidget * parentPtr )

protectedpure virtual

Create slave widget object.

◆ DestroyGui()

virtual bool iqtgui::CGuiComponentBase::DestroyGui ( )

overridevirtual

Releases GUI resources and disconnects from the parent.

This method destroys all Qt widgets created by CreateGui() and cleans up associated resources. After calling this method, IsGuiCreated() should return false, and GetWidget() should return nullptr or an invalid pointer.

Returns: true if the operation succeeded, false if it failed or GUI was not created.

Note: It's safe to call this method even if the GUI was not created; it should simply return false in that case.; After calling this method, CreateGui() can be called again to recreate the GUI if needed.

See also: CreateGui(), IsGuiCreated()

Implements iqtgui::IGuiObject.

Reimplemented in iqtgui::TRestorableGuiWrap< CMultiPageGuiCompBase >, iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMainWindow > >, iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMdiArea > >, and iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QWidget > >.

◆ eventFilter()

virtual bool iqtgui::CGuiComponentBase::eventFilter	(	QObject *	sourcePtr,
		QEvent *	eventPtr
	)

overrideprotectedvirtual

Reimplemented in iqt2d::CExtendedConsoleGuiComp, iqtdoc::CMainWindowGuiComp, iqtdoc::CMultiDocumentWorkspaceGuiComp, and iqtgui::CSimpleMainWindowGuiComp.

◆ GetWidget()

QWidget * iqtgui::CGuiComponentBase::GetWidget ( ) const

inlineoverridevirtual

Gets access to the internal QWidget object.

Returns a pointer to the main QWidget that represents this GUI component. This widget can be used for layout management, showing/hiding, or other Qt-specific operations.

Returns: Pointer to the internal QWidget, or nullptr if GUI is not created.

Note: The returned pointer is owned by this IGuiObject instance. The caller should not delete it.; The pointer becomes invalid after DestroyGui() is called.

See also: CreateGui(), IsGuiCreated()

Implements iqtgui::IGuiObject.

Definition at line 186 of file CGuiComponentBase.h.

◆ I_REGISTER_SUBELEMENT_INTERFACE_T() [1/3]

iqtgui::CGuiComponentBase::I_REGISTER_SUBELEMENT_INTERFACE_T	(	VisualStatus	,
		imod::IModel	,
		ExtractVisualStatus
	)

◆ I_REGISTER_SUBELEMENT_INTERFACE_T() [2/3]

iqtgui::CGuiComponentBase::I_REGISTER_SUBELEMENT_INTERFACE_T	(	VisualStatus	,
		istd::IChangeable	,
		ExtractVisualStatus
	)

◆ I_REGISTER_SUBELEMENT_INTERFACE_T() [3/3]

iqtgui::CGuiComponentBase::I_REGISTER_SUBELEMENT_INTERFACE_T	(	VisualStatus	,
		IVisualStatus	,
		ExtractVisualStatus
	)

◆ IsGuiCreated()

virtual bool iqtgui::CGuiComponentBase::IsGuiCreated ( ) const

overridevirtual

Checks if the GUI has been initialized and created.

This method returns true after CreateGui() has been successfully called and before DestroyGui() is called. It can be used to verify the GUI state before performing operations that require an active GUI.

Returns: true if the GUI is created and initialized, false otherwise.

See also: CreateGui(), DestroyGui()

Implements iqtgui::IGuiObject.

◆ IsGuiShown()

bool iqtgui::CGuiComponentBase::IsGuiShown ( ) const

inline

Definition at line 178 of file CGuiComponentBase.h.

◆ OnComponentCreated()

virtual void iqtgui::CGuiComponentBase::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented in ibase::TModelObserverCompBaseWrap< iqtgui::TGuiObserverWrap< iqtgui::TDesignerGuiCompBase< UI, QWidget >, imod::TSingleModelObserverBase< Model > > >, ibase::TModelObserverCompBaseWrap< TGuiObserverWrap< TGuiComponentBase< ItemWidgetClass >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > > >, ibase::TModelObserverCompBaseWrap< TGuiObserverWrap< TGuiComponentBase< QTableView >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > > >, iloggui::CLogGuiComp, iqt2d::CSceneConnectorGuiComp, iqt2d::CViewProviderGuiComp, iqtdoc::CMainWindowGuiComp, iqtdoc::CMultiDocumentWorkspaceGuiComp, iqtdoc::CSingleDocumentWorkspaceGuiComp, and iqtgui::CMultiPageGuiCompBase.

◆ OnComponentDestroyed()

virtual void iqtgui::CGuiComponentBase::OnComponentDestroyed ( )

overrideprotectedvirtual

Reimplemented in ibase::TModelObserverCompBaseWrap< iqtgui::TGuiObserverWrap< iqtgui::TDesignerGuiCompBase< UI, QWidget >, imod::TSingleModelObserverBase< Model > > >, ibase::TModelObserverCompBaseWrap< TGuiObserverWrap< TGuiComponentBase< ItemWidgetClass >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > > >, ibase::TModelObserverCompBaseWrap< TGuiObserverWrap< TGuiComponentBase< QTableView >, imod::TSingleModelObserverBase< ibase::IQtItemModelProvider > > >, iqt2d::CMultiBitmapViewComp, iqt2d::CSceneConnectorGuiComp, iqt2d::CViewProviderGuiComp, iqtdoc::CMainWindowGuiComp, and iqtgui::CMultiPageGuiCompBase.

◆ OnDesignSchemaChanged()

virtual void iqtgui::CGuiComponentBase::OnDesignSchemaChanged ( const QByteArray & themeId )

overrideprotectedvirtual

Reimplemented from iqtgui::TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >.

◆ OnGuiCreated()

virtual void iqtgui::CGuiComponentBase::OnGuiCreated ( )

protectedvirtual

Called just after GUI is initialized.

◆ OnGuiDesignChanged()

virtual void iqtgui::CGuiComponentBase::OnGuiDesignChanged ( )

protectedvirtual

Reimplemented in iloggui::CLogGuiComp, iqt2d::CViewProviderGuiComp, iqtdoc::CMainWindowGuiComp, iqtdoc::CMultiDocumentWorkspaceGuiComp, and iqtgui::CSimpleMainWindowGuiComp.

◆ OnGuiDestroyed()

virtual void iqtgui::CGuiComponentBase::OnGuiDestroyed ( )

protectedvirtual

Called just before GUI is released.

◆ OnGuiHidden()

virtual void iqtgui::CGuiComponentBase::OnGuiHidden ( )

protectedvirtual

Called from widget event filter when slave widget is hidden.

◆ OnGuiRetranslate()

virtual void iqtgui::CGuiComponentBase::OnGuiRetranslate ( )

protectedvirtual

Called from widget event filter when GUI should be retranslated.

◆ OnGuiShown()

virtual void iqtgui::CGuiComponentBase::OnGuiShown ( )

protectedvirtual

Called from widget event filter when slave widget is shown.

◆ OnKeyPressed()

virtual bool iqtgui::CGuiComponentBase::OnKeyPressed ( QKeyEvent * event )

protectedvirtual

Called from widget event filter when key is pressed.

Returns: if event was consumed returns true, otherwise false.

◆ OnLanguageChanged()

virtual void iqtgui::CGuiComponentBase::OnLanguageChanged ( )

overrideprotectedvirtual

◆ OnRetranslate()

virtual void iqtgui::CGuiComponentBase::OnRetranslate ( )

protectedvirtual

Called when non-GUI elements (like commands) should be retranslated.

Reimplemented in CTextEditorComp, iqtdoc::CMainWindowGuiComp, iqtdoc::CMultiDocumentWorkspaceGuiComp, and iqtgui::CSimpleMainWindowGuiComp.

◆ OnTryClose()

virtual void iqtgui::CGuiComponentBase::OnTryClose ( bool * ignoredPtr = NULL )

overridevirtual

Called when the application is attempting to close.

This method is invoked before the application closes, giving the GUI component a chance to prevent the close operation (e.g., to save unsaved data, show confirmation dialogs, or perform cleanup operations).

Parameters

ignoredPtr Optional pointer to a boolean flag. If not nullptr and the component wants to prevent closing (e.g., user cancels a save dialog), the implementation should set *ignoredPtr to true. If nullptr, the close operation cannot be prevented.

Note: If ignoredPtr is nullptr, the implementation must not try to prevent closing and should only perform necessary cleanup.; This method may be called multiple times if the close is initially prevented but later attempted again.

// Example implementation
virtual void OnTryClose(bool* ignoredPtr)
{
       if (m_hasUnsavedData) {
              if (ignoredPtr) {
                     // Show save dialog
                     int result = QMessageBox::question(GetWidget(),
                            "Unsaved Changes",
                            "Do you want to save your changes?",
                            QMessageBox::Save | QMessageBox::Discard | QMessageBox::Cancel);

                     if (result == QMessageBox::Save) {
                            SaveData();
                     } else if (result == QMessageBox::Cancel) {
                             *ignoredPtr = true;  // Prevent closing
                            return;
                     }
              }
       }
       // Perform cleanup if needed
}

See also: DestroyGui()

Implements iqtgui::IGuiObject.

Reimplemented in iqtdoc::CMultiDocumentWorkspaceGuiComp, iqtdoc::CSingleDocumentWorkspaceGuiComp, iqtgui::CMultiPageGuiCompBase, and iqtgui::CSimpleMainWindowGuiComp.

◆ SetDefaultVisualStatus()

void iqtgui::CGuiComponentBase::SetDefaultVisualStatus ( )

protected

◆ SetStatusIcon()

void iqtgui::CGuiComponentBase::SetStatusIcon ( const QIcon & icon )

protected

Set status icon;.

◆ SetStatusText()

void iqtgui::CGuiComponentBase::SetStatusText ( const QString & text )

protected

Set status text;.

Member Data Documentation

◆ m_visualStatus

imod::TModelWrap<VisualStatus> iqtgui::CGuiComponentBase::m_visualStatus

protected

Definition at line 148 of file CGuiComponentBase.h.

The documentation for this class was generated from the following file:

Acf/Include/iqtgui/CGuiComponentBase.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ BaseClass

Constructor & Destructor Documentation

◆ CGuiComponentBase()

Member Function Documentation

◆ CreateGui()

◆ CreateQtWidget()

◆ DestroyGui()

◆ eventFilter()

◆ GetWidget()

◆ I_REGISTER_SUBELEMENT_INTERFACE_T() [1/3]

◆ I_REGISTER_SUBELEMENT_INTERFACE_T() [2/3]

◆ I_REGISTER_SUBELEMENT_INTERFACE_T() [3/3]

◆ IsGuiCreated()

◆ IsGuiShown()

◆ OnComponentCreated()

◆ OnComponentDestroyed()

◆ OnDesignSchemaChanged()

◆ OnGuiCreated()

◆ OnGuiDesignChanged()

◆ OnGuiDestroyed()

◆ OnGuiHidden()

◆ OnGuiRetranslate()

◆ OnGuiShown()

◆ OnKeyPressed()

◆ OnLanguageChanged()

◆ OnRetranslate()

◆ OnTryClose()

◆ SetDefaultVisualStatus()

◆ SetStatusIcon()

◆ SetStatusText()

Member Data Documentation

◆ m_visualStatus
