imod::TModelWrap< Base > Class Template Reference

This model wrapper provides a simple connection between a concrete istd::IChangeable implementation and a model. More...

#include <TModelWrap.h>

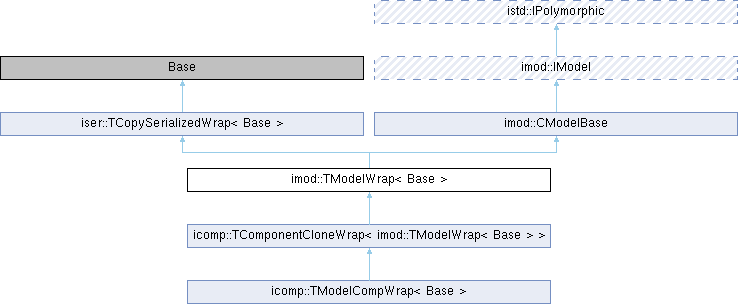

Inheritance diagram for imod::TModelWrap< Base >:

Public Types
typedef iser::TCopySerializedWrap< Base >	BaseClass
typedef imod::CModelBase	BaseClass2
Public Types inherited from iser::TCopySerializedWrap< Base >
typedef Base	BaseClass
Public Types inherited from imod::CModelBase
typedef QSet< IObserver * >	Observers

Public Member Functions
	TModelWrap ()
void	SetBaseObject (const Base &baseObject)
virtual int	GetSupportedOperations () const override
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (istd::IChangeable::CompatibilityMode mode=istd::IChangeable::CM_WITHOUT_REFS) const override
virtual void	BeginChanges (const istd::IChangeable::ChangeSet &changeSet) override
virtual void	EndChanges (const istd::IChangeable::ChangeSet &changeSet) override
virtual void	BeginChangeGroup (const istd::IChangeable::ChangeSet &changeSet) override
virtual void	EndChangeGroup (const istd::IChangeable::ChangeSet &changeSet) override
Public Member Functions inherited from iser::TCopySerializedWrap< Base >
virtual bool	CopyFrom (const istd::IChangeable &object, istd::IChangeable::CompatibilityMode mode=istd::IChangeable::CM_WITHOUT_REFS) override
virtual bool	IsEqual (const istd::IChangeable &object) const override
Public Member Functions inherited from imod::CModelBase
	CModelBase ()
virtual	~CModelBase ()
virtual int	GetObserverCount () const
	Returns count of connected observers.
virtual Observers	GetObservers () const
	Returns set of all observers.
istd::IChangeable::ChangeSet	GetCumulatedChanges () const
virtual bool	AttachObserver (imod::IObserver *observerPtr) override
	Attaches model object to observer observerPtr.
virtual void	DetachObserver (imod::IObserver *observerPtr) override
	Detaches model object from observer observerPtr.
virtual void	DetachAllObservers () override
	Detaches all attached observers.
virtual bool	IsAttached (const imod::IObserver *observerPtr) const override
	Returns true if observer observer is attached to this model object.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnBeginGlobalChanges () override
	Called before global changes will be started.
virtual void	OnEndGlobalChanges (const istd::IChangeable::ChangeSet &changeSet) override
	Called after global changes are finished.
Protected Member Functions inherited from imod::CModelBase
void	NotifyBeforeChange (const istd::IChangeable::ChangeSet &changeSet, bool isGroup)
	Called before each change.
void	NotifyAfterChange (const istd::IChangeable::ChangeSet &changeSet)
	Called after each change.

Detailed Description

template<class Base>
class imod::TModelWrap< Base >

This model wrapper provides a simple connection between a concrete istd::IChangeable implementation and a model.

Definition at line 23 of file TModelWrap.h.

Member Typedef Documentation

BaseClass

template<class Base >

typedef iser::TCopySerializedWrap<Base> imod::TModelWrap< Base >::BaseClass

Definition at line 26 of file TModelWrap.h.

BaseClass2

template<class Base >

typedef imod::CModelBase imod::TModelWrap< Base >::BaseClass2

Definition at line 27 of file TModelWrap.h.

Constructor & Destructor Documentation

TModelWrap()

template<class Base >

imod::TModelWrap< Base >::TModelWrap

(

)

Definition at line 54 of file TModelWrap.h.

Member Function Documentation

BeginChangeGroup()

template<class Base >

void imod::TModelWrap< Base >::BeginChangeGroup ( const istd::IChangeable::ChangeSet &  changeSet )

overridevirtual

Definition at line 105 of file TModelWrap.h.

BeginChanges()

template<class Base >

void imod::TModelWrap< Base >::BeginChanges ( const istd::IChangeable::ChangeSet &  changeSet )

overridevirtual

Definition at line 91 of file TModelWrap.h.

CloneMe()

template<class Base >

istd::IChangeableUniquePtr imod::TModelWrap< Base >::CloneMe ( istd::IChangeable::CompatibilityMode  mode = istd::IChangeable::CM_WITHOUT_REFS ) const

overridevirtual

Reimplemented in icomp::TComponentCloneWrap< imod::TModelWrap< Base > >.

Definition at line 78 of file TModelWrap.h.

EndChangeGroup()

template<class Base >

void imod::TModelWrap< Base >::EndChangeGroup ( const istd::IChangeable::ChangeSet &  changeSet )

overridevirtual

Definition at line 112 of file TModelWrap.h.

EndChanges()

template<class Base >

void imod::TModelWrap< Base >::EndChanges ( const istd::IChangeable::ChangeSet &  changeSet )

overridevirtual

Definition at line 98 of file TModelWrap.h.

GetSupportedOperations()

template<class Base >

int imod::TModelWrap< Base >::GetSupportedOperations ( ) const

overridevirtual

Reimplemented from iser::TCopySerializedWrap< Base >.

Definition at line 69 of file TModelWrap.h.

References istd::IChangeable::SO_CLONE, and istd::IChangeable::SO_OBSERVE.

OnBeginGlobalChanges()

template<class Base >

void imod::TModelWrap< Base >::OnBeginGlobalChanges ( )

overrideprotectedvirtual

Called before global changes will be started.

Implements imod::CModelBase.

Definition at line 123 of file TModelWrap.h.

OnEndGlobalChanges()

template<class Base >

void imod::TModelWrap< Base >::OnEndGlobalChanges ( const istd::IChangeable::ChangeSet &  changeSet )

overrideprotectedvirtual

Called after global changes are finished.

Implements imod::CModelBase.

Definition at line 130 of file TModelWrap.h.

SetBaseObject()

template<class Base >

void imod::TModelWrap< Base >::SetBaseObject

(

const Base &

baseObject

)

Definition at line 60 of file TModelWrap.h.

---

The documentation for this class was generated from the following file:

• Acf/Include/imod/TModelWrap.h
