#include <CSplashScreenGuiComp.h>

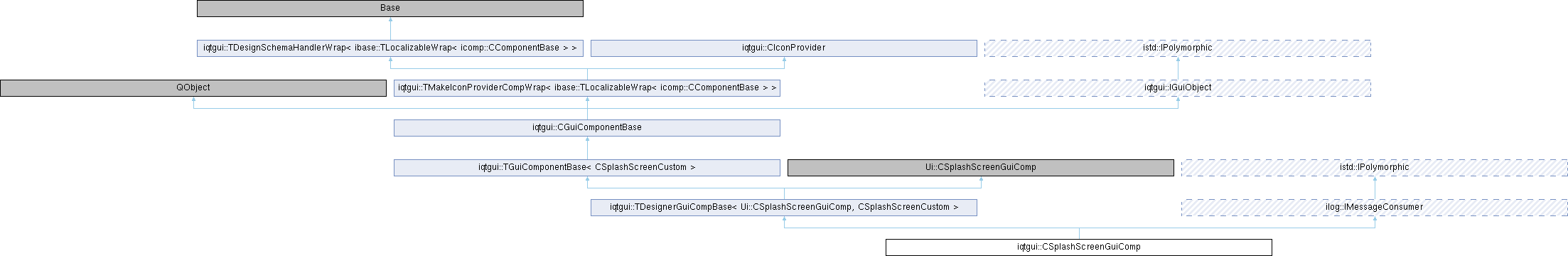

Inheritance diagram for iqtgui::CSplashScreenGuiComp:

Public Types
typedef TDesignerGuiCompBase< Ui::CSplashScreenGuiComp, CSplashScreenCustom >	BaseClass

Public Types inherited from iqtgui::TGuiComponentBase< WidgetType >
typedef CGuiComponentBase	BaseClass

Public Types inherited from iqtgui::CGuiComponentBase
typedef TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >	BaseClass

Public Types inherited from iqtgui::TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >
typedef ibase::TLocalizableWrap< icomp::CComponentBase >	BaseClass

Public Types inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
typedef Base	BaseClass

Public Types inherited from ilog::IMessageConsumer
typedef istd::TSharedInterfacePtr< istd::IInformationProvider >	MessagePtr
	Shared pointer type for message objects.

Signals
void	EmitAddMessage (const MessagePtr &messagePtr)

Public Member Functions
	CSplashScreenGuiComp ()

virtual bool	IsMessageSupported (int messageCategory=-1, int messageId=-1, const istd::IInformationProvider *messagePtr=NULL) const override
	Check if a message is supported by this consumer.

virtual void	AddMessage (const MessagePtr &messagePtr) override
	Adds a message to this consumer.

Public Member Functions inherited from iqtgui::TGuiComponentBase< WidgetType >
	TGuiComponentBase ()

virtual WidgetType *	GetQtWidget () const

virtual QWidget *	CreateQtWidget (QWidget *parentPtr) override
	Create slave widget object.

Public Member Functions inherited from iqtgui::CGuiComponentBase
	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, IVisualStatus, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, istd::IChangeable, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, imod::IModel, ExtractVisualStatus)

	CGuiComponentBase ()

bool	IsGuiShown () const

virtual bool	IsGuiCreated () const override
	Checks if the GUI has been initialized and created.

virtual bool	CreateGui (QWidget *parentPtr) override
	Initializes the GUI and connects it to the parent widget.

virtual bool	DestroyGui () override
	Releases GUI resources and disconnects from the parent.

virtual QWidget *	GetWidget () const override
	Gets access to the internal QWidget object.

virtual void	OnTryClose (bool *ignoredPtr=NULL) override
	Called when the application is attempting to close.

Public Member Functions inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
	TDesignSchemaHandlerWrap ()

virtual void	EnableDesignHandler (bool enable=true)
	If enabled, listen to the design schema change events from the application context.

Public Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	GetIcon (const QString &iconName) const

virtual QString	GetIconPath (const QString &iconName) const

virtual QString	GetStyleSheetPath (const QString &styleSheetPath) const

QByteArray	GetCurrentThemeId () const

void	SetThemeId (const QByteArray &themeId)

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Slots
void	OnAddMessage (const MessagePtr &messagePtr)

Protected Member Functions
virtual void	OnGuiCreated () override
	Called just after GUI is initialized.

virtual void	OnGuiRetranslate () override
	Called from widget event filter when GUI should be retranslated.

Protected Member Functions inherited from iqtgui::CGuiComponentBase
virtual void	OnGuiDesignChanged ()

virtual void	OnGuiShown ()
	Called from widget event filter when slave widget is shown.

virtual void	OnGuiHidden ()
	Called from widget event filter when slave widget is hidden.

virtual bool	OnKeyPressed (QKeyEvent *event)
	Called from widget event filter when key is pressed.

virtual void	OnRetranslate ()
	Called when non-GUI elements (like commands) should be retranslated.

virtual void	OnGuiDestroyed ()
	Called just before GUI is released.

void	SetStatusIcon (const QIcon &icon)
	Set status icon;.

void	SetStatusText (const QString &text)
	Set status text;.

void	SetDefaultVisualStatus ()

virtual void	OnLanguageChanged () override

virtual void	OnDesignSchemaChanged (const QByteArray &themeId) override

virtual bool	eventFilter (QObject sourcePtr, QEvent eventPtr) override

virtual void	OnComponentCreated () override

virtual void	OnComponentDestroyed () override

Protected Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	CreateIcon (const QString &iconName) const

Additional Inherited Members
Protected Attributes inherited from iqtgui::CGuiComponentBase
imod::TModelWrap< VisualStatus >	m_visualStatus

Detailed Description

Definition at line 42 of file CSplashScreenGuiComp.h.

Member Typedef Documentation

◆ BaseClass

typedef TDesignerGuiCompBase<Ui::CSplashScreenGuiComp, CSplashScreenCustom> iqtgui::CSplashScreenGuiComp::BaseClass

Definition at line 48 of file CSplashScreenGuiComp.h.

Constructor & Destructor Documentation

◆ CSplashScreenGuiComp()

iqtgui::CSplashScreenGuiComp::CSplashScreenGuiComp ( )

Member Function Documentation

◆ AddMessage()

virtual void iqtgui::CSplashScreenGuiComp::AddMessage ( const MessagePtr & messagePtr )

overridevirtual

Adds a message to this consumer.

This method transfers ownership of the message to the consumer via shared pointer. The consumer may store, display, forward, or otherwise process the message.

Most implementations deliver messages asynchronously using Qt signals/slots to ensure thread safety when messages are added from worker threads.

Parameters

messagePtr Shared pointer to the message. After this call, the message is owned by the shared pointer and will be automatically deleted when no longer referenced.

Note: This method should not throw exceptions. Implementations should handle errors gracefully (e.g., by logging internally or ignoring invalid messages).

Warning: The message object should not be modified after being added to a consumer, as multiple consumers may reference the same message object.

Example: // Create message with shared pointer

istd::TSharedInterfacePtr<ilog::CMessage> msg(

new ilog::CMessage(

istd::IInformationProvider::IC_ERROR,

2001,

"File not found: config.xml",

"ConfigLoader"

)

);

// Add to consumer (ownership transferred)

consumer->AddMessage(msg);

// msg can still be used as shared pointer maintains reference count

// but don't modify the message after adding it

ilog::CMessage
Basic implementation of the istd::IInformationProvider interface for log messages.
Definition CMessage.h:80

istd::IInformationProvider::IC_ERROR
@ IC_ERROR
Information about error, processing could not be done correctly.
Definition IInformationProvider.h:44

istd::TSharedInterfacePtr
Shared ownership smart pointer for interface types.
Definition TInterfacePtr.h:507

See also: IsMessageSupported()

Implements ilog::IMessageConsumer.

◆ EmitAddMessage

void iqtgui::CSplashScreenGuiComp::EmitAddMessage ( const MessagePtr & messagePtr )

signal

◆ IsMessageSupported()

virtual bool iqtgui::CSplashScreenGuiComp::IsMessageSupported	(	int	messageCategory = `-1`,
		int	messageId = `-1`,
		const istd::IInformationProvider *	messagePtr = `NULL`
	)		const

overridevirtual

Check if a message is supported by this consumer.

This method allows consumers to filter messages based on category, ID, or the complete message object. It's used to determine whether a message should be sent to this consumer before actually adding it.

Parameters

messageCategory Category of message (IC_NONE, IC_INFO, IC_WARNING, IC_ERROR, IC_CRITICAL) or -1 if category check should be skipped.

See also: istd::IInformationProvider::InformationCategory.

Parameters

messageId	Numeric ID of message or -1 if ID check should be skipped. Message IDs are application-defined for filtering and routing.
messagePtr	Optional pointer to complete message object for detailed inspection, or NULL if not needed. The consumer will not store this pointer.

Returns: true if the message is supported and should be sent to this consumer, false if the message should be filtered out.

Note: Returning false does not indicate an error; it simply means the message doesn't match the consumer's filter criteria.

Example: // Check if consumer accepts warnings

if (consumer->IsMessageSupported(istd::IInformationProvider::IC_WARNING)) {

// Consumer accepts warnings

}

// Check specific message ID

if (consumer->IsMessageSupported(-1, 5001)) {

// Consumer accepts message ID 5001

}

// Check complete message

ilog::CMessage msg(istd::IInformationProvider::IC_INFO, 1, "Test", "Source");

if (consumer->IsMessageSupported(-1, -1, &msg)) {

// Consumer accepts this specific message

}

istd::IInformationProvider::IC_INFO
@ IC_INFO
Normal information level.
Definition IInformationProvider.h:36

istd::IInformationProvider::IC_WARNING
@ IC_WARNING
Information about warning, processing could be done.
Definition IInformationProvider.h:40

Implements ilog::IMessageConsumer.

◆ OnAddMessage

void iqtgui::CSplashScreenGuiComp::OnAddMessage ( const MessagePtr & messagePtr )

protectedslot

◆ OnGuiCreated()

virtual void iqtgui::CSplashScreenGuiComp::OnGuiCreated ( )

overrideprotectedvirtual

Called just after GUI is initialized.

Reimplemented from iqtgui::CGuiComponentBase.

◆ OnGuiRetranslate()

virtual void iqtgui::CSplashScreenGuiComp::OnGuiRetranslate ( )

overrideprotectedvirtual

Called from widget event filter when GUI should be retranslated.

Reimplemented from iqtgui::CGuiComponentBase.

The documentation for this class was generated from the following file:

Acf/Include/iqtgui/CSplashScreenGuiComp.h
