Common interface for GUI objects used in ACF component context. More...

#include <IGuiObject.h>

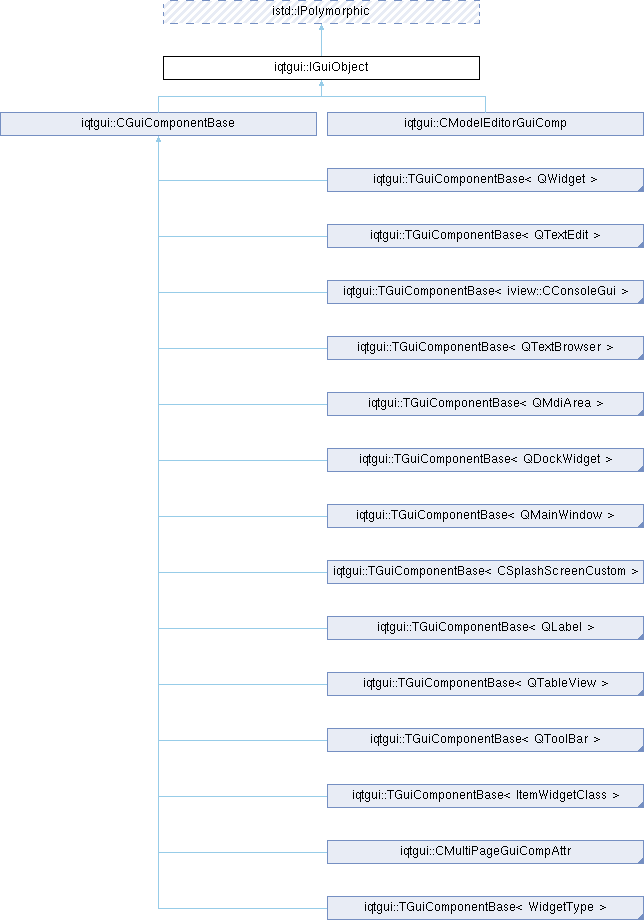

Inheritance diagram for iqtgui::IGuiObject:

Public Member Functions
virtual bool	IsGuiCreated () const =0
	Checks if the GUI has been initialized and created.

virtual bool	CreateGui (QWidget *parentPtr)=0
	Initializes the GUI and connects it to the parent widget.

virtual bool	DestroyGui ()=0
	Releases GUI resources and disconnects from the parent.

virtual QWidget *	GetWidget () const =0
	Gets access to the internal QWidget object.

virtual void	OnTryClose (bool *ignoredPtr=NULL)=0
	Called when the application is attempting to close.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Common interface for GUI objects used in ACF component context.

Purpose

IGuiObject provides a standardized interface for managing the lifecycle of GUI components within the ACF framework. It handles initialization, parent-child relationships, and cleanup of Qt-based GUI elements in a component-oriented architecture.

Lifecycle Management

The typical lifecycle of a GUI object follows these stages:

Creation: Object is constructed but GUI is not yet created
Initialization: CreateGui() is called to create and initialize Qt widgets
Active: GUI is created and operational (IsGuiCreated() returns true)
Cleanup: DestroyGui() is called to release GUI resources
Destruction: Object is destroyed

Usage Pattern

// Example GUI component implementation
class CMyGuiComponent: public iqtgui::IGuiObject
{
public:
       CMyGuiComponent() : m_widget(nullptr) {}

       virtual bool IsGuiCreated() const override
       {
              return m_widget != nullptr;
       }

       virtual bool CreateGui(QWidget* parentPtr) override
       {
              if (IsGuiCreated()) {
                     return false;  // Already created
              }

              m_widget = new QWidget(parentPtr);
              m_layout = new QVBoxLayout(m_widget);
              m_button = new QPushButton("Click Me", m_widget);
              m_layout->addWidget(m_button);

              // Connect signals, configure widget properties, etc.
              connect(m_button, &QPushButton::clicked, this, &CMyGuiComponent::onButtonClicked);

              return true;
       }

       virtual bool DestroyGui() override
       {
              if (!IsGuiCreated()) {
                     return false;  // Not created
              }

              // Cleanup: Qt will delete child widgets automatically
              delete m_widget;
              m_widget = nullptr;
              m_layout = nullptr;
              m_button = nullptr;

              return true;
       }

       virtual QWidget* GetWidget() const override
       {
              return m_widget;
       }

       virtual void OnTryClose(bool* ignoredPtr) override
       {
              // Check if there are unsaved changes
              if (HasUnsavedChanges()) {
                     if (ignoredPtr) {
                             *ignoredPtr = true;  // Prevent closing
                            ShowSaveDialog();
                     }
              }
       }

private:
       QWidget* m_widget;
       QVBoxLayout* m_layout;
       QPushButton* m_button;

       bool HasUnsavedChanges() const { return false; }  // Example
       void ShowSaveDialog() {}  // Example
       void onButtonClicked() {}  // Example
};

// Usage
CMyGuiComponent component;
QWidget* mainWindow = GetMainWindow();

// Create the GUI
if (component.CreateGui(mainWindow)) {
       // GUI created successfully
       QWidget* widget = component.GetWidget();
       widget->show();
}

// Later, when closing
bool ignored = false;
component.OnTryClose(&ignored);
if (!ignored) {
       component.DestroyGui();
}

See also: iqtgui::CGuiComponentBase, iqtgui::TGuiComponentBase

Definition at line 132 of file IGuiObject.h.

Member Function Documentation

◆ CreateGui()

virtual bool iqtgui::IGuiObject::CreateGui ( QWidget * parentPtr )

pure virtual

Initializes the GUI and connects it to the parent widget.

This method creates and initializes all Qt widgets that form the GUI component. It should only be called once; subsequent calls should be ignored or return false. The created widgets become children of the specified parent widget.

Parameters

parentPtr Pointer to the parent QWidget. The created GUI will be a child of this widget. Can be nullptr for top-level widgets.

Returns: true if initialization succeeded, false if it failed or was already created.

Note: After successful creation, IsGuiCreated() should return true.; This method should be idempotent - calling it multiple times should not create multiple GUI instances.

See also: DestroyGui(), IsGuiCreated(), GetWidget()

Implemented in iqtgui::CGuiComponentBase, iqtgui::CModelEditorGuiComp, iqtgui::TRestorableGuiWrap< CMultiPageGuiCompBase >, iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMainWindow > >, iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMdiArea > >, and iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QWidget > >.

◆ DestroyGui()

virtual bool iqtgui::IGuiObject::DestroyGui ( )

pure virtual

Releases GUI resources and disconnects from the parent.

This method destroys all Qt widgets created by CreateGui() and cleans up associated resources. After calling this method, IsGuiCreated() should return false, and GetWidget() should return nullptr or an invalid pointer.

Returns: true if the operation succeeded, false if it failed or GUI was not created.

Note: It's safe to call this method even if the GUI was not created; it should simply return false in that case.; After calling this method, CreateGui() can be called again to recreate the GUI if needed.

See also: CreateGui(), IsGuiCreated()

Implemented in iqtgui::CGuiComponentBase, iqtgui::CModelEditorGuiComp, iqtgui::TRestorableGuiWrap< CMultiPageGuiCompBase >, iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMainWindow > >, iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMdiArea > >, and iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QWidget > >.

◆ GetWidget()

virtual QWidget * iqtgui::IGuiObject::GetWidget ( ) const

pure virtual

Gets access to the internal QWidget object.

Returns a pointer to the main QWidget that represents this GUI component. This widget can be used for layout management, showing/hiding, or other Qt-specific operations.

Returns: Pointer to the internal QWidget, or nullptr if GUI is not created.

Note: The returned pointer is owned by this IGuiObject instance. The caller should not delete it.; The pointer becomes invalid after DestroyGui() is called.

See also: CreateGui(), IsGuiCreated()

Implemented in iqtgui::CGuiComponentBase, and iqtgui::CModelEditorGuiComp.

◆ IsGuiCreated()

virtual bool iqtgui::IGuiObject::IsGuiCreated ( ) const

pure virtual

Checks if the GUI has been initialized and created.

This method returns true after CreateGui() has been successfully called and before DestroyGui() is called. It can be used to verify the GUI state before performing operations that require an active GUI.

Returns: true if the GUI is created and initialized, false otherwise.

See also: CreateGui(), DestroyGui()

Implemented in iqtgui::CGuiComponentBase, and iqtgui::CModelEditorGuiComp.

◆ OnTryClose()

virtual void iqtgui::IGuiObject::OnTryClose ( bool * ignoredPtr = NULL )

pure virtual

Called when the application is attempting to close.

This method is invoked before the application closes, giving the GUI component a chance to prevent the close operation (e.g., to save unsaved data, show confirmation dialogs, or perform cleanup operations).

Parameters

ignoredPtr Optional pointer to a boolean flag. If not nullptr and the component wants to prevent closing (e.g., user cancels a save dialog), the implementation should set *ignoredPtr to true. If nullptr, the close operation cannot be prevented.

Note: If ignoredPtr is nullptr, the implementation must not try to prevent closing and should only perform necessary cleanup.; This method may be called multiple times if the close is initially prevented but later attempted again.

// Example implementation
virtual void OnTryClose(bool* ignoredPtr)
{
       if (m_hasUnsavedData) {
              if (ignoredPtr) {
                     // Show save dialog
                     int result = QMessageBox::question(GetWidget(),
                            "Unsaved Changes",
                            "Do you want to save your changes?",
                            QMessageBox::Save | QMessageBox::Discard | QMessageBox::Cancel);

                     if (result == QMessageBox::Save) {
                            SaveData();
                     } else if (result == QMessageBox::Cancel) {
                             *ignoredPtr = true;  // Prevent closing
                            return;
                     }
              }
       }
       // Perform cleanup if needed
}

See also: DestroyGui()

Implemented in iqtdoc::CMultiDocumentWorkspaceGuiComp, iqtdoc::CSingleDocumentWorkspaceGuiComp, iqtgui::CGuiComponentBase, iqtgui::CModelEditorGuiComp, iqtgui::CMultiPageGuiCompBase, and iqtgui::CSimpleMainWindowGuiComp.

The documentation for this class was generated from the following file:

Acf/Include/iqtgui/IGuiObject.h
