Standard main window component for any document-based application. More...

#include <CMainWindowGuiComp.h>

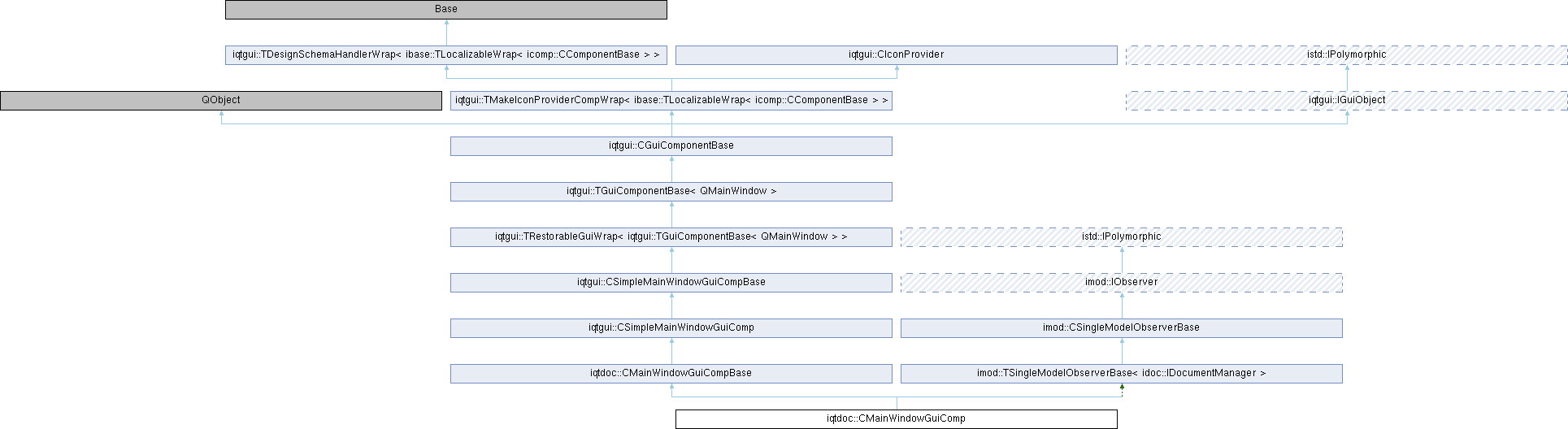

Inheritance diagram for iqtdoc::CMainWindowGuiComp:

Public Types
enum	GroupId { GI_APPLICATION = 0x200 , GI_DOCUMENT , GI_UNDO , GI_RECENT_FILE }

enum	CommandProviderId { CPI_DOCUMENT_MANAGER = 100 , CPI_ACTIVE_VIEW , CPI_ACTIVE_DOCUMENT }

typedef CMainWindowGuiCompBase	BaseClass

typedef imod::TSingleModelObserverBase< idoc::IDocumentManager >	BaseClass2

Public Types inherited from iqtdoc::CMainWindowGuiCompBase
typedef iqtgui::CSimpleMainWindowGuiComp	BaseClass

Public Types inherited from iqtgui::CSimpleMainWindowGuiComp
enum	GroupId { GI_SETTINGS = 0x400 }

enum	ModelId { MI_PREFERENCE_COMMAND = 0x1000 }

typedef CSimpleMainWindowGuiCompBase	BaseClass

Public Types inherited from iqtgui::CSimpleMainWindowGuiCompBase
typedef iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMainWindow > >	BaseClass

Public Types inherited from iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMainWindow > >
typedef iqtgui::TGuiComponentBase< QMainWindow >	BaseClass

Public Types inherited from iqtgui::TGuiComponentBase< QMainWindow >
typedef CGuiComponentBase	BaseClass

Public Types inherited from iqtgui::CGuiComponentBase
typedef TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >	BaseClass

Public Types inherited from iqtgui::TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >
typedef ibase::TLocalizableWrap< icomp::CComponentBase >	BaseClass

Public Types inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
typedef Base	BaseClass

Public Member Functions
	CMainWindowGuiComp ()

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.

virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.

Public Member Functions inherited from iqtgui::CSimpleMainWindowGuiComp
	CSimpleMainWindowGuiComp ()

virtual void	OnTryClose (bool *ignoredPtr=NULL) override
	Called when the application is attempting to close.

Public Member Functions inherited from iqtgui::TGuiComponentBase< QMainWindow >
	TGuiComponentBase ()

virtual QMainWindow *	GetQtWidget () const

virtual QWidget *	CreateQtWidget (QWidget *parentPtr) override
	Create slave widget object.

Public Member Functions inherited from iqtgui::CGuiComponentBase
	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, IVisualStatus, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, istd::IChangeable, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, imod::IModel, ExtractVisualStatus)

	CGuiComponentBase ()

bool	IsGuiShown () const

virtual bool	IsGuiCreated () const override
	Checks if the GUI has been initialized and created.

virtual QWidget *	GetWidget () const override
	Gets access to the internal QWidget object.

Public Member Functions inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
	TDesignSchemaHandlerWrap ()

virtual void	EnableDesignHandler (bool enable=true)
	If enabled, listen to the design schema change events from the application context.

Public Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	GetIcon (const QString &iconName) const

virtual QString	GetIconPath (const QString &iconName) const

virtual QString	GetStyleSheetPath (const QString &styleSheetPath) const

QByteArray	GetCurrentThemeId () const

void	SetThemeId (const QByteArray &themeId)

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Slots
void	OnNew ()

void	OnOpen ()

void	OnSave ()

void	OnSaveAs ()

void	OnQuit ()

void	OnUndo ()

void	OnRedo ()

void	OnCopyPathToClipboard ()

void	OnOpenDocumentFolder ()

Protected Slots inherited from iqtgui::CSimpleMainWindowGuiComp
void	OnShowToolbars ()

void	OnFullScreen ()

void	OnAbout ()

void	OnHelpManual ()

void	OnSettings ()

void	OnShowOtherCommandTriggered (bool enabled)

Protected Member Functions
virtual bool	OpenFile (const QString &fileName, const QByteArray *documentTypeIdPtr=NULL)

virtual bool	SaveActiveDocument ()

virtual void	OnActiveViewChanged ()

virtual void	OnActiveDocumentChanged ()

virtual void	OnDragEnterEvent (QDragEnterEvent *dragEnterEventPtr)

virtual void	OnDropEvent (QDropEvent *dropEventPtr)

void	SetupNewCommand ()

bool	HasDocumentTemplate () const

void	UpdateUndoMenu ()

void	OnNewDocument (const QByteArray &documentTypeId)

virtual bool	SerializeRecentFileList (iser::IArchive &archive)

virtual void	UpdateRecentFileList (const idoc::IDocumentManager::FileToTypeMap &fileToTypeMap)
	Updates displayed list of recent used files.

virtual void	RemoveFromRecentFileList (const QString &filePath)

virtual bool	IsMainWindowActive (int index) const

virtual void	UpdateFixedCommands (iqtgui::CHierarchicalCommand &fixedCommands) override

virtual void	UpdateToolsCommands (iqtgui::CHierarchicalCommand &toolsCommand) override

virtual void	AppendMenuActions (iqtgui::CHierarchicalCommand &menuCommands) override

virtual void	OnGuiCreated () override
	Called just after GUI is initialized.

virtual void	OnGuiDestroyed () override
	Called just before GUI is released.

virtual void	OnRetranslate () override
	Called when non-GUI elements (like commands) should be retranslated.

virtual void	OnGuiDesignChanged () override

virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet) override
	Called on update of observed model.

virtual bool	eventFilter (QObject sourcePtr, QEvent eventPtr) override

virtual void	OnComponentCreated () override

virtual void	OnComponentDestroyed () override

Protected Member Functions inherited from iqtgui::CSimpleMainWindowGuiComp
virtual void	UpdateMenuActions ()

virtual void	SetupMainWindowComponents (QMainWindow &mainWindow)

virtual void	AddMainComponent (int componentIndex, iqtgui::IMainWindowComponent *componentPtr)

virtual void	RemoveMainComponent (iqtgui::IMainWindowComponent *componentPtr)

virtual void	CreateMenuBar ()

virtual void	CreateDefaultToolBar ()

virtual void	SetToolBarsVisible (bool isVisible=true)

virtual void	SetupMenu ()

virtual void	UpdateViewCommands (iqtgui::CHierarchicalCommand &viewCommand)

virtual void	UpdateHelpCommands (iqtgui::CHierarchicalCommand &helpCommand)

virtual void	UpdateMainWindowComponentsVisibility ()
	Set main window visible or invisible, depending on menu commands.

virtual void	OnRestoreSettings (const QSettings &settings) override

virtual void	OnSaveSettings (QSettings &settings) const override

virtual void	OnGuiShown () override
	Called from widget event filter when slave widget is shown.

Protected Member Functions inherited from iqtgui::TRestorableGuiWrap< iqtgui::TGuiComponentBase< QMainWindow > >
virtual bool	CreateGui (QWidget *parentPtr) override

virtual bool	DestroyGui () override

Protected Member Functions inherited from iqtgui::CGuiComponentBase
virtual void	OnGuiHidden ()
	Called from widget event filter when slave widget is hidden.

virtual bool	OnKeyPressed (QKeyEvent *event)
	Called from widget event filter when key is pressed.

virtual void	OnGuiRetranslate ()
	Called from widget event filter when GUI should be retranslated.

void	SetStatusIcon (const QIcon &icon)
	Set status icon;.

void	SetStatusText (const QString &text)
	Set status text;.

void	SetDefaultVisualStatus ()

virtual void	OnLanguageChanged () override

virtual void	OnDesignSchemaChanged (const QByteArray &themeId) override

Protected Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	CreateIcon (const QString &iconName) const

Protected Member Functions inherited from imod::TSingleModelObserverBase< idoc::IDocumentManager >
virtual idoc::IDocumentManager *	CastFromModel (imod::IModel *modelPtr) const

	TSingleModelObserverBase ()

idoc::IDocumentManager *	GetObservedObject () const
	Get instance of observed object.

idoc::IDocumentManager *	GetObjectPtr () const
	Get instance of observed object.

bool	AttachOrSetObject (idoc::IDocumentManager *objectPtr)
	Attach to model of object or set object pointer, if no connection is possible.

Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.

	CSingleModelObserverBase ()

virtual	~CSingleModelObserverBase ()

imod::IModel *	GetObservedModel () const
	Get access to observed model.

imod::IModel *	GetModelPtr () const
	Get access to observed model.

void	EnsureModelDetached ()
	Make sure this observer is detached.

void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.

virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.

Additional Inherited Members
Protected Types inherited from imod::TSingleModelObserverBase< idoc::IDocumentManager >
typedef CSingleModelObserverBase	BaseClass

typedef idoc::IDocumentManager	ModelType

Protected Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType

Protected Attributes inherited from iqtgui::CSimpleMainWindowGuiComp
CommandsObserver	m_commandsObserver

Protected Attributes inherited from iqtgui::CGuiComponentBase
imod::TModelWrap< VisualStatus >	m_visualStatus

Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Standard main window component for any document-based application.

This component provides a complete main window implementation for document-based applications, including menus, toolbars, file operations, undo/redo, and document management integration. It's designed to work seamlessly with IDocumentManager and provides a professional application UI out of the box.

Key Features

Complete File menu (New, Open, Save, Save As, Recent Files, Quit)
Edit menu with Undo/Redo
Tools menu (Copy Path, Open Containing Folder)
Automatic recent files tracking
Document state monitoring
Drag & drop support for opening files
Progress display for file operations
Multi-document type support

Component References

ApplicationInfo - Application metadata (name, version, etc.) (required)
DocumentManager - Document manager instance (required)
Application - Application command line access (required)
DropConsumer - Optional custom drop handler
PersistenceProgress - Optional progress manager for file operations

Component Attributes

IsCopyPathVisible - Show "Copy Path" command (default: false)
IsOpenContainingFolderVisible - Show "Open Containing Folder" (default: false)
MaxRecentFiles - Maximum recent files per type (default: 10)
OpenCommandVisible - Show open command (default: true)
SaveCommandVisible - Show save commands (default: true)
MainWindowCompTypeIds - Document types to enable for main window component

Configuration Example: CMainWindowGuiComp {

ApplicationInfo = ApplicationInfo

DocumentManager = DocumentManager

Application = Application

MaxRecentFiles = 15

IsCopyPathVisible = true

IsOpenContainingFolderVisible = true

// Optional workspace

Workspace = CSingleDocumentWorkspaceGuiComp {

DocumentManager = DocumentManager

}

// Optional help

HelpViewer = CHtmlHelpGuiComp {

HelpFileProvider = HelpProvider

}

}

iqtdoc::CHtmlHelpGuiComp
HTML-based help viewer component.
Definition CHtmlHelpGuiComp.h:107

iqtdoc::CMainWindowGuiComp
Standard main window component for any document-based application.
Definition CMainWindowGuiComp.h:187

iqtdoc::CSingleDocumentWorkspaceGuiComp
Qt-based workspace implementation of a single document manager.
Definition CSingleDocumentWorkspaceGuiComp.h:95

MDI Application Example: CMainWindowGuiComp {

ApplicationInfo = AppInfo

DocumentManager = MultiDocManager

Application = App

Workspace = CMultiDocumentWorkspaceGuiComp {

DocumentManager = MultiDocManager

ViewMode = "Tabbed"

}

}

iqtdoc::CMultiDocumentWorkspaceGuiComp
This class is a Qt-based workspace implementation of a multi-document manager.
Definition CMultiDocumentWorkspaceGuiComp.h:147

Recent Files: The main window automatically maintains separate recent file lists for each document type. Recent files appear in the File menu and are persisted between application sessions.

File Operations: // File menu operations are automatically wired up:

// - New: Creates new document (if template supports SF_NEW_DOCUMENT)

// - Open: Opens existing file with dialog

// - Save: Saves active document

// - Save As: Saves with new filename

// - Recent Files: Quick access to recently used files

// - Quit: Closes application (prompts to save dirty documents)

Edit Operations: // Edit menu automatically includes:

// - Undo: Reverses last change (if undo manager available)

// - Redo: Reapplies undone change

// Commands are automatically enabled/disabled based on undo availability

Drag & Drop: Files can be dragged onto the main window to open them. The component automatically determines the document type from file extension.

Progress Display: When PersistenceProgress is configured, file operations show progress in a dialog:
PersistenceProgress = CProgressManagerComp {

// Progress configuration

}

See also: IDocumentManager, CSingleDocumentWorkspaceGuiComp, CMultiDocumentWorkspaceGuiComp

Definition at line 184 of file CMainWindowGuiComp.h.

Member Typedef Documentation

◆ BaseClass

typedef CMainWindowGuiCompBase iqtdoc::CMainWindowGuiComp::BaseClass

Definition at line 191 of file CMainWindowGuiComp.h.

◆ BaseClass2

typedef imod::TSingleModelObserverBase<idoc::IDocumentManager> iqtdoc::CMainWindowGuiComp::BaseClass2

Definition at line 192 of file CMainWindowGuiComp.h.

Member Enumeration Documentation

◆ CommandProviderId

enum iqtdoc::CMainWindowGuiComp::CommandProviderId

Enumerator
CPI_DOCUMENT_MANAGER
CPI_ACTIVE_VIEW
CPI_ACTIVE_DOCUMENT

Definition at line 217 of file CMainWindowGuiComp.h.

◆ GroupId

enum iqtdoc::CMainWindowGuiComp::GroupId

Enumerator
GI_APPLICATION
GI_DOCUMENT
GI_UNDO
GI_RECENT_FILE

Definition at line 209 of file CMainWindowGuiComp.h.

Constructor & Destructor Documentation

◆ CMainWindowGuiComp()

iqtdoc::CMainWindowGuiComp::CMainWindowGuiComp ( )

Member Function Documentation

◆ AppendMenuActions()

virtual void iqtdoc::CMainWindowGuiComp::AppendMenuActions ( iqtgui::CHierarchicalCommand & menuCommands )

overrideprotectedvirtual

Reimplemented from iqtgui::CSimpleMainWindowGuiComp.

◆ eventFilter()

virtual bool iqtdoc::CMainWindowGuiComp::eventFilter	(	QObject *	sourcePtr,
		QEvent *	eventPtr
	)

overrideprotectedvirtual

Reimplemented from iqtgui::CSimpleMainWindowGuiComp.

◆ HasDocumentTemplate()

bool iqtdoc::CMainWindowGuiComp::HasDocumentTemplate ( ) const

protected

◆ IsMainWindowActive()

virtual bool iqtdoc::CMainWindowGuiComp::IsMainWindowActive ( int index ) const

protectedvirtual

Reimplemented from iqtgui::CSimpleMainWindowGuiComp.

◆ OnActiveDocumentChanged()

virtual void iqtdoc::CMainWindowGuiComp::OnActiveDocumentChanged ( )

protectedvirtual

◆ OnActiveViewChanged()

virtual void iqtdoc::CMainWindowGuiComp::OnActiveViewChanged ( )

protectedvirtual

◆ OnComponentCreated()

virtual void iqtdoc::CMainWindowGuiComp::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from iqtgui::CGuiComponentBase.

◆ OnComponentDestroyed()

virtual void iqtdoc::CMainWindowGuiComp::OnComponentDestroyed ( )

overrideprotectedvirtual

Reimplemented from iqtgui::CGuiComponentBase.

◆ OnCopyPathToClipboard

void iqtdoc::CMainWindowGuiComp::OnCopyPathToClipboard ( )

protectedslot

◆ OnDragEnterEvent()

virtual void iqtdoc::CMainWindowGuiComp::OnDragEnterEvent ( QDragEnterEvent * dragEnterEventPtr )

protectedvirtual

◆ OnDropEvent()

virtual void iqtdoc::CMainWindowGuiComp::OnDropEvent ( QDropEvent * dropEventPtr )

protectedvirtual

◆ OnGuiCreated()

virtual void iqtdoc::CMainWindowGuiComp::OnGuiCreated ( )

overrideprotectedvirtual

Called just after GUI is initialized.

Reimplemented from iqtgui::CSimpleMainWindowGuiComp.

◆ OnGuiDesignChanged()

virtual void iqtdoc::CMainWindowGuiComp::OnGuiDesignChanged ( )

overrideprotectedvirtual

Reimplemented from iqtgui::CSimpleMainWindowGuiComp.

◆ OnGuiDestroyed()

virtual void iqtdoc::CMainWindowGuiComp::OnGuiDestroyed ( )

overrideprotectedvirtual

Called just before GUI is released.

Reimplemented from iqtgui::CSimpleMainWindowGuiComp.

◆ OnModelAttached()

virtual bool iqtdoc::CMainWindowGuiComp::OnModelAttached	(	imod::IModel *	modelPtr,
		istd::IChangeable::ChangeSet &	changeMask
	)

overridevirtual

Callback invoked when an observable model is about to be attached to this observer.

This method is called by the model when attempting to establish an observer relationship. The implementation should:

Validate that the model is of an acceptable type
Set the changeMask to specify which changes to monitor
Return true to accept the attachment, or false to reject it

Parameters

modelPtr	Pointer to the model object being attached. Never nullptr.
changeMask	Output parameter where the observer specifies which change types it wants to be notified about. Set the appropriate change flags using changeMask.Set(changeId). An empty mask means the observer wants all changes.

Returns: true if the model is accepted and attachment succeeds, false to reject the attachment (e.g., if the model is of incompatible type).

Note: After successful attachment, the observer should initialize its state based on the current model data.; The changeMask allows filtering notifications for better performance. Only changes matching the mask will trigger AfterUpdate() calls.

virtual bool OnModelAttached(IModel* modelPtr,
                            istd::IChangeable::ChangeSet& changeMask)
{
       // Type check
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return false;

       // Set up change filtering
       changeMask.Set(CMyModel::CF_DATA_CHANGED);
       changeMask.Set(CMyModel::CF_STATUS_CHANGED);
       // Don't set CF_INTERNAL_CHANGED - we don't care about those

       // Initialize view from current model state
       UpdateViewFromModel(model);
       return true;
}

See also: OnModelDetached(), IsModelAttached(), AfterUpdate()

Reimplemented from imod::TSingleModelObserverBase< idoc::IDocumentManager >.

◆ OnModelDetached()

virtual bool iqtdoc::CMainWindowGuiComp::OnModelDetached ( imod::IModel * modelPtr )

overridevirtual

Callback invoked when an observable model is about to be detached from this observer.

This method is called when the observer-model relationship is being terminated, either explicitly or because the model is being destroyed. The implementation should clean up any state or resources related to this model.

Parameters

modelPtr Pointer to the model object being detached

Returns: true if the detachment was handled successfully, false otherwise

Note: After this call, the observer should not access the model pointer anymore.; This method may be called even if OnModelAttached() previously returned false.; Clean up any cached data or references to this model.

virtual bool OnModelDetached(IModel* modelPtr)
{
       if (m_currentModel == modelPtr) {
              // Clear any cached data
              m_cachedData.clear();
              m_currentModel = nullptr;

              // Update UI to show no model is attached
              ClearDisplay();
              return true;
       }
       return false;
}

See also: OnModelAttached(), IsModelAttached()

Reimplemented from imod::TSingleModelObserverBase< idoc::IDocumentManager >.

◆ OnNew

void iqtdoc::CMainWindowGuiComp::OnNew ( )

protectedslot

◆ OnNewDocument()

void iqtdoc::CMainWindowGuiComp::OnNewDocument ( const QByteArray & documentTypeId )

protected

◆ OnOpen

void iqtdoc::CMainWindowGuiComp::OnOpen ( )

protectedslot

◆ OnOpenDocumentFolder

void iqtdoc::CMainWindowGuiComp::OnOpenDocumentFolder ( )

protectedslot

◆ OnQuit

void iqtdoc::CMainWindowGuiComp::OnQuit ( )

protectedslot

◆ OnRedo

void iqtdoc::CMainWindowGuiComp::OnRedo ( )

protectedslot

◆ OnRetranslate()

virtual void iqtdoc::CMainWindowGuiComp::OnRetranslate ( )

overrideprotectedvirtual

Called when non-GUI elements (like commands) should be retranslated.

Reimplemented from iqtgui::CSimpleMainWindowGuiComp.

◆ OnSave

void iqtdoc::CMainWindowGuiComp::OnSave ( )

protectedslot

◆ OnSaveAs

void iqtdoc::CMainWindowGuiComp::OnSaveAs ( )

protectedslot

◆ OnUndo

void iqtdoc::CMainWindowGuiComp::OnUndo ( )

protectedslot

◆ OnUpdate()

virtual void iqtdoc::CMainWindowGuiComp::OnUpdate ( const istd::IChangeable::ChangeSet & changeSet )

overrideprotectedvirtual

Called on update of observed model.

This method is designed to be overload by derrived classes.

Reimplemented from imod::CSingleModelObserverBase.

◆ OpenFile()

virtual bool iqtdoc::CMainWindowGuiComp::OpenFile	(	const QString &	fileName,
		const QByteArray *	documentTypeIdPtr = `NULL`
	)

protectedvirtual

◆ RemoveFromRecentFileList()

virtual void iqtdoc::CMainWindowGuiComp::RemoveFromRecentFileList ( const QString & filePath )

protectedvirtual

◆ SaveActiveDocument()

virtual bool iqtdoc::CMainWindowGuiComp::SaveActiveDocument ( )

protectedvirtual

◆ SerializeRecentFileList()

virtual bool iqtdoc::CMainWindowGuiComp::SerializeRecentFileList ( iser::IArchive & archive )

protectedvirtual

◆ SetupNewCommand()

void iqtdoc::CMainWindowGuiComp::SetupNewCommand ( )

protected

◆ UpdateFixedCommands()

virtual void iqtdoc::CMainWindowGuiComp::UpdateFixedCommands ( iqtgui::CHierarchicalCommand & fixedCommands )

overrideprotectedvirtual

Reimplemented from iqtgui::CSimpleMainWindowGuiComp.

◆ UpdateRecentFileList()

virtual void iqtdoc::CMainWindowGuiComp::UpdateRecentFileList ( const idoc::IDocumentManager::FileToTypeMap & fileToTypeMap )

protectedvirtual

Updates displayed list of recent used files.

Parameters

fileToTypeMap list of new files and corresponding types.

◆ UpdateToolsCommands()

virtual void iqtdoc::CMainWindowGuiComp::UpdateToolsCommands ( iqtgui::CHierarchicalCommand & toolsCommand )

overrideprotectedvirtual

Reimplemented from iqtgui::CSimpleMainWindowGuiComp.

◆ UpdateUndoMenu()

void iqtdoc::CMainWindowGuiComp::UpdateUndoMenu ( )

protected

The documentation for this class was generated from the following file:

Acf/Include/iqtdoc/CMainWindowGuiComp.h

Public Types

Public Member Functions

Protected Slots

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ BaseClass2

Member Enumeration Documentation

◆ CommandProviderId

◆ GroupId

Constructor & Destructor Documentation

◆ CMainWindowGuiComp()

Member Function Documentation

◆ AppendMenuActions()

◆ eventFilter()

◆ HasDocumentTemplate()

◆ IsMainWindowActive()

◆ OnActiveDocumentChanged()

◆ OnActiveViewChanged()

◆ OnComponentCreated()

◆ OnComponentDestroyed()

◆ OnCopyPathToClipboard

◆ OnDragEnterEvent()

◆ OnDropEvent()

◆ OnGuiCreated()

◆ OnGuiDesignChanged()

◆ OnGuiDestroyed()

◆ OnModelAttached()

◆ OnModelDetached()

◆ OnNew

◆ OnNewDocument()

◆ OnOpen

◆ OnOpenDocumentFolder

◆ OnQuit

◆ OnRedo

◆ OnRetranslate()

◆ OnSave

◆ OnSaveAs

◆ OnUndo

◆ OnUpdate()

◆ OpenFile()

◆ RemoveFromRecentFileList()

◆ SaveActiveDocument()

◆ SerializeRecentFileList()

◆ SetupNewCommand()

◆ UpdateFixedCommands()

◆ UpdateRecentFileList()

◆ UpdateToolsCommands()

◆ UpdateUndoMenu()
