Basic implementation of a tool bar component. More...

#include <CToolBarGuiCompBase.h>

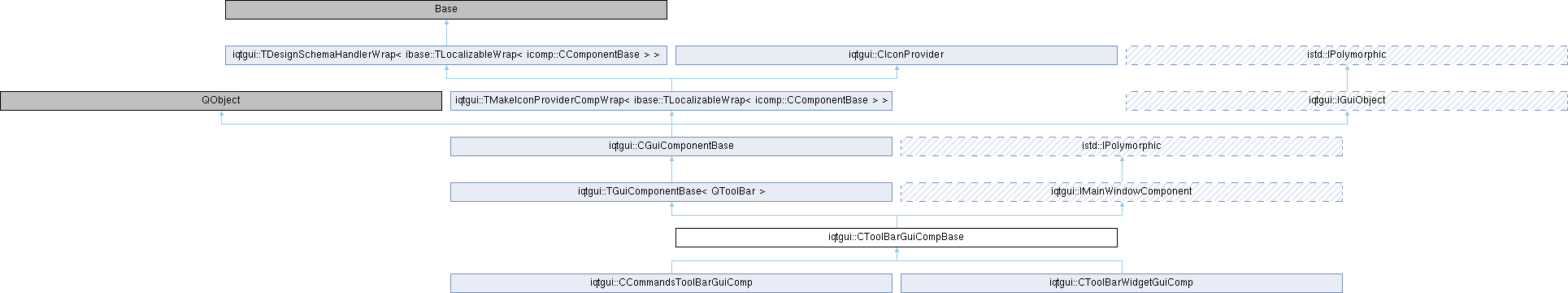

Inheritance diagram for iqtgui::CToolBarGuiCompBase:

Public Types
typedef iqtgui::TGuiComponentBase< QToolBar >	BaseClass

Public Types inherited from iqtgui::TGuiComponentBase< QToolBar >
typedef CGuiComponentBase	BaseClass

Public Types inherited from iqtgui::CGuiComponentBase
typedef TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >	BaseClass

Public Types inherited from iqtgui::TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >
typedef ibase::TLocalizableWrap< icomp::CComponentBase >	BaseClass

Public Types inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
typedef Base	BaseClass

Public Types inherited from iqtgui::IMainWindowComponent
enum	WindowComponentFlags { WCF_NONE = 0 , WCF_CLOSABLE = 1 , WCF_MOVEABLE = 2 , WCF_FLOATABLE = 4 }
	Flags describing behaviour of the main window component. More...

Public Member Functions
virtual bool	AddToMainWindow (QMainWindow &mainWindow) override
	Add this component to main window.

virtual bool	RemoveFromMainWindow (QMainWindow &mainWindow) override
	Remove this component from main window.

virtual QString	GetTitle () const override
	Get the title of the main window component.

virtual int	GetFlags () const override
	Get properties of of the window component.

Public Member Functions inherited from iqtgui::TGuiComponentBase< QToolBar >
	TGuiComponentBase ()

virtual QToolBar *	GetQtWidget () const

virtual QWidget *	CreateQtWidget (QWidget *parentPtr) override
	Create slave widget object.

Public Member Functions inherited from iqtgui::CGuiComponentBase
	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, IVisualStatus, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, istd::IChangeable, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, imod::IModel, ExtractVisualStatus)

	CGuiComponentBase ()

bool	IsGuiShown () const

virtual bool	IsGuiCreated () const override
	Checks if the GUI has been initialized and created.

virtual bool	CreateGui (QWidget *parentPtr) override
	Initializes the GUI and connects it to the parent widget.

virtual bool	DestroyGui () override
	Releases GUI resources and disconnects from the parent.

virtual QWidget *	GetWidget () const override
	Gets access to the internal QWidget object.

virtual void	OnTryClose (bool *ignoredPtr=NULL) override
	Called when the application is attempting to close.

Public Member Functions inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
	TDesignSchemaHandlerWrap ()

virtual void	EnableDesignHandler (bool enable=true)
	If enabled, listen to the design schema change events from the application context.

Public Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	GetIcon (const QString &iconName) const

virtual QString	GetIconPath (const QString &iconName) const

virtual QString	GetStyleSheetPath (const QString &styleSheetPath) const

QByteArray	GetCurrentThemeId () const

void	SetThemeId (const QByteArray &themeId)

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnGuiCreated () override
	Called just after GUI is initialized.

Protected Member Functions inherited from iqtgui::CGuiComponentBase
virtual void	OnGuiDesignChanged ()

virtual void	OnGuiShown ()
	Called from widget event filter when slave widget is shown.

virtual void	OnGuiHidden ()
	Called from widget event filter when slave widget is hidden.

virtual bool	OnKeyPressed (QKeyEvent *event)
	Called from widget event filter when key is pressed.

virtual void	OnRetranslate ()
	Called when non-GUI elements (like commands) should be retranslated.

virtual void	OnGuiRetranslate ()
	Called from widget event filter when GUI should be retranslated.

virtual void	OnGuiDestroyed ()
	Called just before GUI is released.

void	SetStatusIcon (const QIcon &icon)
	Set status icon;.

void	SetStatusText (const QString &text)
	Set status text;.

void	SetDefaultVisualStatus ()

virtual void	OnLanguageChanged () override

virtual void	OnDesignSchemaChanged (const QByteArray &themeId) override

virtual bool	eventFilter (QObject sourcePtr, QEvent eventPtr) override

virtual void	OnComponentCreated () override

virtual void	OnComponentDestroyed () override

Protected Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	CreateIcon (const QString &iconName) const
