Base class for all Qt GUI componentes. More...
#include <TGuiComponentBase.h>

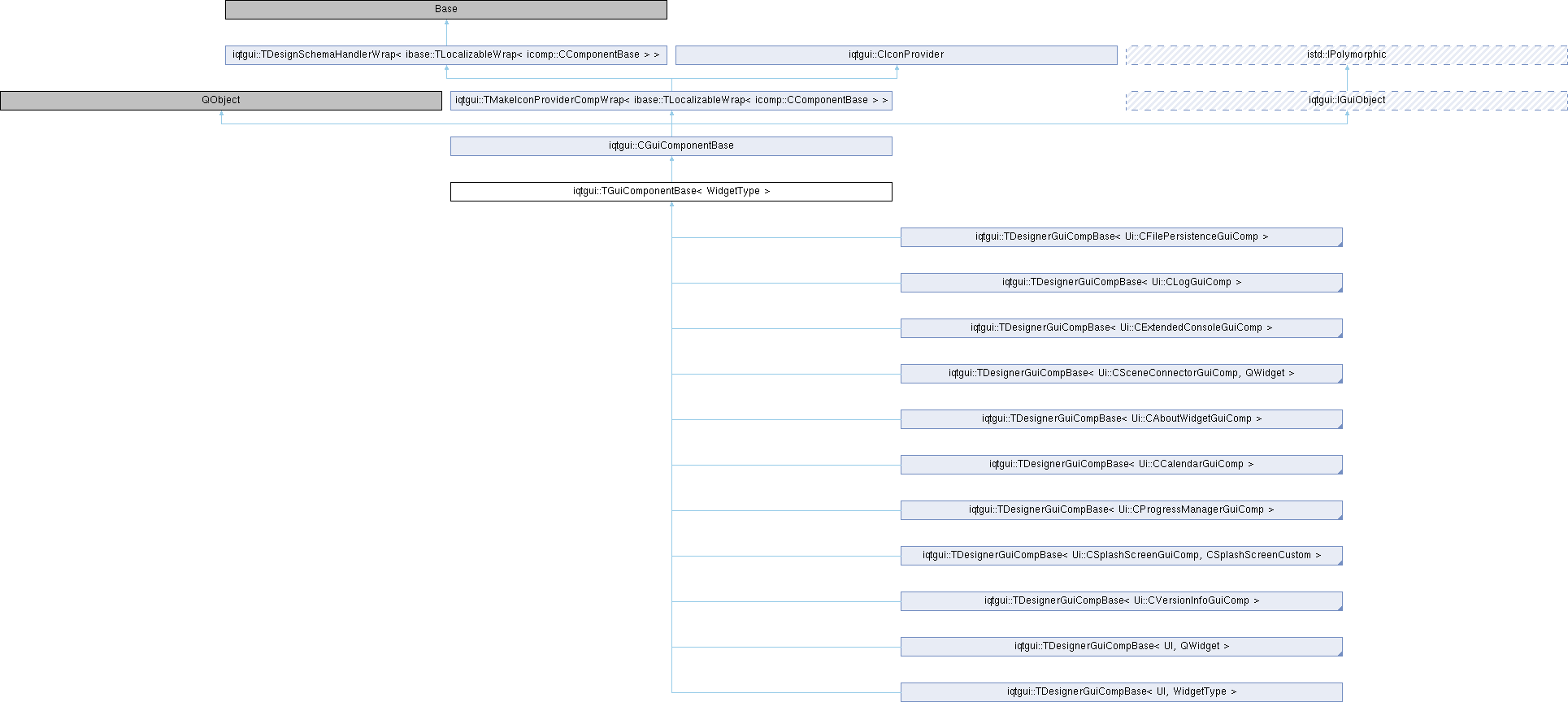

Inheritance diagram for iqtgui::TGuiComponentBase< WidgetType >:
Public Types | |
| typedef CGuiComponentBase | BaseClass |
 Public Types inherited from iqtgui::CGuiComponentBase | |
| typedef TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > > | BaseClass |
| Public Types inherited from iqtgui::TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > > | |
| typedef ibase::TLocalizableWrap< icomp::CComponentBase > | BaseClass |
| Public Types inherited from iqtgui::TDesignSchemaHandlerWrap< Base > | |
| typedef Base | BaseClass |
Public Member Functions | |
| TGuiComponentBase () | |
| virtual WidgetType * | GetQtWidget () const |
| virtual QWidget * | CreateQtWidget (QWidget *parentPtr) override |
| Create slave widget object. | |
| Public Member Functions inherited from iqtgui::CGuiComponentBase | |
| I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, IVisualStatus, ExtractVisualStatus) | |
| I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, istd::IChangeable, ExtractVisualStatus) | |
| I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, imod::IModel, ExtractVisualStatus) | |
| CGuiComponentBase () | |
| bool | IsGuiShown () const |
| virtual bool | IsGuiCreated () const override |
| Checks if the GUI has been initialized and created. | |
| virtual bool | CreateGui (QWidget *parentPtr) override |
| Initializes the GUI and connects it to the parent widget. | |
| virtual bool | DestroyGui () override |
| Releases GUI resources and disconnects from the parent. | |
| virtual QWidget * | GetWidget () const override |
| Gets access to the internal QWidget object. | |
| virtual void | OnTryClose (bool *ignoredPtr=NULL) override |
| Called when the application is attempting to close. | |
| Public Member Functions inherited from iqtgui::TDesignSchemaHandlerWrap< Base > | |
| TDesignSchemaHandlerWrap () | |
| virtual void | EnableDesignHandler (bool enable=true) |
| If enabled, listen to the design schema change events from the application context. | |
| Public Member Functions inherited from iqtgui::CIconProvider | |
| virtual QIcon | GetIcon (const QString &iconName) const |
| virtual QString | GetIconPath (const QString &iconName) const |
| virtual QString | GetStyleSheetPath (const QString &styleSheetPath) const |
| QByteArray | GetCurrentThemeId () const |
| void | SetThemeId (const QByteArray &themeId) |
| Public Member Functions inherited from istd::IPolymorphic | |
| virtual | ~IPolymorphic () |
Additional Inherited Members | |
| Protected Member Functions inherited from iqtgui::CGuiComponentBase | |
| virtual void | OnGuiDesignChanged () |
| virtual void | OnGuiShown () |
| Called from widget event filter when slave widget is shown. | |
| virtual void | OnGuiHidden () |
| Called from widget event filter when slave widget is hidden. | |
| virtual bool | OnKeyPressed (QKeyEvent *event) |
| Called from widget event filter when key is pressed. | |
| virtual void | OnRetranslate () |
| Called when non-GUI elements (like commands) should be retranslated. | |
| virtual void | OnGuiRetranslate () |
| Called from widget event filter when GUI should be retranslated. | |
| virtual void | OnGuiCreated () |
| Called just after GUI is initialized. | |
| virtual void | OnGuiDestroyed () |
| Called just before GUI is released. | |
| void | SetStatusIcon (const QIcon &icon) |
| Set status icon;. | |
| void | SetStatusText (const QString &text) |
| Set status text;. | |
| void | SetDefaultVisualStatus () |
| virtual void | OnLanguageChanged () override |
| virtual void | OnDesignSchemaChanged (const QByteArray &themeId) override |
| virtual bool | eventFilter (QObject *sourcePtr, QEvent *eventPtr) override |
| virtual void | OnComponentCreated () override |
| virtual void | OnComponentDestroyed () override |
| Protected Member Functions inherited from iqtgui::CIconProvider | |
| virtual QIcon | CreateIcon (const QString &iconName) const |
| Protected Attributes inherited from iqtgui::CGuiComponentBase | |
| imod::TModelWrap< VisualStatus > | m_visualStatus |
Detailed Description
template<class WidgetType>
class iqtgui::TGuiComponentBase< WidgetType >
class iqtgui::TGuiComponentBase< WidgetType >
Base class for all Qt GUI componentes.
Definition at line 26 of file TGuiComponentBase.h.
Member Typedef Documentation
◆ BaseClass
template<class WidgetType >
| typedef CGuiComponentBase iqtgui::TGuiComponentBase< WidgetType >::BaseClass |
Definition at line 29 of file TGuiComponentBase.h.
Constructor & Destructor Documentation
◆ TGuiComponentBase()
template<class WidgetType >
| iqtgui::TGuiComponentBase< WidgetType >::TGuiComponentBase | ( | ) |
Definition at line 43 of file TGuiComponentBase.h.
Member Function Documentation
◆ CreateQtWidget()
template<class WidgetType >
|
overridevirtual |
Create slave widget object.
Implements iqtgui::CGuiComponentBase.
Reimplemented in iqtgui::TDesignerGuiCompBase< UI, WidgetType >, and iqtgui::TDesignerGuiCompBase< UI, QWidget >.
Definition at line 58 of file TGuiComponentBase.h.
◆ GetQtWidget()
template<class WidgetType >
|
virtual |
Definition at line 49 of file TGuiComponentBase.h.
The documentation for this class was generated from the following file:
- Acf/Include/iqtgui/TGuiComponentBase.h
