Join functionality of iqtgui::IGuiObject interface and imod::IObserver. More...

#include <TGuiObserverWrap.h>

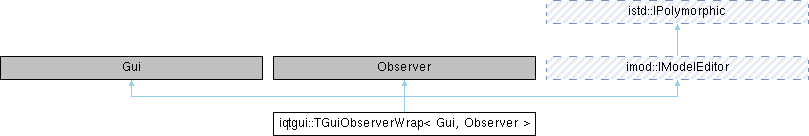

Inheritance diagram for iqtgui::TGuiObserverWrap< Gui, Observer >:

Classes
class	UpdateBlocker

Public Member Functions
	TGuiObserverWrap ()

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override

virtual bool	OnModelDetached (imod::IModel *modelPtr) override

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnGuiModelShown ()
	Called when model is attached and GUI is shown.

virtual void	OnGuiModelHidden ()
	Called when model is detached or GUI is hidden.

virtual void	OnGuiModelAttached ()
	Called when model is attached and GUI is created.

virtual void	OnGuiModelDetached ()
	Called when model is detached or GUI is destroyed.

bool	IsUpdateBlocked () const
	Check if GUI updating is blocked.

bool	DoUpdateModel () const
	Secure update model.

virtual void	UpdateModel () const
	Do update of the model to reflect the current contents of GUI.

virtual void	UpdateGui (const istd::IChangeable::ChangeSet &changeSet)
	Do update of the GUI to reflect the state of model.

virtual void	UpdateEditor (const istd::IChangeable::ChangeSet &changeSet) override
	Updates editor with model data.

virtual void	UpdateModelFromEditor () const override
	Updates model from editor.

virtual void	OnGuiShown () override

virtual void	OnGuiHidden () override

virtual void	OnGuiRetranslate () override

virtual void	OnGuiCreated () override

virtual void	OnGuiDestroyed () override

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override

virtual bool	IsReadOnly () const override
	Returns `true` if the model data can be changed.

virtual void	SetReadOnly (bool state) override
	Set flag that the model data can be changed.

void	SetDisableUiIfReadOnly (bool state)
	Control if GUI should be disaled for read-only editors.

Protected Attributes
bool	m_isReadOnly

Additional Inherited Members
Public Types inherited from imod::IModelEditor
enum	ChangeFlags { CF_INIT_EDITOR = 0x3720694 }
	Data model change notification flags. More...

Detailed Description

template<class Gui, class Observer>
class iqtgui::TGuiObserverWrap< Gui, Observer >

Join functionality of iqtgui::IGuiObject interface and imod::IObserver.

Definition at line 28 of file TGuiObserverWrap.h.

Constructor & Destructor Documentation

◆ TGuiObserverWrap()

template<class Gui , class Observer >

iqtgui::TGuiObserverWrap< Gui, Observer >::TGuiObserverWrap ( )

Definition at line 143 of file TGuiObserverWrap.h.

Member Function Documentation

◆ AfterUpdate()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::AfterUpdate	(	imod::IModel *	modelPtr,
		const istd::IChangeable::ChangeSet &	changeSet
	)

overrideprotectedvirtual

Definition at line 377 of file TGuiObserverWrap.h.

References istd::IChangeable::CF_DESTROYING, istd::IChangeable::ChangeSet::ContainsExplicit(), and NULL.

◆ DoUpdateModel()

template<class Gui , class Observer >

bool iqtgui::TGuiObserverWrap< Gui, Observer >::DoUpdateModel ( ) const

protected

Secure update model.

It use GUI block mechanism and it is designed to be called directly from UI slot.

Definition at line 250 of file TGuiObserverWrap.h.

◆ IsReadOnly()

template<class Gui , class Observer >

bool iqtgui::TGuiObserverWrap< Gui, Observer >::IsReadOnly ( ) const

overrideprotectedvirtual

Returns true if the model data can be changed.

Implements imod::IModelEditor.

Definition at line 395 of file TGuiObserverWrap.h.

◆ IsUpdateBlocked()

template<class Gui , class Observer >

bool iqtgui::TGuiObserverWrap< Gui, Observer >::IsUpdateBlocked ( ) const

protected

Check if GUI updating is blocked.

Definition at line 234 of file TGuiObserverWrap.h.

◆ OnGuiCreated()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::OnGuiCreated ( )

overrideprotectedvirtual

Reimplemented in CTextEditorComp, iqt2d::CMultiBitmapViewComp, iqtdoc::CDocumentMetaInfoEditorComp, iqtgui::CStatusGuiComp, iqtgui::TItemModelEditorCompBase< ItemWidgetClass >, and iqtprm::CExtComposedParamsSetGuiComp.

Definition at line 346 of file TGuiObserverWrap.h.

References NULL.

◆ OnGuiDestroyed()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::OnGuiDestroyed ( )

overrideprotectedvirtual

Reimplemented in iqtprm::CExtComposedParamsSetGuiComp.

Definition at line 364 of file TGuiObserverWrap.h.

References NULL.

◆ OnGuiHidden()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::OnGuiHidden ( )

overrideprotectedvirtual

Definition at line 325 of file TGuiObserverWrap.h.

References NULL.

◆ OnGuiModelAttached()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::OnGuiModelAttached ( )

protectedvirtual

Called when model is attached and GUI is created.

Reimplemented in iqt2d::CImageViewComp, iqt2d::CMultiBitmapViewComp, iqtdoc::CDocumentMetaInfoEditorComp, iqtgui::TItemModelEditorCompBase< ItemWidgetClass >, and iqtprm::CExtComposedParamsSetGuiComp.

Definition at line 211 of file TGuiObserverWrap.h.

References NULL.

◆ OnGuiModelDetached()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::OnGuiModelDetached ( )

protectedvirtual

Called when model is detached or GUI is destroyed.

Reimplemented in iqt2d::CImageViewComp, iqtdoc::CDocumentMetaInfoEditorComp, and iqtprm::CExtComposedParamsSetGuiComp.

Definition at line 222 of file TGuiObserverWrap.h.

References NULL.

◆ OnGuiModelHidden()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::OnGuiModelHidden ( )

protectedvirtual

Called when model is detached or GUI is hidden.

Definition at line 205 of file TGuiObserverWrap.h.

◆ OnGuiModelShown()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::OnGuiModelShown ( )

protectedvirtual

Called when model is attached and GUI is shown.

Definition at line 199 of file TGuiObserverWrap.h.

◆ OnGuiRetranslate()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::OnGuiRetranslate ( )

overrideprotectedvirtual

Definition at line 336 of file TGuiObserverWrap.h.

◆ OnGuiShown()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::OnGuiShown ( )

overrideprotectedvirtual

Definition at line 305 of file TGuiObserverWrap.h.

References NULL.

◆ OnModelAttached()

template<class Gui , class Observer >

bool iqtgui::TGuiObserverWrap< Gui, Observer >::OnModelAttached	(	imod::IModel *	modelPtr,
		istd::IChangeable::ChangeSet &	changeMask
	)

overridevirtual

Definition at line 156 of file TGuiObserverWrap.h.

References NULL.

◆ OnModelDetached()

template<class Gui , class Observer >

bool iqtgui::TGuiObserverWrap< Gui, Observer >::OnModelDetached ( imod::IModel * modelPtr )

overridevirtual

Definition at line 177 of file TGuiObserverWrap.h.

◆ SetDisableUiIfReadOnly()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::SetDisableUiIfReadOnly ( bool state )

protected

Control if GUI should be disaled for read-only editors.

By default it is set to true.

Definition at line 241 of file TGuiObserverWrap.h.

◆ SetReadOnly()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::SetReadOnly ( bool state )

overrideprotectedvirtual

Set flag that the model data can be changed.

Returns: true, if this feature is supported.

Implements imod::IModelEditor.

Reimplemented in iqtprm::CExtComposedParamsSetGuiComp.

Definition at line 402 of file TGuiObserverWrap.h.

References NULL.

◆ UpdateEditor()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::UpdateEditor ( const istd::IChangeable::ChangeSet & changeSet )

overrideprotectedvirtual

Updates editor with model data.

This method will be called only if GUI is connected.

Parameters

changeSet the same as changeSet in istd::IChangeable.

Implements imod::IModelEditor.

Reimplemented in iqtprm::CExtComposedParamsSetGuiComp.

Definition at line 280 of file TGuiObserverWrap.h.

◆ UpdateGui()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::UpdateGui ( const istd::IChangeable::ChangeSet & changeSet )

protectedvirtual

Do update of the GUI to reflect the state of model.

This method should be implmented by derived classes instead of imod::IModelEditor::UpdateEditor().

Reimplemented in CTextEditorComp, iqt2d::CImageViewComp, iqt2d::CMultiBitmapViewComp, iqtdoc::CDocumentMetaInfoEditorComp, and iqtgui::CStatusGuiComp.

Definition at line 272 of file TGuiObserverWrap.h.

◆ UpdateModel()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::UpdateModel ( ) const

protectedvirtual

Do update of the model to reflect the current contents of GUI.

This method should be implmented by derived classes instead of imod::IModelEditor::UpdateModelFromEditor().

Reimplemented in CTextEditorComp, and iqtprm::CExtComposedParamsSetGuiComp.

Definition at line 266 of file TGuiObserverWrap.h.

◆ UpdateModelFromEditor()

template<class Gui , class Observer >

void iqtgui::TGuiObserverWrap< Gui, Observer >::UpdateModelFromEditor ( ) const

overrideprotectedvirtual

Updates model from editor.

This method will be called only if GUI is connected and model is attached.

Implements imod::IModelEditor.

Definition at line 294 of file TGuiObserverWrap.h.

Member Data Documentation

◆ m_isReadOnly

template<class Gui , class Observer >

bool iqtgui::TGuiObserverWrap< Gui, Observer >::m_isReadOnly

protected

Definition at line 119 of file TGuiObserverWrap.h.

The documentation for this class was generated from the following file:

Acf/Include/iqtgui/TGuiObserverWrap.h
