Base class for all Qt GUI components, which use the Qt designer's UI. More...

#include <TDesignerGuiCompBase.h>

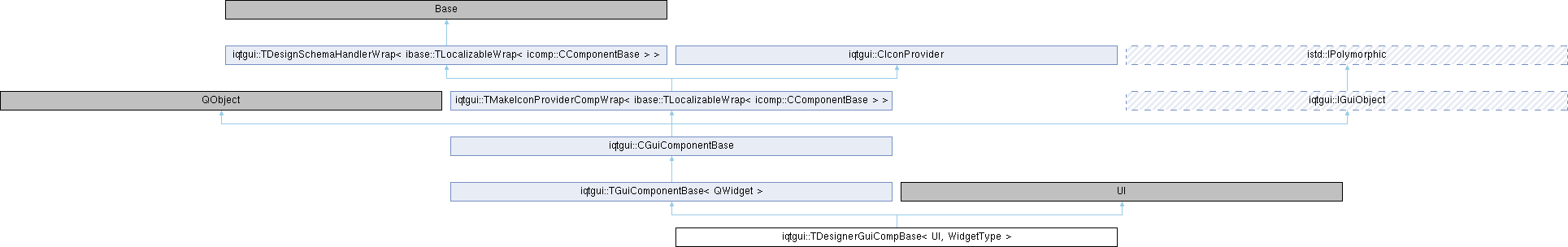

Inheritance diagram for iqtgui::TDesignerGuiCompBase< UI, WidgetType >:

Public Types
typedef TGuiComponentBase< WidgetType >	BaseClass

Public Types inherited from iqtgui::TGuiComponentBase< WidgetType >
typedef CGuiComponentBase	BaseClass

Public Types inherited from iqtgui::CGuiComponentBase
typedef TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >	BaseClass

Public Types inherited from iqtgui::TMakeIconProviderCompWrap< ibase::TLocalizableWrap< icomp::CComponentBase > >
typedef ibase::TLocalizableWrap< icomp::CComponentBase >	BaseClass

Public Types inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
typedef Base	BaseClass

Public Member Functions
virtual QWidget *	CreateQtWidget (QWidget *parentPtr) override
	Create slave widget object.

Public Member Functions inherited from iqtgui::TGuiComponentBase< WidgetType >
	TGuiComponentBase ()

virtual WidgetType *	GetQtWidget () const

Public Member Functions inherited from iqtgui::CGuiComponentBase
	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, IVisualStatus, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, istd::IChangeable, ExtractVisualStatus)

	I_REGISTER_SUBELEMENT_INTERFACE_T (VisualStatus, imod::IModel, ExtractVisualStatus)

	CGuiComponentBase ()

bool	IsGuiShown () const

virtual bool	IsGuiCreated () const override
	Checks if the GUI has been initialized and created.

virtual bool	CreateGui (QWidget *parentPtr) override
	Initializes the GUI and connects it to the parent widget.

virtual bool	DestroyGui () override
	Releases GUI resources and disconnects from the parent.

virtual QWidget *	GetWidget () const override
	Gets access to the internal QWidget object.

virtual void	OnTryClose (bool *ignoredPtr=NULL) override
	Called when the application is attempting to close.

Public Member Functions inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
	TDesignSchemaHandlerWrap ()

virtual void	EnableDesignHandler (bool enable=true)
	If enabled, listen to the design schema change events from the application context.

Public Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	GetIcon (const QString &iconName) const

virtual QString	GetIconPath (const QString &iconName) const

virtual QString	GetStyleSheetPath (const QString &styleSheetPath) const

QByteArray	GetCurrentThemeId () const

void	SetThemeId (const QByteArray &themeId)

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnGuiRetranslate () override
	Called from widget event filter when GUI should be retranslated.

Protected Member Functions inherited from iqtgui::CGuiComponentBase
virtual void	OnGuiDesignChanged ()

virtual void	OnGuiShown ()
	Called from widget event filter when slave widget is shown.

virtual void	OnGuiHidden ()
	Called from widget event filter when slave widget is hidden.

virtual bool	OnKeyPressed (QKeyEvent *event)
	Called from widget event filter when key is pressed.

virtual void	OnRetranslate ()
	Called when non-GUI elements (like commands) should be retranslated.

virtual void	OnGuiCreated ()
	Called just after GUI is initialized.

virtual void	OnGuiDestroyed ()
	Called just before GUI is released.

void	SetStatusIcon (const QIcon &icon)
	Set status icon;.

void	SetStatusText (const QString &text)
	Set status text;.

void	SetDefaultVisualStatus ()

virtual void	OnLanguageChanged () override

virtual void	OnDesignSchemaChanged (const QByteArray &themeId) override

virtual bool	eventFilter (QObject sourcePtr, QEvent eventPtr) override

virtual void	OnComponentCreated () override

virtual void	OnComponentDestroyed () override

Protected Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	CreateIcon (const QString &iconName) const

Additional Inherited Members
Protected Attributes inherited from iqtgui::CGuiComponentBase
imod::TModelWrap< VisualStatus >	m_visualStatus

Detailed Description

template<class UI, class WidgetType = QWidget>
class iqtgui::TDesignerGuiCompBase< UI, WidgetType >

Base class for all Qt GUI components, which use the Qt designer's UI.

Definition at line 31 of file TDesignerGuiCompBase.h.

Member Typedef Documentation

◆ BaseClass

template<class UI , class WidgetType = QWidget>

typedef TGuiComponentBase<WidgetType> iqtgui::TDesignerGuiCompBase< UI, WidgetType >::BaseClass

Definition at line 34 of file TDesignerGuiCompBase.h.

Member Function Documentation

◆ CreateQtWidget()

template<class UI , class WidgetType >

QWidget * iqtgui::TDesignerGuiCompBase< UI, WidgetType >::CreateQtWidget ( QWidget * parentPtr )

overridevirtual

Create slave widget object.

Reimplemented from iqtgui::TGuiComponentBase< WidgetType >.

Definition at line 50 of file TDesignerGuiCompBase.h.

References NULL.

◆ OnGuiRetranslate()

template<class UI , class WidgetType >

void iqtgui::TDesignerGuiCompBase< UI, WidgetType >::OnGuiRetranslate ( )

overrideprotectedvirtual

Called from widget event filter when GUI should be retranslated.

Reimplemented from iqtgui::CGuiComponentBase.

Reimplemented in iqtgui::TGuiObserverWrap< iqtgui::TDesignerGuiCompBase< UI, QWidget >, imod::TSingleModelObserverBase< Model > >.

Definition at line 70 of file TDesignerGuiCompBase.h.

References NULL.

The documentation for this class was generated from the following file:

Acf/Include/iqtgui/TDesignerGuiCompBase.h
