Base class for 2D-objects implementing interface i2d::IObject2d. More...

#include <CObject2dBase.h>

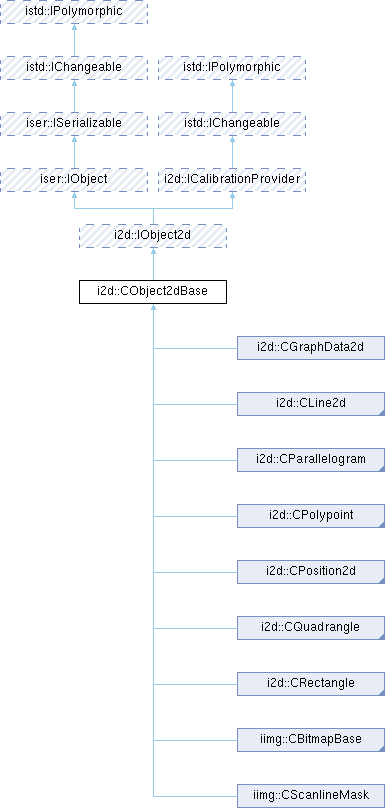

Inheritance diagram for i2d::CObject2dBase:

Public Member Functions
	CObject2dBase ()

	CObject2dBase (const CObject2dBase &object2d)

	CObject2dBase (CObject2dBase &&object2d)

CObject2dBase &	operator= (const CObject2dBase &object2d)

CObject2dBase &	operator= (CObject2dBase &&object2d)

virtual const ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
	Set calibration of this object.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Do inverse transformation of this object.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate inverse transformation of the object into second one.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from i2d::IObject2d
virtual CVector2d	GetCenter () const =0
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const CVector2d &position)=0
	Move object to position `position`.

virtual CRectangle	GetBoundingBox () const =0
	Get bounding box of this shape.

Public Member Functions inherited from iser::IObject
virtual QByteArray	GetFactoryId () const

Public Member Functions inherited from iser::ISerializable
virtual bool	Serialize (IArchive &archive)=0
	Load or store state of this object as a archive stream.

virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Static Protected Attributes
static const ChangeSet	s_objectMovedChange

static const ChangeSet	s_objectModifiedChange

Additional Inherited Members
Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Base class for 2D-objects implementing interface i2d::IObject2d.

It contains simple or empty implementations.

Definition at line 18 of file CObject2dBase.h.

Constructor & Destructor Documentation

◆ CObject2dBase() [1/3]

i2d::CObject2dBase::CObject2dBase ( )

◆ CObject2dBase() [2/3]

i2d::CObject2dBase::CObject2dBase ( const CObject2dBase & object2d )

◆ CObject2dBase() [3/3]

i2d::CObject2dBase::CObject2dBase ( CObject2dBase && object2d )

Member Function Documentation

◆ CopyFrom()

virtual bool i2d::CObject2dBase::CopyFrom	(	const istd::IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Copy this object from another one.

Default implementation in istd::IChangeable does nothing.

Reimplemented from istd::IChangeable.

Reimplemented in iimg::CBitmap, iimg::CGeneralBitmap, iimg::CScanlineMask, and iser::TCopySerializedWrap< iimg::CBitmap >.

Referenced by i2d::TDataNodePolyline< NodeData >::CopyFrom().

◆ GetCalibration()

virtual const ICalibration2d * i2d::CObject2dBase::GetCalibration ( ) const

overridevirtual

Get access to transformation object, which transforms a local logical coordinate system to global one.

Returns: Pointer to transformation if it is accessible, or NULL.

Implements i2d::ICalibrationProvider.

◆ GetInvTransformed()

virtual bool i2d::CObject2dBase::GetInvTransformed	(	const ITransformation2d &	transformation,
		IObject2d &	result,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)		const

overridevirtual

Calulate inverse transformation of the object into second one.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.
result	result object.

Returns: true, if transformation was done correctly.

Implements i2d::IObject2d.

Reimplemented in i2d::CParallelogram, i2d::CAnnulus, i2d::CArc, i2d::CCircle, i2d::CGraphData2d, i2d::CLine2d, i2d::CPolypoint, i2d::CPosition2d, i2d::CQuadrangle, and i2d::CRectangle.

◆ GetTransformed()

virtual bool i2d::CObject2dBase::GetTransformed	(	const ITransformation2d &	transformation,
		IObject2d &	result,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)		const

overridevirtual

Calulate transformation of the object into second one.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.
result	result object.

Returns: true, if transformation was done correctly.

Implements i2d::IObject2d.

Reimplemented in i2d::CParallelogram, i2d::CAnnulus, i2d::CArc, i2d::CCircle, i2d::CGraphData2d, i2d::CLine2d, i2d::CPolypoint, i2d::CPosition2d, i2d::CQuadrangle, and i2d::CRectangle.

◆ InvTransform()

virtual bool i2d::CObject2dBase::InvTransform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Do inverse transformation of this object.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Implements i2d::IObject2d.

Reimplemented in i2d::CParallelogram, i2d::CAnnulus, i2d::CAnnulusSegment, i2d::CArc, i2d::CCircle, i2d::CGraphData2d, i2d::CLine2d, i2d::CPolypoint, i2d::CPosition2d, i2d::CQuadrangle, and i2d::CRectangle.

◆ operator=() [1/2]

CObject2dBase & i2d::CObject2dBase::operator= ( CObject2dBase && object2d )

◆ operator=() [2/2]

CObject2dBase & i2d::CObject2dBase::operator= ( const CObject2dBase & object2d )

◆ ResetData()

virtual bool i2d::CObject2dBase::ResetData ( CompatibilityMode mode = CM_WITHOUT_REFS )

overridevirtual

Reset data to its default state.

Default implementation in istd::IChangeable does nothing.

Returns: true if the operation was successful, and false otherwise.

Reimplemented from istd::IChangeable.

Reimplemented in i2d::CAnnulusComp, iimg::CBitmap, iimg::CGeneralBitmap, and iimg::CScanlineMask.

◆ SetCalibration()

virtual void i2d::CObject2dBase::SetCalibration	(	const ICalibration2d *	calibrationPtr,
		bool	releaseFlag = `false`
	)

overridevirtual

Set calibration of this object.

Parameters

releaseFlag if true, pointed object will be automatically released.

See also: istd::TOptDelPtr.

Implements i2d::IObject2d.

◆ Transform()

virtual bool i2d::CObject2dBase::Transform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Transform this object using some transformation.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Implements i2d::IObject2d.

Reimplemented in i2d::CParallelogram, i2d::CAnnulus, i2d::CAnnulusSegment, i2d::CArc, i2d::CCircle, i2d::CGraphData2d, i2d::CLine2d, i2d::CPolypoint, i2d::CPosition2d, i2d::CQuadrangle, i2d::CRectangle, and i2d::CTubePolyline.

Member Data Documentation

◆ s_objectModifiedChange

const ChangeSet i2d::CObject2dBase::s_objectModifiedChange

staticprotected

Definition at line 58 of file CObject2dBase.h.

◆ s_objectMovedChange

const ChangeSet i2d::CObject2dBase::s_objectMovedChange

staticprotected

Definition at line 57 of file CObject2dBase.h.

The documentation for this class was generated from the following file:

Acf/Include/i2d/CObject2dBase.h
