Radial segment of the annulus object. More...

#include <CAnnulusSegment.h>

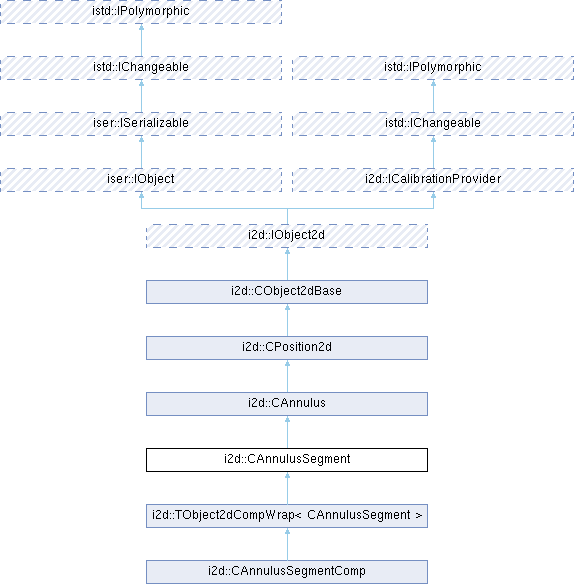

Inheritance diagram for i2d::CAnnulusSegment:

Public Types
typedef CAnnulus	BaseClass

Public Types inherited from i2d::CAnnulus
typedef i2d::CPosition2d	BaseClass

Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CAnnulusSegment ()

	CAnnulusSegment (const i2d::CVector2d &center, double innerRadius, double outerRadius, double beginAngle, double endAngle)

double	GetBeginAngle () const

void	SetBeginAngle (double angle)

double	GetEndAngle () const

void	SetEndAngle (double angle)

bool	Contains (const i2d::CVector2d &point) const
	Return `true` if a given point is inside of annulus segment area.

virtual CRectangle	GetBoundingBox () const override
	Get bounding box of this shape.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Do inverse transformation of this object.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

Public Member Functions inherited from i2d::CAnnulus
	CAnnulus ()
	Construct an empty annulus object.

	CAnnulus (const i2d::CVector2d &center, double innerRadius, double outerRadius)
	Construct an annulus object by the given position, inner and outer radius.

bool	IsAnnulusValid () const
	Check, if the annulus is valid.

double	GetInnerRadius () const
	Get the inner radius of the annulus.

void	SetInnerRadius (double innerRadius)
	Set the inner radius of the annulus.

double	GetOuterRadius () const
	Get the outer radius of the annulus.

void	SetOuterRadius (double outerRadius)
	Set the outer radius of the annulus.

void	SetInnerOuterRadius (double radius1, double radius2)
	Set the inner and outer radius of the annulus.

CCircle	GetInnerCircle () const
	Set the inner circle of the annulus object.

CCircle	GetOuterCircle () const
	Set the outer circle of the annulus object.

bool	operator== (const CAnnulus &annulus) const
	Compare with another annulus.

bool	operator!= (const CAnnulus &annulus) const
	Compare with another annulus.

bool	ConvertToPolygon (i2d::CPolygon &result, int segmentsCount=0) const
	Performs conversion of the annulus splitting it to segmentsCount segments to the polygon result.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate inverse transformation of the object into second one.

Public Member Functions inherited from i2d::CPosition2d
	CPosition2d ()

	CPosition2d (const CVector2d &center)

const CVector2d &	GetPosition () const

void	SetPosition (const CVector2d &position)

void	Translate (const i2d::CVector2d &vector)

CPosition2d	GetTranslated (const i2d::CVector2d &vector) const

virtual CVector2d	GetCenter () const override
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const CVector2d &position) override
	Move object to position `position`.

virtual QByteArray	GetFactoryId () const override

virtual bool	IsEqual (const istd::IChangeable &object) const override
	Compare this object with another object.

Public Member Functions inherited from i2d::CObject2dBase
	CObject2dBase ()

	CObject2dBase (const CObject2dBase &object2d)

	CObject2dBase (CObject2dBase &&object2d)

CObject2dBase &	operator= (const CObject2dBase &object2d)

CObject2dBase &	operator= (CObject2dBase &&object2d)

virtual const ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
	Set calibration of this object.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from i2d::CPosition2d
static QByteArray	GetTypeName ()

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes inherited from i2d::CAnnulus
istd::CRange	m_radiusRange

Protected Attributes inherited from i2d::CPosition2d
CVector2d	m_position

Static Protected Attributes inherited from i2d::CObject2dBase
static const ChangeSet	s_objectMovedChange

static const ChangeSet	s_objectModifiedChange

Detailed Description

Radial segment of the annulus object.

Definition at line 16 of file CAnnulusSegment.h.

Member Typedef Documentation

◆ BaseClass

typedef CAnnulus i2d::CAnnulusSegment::BaseClass

Definition at line 19 of file CAnnulusSegment.h.

Constructor & Destructor Documentation

◆ CAnnulusSegment() [1/2]

i2d::CAnnulusSegment::CAnnulusSegment ( )

◆ CAnnulusSegment() [2/2]

i2d::CAnnulusSegment::CAnnulusSegment	(	const i2d::CVector2d &	center,
		double	innerRadius,
		double	outerRadius,
		double	beginAngle,
		double	endAngle
	)

Member Function Documentation

◆ CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > i2d::CAnnulusSegment::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from i2d::CAnnulus.

◆ Contains()

bool i2d::CAnnulusSegment::Contains ( const i2d::CVector2d & point ) const

Return true if a given point is inside of annulus segment area.

◆ CopyFrom()

virtual bool i2d::CAnnulusSegment::CopyFrom	(	const IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Reimplemented from i2d::CAnnulus.

◆ GetBeginAngle()

double i2d::CAnnulusSegment::GetBeginAngle ( ) const

◆ GetBoundingBox()

virtual CRectangle i2d::CAnnulusSegment::GetBoundingBox ( ) const

overridevirtual

Get bounding box of this shape.

Please note, this bounding box is in logical units, the calibration will not be considered.

Reimplemented from i2d::CAnnulus.

◆ GetEndAngle()

double i2d::CAnnulusSegment::GetEndAngle ( ) const

◆ GetSupportedOperations()

virtual int i2d::CAnnulusSegment::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from i2d::CAnnulus.

◆ InvTransform()

virtual bool i2d::CAnnulusSegment::InvTransform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Do inverse transformation of this object.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CAnnulus.

◆ Serialize()

virtual bool i2d::CAnnulusSegment::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Reimplemented from i2d::CAnnulus.

◆ SetBeginAngle()

void i2d::CAnnulusSegment::SetBeginAngle ( double angle )

◆ SetEndAngle()

void i2d::CAnnulusSegment::SetEndAngle ( double angle )

◆ Transform()

virtual bool i2d::CAnnulusSegment::Transform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Transform this object using some transformation.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CAnnulus.

The documentation for this class was generated from the following file:

Acf/Include/i2d/CAnnulusSegment.h
