Data model for a 2D graph plot supporting multiple curves. More...

#include <CGraphData2d.h>

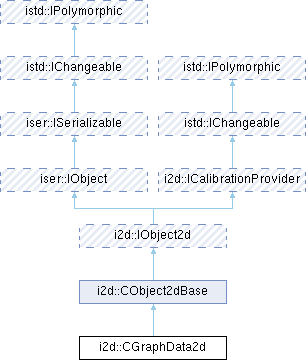

Inheritance diagram for i2d::CGraphData2d:

Classes
struct	Curve
	Structure representing a single curve in the graph. More...

Public Types
enum	ChangeFlags { CF_GRAPH_DATA = 0x7c95a1 , CF_GRAPH_APPEARANCE , CF_GRAPH_DISPLAY_OPTIONS }

Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CGraphData2d ()

int	GetCurvesCount () const
	Get the number of curves in the graph.

const Curve &	GetCurve (int index) const
	Get a curve by index.

Curve &	GetCurveRef (int index)
	Get reference to a curve by index.

void	AddCurve (const Curve &curve)
	Add a new curve to the graph.

void	RemoveCurve (int index)
	Remove a curve by index.

void	ClearCurves ()
	Clear all curves.

const QString &	GetXAxisLabel () const
	Get the X-axis label.

void	SetXAxisLabel (const QString &label)
	Set the X-axis label.

const QString &	GetYAxisLabel () const
	Get the Y-axis label.

void	SetYAxisLabel (const QString &label)
	Set the Y-axis label.

const QString &	GetTitle () const
	Get the graph title.

void	SetTitle (const QString &title)
	Set the graph title.

istd::CRange	GetXAxisRange () const
	Get X-axis range.

void	SetXAxisRange (const istd::CRange &range)
	Set X-axis range.

istd::CRange	GetYAxisRange () const
	Get Y-axis range.

void	SetYAxisRange (const istd::CRange &range)
	Set Y-axis range.

bool	IsLegendVisible () const
	Check if legend should be shown.

void	SetLegendVisible (bool visible=true)
	Set whether legend should be shown.

bool	IsGridVisible () const
	Check if grid should be shown.

void	SetGridVisible (bool visible=true)
	Set whether grid should be shown.

virtual CVector2d	GetCenter () const override
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const CVector2d &position) override
	Move object to position `position`.

virtual CRectangle	GetBoundingBox () const override
	Get bounding box of this shape.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Do inverse transformation of this object.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate inverse transformation of the object into second one.

virtual QByteArray	GetFactoryId () const override

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

Public Member Functions inherited from i2d::CObject2dBase
	CObject2dBase ()

	CObject2dBase (const CObject2dBase &object2d)

	CObject2dBase (CObject2dBase &&object2d)

CObject2dBase &	operator= (const CObject2dBase &object2d)

CObject2dBase &	operator= (CObject2dBase &&object2d)

virtual const ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
	Set calibration of this object.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Static Public Member Functions
static QByteArray	GetTypeName ()

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Additional Inherited Members
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Static Protected Attributes inherited from i2d::CObject2dBase
static const ChangeSet	s_objectMovedChange

static const ChangeSet	s_objectModifiedChange

Detailed Description

Data model for a 2D graph plot supporting multiple curves.

Each curve is a series of 2D points with associated properties like name and color. The graph also maintains axis ranges, labels, and legend information.

Definition at line 25 of file CGraphData2d.h.

Member Enumeration Documentation

◆ ChangeFlags

enum i2d::CGraphData2d::ChangeFlags

Enumerator
CF_GRAPH_DATA	Graph data (curves, points) changed.
CF_GRAPH_APPEARANCE	Graph appearance (colors, names, labels) changed.
CF_GRAPH_DISPLAY_OPTIONS	Display options (legend, grid visibility) changed.

Definition at line 30 of file CGraphData2d.h.

Constructor & Destructor Documentation

◆ CGraphData2d()

i2d::CGraphData2d::CGraphData2d ( )

Member Function Documentation

◆ AddCurve()

void i2d::CGraphData2d::AddCurve ( const Curve & curve )

Add a new curve to the graph.

◆ ClearCurves()

void i2d::CGraphData2d::ClearCurves ( )

Clear all curves.

◆ CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > i2d::CGraphData2d::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from istd::IChangeable.

◆ CopyFrom()

virtual bool i2d::CGraphData2d::CopyFrom	(	const IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

◆ GetBoundingBox()

virtual CRectangle i2d::CGraphData2d::GetBoundingBox ( ) const

overridevirtual

Get bounding box of this shape.

Please note, this bounding box is in logical units, the calibration will not be considered.

Implements i2d::IObject2d.

◆ GetCenter()

virtual CVector2d i2d::CGraphData2d::GetCenter ( ) const

overridevirtual

Returns center of this 2D-object.

Implements i2d::IObject2d.

◆ GetCurve()

const CGraphData2d::Curve & i2d::CGraphData2d::GetCurve ( int index ) const

inline

Get a curve by index.

Definition at line 218 of file CGraphData2d.h.

◆ GetCurveRef()

CGraphData2d::Curve & i2d::CGraphData2d::GetCurveRef ( int index )

inline

Get reference to a curve by index.

Use with care and trigger notifications manually if needed.

Definition at line 224 of file CGraphData2d.h.

◆ GetCurvesCount()

int i2d::CGraphData2d::GetCurvesCount ( ) const

inline

Get the number of curves in the graph.

Definition at line 212 of file CGraphData2d.h.

◆ GetFactoryId()

virtual QByteArray i2d::CGraphData2d::GetFactoryId ( ) const

overridevirtual

Reimplemented from iser::IObject.

◆ GetInvTransformed()

virtual bool i2d::CGraphData2d::GetInvTransformed	(	const ITransformation2d &	transformation,
		IObject2d &	result,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)		const

overridevirtual

Calulate inverse transformation of the object into second one.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.
result	result object.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

◆ GetSupportedOperations()

virtual int i2d::CGraphData2d::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from istd::IChangeable.

◆ GetTitle()

const QString & i2d::CGraphData2d::GetTitle ( ) const

inline

Get the graph title.

Definition at line 242 of file CGraphData2d.h.

◆ GetTransformed()

virtual bool i2d::CGraphData2d::GetTransformed	(	const ITransformation2d &	transformation,
		IObject2d &	result,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)		const

overridevirtual

Calulate transformation of the object into second one.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.
result	result object.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

◆ GetTypeName()

static QByteArray i2d::CGraphData2d::GetTypeName ( )

static

◆ GetXAxisLabel()

const QString & i2d::CGraphData2d::GetXAxisLabel ( ) const

inline

Get the X-axis label.

Definition at line 230 of file CGraphData2d.h.

◆ GetXAxisRange()

istd::CRange i2d::CGraphData2d::GetXAxisRange ( ) const

Get X-axis range.

If not set, returns auto-calculated range.

◆ GetYAxisLabel()

const QString & i2d::CGraphData2d::GetYAxisLabel ( ) const

inline

Get the Y-axis label.

Definition at line 236 of file CGraphData2d.h.

◆ GetYAxisRange()

istd::CRange i2d::CGraphData2d::GetYAxisRange ( ) const

Get Y-axis range.

If not set, returns auto-calculated range.

◆ InvTransform()

virtual bool i2d::CGraphData2d::InvTransform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Do inverse transformation of this object.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

◆ IsGridVisible()

bool i2d::CGraphData2d::IsGridVisible ( ) const

inline

Check if grid should be shown.

Definition at line 254 of file CGraphData2d.h.

◆ IsLegendVisible()

bool i2d::CGraphData2d::IsLegendVisible ( ) const

inline

Check if legend should be shown.

Definition at line 248 of file CGraphData2d.h.

◆ MoveCenterTo()

virtual void i2d::CGraphData2d::MoveCenterTo ( const CVector2d & position )

overridevirtual

Move object to position position.

Implements i2d::IObject2d.

◆ RemoveCurve()

void i2d::CGraphData2d::RemoveCurve ( int index )

Remove a curve by index.

◆ Serialize()

virtual bool i2d::CGraphData2d::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

◆ SetGridVisible()

void i2d::CGraphData2d::SetGridVisible ( bool visible = true )

Set whether grid should be shown.

◆ SetLegendVisible()

void i2d::CGraphData2d::SetLegendVisible ( bool visible = true )

Set whether legend should be shown.

◆ SetTitle()

void i2d::CGraphData2d::SetTitle ( const QString & title )

Set the graph title.

◆ SetXAxisLabel()

void i2d::CGraphData2d::SetXAxisLabel ( const QString & label )

Set the X-axis label.

◆ SetXAxisRange()

void i2d::CGraphData2d::SetXAxisRange ( const istd::CRange & range )

Set X-axis range.

Set to invalid range for auto-calculation.

◆ SetYAxisLabel()

void i2d::CGraphData2d::SetYAxisLabel ( const QString & label )

Set the Y-axis label.

◆ SetYAxisRange()

void i2d::CGraphData2d::SetYAxisRange ( const istd::CRange & range )

Set Y-axis range.

Set to invalid range for auto-calculation.

◆ Transform()

virtual bool i2d::CGraphData2d::Transform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Transform this object using some transformation.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

The documentation for this class was generated from the following file:

Acf/Include/i2d/CGraphData2d.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ ChangeFlags

Constructor & Destructor Documentation

◆ CGraphData2d()

Member Function Documentation

◆ AddCurve()

◆ ClearCurves()

◆ CloneMe()

◆ CopyFrom()

◆ GetBoundingBox()

◆ GetCenter()

◆ GetCurve()

◆ GetCurveRef()

◆ GetCurvesCount()

◆ GetFactoryId()

◆ GetInvTransformed()

◆ GetSupportedOperations()

◆ GetTitle()

◆ GetTransformed()

◆ GetTypeName()

◆ GetXAxisLabel()

◆ GetXAxisRange()

◆ GetYAxisLabel()

◆ GetYAxisRange()

◆ InvTransform()

◆ IsGridVisible()

◆ IsLegendVisible()

◆ MoveCenterTo()

◆ RemoveCurve()

◆ Serialize()

◆ SetGridVisible()

◆ SetLegendVisible()

◆ SetTitle()

◆ SetXAxisLabel()

◆ SetXAxisRange()

◆ SetYAxisLabel()

◆ SetYAxisRange()

◆ Transform()
