i2d::CTubePolyline Class Reference

Definition of tube region based on polyline. More...

#include <CTubePolyline.h>

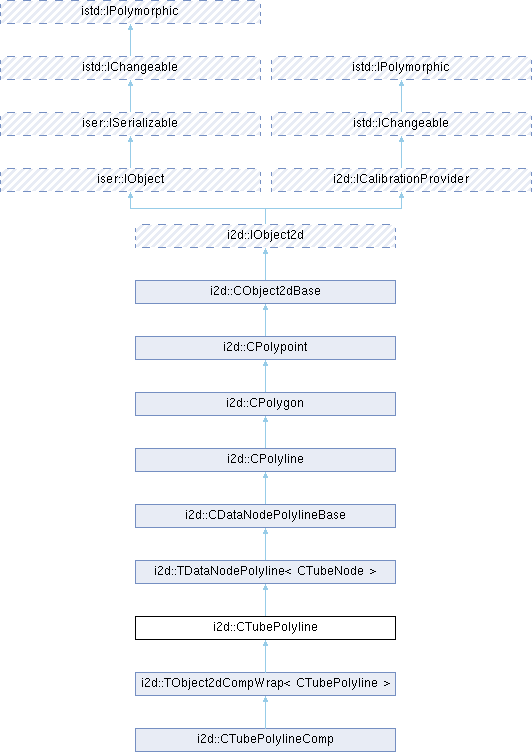

Inheritance diagram for i2d::CTubePolyline:
i2d::TDataNodePolyline< CTubeNode > i2d::CDataNodePolylineBase i2d::CPolyline i2d::CPolygon i2d::CPolypoint i2d::CObject2dBase i2d::IObject2d iser::IObject i2d::ICalibrationProvider iser::ISerializable istd::IChangeable istd::IChangeable istd::IPolymorphic istd::IPolymorphic i2d::TObject2dCompWrap< CTubePolyline > i2d::CTubePolylineComp

Public Types

typedef TDataNodePolyline< CTubeNode > BaseClass

- Public Types inherited from i2d::TDataNodePolyline< CTubeNode >
typedef CDataNodePolylineBase BaseClass

- Public Types inherited from i2d::CDataNodePolylineBase
typedef CPolyline BaseClass

- Public Types inherited from i2d::CPolyline
typedef CPolygon BaseClass

- Public Types inherited from i2d::CPolygon
typedef CPolypoint BaseClass

- Public Types inherited from i2d::IObject2d
enum  ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

- Public Types inherited from istd::IChangeable
enum  ChangeFlags {
  CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,
  CF_DELEGATED , CF_NO_UNDO
}
 Data model change notification flags. More...

enum  SupportedOperations {
  SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,
  SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4
}
 Flags for supported operations. More...

enum  CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
 Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant > ChangeInfoMap


Public Member Functions

virtual bool Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
 Transform this object using some transformation.

- Public Member Functions inherited from i2d::TDataNodePolyline< CTubeNode >
const CTubeNode & GetTNodeData (int nodeIndex) const
 Get user data from the given node.

CTubeNode & GetTNodeDataRef (int nodeIndex)
 Get reference of user data in the given node.

virtual const iser::ISerializable & GetNodeData (int nodeIndex) const override
 Get user data from the given node.

virtual iser::ISerializable & GetNodeDataRef (int nodeIndex) override
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

virtual void Clear () override
 Removes all nodes.

virtual void SetNodesCount (int nodesCount) override
 Set new nodes count.

virtual bool InsertNode (const i2d::CVector2d &position) override
 Insert a node at the end of node table.

virtual bool InsertNode (int index, const i2d::CVector2d &position) override
 Insert a node at specified index.

virtual bool RemoveNode (int index) override
 Remove a node at specified index.

virtual bool CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

- Public Member Functions inherited from i2d::CDataNodePolylineBase
virtual bool Serialize (iser::IArchive &archive) override
 Load or store state of this object as a archive stream.

- Public Member Functions inherited from i2d::CPolyline
 CPolyline ()

virtual bool IsClosed () const

virtual void SetClosed (bool state=true)
 Set polyline to be opened or closed.

virtual int GetSegmentsCount () const
 Return number of line segments.

virtual i2d::CLine2d GetSegmentLine (int segmentIndex) const
 Return number of line segments.

virtual double GetLength () const
 Get length of this polyline.

virtual i2d::CVector2d GetKneeVector (int nodeIndex) const
 Return vector for knee, that has the same angle to both neighbor segments.

bool GetAdjacentNodes (double atPositionNormalized, i2d::CVector2d &previous, i2d::CVector2d &next, double &alpha) const
 Get adjacent nodes by position on line, and by position of arbitrary point.

bool GetAdjacentNodes (const i2d::CVector2d &position, i2d::CVector2d &previous, i2d::CVector2d &next) const
 Get adjacent nodes by position on line, and by position of arbitrary point.

bool GetAdjacentNodeIndices (double position, int &previousIndex, int &nextIndex, double &alpha) const
 Get adjacent node indices by position on line, and position of arbitrary point.

bool GetAdjacentNodeIndices (double position, int &previousIndex, int &nextIndex) const

bool GetAdjacentNodeIndices (const i2d::CVector2d &position, int &previousIndex, int &nextIndex) const
 Get adjacent node indices by position on line, and position of arbitrary point.

bool GetAdjacentLine (double position, i2d::CLine2d &line, double &alpha) const
 Get adjacent segment by position on line, and by position of arbitrary point.

bool GetAdjacentLine (const i2d::CVector2d &position, i2d::CLine2d &line) const
 Get adjacent segment by position on line, and by position of arbitrary point.

bool GetInterpolatedPosition (double position, i2d::CVector2d &output) const
 Get position on this polyline in order to normal position [0..1].

i2d::CVector2d GetInterpolatedPosition (double position) const

virtual QByteArray GetFactoryId () const override

virtual istd::TUniqueInterfacePtr< istd::IChangeable > CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
 Make a copy of this object.

virtual bool IsEqual (const IChangeable &object) const override

- Public Member Functions inherited from i2d::CPolygon
 CPolygon (const QPolygonF &qpolygon=QPolygonF())

 operator QPolygonF () const

bool Contains (const i2d::CVector2d &point) const
 Check if the polygon contains a given point.

virtual double GetOutlineLength () const
 Get outline length of this polygon.

virtual void FlipByX ()
 Flip object by X-axis.

virtual void FlipByY ()
 Flip object by Y-axis.

virtual void Rotate (double radians)
 Rotate object around its center.

virtual void ReverseNodes ()
 Reverses nodes order.

double GetArea (bool oriented=false) const
 Get area of the polygon.

double GetPerimeter () const
 Get perimeter of the polygon.

- Public Member Functions inherited from i2d::CPolypoint
virtual int GetNodesCount () const
 Return size of node table.

bool IsEmpty () const
 Return true if there are no points.

virtual const i2d::CVector2d & GetNodePos (int index) const
 Return position of node at specified index.

i2d::CVector2d & GetNodePosRef (int index)
 Get reference to position object for node.

virtual void SetNodePos (int index, const i2d::CVector2d &position)
 Set node at specified index.

virtual CVector2d GetCenter () const override
 Returns center of this 2D-object.

virtual void MoveCenterTo (const CVector2d &position) override
 Move object to position position.

virtual i2d::CRectangle GetBoundingBox () const override
 Get bounding box of this shape.

virtual bool InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
 Do inverse transformation of this object.

virtual bool GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
 Calulate transformation of the object into second one.

virtual bool GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
 Calulate inverse transformation of the object into second one.

virtual int GetSupportedOperations () const override
 Get set of flags for supported operations.

- Public Member Functions inherited from i2d::CObject2dBase
 CObject2dBase ()

 CObject2dBase (const CObject2dBase &object2d)

 CObject2dBase (CObject2dBase &&object2d)

CObject2dBase & operator= (const CObject2dBase &object2d)

CObject2dBase & operator= (CObject2dBase &&object2d)

virtual const ICalibration2d * GetCalibration () const override
 Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
 Set calibration of this object.

virtual bool CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
 Copy this object from another one.

virtual bool ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
 Reset data to its default state.

- Public Member Functions inherited from iser::ISerializable
virtual quint32 GetMinimalVersion (int versionId) const
 Get minimal needed version to correct storing of this data.

- Public Member Functions inherited from istd::IChangeable
virtual bool IsEqual (const IChangeable &object) const
 Compare this object with another object.

virtual void BeginChanges (const ChangeSet &changeSet)
 Starts the change transaction.

virtual void EndChanges (const ChangeSet &changeSet)
 Ends the change transaction.

virtual void BeginChangeGroup (const ChangeSet &changeSet)
 Starts group of changes.

virtual void EndChangeGroup (const ChangeSet &changeSet)
 Ends group of changes.

- Public Member Functions inherited from istd::IPolymorphic
virtual ~IPolymorphic ()


Additional Inherited Members

- Static Public Member Functions inherited from i2d::CPolyline
static QByteArray GetTypeName ()

- Static Public Member Functions inherited from i2d::CPolygon
static QByteArray GetTypeName ()

- Static Public Member Functions inherited from i2d::CPolypoint
static QByteArray GetTypeName ()

- Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet & GetNoChanges ()
 Get empty set of changes.

static const ChangeSet & GetAnyChange ()
 Get anonymous change set.

static const ChangeSet & GetAllChanges ()
 Get anonymous change set.

static const ChangeSet & GetDelegatedChanges ()
 Get delegated change set.

- Protected Member Functions inherited from istd::IChangeable
virtual void OnBeginChanges ()
 Callback function for begin change event.

virtual void OnEndChanges (const ChangeSet &changeSet)
 Callback function for end change event.

- Static Protected Attributes inherited from i2d::CPolypoint
static const istd::IChangeable::ChangeSet s_clearAllNodesChange

static const istd::IChangeable::ChangeSet s_createPolygonNodesChange

static const istd::IChangeable::ChangeSet s_insertPolygonNodeChange

static const istd::IChangeable::ChangeSet s_removePolygonNodeChange

- Static Protected Attributes inherited from i2d::CObject2dBase
static const ChangeSet s_objectMovedChange

static const ChangeSet s_objectModifiedChange


Detailed Description

Definition of tube region based on polyline.

Definition at line 17 of file CTubePolyline.h.

Member Typedef Documentation

◆ BaseClass

typedef TDataNodePolyline<CTubeNode> i2d::CTubePolyline::BaseClass

Definition at line 20 of file CTubePolyline.h.

Member Function Documentation

◆ Transform()

virtual bool i2d::CTubePolyline::Transform ( const ITransformation2d &  transformation,
ITransformation2d::ExactnessMode  mode = ITransformation2d::EM_NONE,
double *  errorFactorPtr = NULL
)
overridevirtual

Transform this object using some transformation.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters
modecontrols needed transformation exactness.
errorFactorPtroptional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.
Returns
true, if transformation was done correctly.

Reimplemented from i2d::CPolypoint.

The documentation for this class was generated from the following file:
