Interface for 2D calibration and coordinate transformation with unit information. More...

#include <ICalibration2d.h>

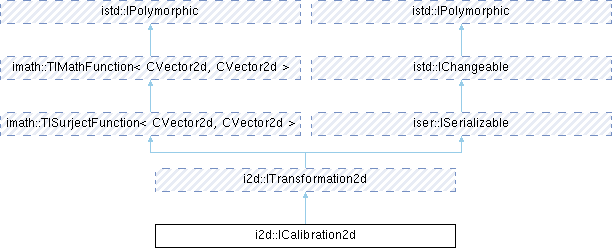

Inheritance diagram for i2d::ICalibration2d:

Public Types
enum	ChangeFlags { CF_CALIBRATION_CHANGED = 0x8d89e2 , CF_AREA_CHANGED , CF_UNITS_CHANGED }

enum	TransformationFlags { TF_SUPPORT_COMBINE = 1 << 10 }
	Extension of `i2d::ITransformation2d::TransformationFlags`. More...

Public Types inherited from i2d::ITransformation2d
enum	ExactnessMode { EM_NONE , EM_EXACT , EM_VISUAL , EM_ANY }

enum	TransformationFlags { TF_FORWARD = 1 << 0 , TF_INVERTED = 1 << 1 , TF_INJECTIVE = 1 << 2 , TF_SURJECTIVE = 1 << 3 , TF_PRESERVE_NULL = 1 << 4 , TF_PRESERVE_DISTANCE = 1 << 5 , TF_PRESERVE_ANGLE = 1 << 6 , TF_AFFINE = 1 << 7 , TF_CONTINUES = 1 << 8 }
	Flags indication type of this transformation and supported operations. More...

Public Types inherited from imath::TIMathFunction< Argument, Result >
typedef Argument	ArgumentType

typedef Result	ResultType

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual const CRectangle *	GetArgumentArea () const =0
	Get optional area where arguments are defined properly.

virtual const CRectangle *	GetResultArea () const =0
	Get optional area where results are defined properly.

virtual const imath::IUnitInfo *	GetArgumentUnitInfo () const =0
	Get unit description of calibration input (transformation function argument).

virtual const imath::IUnitInfo *	GetResultUnitInfo () const =0
	Get unit description of calibration output (transformation function result).

virtual istd::TUniqueInterfacePtr< i2d::ICalibration2d >	CreateCombinedCalibration (const ITransformation2d &transformation) const =0
	Create new calibration being combination of this calibration and the second one.

Public Member Functions inherited from i2d::ITransformation2d
virtual int	GetTransformationFlags () const =0
	Get flags of describing type of this transformation.

virtual bool	GetDistance (const CVector2d &origPos1, const CVector2d &origPos2, double &result, ExactnessMode mode=EM_NONE) const =0
	Compute a shortness distance in transformed coordinations.

virtual bool	GetPositionAt (const CVector2d &origPosition, CVector2d &result, ExactnessMode mode=EM_NONE) const =0
	Get position after transformation.

virtual bool	GetInvPositionAt (const CVector2d &transfPosition, CVector2d &result, ExactnessMode mode=EM_NONE) const =0
	Get position after transformation.

virtual bool	GetLocalTransform (const CVector2d &origPosition, CAffine2d &result, ExactnessMode mode=EM_NONE) const =0
	Get local transformation (from original to transformed coordinate system) at some original position.

virtual bool	GetLocalInvTransform (const CVector2d &transfPosition, CAffine2d &result, ExactnessMode mode=EM_NONE) const =0
	Get local transformation (from transformed to original coordinate system) at some transformed position.

Public Member Functions inherited from imath::TISurjectFunction< CVector2d, CVector2d >
virtual bool	GetInvValueAt (const CVector2d &argument, CVector2d &result) const=0
	Get inverted function value.

virtual CVector2d	GetInvValueAt (const CVector2d &argument) const=0
	Get inverted function value.

Public Member Functions inherited from imath::TIMathFunction< Argument, Result >
virtual bool	GetValueAt (const Argument &argument, Result &result) const =0
	Get function value for specified argument value.

virtual Result	GetValueAt (const Argument &argument) const =0
	Get function value for specified argument value.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iser::ISerializable
virtual bool	Serialize (IArchive &archive)=0
	Load or store state of this object as a archive stream.

virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Interface for 2D calibration and coordinate transformation with unit information.

Extends ITransformation2d to provide calibration-specific functionality including unit information, argument/result areas, and calibration combination operations.

Definition at line 22 of file ICalibration2d.h.

Member Enumeration Documentation

◆ ChangeFlags

enum i2d::ICalibration2d::ChangeFlags

Enumerator
CF_CALIBRATION_CHANGED
CF_AREA_CHANGED
CF_UNITS_CHANGED

Definition at line 25 of file ICalibration2d.h.

◆ TransformationFlags

enum i2d::ICalibration2d::TransformationFlags

Extension of i2d::ITransformation2d::TransformationFlags.

Enumerator
TF_SUPPORT_COMBINE	This calibration supports combinating with other calibrations, at least of the same type.

Definition at line 35 of file ICalibration2d.h.

Member Function Documentation

◆ CreateCombinedCalibration()

virtual istd::TUniqueInterfacePtr< i2d::ICalibration2d > i2d::ICalibration2d::CreateCombinedCalibration ( const ITransformation2d & transformation ) const

pure virtual

Create new calibration being combination of this calibration and the second one.

Please note, that created object is owned by the caller and the caller must remove them.

Returns: new calibration object (owned by the caller) or NULL if creation was impossible.

◆ GetArgumentArea()

virtual const CRectangle * i2d::ICalibration2d::GetArgumentArea ( ) const

pure virtual

Get optional area where arguments are defined properly.

Returns: pointer to restriction area object or NULL if there is no defined restrictions.

◆ GetArgumentUnitInfo()

virtual const imath::IUnitInfo * i2d::ICalibration2d::GetArgumentUnitInfo ( ) const

pure virtual

Get unit description of calibration input (transformation function argument).

Returns: unit description of function argument or NULL, if this information is unsupported.

Referenced by iqt2d::TShapeParamsGuiCompBase< Ui, Shape, ShapeModel >::GetUnitName().

◆ GetResultArea()

virtual const CRectangle * i2d::ICalibration2d::GetResultArea ( ) const

pure virtual

Get optional area where results are defined properly.

Returns: pointer to restriction area object or NULL if there is no defined restrictions.

◆ GetResultUnitInfo()

virtual const imath::IUnitInfo * i2d::ICalibration2d::GetResultUnitInfo ( ) const

pure virtual

Get unit description of calibration output (transformation function result).

Returns: unit description of function result or NULL, if this information is unsupported.

The documentation for this class was generated from the following file:

Acf/Include/i2d/ICalibration2d.h
