Representation of a 2D-region as container of bitmap line scans. More...

#include <CScanlineMask.h>

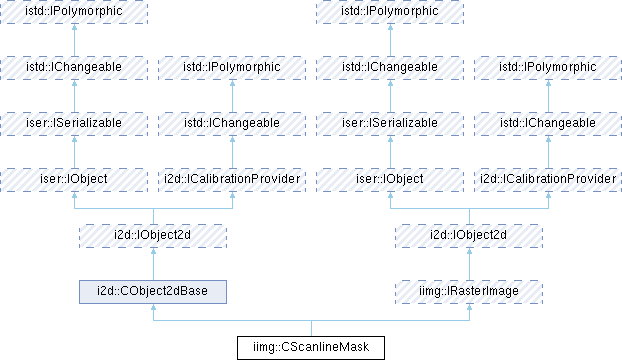

Inheritance diagram for iimg::CScanlineMask:

Public Types
typedef i2d::CObject2dBase	BaseClass

typedef QList< istd::CIntRanges >	RangesContainer

typedef std::vector< int >	Scanlines

Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CScanlineMask ()

bool	IsBitmapRegionEmpty () const
	Check if region is empty.

i2d::CRect	GetBoundingRect () const
	Get rectangle containing all active pixels.

void	ResetScanlines (const istd::CIntRange &verticalRange)
	Set this mask to empty set for some vertical range.

const istd::CIntRanges *	GetPixelRanges (int lineIndex) const
	Get the list of pixel ranges per given line.

void	CreateFilled (const i2d::CRect &clipArea)
	Create filled 2D-region clipped to rectangle area.

bool	CreateFromGeometry (const i2d::IObject2d &geometry, const i2d::CRect *clipAreaPtr=NULL)
	Create 2D-region from some geometrical object.

void	CreateFromCircle (const i2d::CCircle &circle, const i2d::CRect *clipAreaPtr=NULL)
	Create 2D-region from circle.

void	CreateFromRectangle (const i2d::CRectangle &rect, const i2d::CRect *clipAreaPtr=NULL)
	Create 2D-region from rectangle.

void	CreateFromAnnulus (const i2d::CAnnulus &annulus, const i2d::CRect *clipAreaPtr=NULL)
	Create 2D-region from annulus.

void	CreateFromPolygon (const i2d::CPolygon &polygon, const i2d::CRect *clipAreaPtr=NULL)
	Create 2D-region from polygon.

void	CreateFromTube (const i2d::CTubePolyline &tube, const i2d::CRect *clipAreaPtr=NULL)
	Create 2D-region from tube.

void	CreateFromBitmap (const iimg::IBitmap &bitmap, const i2d::CRect *clipAreaPtr=NULL)
	Create 2D-region from a bitmap.

void	GetInverted (const i2d::CRect &clipArea, CScanlineMask &result) const
	Get inverted mask.

void	Invert (const i2d::CRect &clipArea)
	Invert mask on place.

CScanlineMask	GetUnion (const CScanlineMask &mask) const
	Get union of two masks.

void	GetUnion (const CScanlineMask &mask, CScanlineMask &result) const
	Get union of two masks.

void	Union (const CScanlineMask &mask)
	Calculate union of this mask and the other one.

CScanlineMask	GetIntersection (const CScanlineMask &mask) const
	Get intersection of two masks.

void	GetIntersection (const CScanlineMask &mask, CScanlineMask &result) const
	Get intersection of two masks.

void	Intersection (const CScanlineMask &mask)
	Calculate intersection of this mask and the other one.

CScanlineMask	GetTranslated (int dx, int dy) const
	Calculate translated (moved) mask.

void	GetTranslated (int dx, int dy, CScanlineMask &result) const
	Calculate translated (moved) mask.

void	Translate (int dx, int dy)
	Translated (move) this mask.

void	Erode (int leftValue, int rightValue, int topValue, int bottomValue)
	Calculate erosion of this range list with rectangle structured element.

void	Dilate (int leftValue, int rightValue, int topValue, int bottomValue)
	Calculate dilatation of this range list with rectangle structured element.

virtual i2d::CVector2d	GetCenter () const override
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const i2d::CVector2d &position) override
	Move object to position `position`.

virtual i2d::CRectangle	GetBoundingBox () const override
	Get bounding box of this shape.

virtual bool	IsEmpty () const override
	Return true if this image is empty.

virtual void	ResetImage () override
	Reset this image.

virtual void	ClearImage () override
	Cleat this image.

virtual istd::CIndex2d	GetImageSize () const override
	Get size of this raster image.

virtual int	GetComponentsCount () const override
	Get number of color components.

virtual icmm::CVarColor	GetColorAt (const istd::CIndex2d &position) const override
	Get color at specified pixel.

virtual bool	SetColorAt (const istd::CIndex2d &position, const icmm::CVarColor &color) override
	Set color at specified pixel.

virtual const icmm::IColorModel *	GetColorModel () const override
	Get the color model related to the image.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

bool	operator== (const CScanlineMask &mask) const

bool	operator!= (const CScanlineMask &mask) const

Public Member Functions inherited from i2d::CObject2dBase
	CObject2dBase ()

	CObject2dBase (const CObject2dBase &object2d)

	CObject2dBase (CObject2dBase &&object2d)

CObject2dBase &	operator= (const CObject2dBase &object2d)

CObject2dBase &	operator= (CObject2dBase &&object2d)

virtual const ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
	Set calibration of this object.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Do inverse transformation of this object.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate inverse transformation of the object into second one.

Public Member Functions inherited from iser::IObject
virtual QByteArray	GetFactoryId () const

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
void	EnsureBoundingBoxValid () const

void	CalcBoundingBox () const

void	InitFromBoundingBox (const i2d::CRectangle &objectBoundingBox, const i2d::CRect *clipAreaPtr)

template<typename PixelType >
void	CalculateMaskFromBitmap (const iimg::IBitmap &bitmap, const i2d::CRect *clipAreaPtr=NULL)

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Friends
uint	qHash (const CScanlineMask &key, uint seed)

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Static Protected Attributes inherited from i2d::CObject2dBase
static const ChangeSet	s_objectMovedChange

static const ChangeSet	s_objectModifiedChange

Detailed Description

Representation of a 2D-region as container of bitmap line scans.

Definition at line 32 of file CScanlineMask.h.

Member Typedef Documentation

◆ BaseClass

typedef i2d::CObject2dBase iimg::CScanlineMask::BaseClass

Definition at line 37 of file CScanlineMask.h.

◆ RangesContainer

typedef QList<istd::CIntRanges> iimg::CScanlineMask::RangesContainer

Definition at line 38 of file CScanlineMask.h.

◆ Scanlines

typedef std::vector<int> iimg::CScanlineMask::Scanlines

Definition at line 39 of file CScanlineMask.h.

Constructor & Destructor Documentation

◆ CScanlineMask()

iimg::CScanlineMask::CScanlineMask ( )

Member Function Documentation

◆ CalcBoundingBox()

void iimg::CScanlineMask::CalcBoundingBox ( ) const

protected

Referenced by EnsureBoundingBoxValid().

◆ CalculateMaskFromBitmap()

template<typename PixelType >

void iimg::CScanlineMask::CalculateMaskFromBitmap	(	const iimg::IBitmap &	bitmap,
		const i2d::CRect *	clipAreaPtr = `NULL`
	)

protected

Definition at line 263 of file CScanlineMask.h.

References i2d::IObject2d::GetBoundingBox(), iimg::IRasterImage::GetImageSize(), i2d::CRect::GetLeft(), iimg::IBitmap::GetLinePtr(), i2d::CRect::GetRight(), istd::CIndex2d::GetX(), istd::CIndex2d::GetY(), InitFromBoundingBox(), NULL, and ResetImage().

◆ ClearImage()

virtual void iimg::CScanlineMask::ClearImage ( )

overridevirtual

Cleat this image.

After this operation all the image pixels will be set to the default value (black by default).

Implements iimg::IRasterImage.

◆ CopyFrom()

virtual bool iimg::CScanlineMask::CopyFrom	(	const istd::IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Copy this object from another one.

Default implementation in istd::IChangeable does nothing.

Reimplemented from i2d::CObject2dBase.

◆ CreateFilled()

void iimg::CScanlineMask::CreateFilled ( const i2d::CRect & clipArea )

Create filled 2D-region clipped to rectangle area.

Parameters

clipArea clipping area.

◆ CreateFromAnnulus()

void iimg::CScanlineMask::CreateFromAnnulus	(	const i2d::CAnnulus &	annulus,
		const i2d::CRect *	clipAreaPtr = `NULL`
	)

Create 2D-region from annulus.

Parameters

annulus	annulus object.
clipAreaPtr	optional clipping area.

◆ CreateFromBitmap()

void iimg::CScanlineMask::CreateFromBitmap	(	const iimg::IBitmap &	bitmap,
		const i2d::CRect *	clipAreaPtr = `NULL`
	)

Create 2D-region from a bitmap.

Parameters

bitmap	Mask bitmap. Non-zero pixels of the image represent the object in the resulting mask.
clipAreaPtr	optional clipping area.

◆ CreateFromCircle()

void iimg::CScanlineMask::CreateFromCircle	(	const i2d::CCircle &	circle,
		const i2d::CRect *	clipAreaPtr = `NULL`
	)

Create 2D-region from circle.

Parameters

circle	circle object.
clipAreaPtr	optional clipping area.

◆ CreateFromGeometry()

bool iimg::CScanlineMask::CreateFromGeometry	(	const i2d::IObject2d &	geometry,
		const i2d::CRect *	clipAreaPtr = `NULL`
	)

Create 2D-region from some geometrical object.

Parameters

geometry	some geometrical object.
clipAreaPtr	optional clipping area.

◆ CreateFromPolygon()

void iimg::CScanlineMask::CreateFromPolygon	(	const i2d::CPolygon &	polygon,
		const i2d::CRect *	clipAreaPtr = `NULL`
	)

Create 2D-region from polygon.

Parameters

polygon	polygon object.
clipAreaPtr	optional clipping area.

◆ CreateFromRectangle()

void iimg::CScanlineMask::CreateFromRectangle	(	const i2d::CRectangle &	rect,
		const i2d::CRect *	clipAreaPtr = `NULL`
	)

Create 2D-region from rectangle.

Parameters

rect	rectangle object.
clipAreaPtr	optional clipping area.

◆ CreateFromTube()

void iimg::CScanlineMask::CreateFromTube	(	const i2d::CTubePolyline &	tube,
		const i2d::CRect *	clipAreaPtr = `NULL`
	)

Create 2D-region from tube.

Parameters

tube	tube object.
clipAreaPtr	optional clipping area.

◆ Dilate()

void iimg::CScanlineMask::Dilate	(	int	leftValue,
		int	rightValue,
		int	topValue,
		int	bottomValue
	)

Calculate dilatation of this range list with rectangle structured element.

Result is stored in this object.

◆ EnsureBoundingBoxValid()

void iimg::CScanlineMask::EnsureBoundingBoxValid ( ) const

inlineprotected

Definition at line 252 of file CScanlineMask.h.

References CalcBoundingBox().

◆ Erode()

void iimg::CScanlineMask::Erode	(	int	leftValue,
		int	rightValue,
		int	topValue,
		int	bottomValue
	)

Calculate erosion of this range list with rectangle structured element.

Result is stored in this object.

◆ GetBoundingBox()

virtual i2d::CRectangle iimg::CScanlineMask::GetBoundingBox ( ) const

overridevirtual

Get bounding box of this shape.

Please note, this bounding box is in logical units, the calibration will not be considered.

Implements i2d::IObject2d.

◆ GetBoundingRect()

i2d::CRect iimg::CScanlineMask::GetBoundingRect ( ) const

Get rectangle containing all active pixels.

If this mask is infinite, it returns i2d::CRect::GetInvalid() rectangle. Agains the method GetBoundingBox() from i2d::IObject2d it returns integer rectangle.

◆ GetCenter()

virtual i2d::CVector2d iimg::CScanlineMask::GetCenter ( ) const

overridevirtual

Returns center of this 2D-object.

Implements i2d::IObject2d.

◆ GetColorAt()

virtual icmm::CVarColor iimg::CScanlineMask::GetColorAt ( const istd::CIndex2d & position ) const

overridevirtual

Get color at specified pixel.

Parameters

position pixel position, must be inside of returned size.

Implements iimg::IRasterImage.

◆ GetColorModel()

virtual const icmm::IColorModel * iimg::CScanlineMask::GetColorModel ( ) const

overridevirtual

Get the color model related to the image.

Implements iimg::IRasterImage.

◆ GetComponentsCount()

virtual int iimg::CScanlineMask::GetComponentsCount ( ) const

overridevirtual

Get number of color components.

Implements iimg::IRasterImage.

◆ GetImageSize()

virtual istd::CIndex2d iimg::CScanlineMask::GetImageSize ( ) const

overridevirtual

Get size of this raster image.

Implements iimg::IRasterImage.

◆ GetIntersection() [1/2]

CScanlineMask iimg::CScanlineMask::GetIntersection ( const CScanlineMask & mask ) const

Get intersection of two masks.

◆ GetIntersection() [2/2]

void iimg::CScanlineMask::GetIntersection	(	const CScanlineMask &	mask,
		CScanlineMask &	result
	)		const

Get intersection of two masks.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ GetInverted()

void iimg::CScanlineMask::GetInverted	(	const i2d::CRect &	clipArea,
		CScanlineMask &	result
	)		const

Get inverted mask.

Parameters

clipArea	clipping area.
result	result object, will be filled with inverted mask.

◆ GetPixelRanges()

const istd::CIntRanges * iimg::CScanlineMask::GetPixelRanges ( int lineIndex ) const

Get the list of pixel ranges per given line.

◆ GetSupportedOperations()

virtual int iimg::CScanlineMask::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from istd::IChangeable.

◆ GetTranslated() [1/2]

CScanlineMask iimg::CScanlineMask::GetTranslated	(	int	dx,
		int	dy
	)		const

Calculate translated (moved) mask.

◆ GetTranslated() [2/2]

void iimg::CScanlineMask::GetTranslated	(	int	dx,
		int	dy,
		CScanlineMask &	result
	)		const

Calculate translated (moved) mask.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ GetUnion() [1/2]

CScanlineMask iimg::CScanlineMask::GetUnion ( const CScanlineMask & mask ) const

Get union of two masks.

◆ GetUnion() [2/2]

void iimg::CScanlineMask::GetUnion	(	const CScanlineMask &	mask,
		CScanlineMask &	result
	)		const

Get union of two masks.

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ InitFromBoundingBox()

void iimg::CScanlineMask::InitFromBoundingBox	(	const i2d::CRectangle &	objectBoundingBox,
		const i2d::CRect *	clipAreaPtr
	)

protected

Referenced by CalculateMaskFromBitmap().

◆ Intersection()

void iimg::CScanlineMask::Intersection ( const CScanlineMask & mask )

Calculate intersection of this mask and the other one.

Result is stored in this object.

◆ Invert()

void iimg::CScanlineMask::Invert ( const i2d::CRect & clipArea )

Invert mask on place.

Parameters

clipArea clipping area.

◆ IsBitmapRegionEmpty()

bool iimg::CScanlineMask::IsBitmapRegionEmpty ( ) const

Check if region is empty.

◆ IsEmpty()

virtual bool iimg::CScanlineMask::IsEmpty ( ) const

overridevirtual

Return true if this image is empty.

Implements iimg::IRasterImage.

◆ MoveCenterTo()

virtual void iimg::CScanlineMask::MoveCenterTo ( const i2d::CVector2d & position )

overridevirtual

Move object to position position.

Implements i2d::IObject2d.

◆ operator!=()

bool iimg::CScanlineMask::operator!= ( const CScanlineMask & mask ) const

inline

Definition at line 244 of file CScanlineMask.h.

References operator==().

◆ operator==()

bool iimg::CScanlineMask::operator== ( const CScanlineMask & mask ) const

Referenced by operator!=().

◆ ResetData()

virtual bool iimg::CScanlineMask::ResetData ( CompatibilityMode mode = CM_WITHOUT_REFS )

overridevirtual

Reset data to its default state.

Default implementation in istd::IChangeable does nothing.

Returns: true if the operation was successful, and false otherwise.

Reimplemented from i2d::CObject2dBase.

◆ ResetImage()

virtual void iimg::CScanlineMask::ResetImage ( )

overridevirtual

Reset this image.

After this operation image is set to initial state.

Implements iimg::IRasterImage.

Referenced by CalculateMaskFromBitmap().

◆ ResetScanlines()

void iimg::CScanlineMask::ResetScanlines ( const istd::CIntRange & verticalRange )

Set this mask to empty set for some vertical range.

◆ Serialize()

virtual bool iimg::CScanlineMask::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

◆ SetColorAt()

virtual bool iimg::CScanlineMask::SetColorAt	(	const istd::CIndex2d &	position,
		const icmm::CVarColor &	color
	)

overridevirtual

Set color at specified pixel.

Parameters

position	pixel position, must be inside of returned size.
color	color of pixel will be set.

Returns: true, if pixel color was changed.

Implements iimg::IRasterImage.

◆ Translate()

void iimg::CScanlineMask::Translate	(	int	dx,
		int	dy
	)

Translated (move) this mask.

◆ Union()

void iimg::CScanlineMask::Union ( const CScanlineMask & mask )

Calculate union of this mask and the other one.

Result is stored in this object.

Friends And Related Symbol Documentation

◆ qHash

uint qHash	(	const CScanlineMask &	key,
		uint	seed
	)

friend

The documentation for this class was generated from the following file:

Acf/Include/iimg/CScanlineMask.h

Public Types

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ RangesContainer

◆ Scanlines

Constructor & Destructor Documentation

◆ CScanlineMask()

Member Function Documentation

◆ CalcBoundingBox()

◆ CalculateMaskFromBitmap()

◆ ClearImage()

◆ CopyFrom()

◆ CreateFilled()

◆ CreateFromAnnulus()

◆ CreateFromBitmap()

◆ CreateFromCircle()

◆ CreateFromGeometry()

◆ CreateFromPolygon()

◆ CreateFromRectangle()

◆ CreateFromTube()

◆ Dilate()

◆ EnsureBoundingBoxValid()

◆ Erode()

◆ GetBoundingBox()

◆ GetBoundingRect()

◆ GetCenter()

◆ GetColorAt()

◆ GetColorModel()

◆ GetComponentsCount()

◆ GetImageSize()

◆ GetIntersection() [1/2]

◆ GetIntersection() [2/2]

◆ GetInverted()

◆ GetPixelRanges()

◆ GetSupportedOperations()

◆ GetTranslated() [1/2]

◆ GetTranslated() [2/2]

◆ GetUnion() [1/2]

◆ GetUnion() [2/2]

◆ InitFromBoundingBox()

◆ Intersection()

◆ Invert()

◆ IsBitmapRegionEmpty()

◆ IsEmpty()

◆ MoveCenterTo()

◆ operator!=()

◆ operator==()

◆ ResetData()

◆ ResetImage()

◆ ResetScanlines()

◆ Serialize()

◆ SetColorAt()

◆ Translate()

◆ Union()

Friends And Related Symbol Documentation

◆ qHash
