Definition of rectangle area orthogonal to axis of coordination system. More...

#include <CRectangle.h>

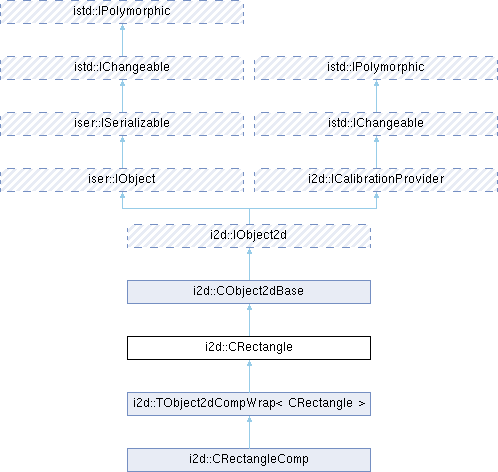

Inheritance diagram for i2d::CRectangle:

Public Member Functions
	CRectangle ()

	CRectangle (double left, double top, double width, double height)

	CRectangle (const CVector2d &topLeft, const CVector2d &bottomRight)

	CRectangle (const istd::CRange &horizontalRange, const istd::CRange &verticalRange)

	CRectangle (const i2d::CRect &rect)

	CRectangle (const istd::CIndex2d &size)

bool	IsValid () const
	Return `true` if the rectangle is valid.

bool	IsEmpty () const
	Return `true` if the rectangle is empty.

bool	IsValidNonEmpty () const
	Return `true` if the rectangle is valid and it is not empty.

void	Reset ()
	Make rectangle empty.

double	GetLeft () const
	Get value of left boundary.

void	SetLeft (double left)
	Set value of left boundary.

double	GetTop () const
	Get value of top boundary.

void	SetTop (double top)
	Set value of top boundary.

double	GetRight () const
	Get value of right boundary.

void	SetRight (double right)
	Set value of right boundary.

double	GetBottom () const
	Get value of bottom boundary.

void	SetBottom (double bottom)
	Set value of bottom boundary.

const istd::CRange &	GetHorizontalRange () const
	Get values of horizontal boundaries.

istd::CRange &	GetHorizontalRangeRef ()
	Get values of horizontal boundaries as reference.

void	SetHorizontalRange (const istd::CRange &range)
	Set values of horizontal boundaries.

const istd::CRange &	GetVerticalRange () const
	Get values of vertical boundaries.

istd::CRange &	GetVerticalRangeRef ()
	Get values of vertical boundaries as reference.

void	SetVerticalRange (const istd::CRange &range)
	Set values of vertical boundaries.

CVector2d	GetLeftTop () const
	Get left-top point of this rectangle.

void	SetTopLeft (const CVector2d &topLeft)
	Set left-top point of this rectangle.

CVector2d	GetRightTop () const
	Get right-top point of this rectangle.

void	SetTopRight (const CVector2d &topRight)
	Set right-top point of this rectangle.

CVector2d	GetLeftBottom () const
	Get left-bottom point of this rectangle.

void	SetBottomLeft (const CVector2d &bottomLeft)
	Set left-bottom point of this rectangle.

CVector2d	GetRightBottom () const
	Get right-bottom point of this rectangle.

void	SetBottomRight (const CVector2d &bottomRight)
	Set right-bottom point of this rectangle.

CVector2d	GetLeftCenter () const
	Get point in center of left edge.

CVector2d	GetRightCenter () const
	Get point in center of right edge.

CVector2d	GetTopCenter () const
	Get point in center of top edge.

CVector2d	GetBottomCenter () const
	Get point in center of bottom edge.

bool	Contains (const CVector2d &point) const
	Check if some point is contained in this rectangle.

bool	Contains (const istd::CIndex2d &point) const
	Check if some point is contained in this rectangle.

bool	Contains (const CRectangle &rect) const
	Check if some rectangle is fully contained in this rectangle.

double	GetWidth () const
	Get width of this rectangle.

double	GetHeight () const
	Get height of this rectangle.

CVector2d	GetSize () const
	Get size of this rectangle.

bool	IsIntersectedBy (const CRectangle &rect) const
	Returns `true`, if this rectangle is intersected by the other rectangle `rect`.

bool	IsIntersectedBy (const CLine2d &line) const
	Returns `true`, if this rectangle is intersected by the line `rect`.

CRectangle	GetIntersection (const CRectangle &rect) const
	Get resulting rectangle of the intersection of this rectangle with `rect`.

CLine2d	GetIntersection (const CLine2d &line) const
	Get resulting line of the intersection of this rectangle with the line `line`.

void	Intersect (const CRectangle &rectangle)
	Set new rectangle as intersection of the current rectangle with a given one.

CRectangle	GetUnion (const CRectangle &rect) const
	Get union of two rectangles.

void	Unite (const CRectangle &rect)
	Set this rectangle to union of two rectangles.

CRectangle	GetUnion (const i2d::CVector2d &position) const
	Get union of this rectangle and point.

void	Unite (const i2d::CVector2d &position)
	Set this rectangle to union of rectangle and point.

CRectangle	GetExpanded (const CRectangle &rect) const
	Get expanded rectangle (simple sum of boundary values).

void	Expand (const CRectangle &rect)
	Expand rectangle.

double	GetDistance (const CVector2d &position) const
	Get distance from nearest point of this rectangle to specified position.

double	GetMaxDistance (const CVector2d &position) const
	Get maximal distance from points of this rectangle to specified position.

CVector2d	GetNearestPointTo (const CVector2d &point) const
	Get the nearest point in the rectangle for the some given point.

void	Translate (const i2d::CVector2d &delta)

CRectangle	GetTranslated (const i2d::CVector2d &delta) const

bool	operator== (const CRectangle &rect) const

bool	operator!= (const CRectangle &rect) const

	operator QRectF () const

virtual CVector2d	GetCenter () const override
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const CVector2d &position) override
	Move object to position `position`.

virtual CRectangle	GetBoundingBox () const override
	Get bounding box of this shape.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Do inverse transformation of this object.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate inverse transformation of the object into second one.

virtual QByteArray	GetFactoryId () const override

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

Public Member Functions inherited from i2d::CObject2dBase
	CObject2dBase ()

	CObject2dBase (const CObject2dBase &object2d)

	CObject2dBase (CObject2dBase &&object2d)

CObject2dBase &	operator= (const CObject2dBase &object2d)

CObject2dBase &	operator= (CObject2dBase &&object2d)

virtual const ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
	Set calibration of this object.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Static Public Member Functions
static QByteArray	GetTypeName ()

static const i2d::CRectangle &	GetEmpty ()
	Get empty rectangle with all values set to 0.

static const i2d::CRectangle &	GetInvalid ()
	Get invalid rectangle.

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Additional Inherited Members
Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Static Protected Attributes inherited from i2d::CObject2dBase
static const ChangeSet	s_objectMovedChange

static const ChangeSet	s_objectModifiedChange

Detailed Description

Definition of rectangle area orthogonal to axis of coordination system.

Definition at line 26 of file CRectangle.h.

Constructor & Destructor Documentation

◆ CRectangle() [1/6]

i2d::CRectangle::CRectangle ( )

◆ CRectangle() [2/6]

i2d::CRectangle::CRectangle	(	double	left,
		double	top,
		double	width,
		double	height
	)

◆ CRectangle() [3/6]

i2d::CRectangle::CRectangle	(	const CVector2d &	topLeft,
		const CVector2d &	bottomRight
	)

◆ CRectangle() [4/6]

i2d::CRectangle::CRectangle	(	const istd::CRange &	horizontalRange,
		const istd::CRange &	verticalRange
	)

◆ CRectangle() [5/6]

i2d::CRectangle::CRectangle ( const i2d::CRect & rect )

◆ CRectangle() [6/6]

i2d::CRectangle::CRectangle ( const istd::CIndex2d & size )

explicit

Member Function Documentation

◆ CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > i2d::CRectangle::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from istd::IChangeable.

◆ Contains() [1/3]

bool i2d::CRectangle::Contains ( const CRectangle & rect ) const

Check if some rectangle is fully contained in this rectangle.

The calibration will be ignored.

◆ Contains() [2/3]

bool i2d::CRectangle::Contains ( const CVector2d & point ) const

Check if some point is contained in this rectangle.

◆ Contains() [3/3]

bool i2d::CRectangle::Contains ( const istd::CIndex2d & point ) const

Check if some point is contained in this rectangle.

◆ CopyFrom()

virtual bool i2d::CRectangle::CopyFrom	(	const IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

◆ Expand()

void i2d::CRectangle::Expand ( const CRectangle & rect )

Expand rectangle.

This expanded rectangle is simple sum of boundary values.

◆ GetBottom()

double i2d::CRectangle::GetBottom ( ) const

inline

Get value of bottom boundary.

Definition at line 353 of file CRectangle.h.

References istd::TRange< ValueType >::GetMaxValue().

Referenced by i2d::CRect::CRect().

◆ GetBottomCenter()

CVector2d i2d::CRectangle::GetBottomCenter ( ) const

Get point in center of bottom edge.

◆ GetBoundingBox()

virtual CRectangle i2d::CRectangle::GetBoundingBox ( ) const

overridevirtual

Get bounding box of this shape.

Please note, this bounding box is in logical units, the calibration will not be considered.

Implements i2d::IObject2d.

◆ GetCenter()

virtual CVector2d i2d::CRectangle::GetCenter ( ) const

overridevirtual

Returns center of this 2D-object.

Implements i2d::IObject2d.

◆ GetDistance()

double i2d::CRectangle::GetDistance ( const CVector2d & position ) const

Get distance from nearest point of this rectangle to specified position.

◆ GetEmpty()

const i2d::CRectangle & i2d::CRectangle::GetEmpty ( )

inlinestatic

Get empty rectangle with all values set to 0.

Definition at line 385 of file CRectangle.h.

◆ GetExpanded()

CRectangle i2d::CRectangle::GetExpanded ( const CRectangle & rect ) const

Get expanded rectangle (simple sum of boundary values).

◆ GetFactoryId()

virtual QByteArray i2d::CRectangle::GetFactoryId ( ) const

overridevirtual

Reimplemented from iser::IObject.

◆ GetHeight()

double i2d::CRectangle::GetHeight ( ) const

Get height of this rectangle.

◆ GetHorizontalRange()

const istd::CRange & i2d::CRectangle::GetHorizontalRange ( ) const

inline

Get values of horizontal boundaries.

Definition at line 359 of file CRectangle.h.

◆ GetHorizontalRangeRef()

istd::CRange & i2d::CRectangle::GetHorizontalRangeRef ( )

inline

Get values of horizontal boundaries as reference.

Please use update notificators (like istd::CChangeNotifier) to be sure that obervers will be updated correctly.

Definition at line 365 of file CRectangle.h.

◆ GetIntersection() [1/2]

CLine2d i2d::CRectangle::GetIntersection ( const CLine2d & line ) const

Get resulting line of the intersection of this rectangle with the line line.

◆ GetIntersection() [2/2]

CRectangle i2d::CRectangle::GetIntersection ( const CRectangle & rect ) const

Get resulting rectangle of the intersection of this rectangle with rect.

◆ GetInvalid()

const i2d::CRectangle & i2d::CRectangle::GetInvalid ( )

inlinestatic

Get invalid rectangle.

Definition at line 391 of file CRectangle.h.

◆ GetInvTransformed()

virtual bool i2d::CRectangle::GetInvTransformed	(	const ITransformation2d &	transformation,
		IObject2d &	result,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)		const

overridevirtual

Calulate inverse transformation of the object into second one.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.
result	result object.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

◆ GetLeft()

double i2d::CRectangle::GetLeft ( ) const

inline

Get value of left boundary.

Definition at line 335 of file CRectangle.h.

References istd::TRange< ValueType >::GetMinValue().

Referenced by i2d::CRect::CRect().

◆ GetLeftBottom()

CVector2d i2d::CRectangle::GetLeftBottom ( ) const

Get left-bottom point of this rectangle.

◆ GetLeftCenter()

CVector2d i2d::CRectangle::GetLeftCenter ( ) const

Get point in center of left edge.

◆ GetLeftTop()

CVector2d i2d::CRectangle::GetLeftTop ( ) const

Get left-top point of this rectangle.

◆ GetMaxDistance()

double i2d::CRectangle::GetMaxDistance ( const CVector2d & position ) const

Get maximal distance from points of this rectangle to specified position.

◆ GetNearestPointTo()

CVector2d i2d::CRectangle::GetNearestPointTo ( const CVector2d & point ) const

Get the nearest point in the rectangle for the some given point.

◆ GetRight()

double i2d::CRectangle::GetRight ( ) const

inline

Get value of right boundary.

Definition at line 347 of file CRectangle.h.

References istd::TRange< ValueType >::GetMaxValue().

Referenced by i2d::CRect::CRect().

◆ GetRightBottom()

CVector2d i2d::CRectangle::GetRightBottom ( ) const

Get right-bottom point of this rectangle.

◆ GetRightCenter()

CVector2d i2d::CRectangle::GetRightCenter ( ) const

Get point in center of right edge.

◆ GetRightTop()

CVector2d i2d::CRectangle::GetRightTop ( ) const

Get right-top point of this rectangle.

◆ GetSize()

CVector2d i2d::CRectangle::GetSize ( ) const

Get size of this rectangle.

◆ GetSupportedOperations()

virtual int i2d::CRectangle::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from istd::IChangeable.

◆ GetTop()

double i2d::CRectangle::GetTop ( ) const

inline

Get value of top boundary.

Definition at line 341 of file CRectangle.h.

References istd::TRange< ValueType >::GetMinValue().

Referenced by i2d::CRect::CRect().

◆ GetTopCenter()

CVector2d i2d::CRectangle::GetTopCenter ( ) const

Get point in center of top edge.

◆ GetTransformed()

virtual bool i2d::CRectangle::GetTransformed	(	const ITransformation2d &	transformation,
		IObject2d &	result,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)		const

overridevirtual

Calulate transformation of the object into second one.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.
result	result object.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

◆ GetTranslated()

CRectangle i2d::CRectangle::GetTranslated ( const i2d::CVector2d & delta ) const

◆ GetTypeName()

static QByteArray i2d::CRectangle::GetTypeName ( )

static

◆ GetUnion() [1/2]

CRectangle i2d::CRectangle::GetUnion ( const CRectangle & rect ) const

Get union of two rectangles.

Union of rectangles is the smallest rectangle containing both. The calibration will be ignored.

◆ GetUnion() [2/2]

CRectangle i2d::CRectangle::GetUnion ( const i2d::CVector2d & position ) const

Get union of this rectangle and point.

This is the smallest rectangle containing both elements.

◆ GetVerticalRange()

const istd::CRange & i2d::CRectangle::GetVerticalRange ( ) const

inline

Get values of vertical boundaries.

Definition at line 371 of file CRectangle.h.

◆ GetVerticalRangeRef()

istd::CRange & i2d::CRectangle::GetVerticalRangeRef ( )

inline

Get values of vertical boundaries as reference.

Please use update notificators (like istd::CChangeNotifier) to be sure that obervers will be updated correctly.

Definition at line 377 of file CRectangle.h.

◆ GetWidth()

double i2d::CRectangle::GetWidth ( ) const

Get width of this rectangle.

◆ Intersect()

void i2d::CRectangle::Intersect ( const CRectangle & rectangle )

Set new rectangle as intersection of the current rectangle with a given one.

◆ InvTransform()

virtual bool i2d::CRectangle::InvTransform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Do inverse transformation of this object.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

◆ IsEmpty()

bool i2d::CRectangle::IsEmpty ( ) const

Return true if the rectangle is empty.

◆ IsIntersectedBy() [1/2]

bool i2d::CRectangle::IsIntersectedBy ( const CLine2d & line ) const

Returns true, if this rectangle is intersected by the line rect.

Rectangle is intersected, if there is any point belonging to line and rectangle (filled).

◆ IsIntersectedBy() [2/2]

bool i2d::CRectangle::IsIntersectedBy ( const CRectangle & rect ) const

Returns true, if this rectangle is intersected by the other rectangle rect.

◆ IsValid()

bool i2d::CRectangle::IsValid ( ) const

Return true if the rectangle is valid.

◆ IsValidNonEmpty()

bool i2d::CRectangle::IsValidNonEmpty ( ) const

Return true if the rectangle is valid and it is not empty.

◆ MoveCenterTo()

virtual void i2d::CRectangle::MoveCenterTo ( const CVector2d & position )

overridevirtual

Move object to position position.

Implements i2d::IObject2d.

◆ operator QRectF()

i2d::CRectangle::operator QRectF ( ) const

◆ operator!=()

bool i2d::CRectangle::operator!= ( const CRectangle & rect ) const

◆ operator==()

bool i2d::CRectangle::operator== ( const CRectangle & rect ) const

◆ Reset()

void i2d::CRectangle::Reset ( )

Make rectangle empty.

◆ Serialize()

virtual bool i2d::CRectangle::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

◆ SetBottom()

void i2d::CRectangle::SetBottom ( double bottom )

Set value of bottom boundary.

◆ SetBottomLeft()

void i2d::CRectangle::SetBottomLeft ( const CVector2d & bottomLeft )

Set left-bottom point of this rectangle.

◆ SetBottomRight()

void i2d::CRectangle::SetBottomRight ( const CVector2d & bottomRight )

Set right-bottom point of this rectangle.

◆ SetHorizontalRange()

void i2d::CRectangle::SetHorizontalRange ( const istd::CRange & range )

Set values of horizontal boundaries.

◆ SetLeft()

void i2d::CRectangle::SetLeft ( double left )

Set value of left boundary.

◆ SetRight()

void i2d::CRectangle::SetRight ( double right )

Set value of right boundary.

◆ SetTop()

void i2d::CRectangle::SetTop ( double top )

Set value of top boundary.

◆ SetTopLeft()

void i2d::CRectangle::SetTopLeft ( const CVector2d & topLeft )

Set left-top point of this rectangle.

◆ SetTopRight()

void i2d::CRectangle::SetTopRight ( const CVector2d & topRight )

Set right-top point of this rectangle.

◆ SetVerticalRange()

void i2d::CRectangle::SetVerticalRange ( const istd::CRange & range )

Set values of vertical boundaries.

◆ Transform()

virtual bool i2d::CRectangle::Transform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Transform this object using some transformation.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

◆ Translate()

void i2d::CRectangle::Translate ( const i2d::CVector2d & delta )

◆ Unite() [1/2]

void i2d::CRectangle::Unite ( const CRectangle & rect )

Set this rectangle to union of two rectangles.

The calibration will be ignored.

◆ Unite() [2/2]

void i2d::CRectangle::Unite ( const i2d::CVector2d & position )

Set this rectangle to union of rectangle and point.

This union is the smallest rectangle containing both elements.

The documentation for this class was generated from the following file:

Acf/Include/i2d/CRectangle.h

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CRectangle() [1/6]

◆ CRectangle() [2/6]

◆ CRectangle() [3/6]

◆ CRectangle() [4/6]

◆ CRectangle() [5/6]

◆ CRectangle() [6/6]

Member Function Documentation

◆ CloneMe()

◆ Contains() [1/3]

◆ Contains() [2/3]

◆ Contains() [3/3]

◆ CopyFrom()

◆ Expand()

◆ GetBottom()

◆ GetBottomCenter()

◆ GetBoundingBox()

◆ GetCenter()

◆ GetDistance()

◆ GetEmpty()

◆ GetExpanded()

◆ GetFactoryId()

◆ GetHeight()

◆ GetHorizontalRange()

◆ GetHorizontalRangeRef()

◆ GetIntersection() [1/2]

◆ GetIntersection() [2/2]

◆ GetInvalid()

◆ GetInvTransformed()

◆ GetLeft()

◆ GetLeftBottom()

◆ GetLeftCenter()

◆ GetLeftTop()

◆ GetMaxDistance()

◆ GetNearestPointTo()

◆ GetRight()

◆ GetRightBottom()

◆ GetRightCenter()

◆ GetRightTop()

◆ GetSize()

◆ GetSupportedOperations()

◆ GetTop()

◆ GetTopCenter()

◆ GetTransformed()

◆ GetTranslated()

◆ GetTypeName()

◆ GetUnion() [1/2]

◆ GetUnion() [2/2]

◆ GetVerticalRange()

◆ GetVerticalRangeRef()

◆ GetWidth()

◆ Intersect()

◆ InvTransform()

◆ IsEmpty()

◆ IsIntersectedBy() [1/2]

◆ IsIntersectedBy() [2/2]

◆ IsValid()

◆ IsValidNonEmpty()

◆ MoveCenterTo()

◆ operator QRectF()

◆ operator!=()

◆ operator==()

◆ Reset()

◆ Serialize()

◆ SetBottom()

◆ SetBottomLeft()

◆ SetBottomRight()

◆ SetHorizontalRange()

◆ SetLeft()

◆ SetRight()

◆ SetTop()

◆ SetTopLeft()

◆ SetTopRight()

◆ SetVerticalRange()

◆ Transform()

◆ Translate()
