Represents an input/output persistence archive for object serialization. More...

#include <IArchive.h>

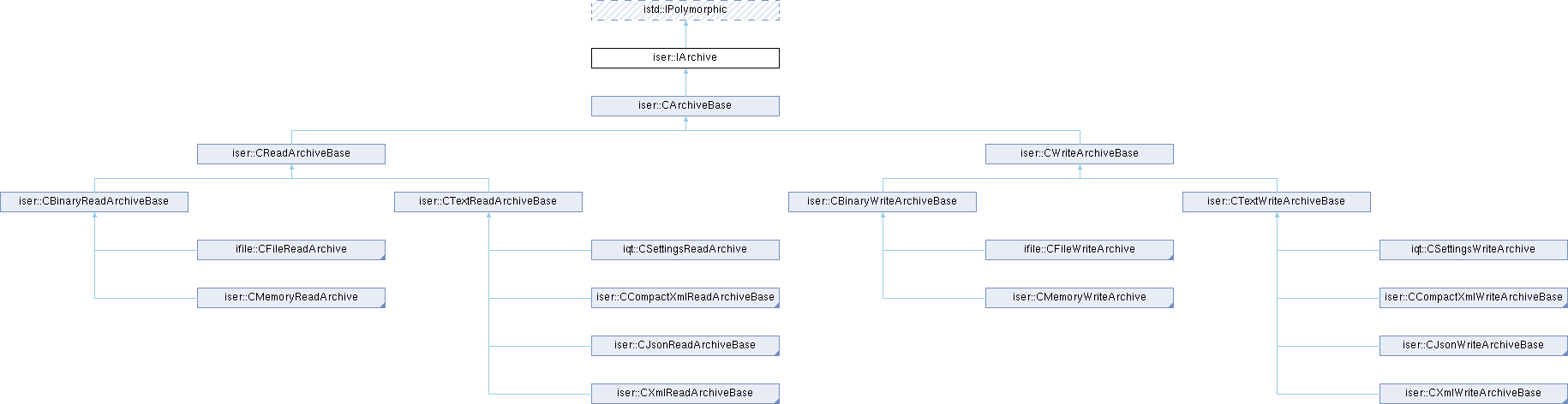

Inheritance diagram for iser::IArchive:

Public Types
enum	MessageId { MI_TAG_ERROR = 0x3f320a0 , MI_TAG_SKIPPED }

Public Member Functions
virtual bool	IsStoring () const =0
	Checks if this archive is in storing (writing) or loading (reading) mode.

virtual bool	IsTagSkippingSupported () const =0
	Checks if skipping to the end of a tag on EndTag() is supported.

virtual const IVersionInfo &	GetVersionInfo () const =0
	Gets version information for the archived stream.

virtual bool	BeginTag (const CArchiveTag &tag)=0
	Begins a tagged section in the archive.

virtual bool	BeginMultiTag (const CArchiveTag &tag, const CArchiveTag &subTag, int &count)=0
	Begins a tagged section containing multiple elements of the same type.

virtual bool	EndTag (const CArchiveTag &tag)=0
	Ends a tagged section in the archive.

virtual bool	Process (bool &value)=0
	Processes (reads or writes) a boolean value.

virtual bool	Process (char &value)=0
	Process primitive type.

virtual bool	Process (quint8 &value)=0
	Process primitive type.

virtual bool	Process (qint8 &value)=0
	Process primitive type.

virtual bool	Process (quint16 &value)=0
	Process primitive type.

virtual bool	Process (qint16 &value)=0
	Process primitive type.

virtual bool	Process (quint32 &value)=0
	Process primitive type.

virtual bool	Process (qint32 &value)=0
	Process primitive type.

virtual bool	Process (quint64 &value)=0
	Process primitive type.

virtual bool	Process (qint64 &value)=0
	Process primitive type.

virtual bool	Process (float &value)=0
	Process primitive type.

virtual bool	Process (double &value)=0
	Process primitive type.

virtual bool	Process (QByteArray &value)=0
	Process primitive type.

virtual bool	Process (QString &value)=0
	Process primitive type.

template<typename Primitive >
bool	TagAndProcess (const CArchiveTag &tag, Primitive &value)

virtual bool	ProcessData (void *dataPtr, int size)=0
	Process binary data block.

virtual bool	ProcessBits (void *dataPtr, int bitsCount, int bytesCount)=0
	Process binary data block.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Represents an input/output persistence archive for object serialization.

Purpose

IArchive provides an abstract interface for serializing and deserializing objects to and from various storage media. It acts as a bridge between the logical structure of your data and the physical representation (binary file, XML, JSON, memory buffer, etc.). This abstraction allows the same serialization code to work with different archive types.

Archive Types

ACF provides several archive implementations:

Binary Archives: CFileReadArchive, CFileWriteArchive (fast, compact)
XML Archives: CSimpleXmlFileReadArchive, CCompactXmlFileReadArchive
JSON Archives: CJsonFileReadArchive, CJsonFileWriteArchive
Memory Archives: CMemoryReadArchive, CMemoryWriteArchive
Network Archives: CNetworkWriteArchive (for data transmission)

Key Concepts

Tags**: Archives organize data using tags (similar to XML elements). Each tag has a name and describes a logical unit of data. Tags can be nested to create hierarchical structures.

Bidirectional**: The same Process() methods are used for both reading and writing. Use IsStoring() to determine the direction.

Type Safety**: Archive provides Process() overloads for common types (int, double, QString, etc.), ensuring type-safe serialization.

Usage Example

// Example serializable class
class CPerson: public iser::ISerializable
{
public:
       QString m_name;
       int m_age;
       QList<QString> m_hobbies;

       // Implement Serialize method
       virtual bool Serialize(iser::IArchive& archive) override
       {
              bool result = true;

              // Serialize name
              static iser::CArchiveTag nameTag("Name", "Person's name");
              result = result && archive.BeginTag(nameTag);
              result = result && archive.Process(m_name);
              result = result && archive.EndTag(nameTag);

              // Serialize age
              static iser::CArchiveTag ageTag("Age", "Person's age");
              result = result && archive.BeginTag(ageTag);
              result = result && archive.Process(m_age);
              result = result && archive.EndTag(ageTag);

              // Serialize hobbies list
              static iser::CArchiveTag hobbiesTag("Hobbies", "List of hobbies");
              static iser::CArchiveTag hobbyTag("Hobby", "Single hobby");
              int count = m_hobbies.count();
              result = result && archive.BeginMultiTag(hobbiesTag, hobbyTag, count);

              if (archive.IsStoring()) {
                     // Writing: iterate and save each hobby
                     for (const QString& hobby : m_hobbies) {
                            QString temp = hobby;
                            result = result && archive.BeginTag(hobbyTag);
                            result = result && archive.Process(temp);
                            result = result && archive.EndTag(hobbyTag);
                     }
              } else {
                     // Reading: count is set by BeginMultiTag
                     m_hobbies.clear();
                     for (int i = 0; i < count; ++i) {
                            QString hobby;
                            result = result && archive.BeginTag(hobbyTag);
                            result = result && archive.Process(hobby);
                            result = result && archive.EndTag(hobbyTag);
                            m_hobbies.append(hobby);
                     }
              }

              result = result && archive.EndTag(hobbiesTag);
              return result;
       }
};

// Usage: Save to file
{
       CPerson person;
       person.m_name = "Alice";
       person.m_age = 30;
       person.m_hobbies << "Reading" << "Hiking" << "Coding";

       ifile::CFileWriteArchive archive("person.dat");
       if (archive.IsOpen()) {
              person.Serialize(archive);
       }
}

// Usage: Load from file
{
       CPerson person;
       ifile::CFileReadArchive archive("person.dat");
       if (archive.IsOpen()) {
              person.Serialize(archive);
              // person now contains loaded data
       }
}

// Usage: Save to XML
{
       CPerson person;
       person.m_name = "Bob";
       person.m_age = 25;

       ifile::CSimpleXmlFileWriteArchive xmlArchive("person.xml");
       if (xmlArchive.IsOpen()) {
              person.Serialize(xmlArchive);
       }
}

Best Practices

Always check return values from BeginTag(), Process(), and EndTag()
Use static CArchiveTag objects to avoid repeated construction
Match each BeginTag() with an EndTag() call
Use BeginMultiTag() for collections and arrays
Check IsStoring() to differentiate read/write logic
Provide meaningful tag names and descriptions for debugging
For optional data, check version info before reading
Always validate data after reading (ranges, null checks, etc.)

See also: iser::ISerializable, iser::CArchiveTag, ifile::CFileReadArchive, ifile::CFileWriteArchive, ifile::CJsonFileReadArchive

Definition at line 163 of file IArchive.h.

Member Enumeration Documentation

◆ MessageId

enum iser::IArchive::MessageId

Enumerator
MI_TAG_ERROR
MI_TAG_SKIPPED

Definition at line 166 of file IArchive.h.

Member Function Documentation

◆ BeginMultiTag()

virtual bool iser::IArchive::BeginMultiTag	(	const CArchiveTag &	tag,
		const CArchiveTag &	subTag,
		int &	count
	)

pure virtual

Begins a tagged section containing multiple elements of the same type.

BeginMultiTag is used for serializing collections, arrays, or lists where you have multiple items of the same structure. The count parameter works differently for reading vs. writing:

Writing: Pass the number of elements you will serialize
Reading: The archive sets count to the number of elements stored

Parameters

tag	Main container tag for the entire collection
subTag	Tag type for each individual element in the collection
count	[in/out] For writing: number of elements to serialize For reading: set by archive to number of stored elements

Returns: true if successful, false on error

// Writing a list
if (archive.IsStoring()) {
       int count = m_items.count();
       archive.BeginMultiTag(listTag, itemTag, count);
       for (const Item& item : m_items) {
              archive.BeginTag(itemTag);
              item.Serialize(archive);
              archive.EndTag(itemTag);
       }
       archive.EndTag(listTag);
}
// Reading a list
else {
       int count;
       archive.BeginMultiTag(listTag, itemTag, count);
       m_items.clear();
       for (int i = 0; i < count; ++i) {
              archive.BeginTag(itemTag);
              Item item;
              item.Serialize(archive);
              m_items.append(item);
              archive.EndTag(itemTag);
       }
       archive.EndTag(listTag);
}

See also: BeginTag(), EndTag()

Implemented in iser::CArchiveBase, iser::CXmlReadArchiveBase, iser::CXmlWriteArchiveBase, iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CCompactXmlReadArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonReadArchiveBase, and iser::CJsonWriteArchiveBase.

Referenced by imath::TFastVector< MaxSize, Element >::Serialize(), imath::TMathVectorWrap< Base >::Serialize(), iattr::TMultiAttribute< Value >::Serialize(), ibase::TFactorisableContainer< InterfaceClass >::Serialize(), ibase::TSerializableContainer< ItemClass, ContainerType >::Serialize(), icmm::TComposedColor< Size >::Serialize(), idoc::TMultiPageDocumentWrap< Base >::Serialize(), imath::TFulcrumGrid< Position, Fulcrums >::Serialize(), iser::CPrimitiveTypesSerializer::SerializeAssociativeContainer(), iser::CPrimitiveTypesSerializer::SerializeAssociativeObjectContainer(), iser::CPrimitiveTypesSerializer::SerializeContainer(), and iser::CPrimitiveTypesSerializer::SerializeObjectContainer().

◆ BeginTag()

virtual bool iser::IArchive::BeginTag ( const CArchiveTag & tag )

pure virtual

Begins a tagged section in the archive.

Tags organize data into logical units with names and descriptions. Every BeginTag() must be matched with an EndTag() call. Tags can be nested to create hierarchical data structures.

Parameters

tag	The tag object describing this section. Use static CArchiveTag instances to avoid repeated construction overhead.

Returns: true if the tag was successfully opened, false on error

Note: Always match BeginTag() with EndTag(); Check the return value and propagate errors; For collections, use BeginMultiTag() instead

static iser::CArchiveTag personTag("Person", "Person data");
if (archive.BeginTag(personTag)) {
       archive.Process(name);
       archive.Process(age);
       archive.EndTag(personTag);
}

See also: EndTag(), BeginMultiTag(), CArchiveTag

Implemented in iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CXmlReadArchiveBase, iser::CXmlWriteArchiveBase, ifile::CFileReadArchive, ifile::CFileWriteArchive, iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CCompactXmlReadArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonReadArchiveBase, and iser::CJsonWriteArchiveBase.

Referenced by imath::TFastVector< MaxSize, Element >::Serialize(), imath::TMathVectorWrap< Base >::Serialize(), imath::TMatrix< Width, Height, Element >::Serialize(), iattr::TAttribute< Value >::Serialize(), iattr::TMultiAttribute< Value >::Serialize(), ibase::TFactorisableContainer< InterfaceClass >::Serialize(), ibase::TSerializableContainer< ItemClass, ContainerType >::Serialize(), icmm::TComposedColor< Size >::Serialize(), idoc::TMultiPageDocumentWrap< Base >::Serialize(), ilog::TExtMessage< Element >::Serialize(), imath::TFulcrumGrid< Position, Fulcrums >::Serialize(), imath::TMultidimensionalPolynomial< Dimensions, Element >::Serialize(), Model::Serialize(), iser::CPrimitiveTypesSerializer::SerializeAssociativeContainer(), iser::CPrimitiveTypesSerializer::SerializeAssociativeObjectContainer(), iser::CPrimitiveTypesSerializer::SerializeContainer(), iser::CPrimitiveTypesSerializer::SerializeObjectContainer(), idoc::TMultiPageDocumentWrap< Base >::SerializePage(), iser::CPrimitiveTypesSerializer::SerializeRange(), and TagAndProcess().

◆ EndTag()

virtual bool iser::IArchive::EndTag ( const CArchiveTag & tag )

pure virtual

Ends a tagged section in the archive.

Must be called after BeginTag() or BeginMultiTag() to close the section. If tag skipping is supported and not all data was read, this will skip to the end of the tag section, enabling forward compatibility.

Parameters

tag	The same tag object passed to BeginTag() or BeginMultiTag()

Returns: true if successful, false on error

Note: Always call EndTag() even if errors occurred within the tag; The tag parameter must match the one used in BeginTag(); If IsTagSkippingSupported() returns false, you must read all data before calling EndTag()

static iser::CArchiveTag dataTag("Data", "My data");
if (archive.BeginTag(dataTag)) {
       bool success = archive.Process(myData);
       archive.EndTag(dataTag);  // Always call, even if Process failed
       if (!success) return false;
}

See also: BeginTag(), BeginMultiTag(), IsTagSkippingSupported()

Implemented in iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CXmlReadArchiveBase, iser::CXmlWriteArchiveBase, ifile::CFileReadArchive, ifile::CFileWriteArchive, iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CCompactXmlReadArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonReadArchiveBase, and iser::CJsonWriteArchiveBase.

Referenced by imath::TFastVector< MaxSize, Element >::Serialize(), imath::TMathVectorWrap< Base >::Serialize(), imath::TMatrix< Width, Height, Element >::Serialize(), iattr::TAttribute< Value >::Serialize(), iattr::TMultiAttribute< Value >::Serialize(), ibase::TFactorisableContainer< InterfaceClass >::Serialize(), ibase::TSerializableContainer< ItemClass, ContainerType >::Serialize(), icmm::TComposedColor< Size >::Serialize(), idoc::TMultiPageDocumentWrap< Base >::Serialize(), ilog::TExtMessage< Element >::Serialize(), imath::TFulcrumGrid< Position, Fulcrums >::Serialize(), imath::TMultidimensionalPolynomial< Dimensions, Element >::Serialize(), Model::Serialize(), iser::CPrimitiveTypesSerializer::SerializeAssociativeContainer(), iser::CPrimitiveTypesSerializer::SerializeAssociativeObjectContainer(), iser::CPrimitiveTypesSerializer::SerializeContainer(), iser::CPrimitiveTypesSerializer::SerializeObjectContainer(), idoc::TMultiPageDocumentWrap< Base >::SerializePage(), iser::CPrimitiveTypesSerializer::SerializeRange(), and TagAndProcess().

◆ GetVersionInfo()

virtual const IVersionInfo & iser::IArchive::GetVersionInfo ( ) const

pure virtual

Gets version information for the archived stream.

Version information allows handling compatibility between different versions of your data format. You can query the version to decide whether to read optional or newly added fields.

Returns: Reference to version information object

const IVersionInfo& version = archive.GetVersionInfo();
if (version.GetVersion() >= CMyClass::VERSION_WITH_NEW_FIELD) {
       // New field exists, read it
       archive.Process(m_newField);
}

See also: iser::IVersionInfo, iser::CMinimalVersionInfo

Implemented in iser::CReadArchiveBase, and iser::CWriteArchiveBase.

Referenced by ilog::TExtMessage< Element >::Serialize().

◆ IsStoring()

virtual bool iser::IArchive::IsStoring ( ) const

pure virtual

Checks if this archive is in storing (writing) or loading (reading) mode.

This method is fundamental for implementing bidirectional serialization. The same Serialize() method is used for both reading and writing, and IsStoring() tells you which operation is being performed.

Returns: true if the archive is writing/storing data, false if reading/loading data

virtual bool Serialize(iser::IArchive& archive)
{
       if (archive.IsStoring()) {
              // Prepare data for writing
              int count = m_items.size();
              archive.Process(count);
              for (const Item& item : m_items) {
                     // Write items
              }
       } else {
              // Read data
              int count;
              archive.Process(count);
              m_items.clear();
              for (int i = 0; i < count; ++i) {
                     // Read items
              }
       }
}

See also: Process()

Implemented in iser::CReadArchiveBase, and iser::CWriteArchiveBase.

Referenced by imath::TFastVector< MaxSize, Element >::Serialize(), imath::TMathVectorWrap< Base >::Serialize(), imath::TMatrix< Width, Height, Element >::Serialize(), iattr::TAttribute< Value >::Serialize(), iattr::TMultiAttribute< Value >::Serialize(), ibase::TFactorisableContainer< InterfaceClass >::Serialize(), ibase::TSerializableContainer< ItemClass, ContainerType >::Serialize(), icmm::TComposedColor< Size >::Serialize(), idoc::TMultiPageDocumentWrap< Base >::Serialize(), imath::TFulcrumGrid< Position, Fulcrums >::Serialize(), imath::TMultidimensionalPolynomial< Dimensions, Element >::Serialize(), iser::CPrimitiveTypesSerializer::SerializeAssociativeContainer(), iser::CPrimitiveTypesSerializer::SerializeAssociativeObjectContainer(), iser::CPrimitiveTypesSerializer::SerializeContainer(), iser::CPrimitiveTypesSerializer::SerializeEnum(), iser::CPrimitiveTypesSerializer::SerializeObjectContainer(), and iser::CPrimitiveTypesSerializer::SerializeQEnum().

◆ IsTagSkippingSupported()

virtual bool iser::IArchive::IsTagSkippingSupported ( ) const

pure virtual

Checks if skipping to the end of a tag on EndTag() is supported.

Some archive types (like XML) support skipping unread content within a tag, allowing forward compatibility. When reading an archive created by a newer version that added fields, this feature lets you skip unknown data.

Returns: true if the archive supports tag skipping, false otherwise

Note: Binary archives typically don't support skipping, requiring all data to be read sequentially.; XML and JSON archives usually support skipping.

if (archive.IsTagSkippingSupported()) {
       // Can safely skip new fields added in future versions
} else {
       // Must read all data in exact order
}

See also: EndTag()

Implemented in ifile::CFileReadArchive, ifile::CFileWriteArchive, iser::CArchiveBase, iser::CCompactXmlReadArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [1/14]

virtual bool iser::IArchive::Process ( bool & value )

pure virtual

Processes (reads or writes) a boolean value.

Parameters

value [in/out] For writing: the value to store For reading: receives the loaded value

Returns: true if successful, false on error

See also: IsStoring(), Process() overloads for other types

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

Referenced by imath::TFastVector< MaxSize, Element >::Serialize(), imath::TMathVectorWrap< Base >::Serialize(), imath::TMatrix< Width, Height, Element >::Serialize(), imath::TVector< Size, Element >::Serialize(), iattr::TAttribute< Value >::Serialize(), iattr::TMultiAttribute< Value >::Serialize(), ibase::TFactorisableContainer< InterfaceClass >::Serialize(), icmm::TComposedColor< Size >::Serialize(), imath::TFulcrumGrid< Position, Fulcrums >::Serialize(), imath::TMultidimensionalPolynomial< Dimensions, Element >::Serialize(), Model::Serialize(), iser::CPrimitiveTypesSerializer::SerializeAssociativeContainer(), iser::CPrimitiveTypesSerializer::SerializeContainer(), iser::CPrimitiveTypesSerializer::SerializeEnum(), iser::CPrimitiveTypesSerializer::SerializeIndex(), iser::CPrimitiveTypesSerializer::SerializeQEnum(), iser::CPrimitiveTypesSerializer::SerializeRange(), and TagAndProcess().

◆ Process() [2/14]

virtual bool iser::IArchive::Process ( char & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [3/14]

virtual bool iser::IArchive::Process ( double & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [4/14]

virtual bool iser::IArchive::Process ( float & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [5/14]

virtual bool iser::IArchive::Process ( QByteArray & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, iser::CXmlReadArchiveBase, iser::CXmlWriteArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [6/14]

virtual bool iser::IArchive::Process ( qint16 & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [7/14]

virtual bool iser::IArchive::Process ( qint32 & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [8/14]

virtual bool iser::IArchive::Process ( qint64 & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [9/14]

virtual bool iser::IArchive::Process ( qint8 & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [10/14]

virtual bool iser::IArchive::Process ( QString & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlReadArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonReadArchiveBase, iser::CJsonWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [11/14]

virtual bool iser::IArchive::Process ( quint16 & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [12/14]

virtual bool iser::IArchive::Process ( quint32 & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [13/14]

virtual bool iser::IArchive::Process ( quint64 & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ Process() [14/14]

virtual bool iser::IArchive::Process ( quint8 & value )

pure virtual

Process primitive type.

Implemented in iqt::CSettingsReadArchive, iqt::CSettingsWriteArchive, iser::CBinaryReadArchiveBase, iser::CBinaryWriteArchiveBase, iser::CCompactXmlWriteArchiveBase, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, iser::CTextWriteArchiveBase, iser::CXmlReadArchiveBase, and iser::CXmlWriteArchiveBase.

◆ ProcessBits()

virtual bool iser::IArchive::ProcessBits	(	void *	dataPtr,
		int	bitsCount,
		int	bytesCount
	)

pure virtual

Process binary data block.

Parameters

dataPtr	pointer to memory block.
bitsCount	number of bits.
bytesCount	size of memory block in bytes.

Implemented in iser::CBitMemoryWriteArchive, iser::CBitMemoryReadArchive, iser::CReadArchiveBase, and iser::CWriteArchiveBase.

◆ ProcessData()

virtual bool iser::IArchive::ProcessData	(	void *	dataPtr,
		int	size
	)

pure virtual

Process binary data block.

Parameters

dataPtr	pointer to memory block.
size	size of memory block in bytes.

Implemented in ifile::CFileReadArchive, ifile::CFileReadSecureArchive, ifile::CFileWriteArchive, ifile::CFileWriteSecureArchive, iser::CBitMemoryReadArchive, iser::CBitMemoryWriteArchive, iser::CMemoryReadArchive, iser::CMemoryWriteArchive, iqt::CNetworkWriteArchive, iser::CJsonWriteArchiveBase, iser::CTextReadArchiveBase, and iser::CTextWriteArchiveBase.

Referenced by ibase::TMsbWord< Size >::Serialize().

◆ TagAndProcess()

template<typename Primitive >

bool iser::IArchive::TagAndProcess	(	const CArchiveTag &	tag,
		Primitive &	value
	)

inline

Definition at line 437 of file IArchive.h.

References BeginTag(), EndTag(), and Process().

The documentation for this class was generated from the following file:

Acf/Include/iser/IArchive.h

Public Types

Public Member Functions

Detailed Description

Purpose

Archive Types

Key Concepts

Usage Example

Best Practices

Member Enumeration Documentation

◆ MessageId

Member Function Documentation

◆ BeginMultiTag()

◆ BeginTag()

◆ EndTag()

◆ GetVersionInfo()

◆ IsStoring()

◆ IsTagSkippingSupported()

◆ Process() [1/14]

◆ Process() [2/14]

◆ Process() [3/14]

◆ Process() [4/14]

◆ Process() [5/14]

◆ Process() [6/14]

◆ Process() [7/14]

◆ Process() [8/14]

◆ Process() [9/14]

◆ Process() [10/14]

◆ Process() [11/14]

◆ Process() [12/14]

◆ Process() [13/14]

◆ Process() [14/14]

◆ ProcessBits()

◆ ProcessData()

◆ TagAndProcess()
