Definition of graphical point object. More...

#include <CPosition2d.h>

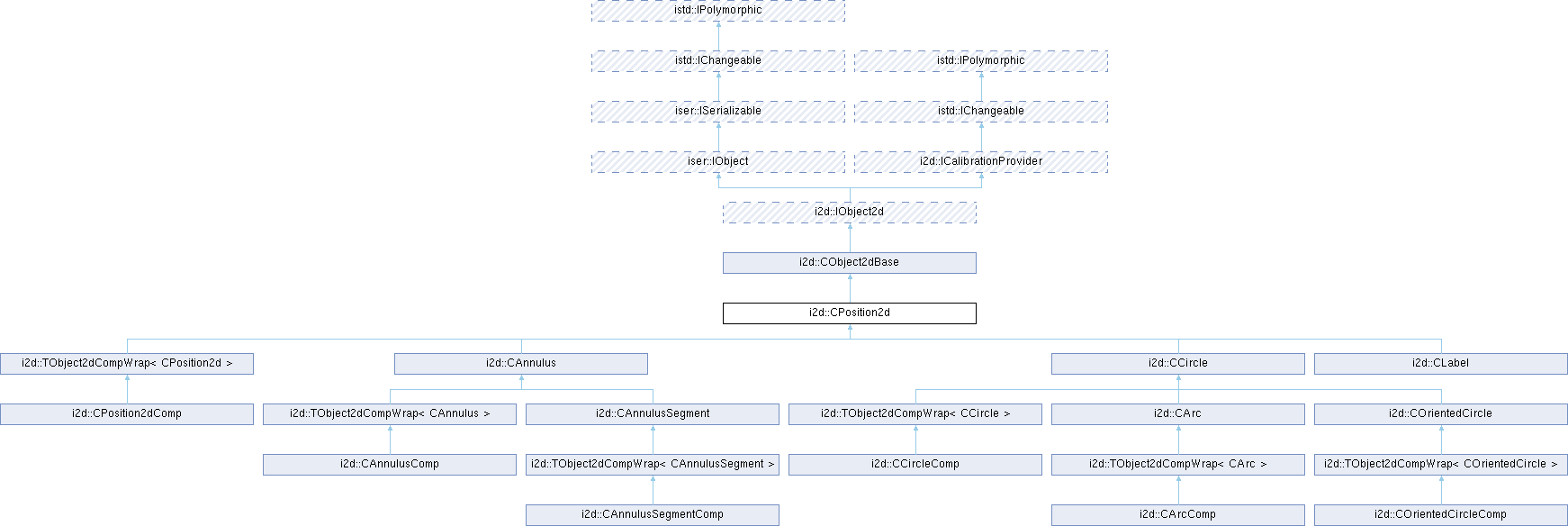

Inheritance diagram for i2d::CPosition2d:

Public Member Functions
	CPosition2d ()

	CPosition2d (const CVector2d &center)

const CVector2d &	GetPosition () const

void	SetPosition (const CVector2d &position)

void	Translate (const i2d::CVector2d &vector)

CPosition2d	GetTranslated (const i2d::CVector2d &vector) const

virtual CVector2d	GetCenter () const override
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const CVector2d &position) override
	Move object to position `position`.

virtual CRectangle	GetBoundingBox () const override
	Get bounding box of this shape.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Do inverse transformation of this object.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate inverse transformation of the object into second one.

virtual QByteArray	GetFactoryId () const override

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

virtual bool	IsEqual (const istd::IChangeable &object) const override
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

Public Member Functions inherited from i2d::CObject2dBase
	CObject2dBase ()

	CObject2dBase (const CObject2dBase &object2d)

	CObject2dBase (CObject2dBase &&object2d)

CObject2dBase &	operator= (const CObject2dBase &object2d)

CObject2dBase &	operator= (CObject2dBase &&object2d)

virtual const ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
	Set calibration of this object.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Static Public Member Functions
static QByteArray	GetTypeName ()

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Attributes
CVector2d	m_position

Additional Inherited Members
Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Static Protected Attributes inherited from i2d::CObject2dBase
static const ChangeSet	s_objectMovedChange

static const ChangeSet	s_objectModifiedChange

Detailed Description

Definition of graphical point object.

Definition at line 17 of file CPosition2d.h.

Constructor & Destructor Documentation

◆ CPosition2d() [1/2]

i2d::CPosition2d::CPosition2d ( )

◆ CPosition2d() [2/2]

i2d::CPosition2d::CPosition2d ( const CVector2d & center )

Member Function Documentation

◆ CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > i2d::CPosition2d::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from istd::IChangeable.

Reimplemented in i2d::CAnnulus, i2d::CAnnulusSegment, i2d::CArc, i2d::CCircle, i2d::CLabel, and i2d::COrientedCircle.

◆ CopyFrom()

virtual bool i2d::CPosition2d::CopyFrom	(	const IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Reimplemented in i2d::CAnnulus, i2d::CAnnulusSegment, i2d::CArc, i2d::CCircle, i2d::CLabel, and i2d::COrientedCircle.

◆ GetBoundingBox()

virtual CRectangle i2d::CPosition2d::GetBoundingBox ( ) const

overridevirtual

Get bounding box of this shape.

Please note, this bounding box is in logical units, the calibration will not be considered.

Implements i2d::IObject2d.

Reimplemented in i2d::CAnnulus, i2d::CAnnulusSegment, i2d::CArc, and i2d::CCircle.

◆ GetCenter()

virtual CVector2d i2d::CPosition2d::GetCenter ( ) const

overridevirtual

Returns center of this 2D-object.

Implements i2d::IObject2d.

◆ GetFactoryId()

virtual QByteArray i2d::CPosition2d::GetFactoryId ( ) const

overridevirtual

Reimplemented from iser::IObject.

Reimplemented in i2d::CCircle, and i2d::CLabel.

◆ GetInvTransformed()

virtual bool i2d::CPosition2d::GetInvTransformed	(	const ITransformation2d &	transformation,
		IObject2d &	result,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)		const

overridevirtual

Calulate inverse transformation of the object into second one.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.
result	result object.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

Reimplemented in i2d::CAnnulus, i2d::CArc, and i2d::CCircle.

◆ GetPosition()

const CVector2d & i2d::CPosition2d::GetPosition ( ) const

inline

Definition at line 72 of file CPosition2d.h.

References m_position.

◆ GetSupportedOperations()

virtual int i2d::CPosition2d::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from istd::IChangeable.

Reimplemented in i2d::CAnnulus, i2d::CAnnulusSegment, i2d::CArc, i2d::CCircle, i2d::CLabel, and i2d::COrientedCircle.

◆ GetTransformed()

virtual bool i2d::CPosition2d::GetTransformed	(	const ITransformation2d &	transformation,
		IObject2d &	result,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)		const

overridevirtual

Calulate transformation of the object into second one.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.
result	result object.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

Reimplemented in i2d::CAnnulus, i2d::CArc, and i2d::CCircle.

◆ GetTranslated()

CPosition2d i2d::CPosition2d::GetTranslated ( const i2d::CVector2d & vector ) const

inline

Definition at line 84 of file CPosition2d.h.

References Translate().

◆ GetTypeName()

static QByteArray i2d::CPosition2d::GetTypeName ( )

static

◆ InvTransform()

virtual bool i2d::CPosition2d::InvTransform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Do inverse transformation of this object.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

Reimplemented in i2d::CAnnulus, i2d::CAnnulusSegment, i2d::CArc, and i2d::CCircle.

◆ IsEqual()

virtual bool i2d::CPosition2d::IsEqual ( const istd::IChangeable & object ) const

overridevirtual

Compare this object with another object.

Parameters

object Object to be compared

Returns: true if the objects are identical and false otherwise.

Reimplemented from istd::IChangeable.

◆ MoveCenterTo()

virtual void i2d::CPosition2d::MoveCenterTo ( const CVector2d & position )

overridevirtual

Move object to position position.

Implements i2d::IObject2d.

◆ Serialize()

virtual bool i2d::CPosition2d::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

Reimplemented in i2d::CAnnulus, i2d::CAnnulusSegment, i2d::CArc, i2d::CCircle, i2d::CLabel, and i2d::COrientedCircle.

◆ SetPosition()

void i2d::CPosition2d::SetPosition ( const CVector2d & position )

◆ Transform()

virtual bool i2d::CPosition2d::Transform	(	const ITransformation2d &	transformation,
		ITransformation2d::ExactnessMode	mode = `ITransformation2d::EM_NONE`,
		double *	errorFactorPtr = `NULL`
	)

overridevirtual

Transform this object using some transformation.

Please note, that this operation transforms logical coordinates, it means that the calibration will be ignored.

Parameters

mode	controls needed transformation exactness.
errorFactorPtr	optional output where approximated length of transformation error vector will be stored. Value 0 means that transformation is exactly done.

Returns: true, if transformation was done correctly.

Reimplemented from i2d::CObject2dBase.

Reimplemented in i2d::CAnnulus, i2d::CAnnulusSegment, i2d::CArc, and i2d::CCircle.

◆ Translate()

void i2d::CPosition2d::Translate ( const i2d::CVector2d & vector )

inline

Definition at line 78 of file CPosition2d.h.

References m_position.

Referenced by GetTranslated().

Member Data Documentation

◆ m_position

CVector2d i2d::CPosition2d::m_position

protected

Definition at line 66 of file CPosition2d.h.

Referenced by GetPosition(), and Translate().

The documentation for this class was generated from the following file:

Acf/Include/i2d/CPosition2d.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CPosition2d() [1/2]

◆ CPosition2d() [2/2]

Member Function Documentation

◆ CloneMe()

◆ CopyFrom()

◆ GetBoundingBox()

◆ GetCenter()

◆ GetFactoryId()

◆ GetInvTransformed()

◆ GetPosition()

◆ GetSupportedOperations()

◆ GetTransformed()

◆ GetTranslated()

◆ GetTypeName()

◆ InvTransform()

◆ IsEqual()

◆ MoveCenterTo()

◆ Serialize()

◆ SetPosition()

◆ Transform()

◆ Translate()

Member Data Documentation

◆ m_position
