Definition of single plane bitmap. More...

#include <IBitmap.h>

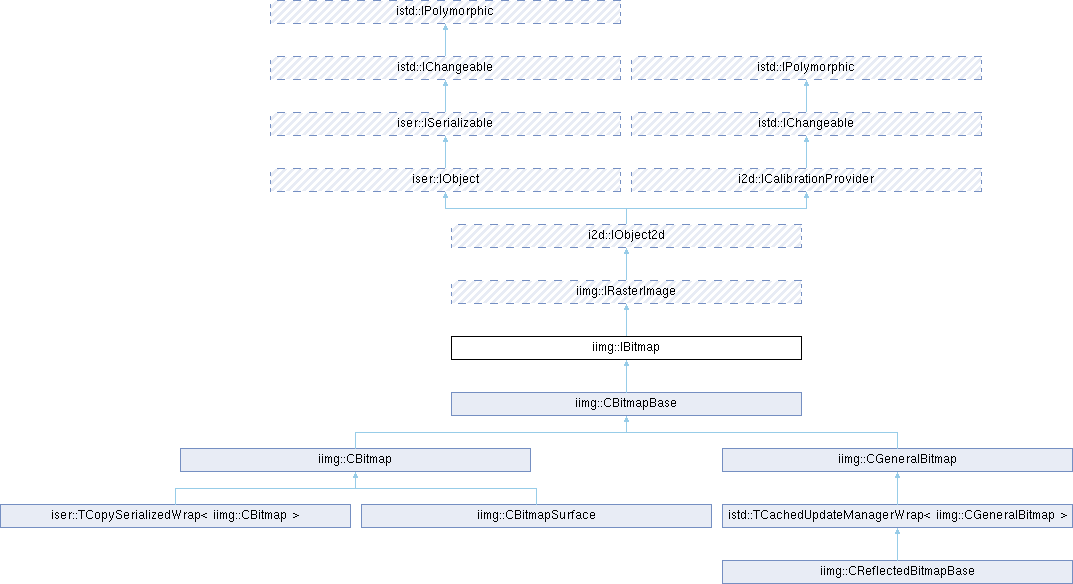

Inheritance diagram for iimg::IBitmap:

Public Types
enum	PixelFormat { PF_UNKNOWN = 0 , PF_MONO , PF_GRAY , PF_RGB , PF_RGBA , PF_RGB24 , PF_GRAY16 , PF_GRAY32 , PF_FLOAT32 , PF_FLOAT64 , PF_XYZ32 , PF_XY32 , PF_RGB48 , PF_RGBA64 , PF_CMYK , PF_USER = 256 }
	Bitmap pixel format description. More...

Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual PixelFormat	GetPixelFormat () const =0
	Get the bitmap's pixel format.

virtual bool	IsFormatSupported (PixelFormat pixelFormat) const =0
	Get `true` if the pixel format is supported by the bitmap implementation.

virtual bool	CreateBitmap (PixelFormat pixelFormat, const istd::CIndex2d &size, int pixelBitsCount=0, int componentsCount=0)=0
	Create bitmap with specified size and format.

virtual bool	CreateBitmap (PixelFormat pixelFormat, const istd::CIndex2d &size, void *dataPtr, bool releaseFlag, int linesDifference=0)=0
	Create bitmap with specified size and format using external image data buffer.

virtual bool	CreateImageFromRegion (const iimg::IBitmap &sourceImage, const i2d::CRect &region)=0
	Create image as a copy of rectangular region of some other image.

virtual int	GetLineBytesCount () const =0
	Number of bytes per single line.

virtual int	GetLinesDifference () const =0
	Get address difference between next and previous line.

virtual int	GetPixelsDifference () const =0
	Get address difference between next and previous pixel.

virtual int	GetComponentBitsCount (int componentIndex=0) const =0
	Get number of bits per single pixel component.

virtual int	GetPixelBitsCount () const =0
	Get total number of bits per single pixel.

virtual const void *	GetLinePtr (int positionY) const =0
	Get pointer to buffer for single line.

virtual void *	GetLinePtr (int positionY)=0
	Get pointer to buffer for single line.

Public Member Functions inherited from iimg::IRasterImage
virtual bool	IsEmpty () const =0
	Return true if this image is empty.

virtual void	ResetImage ()=0
	Reset this image.

virtual void	ClearImage ()=0
	Cleat this image.

virtual istd::CIndex2d	GetImageSize () const =0
	Get size of this raster image.

virtual int	GetComponentsCount () const =0
	Get number of color components.

virtual icmm::CVarColor	GetColorAt (const istd::CIndex2d &position) const =0
	Get color at specified pixel.

virtual bool	SetColorAt (const istd::CIndex2d &position, const icmm::CVarColor &color)=0
	Set color at specified pixel.

virtual const icmm::IColorModel *	GetColorModel () const =0
	Get the color model related to the image.

Public Member Functions inherited from i2d::IObject2d
virtual CVector2d	GetCenter () const =0
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const CVector2d &position)=0
	Move object to position `position`.

virtual CRectangle	GetBoundingBox () const =0
	Get bounding box of this shape.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false)=0
	Set calibration of this object.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL)=0
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL)=0
	Do inverse transformation of this object.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const =0
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const =0
	Calulate inverse transformation of the object into second one.

Public Member Functions inherited from iser::IObject
virtual QByteArray	GetFactoryId () const

Public Member Functions inherited from iser::ISerializable
virtual bool	Serialize (IArchive &archive)=0
	Load or store state of this object as a archive stream.

virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from i2d::ICalibrationProvider
virtual const ICalibration2d *	GetCalibration () const =0
	Get access to transformation object, which transforms a local logical coordinate system to global one.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Definition of single plane bitmap.

Definition at line 20 of file IBitmap.h.

Member Enumeration Documentation

◆ PixelFormat

enum iimg::IBitmap::PixelFormat

Bitmap pixel format description.

Enumerator
PF_UNKNOWN	Unknown image format.
PF_MONO	Monochrome bitmap.
PF_GRAY	8-bit grayscale bitmap.
PF_RGB	32-bit RGB-bitmap, alpha channel can be ignored.
PF_RGBA	32-bit RGB bitmap with alpha channel.
PF_RGB24	24-bit RGB-bitmap packed bitmap.
PF_GRAY16	16-bit grayscale bitmap.
PF_GRAY32	32-bit grayscale bitmap.
PF_FLOAT32	32-bit floating point coded bitmap (type float).
PF_FLOAT64	64-bit floating point coded bitmap (type double).
PF_XYZ32	Pixel value is a 32-bit floating 3D-coordinate (X,Y,Z) In this mode the bitmap represents an organized 3D-point cloud.
PF_XY32	Pixel value is a 32-bit floating 2D-coordinate (X,Y) In this mode the bitmap represents 2D calibration from pixel to mm.
PF_RGB48	48-bit RGB-bitmap packed bitmap (16-16-16).
PF_RGBA64	64-bit RGBA-bitmap packed bitmap (16-16-16-16).
PF_CMYK	32-bit CMYK-bitmap.
PF_USER	First user defined pixel format.

Definition at line 26 of file IBitmap.h.

Member Function Documentation

◆ CreateBitmap() [1/2]

virtual bool iimg::IBitmap::CreateBitmap	(	PixelFormat	pixelFormat,
		const istd::CIndex2d &	size,
		int	pixelBitsCount = `0`,
		int	componentsCount = `0`
	)

pure virtual

Create bitmap with specified size and format.

Parameters

pixelFormat bitmap format.

See also: PixelFormat

Parameters

size	bitmap size.
pixelBitsCount	bits per pixel. Default value `0` means that the number of bits per pixel is defined by format specification.
componentsCount	components per pixel. Default value `0` means that the number of bits per pixel is defined by format specification.

Implemented in iimg::CBitmap, and iimg::CGeneralBitmap.

◆ CreateBitmap() [2/2]

virtual bool iimg::IBitmap::CreateBitmap	(	PixelFormat	pixelFormat,
		const istd::CIndex2d &	size,
		void *	dataPtr,
		bool	releaseFlag,
		int	linesDifference = `0`
	)

pure virtual

Create bitmap with specified size and format using external image data buffer.

Parameters

pixelFormat bitmap format.

See also: PixelFormat

Parameters

size	bitmap size.
dataPtr	pointer to external image buffer.
releaseFlag	if its true, external buffer will be managed (removed) by this object.
linesDifference	address difference between next and previos line. If it equals 0, the value will be taken from size and number of bits per pixel.

Implemented in iimg::CBitmap, and iimg::CGeneralBitmap.
