Common interface for color model definitions in the ACF color management system. More...

#include <IColorModel.h>

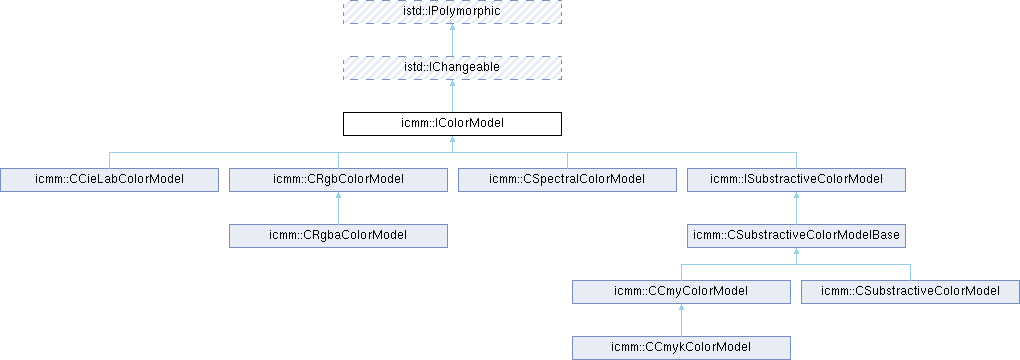

Inheritance diagram for icmm::IColorModel:

Public Types
enum	ModelType { MT_HSI , MT_HSV , MT_HSL , MI_YIQ , MI_YUV , MI_YCBCR , MT_RGB , MT_COLORANTS , MT_LUV , MT_LAB , MT_LCH , MT_XYZ , MT_YXY , MI_SPECTRAL , MI_USER = 1024 }

enum	ModelClass { MC_DEVICE_DEPENDENT , MC_DEVICE_INDEPENDENT }

enum	ColorSpaceClass { CSC_ADDITIVE , CSC_SUBSTRACTIVE , CSC_PERCEPTUAL }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual ModelType	GetModelType () const =0
	Gets the type of the color model.

virtual ModelClass	GetModelClass () const =0
	Gets the classification of the color model.

virtual ColorSpaceClass	GetColorSpaceClass () const =0
	Gets the classification of the color space defined by this model.

virtual int	GetColorSpaceDimensionality () const =0
	Gets the dimensionality (number of components) of the color space.

virtual const imath::IUnitInfo *	GetColorSpaceComponentInfo (int componentIndex) const =0
	Gets mathematical unit information for a color model component.

virtual QString	GetColorSpaceComponentName (int componentIndex) const =0
	Gets the human-readable name of a color model component.

virtual const icmm::IColorTransformation *	CreateColorTranformation (const IColorModel &otherColorModel, const QByteArray &transformationId=QByteArray()) const =0
	Creates a color transformation for conversion to another color model.

virtual IColorSpecification::ConstColorSpecPtr	GetSpecification () const
	Gets the color specification for this model, if available.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Common interface for color model definitions in the ACF color management system.

Purpose

IColorModel defines the abstract interface for color models (color spaces) in ACF. A color model represents a mathematical system for representing colors as tuples of numbers (typically 3-4 components). Examples include RGB, CMYK, HSV, CIE Lab, etc. This interface provides metadata about the color space and enables color transformations between different models.

Color Model Types

ACF supports various color model types through the ModelType enumeration:

Device-Dependent Models:**

RGB (MT_RGB): Additive color model (Red, Green, Blue) - typical for displays
CMYK (MT_COLORANTS): Subtractive model (Cyan, Magenta, Yellow, Black) - for printing
HSV (MT_HSV): Hue, Saturation, Value - intuitive for color picking
HSL (MT_HSL): Hue, Saturation, Lightness - alternative to HSV
HSI (MT_HSI): Hue, Saturation, Intensity

Device-Independent Models:**
CIE XYZ (MT_XYZ): Device-independent tristimulus values
CIE Lab (MT_LAB): Perceptually uniform color space
CIE Luv (MT_LUV): Alternative perceptually uniform space
CIE LCH (MT_LCH): Cylindrical Lab (Lightness, Chroma, Hue)
Spectral (MI_SPECTRAL): Full spectral representation

Video/Broadcast:**
YIQ (MI_YIQ), YUV (MI_YUV), YCbCr (MI_YCBCR): Video color spaces

Model Classifications

Color models are classified along two dimensions:

Model Class:**

Device-Dependent (MC_DEVICE_DEPENDENT): Colors vary by device (RGB, CMYK)
Device-Independent (MC_DEVICE_INDEPENDENT): Absolute color (XYZ, Lab)

Color Space Class:**
Additive (CSC_ADDITIVE): Colors combine by adding light (RGB)
Subtractive (CSC_SUBSTRACTIVE): Colors combine by absorbing light (CMYK)
Perceptual (CSC_PERCEPTUAL): Based on human perception (Lab, LCH)

Usage Examples

// Example 1: Query model properties
void InspectColorModel(const icmm::IColorModel* model)
{
       // Get model type
       IColorModel::ModelType type = model->GetModelType();
       if (type == IColorModel::MT_RGB) {
              qDebug() << "This is an RGB color model";
       }

       // Check if device-dependent
       IColorModel::ModelClass modelClass = model->GetModelClass();
       if (modelClass == IColorModel::MC_DEVICE_DEPENDENT) {
              qDebug() << "Colors will vary by device";
       }

       // Get color space class
       IColorModel::ColorSpaceClass spaceClass = model->GetColorSpaceClass();
       if (spaceClass == IColorModel::CSC_ADDITIVE) {
              qDebug() << "Additive color mixing (light-based)";
       }

       // Get dimensionality (typically 3 or 4)
       int dimensions = model->GetColorSpaceDimensionality();
       qDebug() << "Color space has" << dimensions << "dimensions";

       // List component names
       for (int i = 0; i < dimensions; ++i) {
              QString name = model->GetColorSpaceComponentName(i);
              const imath::IUnitInfo* unit = model->GetColorSpaceComponentInfo(i);
              qDebug() << "Component" << i << ":" << name;
       }
}

// Example 2: Create color transformation
void ConvertRgbToLab(const icmm::IColorModel* rgbModel,
                     const icmm::IColorModel* labModel,
                     const icmm::CVarColor& rgbColor)
{
       // Create transformation from RGB to Lab
       const IColorTransformation* transform =
              rgbModel->CreateColorTranformation(*labModel);

       if (transform) {
              // Apply transformation
              icmm::CVarColor labColor;
              if (transform->Calculate(rgbColor, labColor)) {
                     qDebug() << "Converted to Lab:"
                              << labColor.GetElement(0) << ","
                              << labColor.GetElement(1) << ","
                              << labColor.GetElement(2);
              }
              delete transform;
       }
}

// Example 3: Working with RGB model
void UseRgbModel()
{
       icmm::CRgbColorModel rgbModel;

       // RGB has 3 dimensions
       int dims = rgbModel.GetColorSpaceDimensionality();  // 3

       // Component names: "Red", "Green", "Blue"
       QString redName = rgbModel.GetColorSpaceComponentName(0);  // "Red"

       // All components range from 0.0 to 1.0
       const imath::IUnitInfo* redUnit = rgbModel.GetColorSpaceComponentInfo(0);
       // redUnit->GetMinValue() returns 0.0
       // redUnit->GetMaxValue() returns 1.0
}

// Example 4: Custom color space conversions
void ConvertBetweenSpaces(const icmm::CVarColor& color,
                         icmm::ConstColorModelPtr fromModel,
                         icmm::ConstColorModelPtr toModel)
{
       // Create transformation
       const IColorTransformation* transform =
              fromModel->CreateColorTranformation(*toModel);

       if (transform) {
              icmm::CVarColor result;
              if (transform->Calculate(color, result)) {
                     // Use converted color
                     ProcessColor(result);
              }
              delete transform;
       } else {
              qDebug() << "No direct transformation available";
              // May need intermediate conversion (e.g., through XYZ)
       }
}

// Example 5: Check model compatibility
bool CanConvert(const IColorModel* from, const IColorModel* to)
{
       const IColorTransformation* transform =
              from->CreateColorTranformation(*to);

       bool canConvert = (transform != nullptr);
       delete transform;
       return canConvert;
}

Color Transformations

Color transformations convert colors from one model to another. Not all transformations are available directly:

Direct: RGB <-> HSV, RGB <-> CMYK
Via XYZ: Most conversions go through XYZ as an intermediate step
Spectral: Can be converted to any model via XYZ

Best Practices

Use device-independent models (XYZ, Lab) for color comparisons
Store colors in the model they'll be used in (RGB for display, CMYK for print)
Use Lab for perceptual color differences (DeltaE calculations)
Cache transformations if converting many colors
Check transformation availability before converting

See also: icmm::IColorObject, icmm::IColorTransformation, icmm::CVarColor, icmm::CRgbColorModel, icmm::CCmykColorModel, icmm::CSpectralColorModel

Definition at line 183 of file IColorModel.h.

Member Enumeration Documentation

◆ ColorSpaceClass

enum icmm::IColorModel::ColorSpaceClass

Enumerator
CSC_ADDITIVE
CSC_SUBSTRACTIVE
CSC_PERCEPTUAL

Definition at line 224 of file IColorModel.h.

◆ ModelClass

enum icmm::IColorModel::ModelClass

Enumerator
MC_DEVICE_DEPENDENT
MC_DEVICE_INDEPENDENT

Definition at line 218 of file IColorModel.h.

◆ ModelType

enum icmm::IColorModel::ModelType

Enumerator
MT_HSI
MT_HSV
MT_HSL
MI_YIQ
MI_YUV
MI_YCBCR
MT_RGB
MT_COLORANTS	Substractive color model based on generic list of colorants. This includes CMYK, CMY, combinations with spot colors and ECG.
MT_LUV
MT_LAB
MT_LCH
MT_XYZ
MT_YXY
MI_SPECTRAL	Color model is defined by a set of spectral values.
MI_USER	Base value for the user-defined model types.

Definition at line 186 of file IColorModel.h.

Member Function Documentation

◆ CreateColorTranformation()

virtual const icmm::IColorTransformation * icmm::IColorModel::CreateColorTranformation	(	const IColorModel &	otherColorModel,
		const QByteArray &	transformationId = `QByteArray()`
	)		const

pure virtual

Creates a color transformation for conversion to another color model.

Constructs and returns a transformation object that can convert colors from this model to the specified target model. The transformation may be direct or may internally use intermediate color spaces (typically XYZ).

Parameters

otherColorModel	The target color model to convert to
transformationId	Optional identifier for a specific transformation algorithm. Empty (default) uses the standard transformation.

Returns: Pointer to the created IColorTransformation, or nullptr if no transformation is available. Caller owns the returned pointer and must delete it when done.

Note: The returned transformation is newly allocated. Delete it after use.; Returns nullptr if no transformation path exists between the models.; For repeated conversions, cache the transformation for performance.

// Create RGB to Lab transformation
icmm::CRgbColorModel rgbModel;
icmm::CCieLabColorModel labModel;

const IColorTransformation* transform =
       rgbModel.CreateColorTranformation(labModel);

if (transform) {
       // Use transformation
       icmm::CVarColor rgbColor(3);
       rgbColor.SetElement(0, 1.0);  // Red
       rgbColor.SetElement(1, 0.0);  // Green
       rgbColor.SetElement(2, 0.0);  // Blue

       icmm::CVarColor labColor;
       transform->Calculate(rgbColor, labColor);

       delete transform;  // Clean up
}

See also: IColorTransformation, CVarColor

Implemented in icmm::CRgbColorModel, icmm::CCieLabColorModel, icmm::CSpectralColorModel, and icmm::CSubstractiveColorModelBase.

◆ GetColorSpaceClass()

virtual ColorSpaceClass icmm::IColorModel::GetColorSpaceClass ( ) const

pure virtual

Gets the classification of the color space defined by this model.

Indicates the physical basis of color mixing: additive (light-based), subtractive (pigment-based), or perceptual (human perception-based).

Returns: ColorSpaceClass classification

See also: ColorSpaceClass, GetModelType()

Implemented in icmm::CCieLabColorModel, icmm::CRgbColorModel, icmm::CSpectralColorModel, and icmm::CSubstractiveColorModelBase.

◆ GetColorSpaceComponentInfo()

virtual const imath::IUnitInfo * icmm::IColorModel::GetColorSpaceComponentInfo ( int componentIndex ) const

pure virtual

Gets mathematical unit information for a color model component.

Returns information about the mathematical unit, range, and properties of the specified component (axis) in the color space.

Parameters

componentIndex Zero-based index of the component (0 to dimensionality-1)

Returns: Pointer to IUnitInfo describing the component's unit, or nullptr if index is invalid. The pointer is owned by the color model.

Note: Most color components range from 0.0 to 1.0, but some (like Lab) have different ranges (L: 0-100, a: -128 to 127, b: -128 to 127).

const imath::IUnitInfo* info = model->GetColorSpaceComponentInfo(0);
if (info) {
       double minVal = info->GetMinValue();
       double maxVal = info->GetMaxValue();
       QString unit = info->GetUnitName();
}

See also: GetColorSpaceComponentName(), GetColorSpaceDimensionality()

Implemented in icmm::CCieLabColorModel, icmm::CRgbaColorModel, icmm::CRgbColorModel, icmm::CSpectralColorModel, and icmm::CSubstractiveColorModelBase.

◆ GetColorSpaceComponentName()

virtual QString icmm::IColorModel::GetColorSpaceComponentName ( int componentIndex ) const

pure virtual

Gets the human-readable name of a color model component.

Returns the name of the component at the specified index, such as "Red", "Green", "Blue" for RGB, or "Lightness", "a*", "b*" for Lab.

Parameters

componentIndex Zero-based index of the component

Returns: Component name as a QString, or empty string if index is invalid

// Get RGB component names
icmm::CRgbColorModel rgb;
QString name0 = rgb.GetColorSpaceComponentName(0);  // "Red"
QString name1 = rgb.GetColorSpaceComponentName(1);  // "Green"
QString name2 = rgb.GetColorSpaceComponentName(2);  // "Blue"

See also: GetColorSpaceComponentInfo(), GetColorSpaceDimensionality()

Implemented in icmm::CCieLabColorModel, icmm::CRgbaColorModel, icmm::CRgbColorModel, icmm::CSpectralColorModel, and icmm::CSubstractiveColorModelBase.

◆ GetColorSpaceDimensionality()

virtual int icmm::IColorModel::GetColorSpaceDimensionality ( ) const

pure virtual

Gets the dimensionality (number of components) of the color space.

Returns the number of values needed to represent a color in this model. Common values are 3 (RGB, HSV, Lab) or 4 (CMYK). Spectral models may have higher dimensionality.

Returns: Number of components/dimensions in the color space

// RGB has 3 components
icmm::CRgbColorModel rgbModel;
int dims = rgbModel.GetColorSpaceDimensionality();  // returns 3

// CMYK has 4 components
icmm::CCmykColorModel cmykModel;
dims = cmykModel.GetColorSpaceDimensionality();  // returns 4

See also: GetColorSpaceComponentName(), GetColorSpaceComponentInfo()

Implemented in icmm::CCieLabColorModel, icmm::CRgbaColorModel, icmm::CRgbColorModel, icmm::CSpectralColorModel, and icmm::CSubstractiveColorModelBase.

◆ GetModelClass()

virtual ModelClass icmm::IColorModel::GetModelClass ( ) const

pure virtual

Gets the classification of the color model.

Indicates whether the color model is device-dependent or device-independent. Device-dependent models (RGB, CMYK) produce different colors on different devices, while device-independent models (XYZ, Lab) represent absolute colors.

Returns: ModelClass classification

See also: ModelClass, GetModelType()

Implemented in icmm::CCieLabColorModel, icmm::CRgbColorModel, icmm::CSpectralColorModel, and icmm::CSubstractiveColorModelBase.

◆ GetModelType()

virtual ModelType icmm::IColorModel::GetModelType ( ) const

pure virtual

Gets the type of the color model.

Returns the specific type identifier for this color model (e.g., MT_RGB, MT_CMYK). This identifies the mathematical representation and component structure.

Returns: The ModelType enumeration value identifying this color model

See also: ModelType, GetModelClass(), GetColorSpaceClass()

Implemented in icmm::CCieLabColorModel, icmm::CRgbColorModel, icmm::CSpectralColorModel, and icmm::CSubstractiveColorModelBase.

◆ GetSpecification()

virtual IColorSpecification::ConstColorSpecPtr icmm::IColorModel::GetSpecification ( ) const

inlinevirtual

Gets the color specification for this model, if available.

Returns additional specification information about the color model, such as white point, primaries (for RGB), or viewing conditions (for Lab). Not all models have specifications.

Returns: Shared pointer to the color specification, or empty pointer if no specification is available

Note: This is optional metadata. Most basic operations don't require it.

See also: IColorSpecification

Reimplemented in icmm::CCieLabColorModel, icmm::CRgbColorModel, and icmm::CSpectralColorModel.

Definition at line 402 of file IColorModel.h.

The documentation for this class was generated from the following file:

Acf/Include/icmm/IColorModel.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Purpose

Color Model Types

Model Classifications

Usage Examples

Color Transformations

Best Practices

Member Enumeration Documentation

◆ ColorSpaceClass

◆ ModelClass

◆ ModelType

Member Function Documentation

◆ CreateColorTranformation()

◆ GetColorSpaceClass()

◆ GetColorSpaceComponentInfo()

◆ GetColorSpaceComponentName()

◆ GetColorSpaceDimensionality()

◆ GetModelClass()

◆ GetModelType()

◆ GetSpecification()
