Data model for the label shape. More...

#include <CLabel.h>

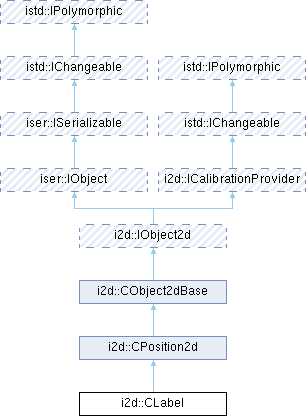

Inheritance diagram for i2d::CLabel:

Public Types
typedef i2d::CPosition2d	BaseClass

Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CLabel (const i2d::CVector2d &position=i2d::CVector2d(0, 0), const QString &labelText="Label")
	Construct the label object with predefined parameters.

virtual const QString &	GetText () const
	Get label text.

virtual void	SetText (const QString &labelText)
	Set label text.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual QByteArray	GetFactoryId () const override

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

Public Member Functions inherited from i2d::CPosition2d
	CPosition2d ()

	CPosition2d (const CVector2d &center)

const CVector2d &	GetPosition () const

void	SetPosition (const CVector2d &position)

void	Translate (const i2d::CVector2d &vector)

CPosition2d	GetTranslated (const i2d::CVector2d &vector) const

virtual CVector2d	GetCenter () const override
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const CVector2d &position) override
	Move object to position `position`.

virtual CRectangle	GetBoundingBox () const override
	Get bounding box of this shape.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Do inverse transformation of this object.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate inverse transformation of the object into second one.

virtual bool	IsEqual (const istd::IChangeable &object) const override
	Compare this object with another object.

Public Member Functions inherited from i2d::CObject2dBase
	CObject2dBase ()

	CObject2dBase (const CObject2dBase &object2d)

	CObject2dBase (CObject2dBase &&object2d)

CObject2dBase &	operator= (const CObject2dBase &object2d)

CObject2dBase &	operator= (CObject2dBase &&object2d)

virtual const ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
	Set calibration of this object.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Static Public Member Functions
static QByteArray	GetTypeName ()

Static Public Member Functions inherited from i2d::CPosition2d
static QByteArray	GetTypeName ()

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Additional Inherited Members
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes inherited from i2d::CPosition2d
CVector2d	m_position

Static Protected Attributes inherited from i2d::CObject2dBase
static const ChangeSet	s_objectMovedChange

static const ChangeSet	s_objectModifiedChange

Detailed Description

Data model for the label shape.

Definition at line 18 of file CLabel.h.

Member Typedef Documentation

◆ BaseClass

typedef i2d::CPosition2d i2d::CLabel::BaseClass

Definition at line 21 of file CLabel.h.

Constructor & Destructor Documentation

◆ CLabel()

i2d::CLabel::CLabel	(	const i2d::CVector2d &	position = `i2d::CVector2d(0, 0)`,
		const QString &	labelText = `"Label"`
	)

Construct the label object with predefined parameters.

Parameters

position	Center position of the label.
labelText	Label text.

Member Function Documentation

◆ CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > i2d::CLabel::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from i2d::CPosition2d.

◆ CopyFrom()

virtual bool i2d::CLabel::CopyFrom	(	const IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Reimplemented from i2d::CPosition2d.

◆ GetFactoryId()

virtual QByteArray i2d::CLabel::GetFactoryId ( ) const

overridevirtual

Reimplemented from i2d::CPosition2d.

◆ GetSupportedOperations()

virtual int i2d::CLabel::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from i2d::CPosition2d.

◆ GetText()

const QString & i2d::CLabel::GetText ( ) const

inlinevirtual

Get label text.

Definition at line 60 of file CLabel.h.

◆ GetTypeName()

static QByteArray i2d::CLabel::GetTypeName ( )

static

◆ Serialize()

virtual bool i2d::CLabel::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Reimplemented from i2d::CPosition2d.

◆ SetText()

virtual void i2d::CLabel::SetText ( const QString & labelText )

virtual

Set label text.

The documentation for this class was generated from the following file:

Acf/Include/i2d/CLabel.h
