Definition of an oriented graphical circle object. More...

#include <COrientedCircle.h>

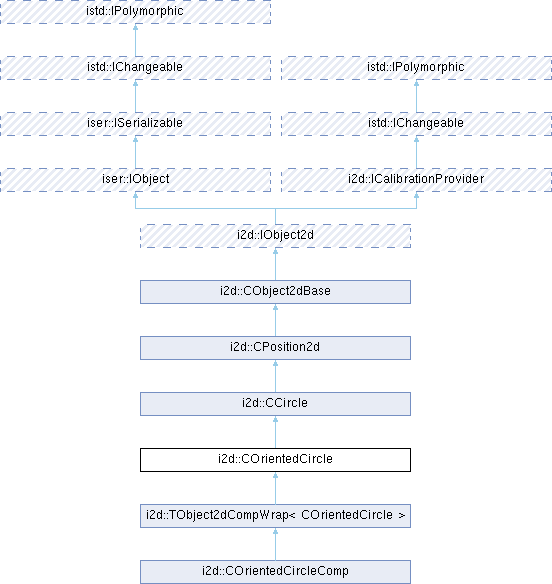

Inheritance diagram for i2d::COrientedCircle:

Public Types
typedef CCircle	BaseClass

Public Types inherited from i2d::CCircle
typedef CPosition2d	BaseClass

Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	COrientedCircle ()

	COrientedCircle (double radius, const CVector2d &center, bool orientedOutside)

bool	IsOrientedOutside () const
	Check if this circle is oriented outside.

void	SetOrientedOutside (bool orientedOutside)
	Set this circle oriented outside or inside.

bool	operator== (const COrientedCircle &circle) const

bool	operator!= (const COrientedCircle &circle) const

virtual bool	ConvertToPolygon (i2d::CPolygon &result, int segmentsCount=0) const override
	Performs conversion of the circle splitting it to segmentsCount segments to the polygon result.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

Public Member Functions inherited from i2d::CCircle
	CCircle ()

	CCircle (double radius, const CVector2d &center)

double	GetRadius () const

void	SetRadius (double radius)

bool	operator== (const CCircle &circle) const

bool	operator!= (const CCircle &circle) const

bool	IsIntersectedBy (const CCircle &circle, bool isFilled=false) const
	Check if this circle is intersected by another circle (or disk).

bool	IsIntersectedBy (const CLine2d &line, bool isFilled=false) const
	Check if this circle is intersected by line.

int	GetIntersectionAlphas (const CLine2d &line, double result[2]) const
	Get points of intersection circle by line.

int	GetIntersectionPoints (const CLine2d &line, i2d::CVector2d &result1, i2d::CVector2d &result2) const
	Get points of intersection circle by line.

virtual CRectangle	GetBoundingBox () const override
	Get bounding box of this shape.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Do inverse transformation of this object.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate inverse transformation of the object into second one.

virtual QByteArray	GetFactoryId () const override

Public Member Functions inherited from i2d::CPosition2d
	CPosition2d ()

	CPosition2d (const CVector2d &center)

const CVector2d &	GetPosition () const

void	SetPosition (const CVector2d &position)

void	Translate (const i2d::CVector2d &vector)

CPosition2d	GetTranslated (const i2d::CVector2d &vector) const

virtual CVector2d	GetCenter () const override
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const CVector2d &position) override
	Move object to position `position`.

virtual bool	IsEqual (const istd::IChangeable &object) const override
	Compare this object with another object.

Public Member Functions inherited from i2d::CObject2dBase
	CObject2dBase ()

	CObject2dBase (const CObject2dBase &object2d)

	CObject2dBase (CObject2dBase &&object2d)

CObject2dBase &	operator= (const CObject2dBase &object2d)

CObject2dBase &	operator= (CObject2dBase &&object2d)

virtual const ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
	Set calibration of this object.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from i2d::CCircle
static QByteArray	GetTypeName ()

Static Public Member Functions inherited from i2d::CPosition2d
static QByteArray	GetTypeName ()

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes inherited from i2d::CCircle
double	m_radius

Protected Attributes inherited from i2d::CPosition2d
CVector2d	m_position

Static Protected Attributes inherited from i2d::CObject2dBase
static const ChangeSet	s_objectMovedChange

static const ChangeSet	s_objectModifiedChange

Detailed Description

Definition of an oriented graphical circle object.

The circle can be oriented outside or inside. Interpretation what it means 'outside oriented' is user dependent.

Definition at line 17 of file COrientedCircle.h.

Member Typedef Documentation

◆ BaseClass

typedef CCircle i2d::COrientedCircle::BaseClass

Definition at line 20 of file COrientedCircle.h.

Constructor & Destructor Documentation

◆ COrientedCircle() [1/2]

i2d::COrientedCircle::COrientedCircle ( )

◆ COrientedCircle() [2/2]

i2d::COrientedCircle::COrientedCircle	(	double	radius,
		const CVector2d &	center,
		bool	orientedOutside
	)

Member Function Documentation

◆ CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > i2d::COrientedCircle::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from i2d::CCircle.

◆ ConvertToPolygon()

virtual bool i2d::COrientedCircle::ConvertToPolygon	(	i2d::CPolygon &	result,
		int	segmentsCount = `0`
	)		const

overridevirtual

Performs conversion of the circle splitting it to segmentsCount segments to the polygon result.

If segmentsCount <= 0 then number of segments will be calculated automatically, otherwise segmentsCount must be equal or greater then 3.

Reimplemented from i2d::CCircle.

◆ CopyFrom()

virtual bool i2d::COrientedCircle::CopyFrom	(	const IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Reimplemented from i2d::CCircle.

◆ GetSupportedOperations()

virtual int i2d::COrientedCircle::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from i2d::CCircle.

◆ IsOrientedOutside()

bool i2d::COrientedCircle::IsOrientedOutside ( ) const

inline

Check if this circle is oriented outside.

Interpretation what it means 'outside oriented' is user dependent.

Definition at line 57 of file COrientedCircle.h.

◆ operator!=()

bool i2d::COrientedCircle::operator!= ( const COrientedCircle & circle ) const

◆ operator==()

bool i2d::COrientedCircle::operator== ( const COrientedCircle & circle ) const

◆ Serialize()

virtual bool i2d::COrientedCircle::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Reimplemented from i2d::CCircle.

◆ SetOrientedOutside()

void i2d::COrientedCircle::SetOrientedOutside ( bool orientedOutside )

Set this circle oriented outside or inside.

Interpretation what it means 'outside oriented' is user dependent.

The documentation for this class was generated from the following file:

Acf/Include/i2d/COrientedCircle.h
