#include <CShapeBase.h>

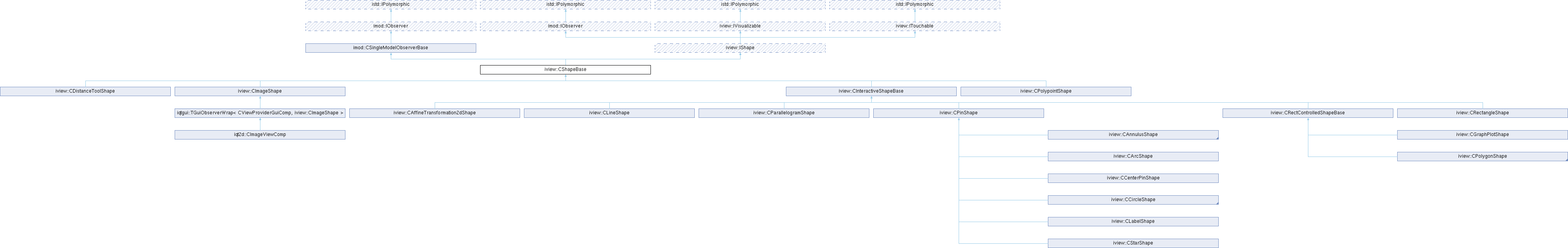

Inheritance diagram for iview::CShapeBase:

Public Types
enum	ShapeTransformMode { STM_VIEW , STM_SHAPE , STM_COMBINE }
	Describe how shape tranformation is interpreted. More...

typedef imod::CSingleModelObserverBase	BaseClass

Public Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType

Public Types inherited from iview::IShape
enum	ChangeFlags { CF_CALIB = 0x3663adf }
	Data model change notification flags. More...

Public Types inherited from iview::ITouchable
enum	TouchState { TS_NONE , TS_INACTIVE , TS_TICKER , TS_DRAGGABLE , TS_AREA , TS_OTHER , TS_LAST = TS_OTHER }
	Enumeration for possible shape touch states. More...

Public Member Functions
	CShapeBase ()

	CShapeBase (const CShapeBase &shape)

virtual	~CShapeBase ()

virtual bool	AssignToLayer (int layerType)
	Assign this shape to same layer.

virtual void	Invalidate ()

iview::IDisplay *	GetDisplayPtr () const
	Get access to currently connected display.

ShapeTransformMode	GetTransformMode () const
	Get shape transformation mode.

void	SetTransformMode (ShapeTransformMode mode)
	Set shape transformation mode.

i2d::CVector2d	GetScreenPosition (const i2d::CVector2d &logPosition) const
	Get screen position based on logical position.

i2d::CVector2d	GetLogPosition (const i2d::CVector2d &screenPosition) const
	Get logical position based on screen position.

virtual int	GetLayerType () const override
	Get layer type of this shape object.

virtual i2d::CRect	GetBoundingBox () const override
	Return bounding box in client window coordinates.

virtual void	SetVisible (bool state=true) override
	Make shape to be visible or not.

virtual const IColorSchema *	GetUserColorSchema () const override
	Get color schema from view or user defined.

virtual void	SetUserColorSchema (const IColorSchema *schemaPtr) override
	Set color schema to draw shape.

virtual void	SetDefaultDescription (const QString &description) override
	Set default description will be used to display on console.

virtual void	SetToolTip (const QString &toolTip) override

virtual bool	IsInside (const istd::CIndex2d &screenPosition) const override

virtual bool	IsVisible () const override
	Check, if this object is visible.

virtual bool	IsDisplayAccepted (const IDisplay &display) const override
	Check if this object can be connected to this display.

virtual void	OnConnectDisplay (IDisplay *displayPtr) override
	Called after display is connected.

virtual void	OnDisconnectDisplay (IDisplay *displayPtr) override
	Called after display is disconnected.

virtual bool	OnDisplayChange (const istd::IChangeable::ChangeSet &changeSet) override
	It informs about changes in display.

virtual ITouchable::TouchState	IsTouched (istd::CIndex2d position) const override
	Check, if any shape is touched.

virtual QString	GetShapeDescriptionAt (istd::CIndex2d position) const override
	Get description to shape at specified position.

virtual QString	GetToolTipAt (istd::CIndex2d position) const override
	Get tooltip at specified position.

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.

virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.

virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet) override
	Called on update of observed model.

Public Member Functions inherited from imod::CSingleModelObserverBase
	CSingleModelObserverBase ()

virtual	~CSingleModelObserverBase ()

imod::IModel *	GetObservedModel () const
	Get access to observed model.

imod::IModel *	GetModelPtr () const
	Get access to observed model.

void	EnsureModelDetached ()
	Make sure this observer is detached.

void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.

virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iview::IShape
virtual bool	IsAreaTouchAllowed () const

virtual void	SetAreaTouchAllowed (bool=true)

virtual iview::ISelectable::MousePointerMode	UpdateMousePointer (iview::ISelectable::MousePointerMode defaultPointer, ITouchable::TouchState, const istd::CIndex2d &) const

Public Member Functions inherited from iview::IVisualizable
virtual void	Draw (QPainter &drawContext) const =0
	Draw this shape using draw context.

Protected Member Functions
double	GetLocalLineWidth (const i2d::CVector2d &screenPosition) const
	Get line with (in logical coordinates) for single screen position.

virtual bool	IsDisplayChangeImportant (const istd::IChangeable::ChangeSet &changeSet)
	Get display changes mask.

virtual void	InvalidateBoundingBox ()
	Invalidate bounding box.

bool	IsDisplayConnected () const
	Check if display is connected.

const IColorSchema &	GetColorSchema () const
	Get color schema for this shape.

i2d::CRect	GetClientRect () const
	Get display client rectangle.

bool	IsBoundingBoxValid () const

void	DisconnectDisplay ()

virtual const iview::CScreenTransform &	GetViewToScreenTransform () const

virtual i2d::CRect	CalcBoundingBox () const =0
	Calculate bounding box.

Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.

Additional Inherited Members
Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Definition at line 20 of file CShapeBase.h.

Member Typedef Documentation

◆ BaseClass

typedef imod::CSingleModelObserverBase iview::CShapeBase::BaseClass

Definition at line 25 of file CShapeBase.h.

Member Enumeration Documentation

◆ ShapeTransformMode

enum iview::CShapeBase::ShapeTransformMode

Describe how shape tranformation is interpreted.

Enumerator
STM_VIEW	Shape transformation will be ignored, view transformation will be used.
STM_SHAPE	View transformation will be ignored, shape transformation will be used.
STM_COMBINE	Both transformation will be used, shape transformation will be used as local transformation.

Definition at line 30 of file CShapeBase.h.

Constructor & Destructor Documentation

◆ CShapeBase() [1/2]

iview::CShapeBase::CShapeBase ( )

◆ CShapeBase() [2/2]

iview::CShapeBase::CShapeBase ( const CShapeBase & shape )

◆ ~CShapeBase()

virtual iview::CShapeBase::~CShapeBase ( )

virtual

Member Function Documentation

◆ AssignToLayer()

virtual bool iview::CShapeBase::AssignToLayer ( int layerType )

virtual

Assign this shape to same layer.

See iview::IViewLayer::LayerType for layer types.

Referenced by iqt2d::TViewExtenderCompBase< Base >::AddItemsToScene(), and iqt2d::TShapeParamsGuiCompBase< Ui, Shape, ShapeModel >::CreateShape().

◆ CalcBoundingBox()

virtual i2d::CRect iview::CShapeBase::CalcBoundingBox ( ) const

protectedpure virtual

Calculate bounding box.

You have to implement this method in your shapes implementations.

Implemented in iview::CAffineTransformation2dShape, iview::CAnnulusShape, iview::CArcShape, iview::CCenterPinShape, iview::CCircleShape, iview::CDistanceToolShape, iview::CGraphPlotShape, iview::CImageShape, iview::CLabelShape, iview::CLineShape, iview::COrientedCircleShape, iview::CParallelogramShape, iview::CPinShape, iview::CPolygonShape, iview::CPolylineShape, iview::CPolypointShape, iview::CRectangleShape, iview::CRectControlledShapeBase, iview::CSplineShape, iview::CStarShape, and iview::CTubePolylineShape.

◆ DisconnectDisplay()

void iview::CShapeBase::DisconnectDisplay ( )

protected

◆ GetBoundingBox()

virtual i2d::CRect iview::CShapeBase::GetBoundingBox ( ) const

overridevirtual

Return bounding box in client window coordinates.

You can store this bounding box for optimization, because about every change of transformation you will be informed by calling OnDisplayChange(int) method.

Implements iview::IShape.

◆ GetClientRect()

i2d::CRect iview::CShapeBase::GetClientRect ( ) const

protected

Get display client rectangle.

It can be called only when display is connected

See also: IsDisplayConnected().

◆ GetColorSchema()

const IColorSchema & iview::CShapeBase::GetColorSchema ( ) const

protected

Get color schema for this shape.

It can be called only when display is connected

See also: IsDisplayConnected().

◆ GetDisplayPtr()

iview::IDisplay * iview::CShapeBase::GetDisplayPtr ( ) const

Get access to currently connected display.

Referenced by iview::CInteractiveShapeBase::GetDisplayMode(), iview::CInteractiveShapeBase::GetEditMode(), and iview::CInteractiveShapeBase::GetKeysState().

◆ GetLayerType()

virtual int iview::CShapeBase::GetLayerType ( ) const

overridevirtual

Get layer type of this shape object.

See also: IViewLayer::LayerType

Implements iview::IShape.

◆ GetLocalLineWidth()

double iview::CShapeBase::GetLocalLineWidth ( const i2d::CVector2d & screenPosition ) const

protected

Get line with (in logical coordinates) for single screen position.

◆ GetLogPosition()

i2d::CVector2d iview::CShapeBase::GetLogPosition ( const i2d::CVector2d & screenPosition ) const

virtual

Get logical position based on screen position.

Implements iview::IShape.

◆ GetScreenPosition()

i2d::CVector2d iview::CShapeBase::GetScreenPosition ( const i2d::CVector2d & logPosition ) const

Get screen position based on logical position.

◆ GetShapeDescriptionAt()

virtual QString iview::CShapeBase::GetShapeDescriptionAt ( istd::CIndex2d position ) const

overridevirtual

Get description to shape at specified position.

Implements iview::ITouchable.

Reimplemented in iview::CImageShape, iview::CPolygonShape, and iview::CPolylineShape.

◆ GetToolTipAt()

virtual QString iview::CShapeBase::GetToolTipAt ( istd::CIndex2d position ) const

overridevirtual

Get tooltip at specified position.

Implements iview::ITouchable.

◆ GetTransformMode()

ShapeTransformMode iview::CShapeBase::GetTransformMode ( ) const

Get shape transformation mode.

This mode describes which transformation will be used to display shape.

◆ GetUserColorSchema()

virtual const IColorSchema * iview::CShapeBase::GetUserColorSchema ( ) const

overridevirtual

Get color schema from view or user defined.

Implements iview::IShape.

◆ GetViewToScreenTransform()

virtual const iview::CScreenTransform & iview::CShapeBase::GetViewToScreenTransform ( ) const

protectedvirtual

◆ Invalidate()

virtual void iview::CShapeBase::Invalidate ( )

virtual

Referenced by iview::CGraphPlotShape::SetAxisLabelFontSize(), iview::CGraphPlotShape::SetCurveLineWidth(), iview::CGraphPlotShape::SetPlotMargin(), and iview::CGraphPlotShape::SetTickLabelFontSize().

◆ InvalidateBoundingBox()

virtual void iview::CShapeBase::InvalidateBoundingBox ( )

protectedvirtual

Invalidate bounding box.

You can overload this method to provide validation of your internal attributes, because this method is called from Invalidate and OnDisplayChange methods. Please don't forget base method call in your implementations.

Reimplemented in iview::CLineShape, iview::CParallelogramShape, iview::CRectangleShape, and iview::CRectControlledShapeBase.

◆ IsBoundingBoxValid()

bool iview::CShapeBase::IsBoundingBoxValid ( ) const

protected

◆ IsDisplayAccepted()

virtual bool iview::CShapeBase::IsDisplayAccepted ( const IDisplay & display ) const

overridevirtual

Check if this object can be connected to this display.

Implements iview::IVisualizable.

◆ IsDisplayChangeImportant()

virtual bool iview::CShapeBase::IsDisplayChangeImportant ( const istd::IChangeable::ChangeSet & changeSet )

protectedvirtual

Get display changes mask.

Only changes there are in mask will be accepted, rest will be ignored.

Reimplemented in iview::CInteractiveShapeBase.

Referenced by iview::CInteractiveShapeBase::IsDisplayChangeImportant().

◆ IsDisplayConnected()

bool iview::CShapeBase::IsDisplayConnected ( ) const

protected

Check if display is connected.

◆ IsInside()

virtual bool iview::CShapeBase::IsInside ( const istd::CIndex2d & screenPosition ) const

overridevirtual

Implements iview::IShape.

Reimplemented in iview::CPolygonShape.

◆ IsTouched()

virtual ITouchable::TouchState iview::CShapeBase::IsTouched ( istd::CIndex2d position ) const

overridevirtual

Check, if any shape is touched.

When shape is touched, it return also pointer to this shape.

Returns: touch state for the shape, or iview::IInteractiveShape::TS_NONE, when nothing found.

Implements iview::ITouchable.

Reimplemented in iview::CAffineTransformation2dShape, iview::CAnnulusSegmentShape, iview::CAnnulusShape, iview::CArcShape, iview::CCircleShape, iview::CDistanceToolShape, iview::CGraphPlotShape, iview::CImageShape, iview::CLabelShape, iview::CLineShape, iview::CParallelogramShape, iview::CPinShape, iview::CPolygonShape, iview::CPolylineShape, iview::CRectangleShape, iview::CRectControlledShapeBase, and iview::CTubePolylineShape.

◆ IsVisible()

virtual bool iview::CShapeBase::IsVisible ( ) const

overridevirtual

Check, if this object is visible.

Implements iview::IVisualizable.

◆ OnConnectDisplay()

virtual void iview::CShapeBase::OnConnectDisplay ( IDisplay * displayPtr )

overridevirtual

Called after display is connected.

It can be called only, when display is accepted (

See also: IsDisplayAccepted()).

Parameters

displayPtr an observer object, which should be informed about all shape changes.

Implements iview::IVisualizable.

◆ OnDisconnectDisplay()

virtual void iview::CShapeBase::OnDisconnectDisplay ( IDisplay * displayPtr )

overridevirtual

Called after display is disconnected.

Note, that this display must be previously connected.

Parameters

displayPtr a disconnected observer object.

Implements iview::IVisualizable.

◆ OnDisplayChange()

virtual bool iview::CShapeBase::OnDisplayChange ( const istd::IChangeable::ChangeSet & changeSet )

overridevirtual

It informs about changes in display.

It is called e.g. after view transformation change.

Returns: true, if this change follow shape changes.

Implements iview::IVisualizable.

◆ OnModelAttached()

virtual bool iview::CShapeBase::OnModelAttached	(	imod::IModel *	modelPtr,
		istd::IChangeable::ChangeSet &	changeMask
	)

overridevirtual

Callback invoked when an observable model is about to be attached to this observer.

This method is called by the model when attempting to establish an observer relationship. The implementation should:

Validate that the model is of an acceptable type
Set the changeMask to specify which changes to monitor
Return true to accept the attachment, or false to reject it

Parameters

modelPtr	Pointer to the model object being attached. Never nullptr.
changeMask	Output parameter where the observer specifies which change types it wants to be notified about. Set the appropriate change flags using changeMask.Set(changeId). An empty mask means the observer wants all changes.

Returns: true if the model is accepted and attachment succeeds, false to reject the attachment (e.g., if the model is of incompatible type).

Note: After successful attachment, the observer should initialize its state based on the current model data.; The changeMask allows filtering notifications for better performance. Only changes matching the mask will trigger AfterUpdate() calls.

virtual bool OnModelAttached(IModel* modelPtr,
                            istd::IChangeable::ChangeSet& changeMask)
{
       // Type check
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return false;

       // Set up change filtering
       changeMask.Set(CMyModel::CF_DATA_CHANGED);
       changeMask.Set(CMyModel::CF_STATUS_CHANGED);
       // Don't set CF_INTERNAL_CHANGED - we don't care about those

       // Initialize view from current model state
       UpdateViewFromModel(model);
       return true;
}

See also: OnModelDetached(), IsModelAttached(), AfterUpdate()

Reimplemented from imod::CSingleModelObserverBase.

Reimplemented in iqtgui::TGuiObserverWrap< CViewProviderGuiComp, iview::CImageShape >, iview::CAffineTransformation2dShape, iview::CAnnulusSegmentShape, iview::CAnnulusShape, iview::CArcShape, iview::CCircleShape, iview::CDistanceToolShape, iview::CGraphPlotShape, iview::CImageShape, iview::CInteractiveShapeBase, iview::CLabelShape, iview::CLineShape, iview::COrientedCircleShape, iview::CParallelogramShape, iview::CPinShape, iview::CPolygonShape, iview::CPolylineShape, iview::CPolypointShape, iview::CRectangleShape, and iview::CSplineShape.

◆ OnModelDetached()

virtual bool iview::CShapeBase::OnModelDetached ( imod::IModel * modelPtr )

overridevirtual

Callback invoked when an observable model is about to be detached from this observer.

This method is called when the observer-model relationship is being terminated, either explicitly or because the model is being destroyed. The implementation should clean up any state or resources related to this model.

Parameters

modelPtr Pointer to the model object being detached

Returns: true if the detachment was handled successfully, false otherwise

Note: After this call, the observer should not access the model pointer anymore.; This method may be called even if OnModelAttached() previously returned false.; Clean up any cached data or references to this model.

virtual bool OnModelDetached(IModel* modelPtr)
{
       if (m_currentModel == modelPtr) {
              // Clear any cached data
              m_cachedData.clear();
              m_currentModel = nullptr;

              // Update UI to show no model is attached
              ClearDisplay();
              return true;
       }
       return false;
}

See also: OnModelAttached(), IsModelAttached()

Reimplemented from imod::CSingleModelObserverBase.

Reimplemented in iqtgui::TGuiObserverWrap< CViewProviderGuiComp, iview::CImageShape >, and iview::CInteractiveShapeBase.

◆ OnUpdate()

virtual void iview::CShapeBase::OnUpdate ( const istd::IChangeable::ChangeSet & changeSet )

overridevirtual

Called on update of observed model.

This method is designed to be overload by derrived classes.

Reimplemented from imod::CSingleModelObserverBase.

◆ SetDefaultDescription()

virtual void iview::CShapeBase::SetDefaultDescription ( const QString & description )

overridevirtual

Set default description will be used to display on console.

Implements iview::IShape.

Referenced by iqt2d::TShapeParamsGuiCompBase< Ui, Shape, ShapeModel >::CreateShape().

◆ SetToolTip()

virtual void iview::CShapeBase::SetToolTip ( const QString & toolTip )

overridevirtual

Implements iview::IShape.

◆ SetTransformMode()

void iview::CShapeBase::SetTransformMode ( ShapeTransformMode mode )

Set shape transformation mode.

This mode describes which transformation will be used to display shape.

◆ SetUserColorSchema()

virtual void iview::CShapeBase::SetUserColorSchema ( const IColorSchema * schemaPtr )

overridevirtual

Set color schema to draw shape.

Implements iview::IShape.

Referenced by iqt2d::TShapeParamsGuiCompBase< Ui, Shape, ShapeModel >::CreateShape().

◆ SetVisible()

virtual void iview::CShapeBase::SetVisible ( bool state = true )

overridevirtual

Make shape to be visible or not.

Implements iview::IShape.

Referenced by iqt2d::TShapeParamsGuiCompBase< Ui, Shape, ShapeModel >::CreateShape().

The documentation for this class was generated from the following file:

Acf/Include/iview/CShapeBase.h
