Interactive shape to visualize i2d::CAffineTransformation2d. More...

#include <CAffineTransformation2dShape.h>

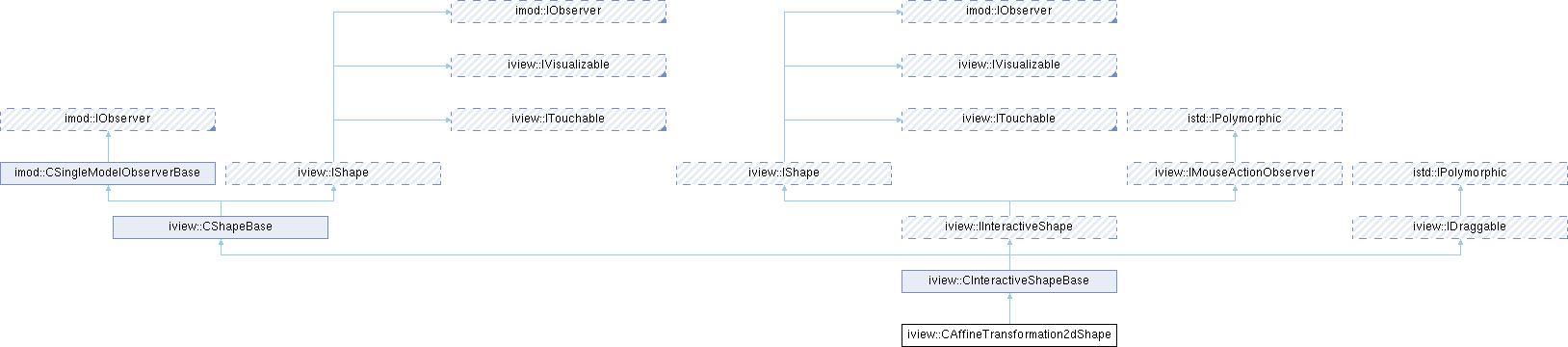

Inheritance diagram for iview::CAffineTransformation2dShape:

Public Types
enum	ControlPoint { NO_POINT = 0 , POINT1 = 1 , POINT2 = 2 , POINT3 = 4 , POINT4 = 8 , POINT5 = 16 , ALL_POINTS = POINT1 \| POINT2 \| POINT3 \| POINT4 \| POINT5 }

Public Types inherited from iview::CInteractiveShapeBase
typedef CShapeBase	BaseClass

Public Types inherited from iview::CShapeBase
enum	ShapeTransformMode { STM_VIEW , STM_SHAPE , STM_COMBINE }
	Describe how shape tranformation is interpreted. More...

typedef imod::CSingleModelObserverBase	BaseClass

Public Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType

Public Types inherited from iview::IShape
enum	ChangeFlags { CF_CALIB = 0x3663adf }
	Data model change notification flags. More...

Public Types inherited from iview::ITouchable
enum	TouchState { TS_NONE , TS_INACTIVE , TS_TICKER , TS_DRAGGABLE , TS_AREA , TS_OTHER , TS_LAST = TS_OTHER }
	Enumeration for possible shape touch states. More...

Public Member Functions
	CAffineTransformation2dShape ()

void	SetActiveControlPoints (ControlPoint points=ALL_POINTS)
	Set control points that can be moved by the user (OR'ed ControlPoints).

virtual void	Draw (QPainter &drawContext) const override
	Draw this shape using draw context.

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.

virtual TouchState	IsTouched (istd::CIndex2d position) const override
	Check, if any shape is touched.

Public Member Functions inherited from iview::CInteractiveShapeBase
	CInteractiveShapeBase ()

	CInteractiveShapeBase (const CInteractiveShapeBase &shape)

virtual	~CInteractiveShapeBase ()

virtual bool	IsEditablePosition () const

virtual void	SetEditablePosition (bool state=true)

virtual bool	IsSelected () const override
	Check, if this shape is selected.

virtual void	SetSelected (bool selectFlag=true) override
	Inform that this object was selected or deselected.

virtual bool	OnMouseButton (istd::CIndex2d position, Qt::MouseButton buttonType, bool downFlag) override
	It is called, when mouse button is pushed down or up on this object.

virtual bool	OnMouseMove (istd::CIndex2d position) override
	It is called, when mouse is moved.

virtual bool	IsDraggable () const override
	Check if drag is enabled.

virtual void	BeginDrag (const istd::CIndex2d &position) override
	Called before dragging is begin.

virtual void	SetDragPosition (const istd::CIndex2d &position) override
	Set new drag position.

virtual void	EndDrag () override
	Called after dragging.

virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.

Public Member Functions inherited from iview::CShapeBase
	CShapeBase ()

	CShapeBase (const CShapeBase &shape)

virtual	~CShapeBase ()

virtual bool	AssignToLayer (int layerType)
	Assign this shape to same layer.

virtual void	Invalidate ()

iview::IDisplay *	GetDisplayPtr () const
	Get access to currently connected display.

ShapeTransformMode	GetTransformMode () const
	Get shape transformation mode.

void	SetTransformMode (ShapeTransformMode mode)
	Set shape transformation mode.

i2d::CVector2d	GetScreenPosition (const i2d::CVector2d &logPosition) const
	Get screen position based on logical position.

i2d::CVector2d	GetLogPosition (const i2d::CVector2d &screenPosition) const
	Get logical position based on screen position.

virtual int	GetLayerType () const override
	Get layer type of this shape object.

virtual i2d::CRect	GetBoundingBox () const override
	Return bounding box in client window coordinates.

virtual void	SetVisible (bool state=true) override
	Make shape to be visible or not.

virtual const IColorSchema *	GetUserColorSchema () const override
	Get color schema from view or user defined.

virtual void	SetUserColorSchema (const IColorSchema *schemaPtr) override
	Set color schema to draw shape.

virtual void	SetDefaultDescription (const QString &description) override
	Set default description will be used to display on console.

virtual void	SetToolTip (const QString &toolTip) override

virtual bool	IsInside (const istd::CIndex2d &screenPosition) const override

virtual bool	IsVisible () const override
	Check, if this object is visible.

virtual bool	IsDisplayAccepted (const IDisplay &display) const override
	Check if this object can be connected to this display.

virtual void	OnConnectDisplay (IDisplay *displayPtr) override
	Called after display is connected.

virtual void	OnDisconnectDisplay (IDisplay *displayPtr) override
	Called after display is disconnected.

virtual bool	OnDisplayChange (const istd::IChangeable::ChangeSet &changeSet) override
	It informs about changes in display.

virtual QString	GetShapeDescriptionAt (istd::CIndex2d position) const override
	Get description to shape at specified position.

virtual QString	GetToolTipAt (istd::CIndex2d position) const override
	Get tooltip at specified position.

virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet) override
	Called on update of observed model.

Public Member Functions inherited from imod::CSingleModelObserverBase
	CSingleModelObserverBase ()

virtual	~CSingleModelObserverBase ()

imod::IModel *	GetObservedModel () const
	Get access to observed model.

imod::IModel *	GetModelPtr () const
	Get access to observed model.

void	EnsureModelDetached ()
	Make sure this observer is detached.

void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.

virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iview::IShape
virtual bool	IsAreaTouchAllowed () const

virtual void	SetAreaTouchAllowed (bool=true)

virtual iview::ISelectable::MousePointerMode	UpdateMousePointer (iview::ISelectable::MousePointerMode defaultPointer, ITouchable::TouchState, const istd::CIndex2d &) const

Protected Types
enum	{ CONTROL_POINTS_COUNT = 11 , ACTIVE_POINTS_COUNT = 5 }

typedef i2d::CVector2d	ControlPoints[CONTROL_POINTS_COUNT]

Protected Member Functions
void	GetScreenPoints (const ControlPoints &points, ControlPoints &result) const
	Transform control points from logical to screen coordinates.

virtual i2d::CRect	CalcBoundingBox () const override
	Calculate bounding box.

virtual void	BeginLogDrag (const i2d::CVector2d &reference) override

virtual void	SetLogDragPosition (const i2d::CVector2d &position) override

Protected Member Functions inherited from iview::CInteractiveShapeBase
void	BeginTickerDrag ()

void	EndTickerDrag ()

void	UpdateModelChanges ()

int	GetKeysState () const
	Get actual keys state.

int	GetEditMode () const
	Get actual edit mode.

int	GetDisplayMode () const
	Get actual display mode.

void	DrawText (QPainter &drawContext, istd::CIndex2d point, const QString &text) const
	Draw text on a given position.

virtual bool	IsDisplayChangeImportant (const istd::IChangeable::ChangeSet &changeSet) override
	Get display changes mask.

Protected Member Functions inherited from iview::CShapeBase
double	GetLocalLineWidth (const i2d::CVector2d &screenPosition) const
	Get line with (in logical coordinates) for single screen position.

virtual void	InvalidateBoundingBox ()
	Invalidate bounding box.

bool	IsDisplayConnected () const
	Check if display is connected.

const IColorSchema &	GetColorSchema () const
	Get color schema for this shape.

i2d::CRect	GetClientRect () const
	Get display client rectangle.

bool	IsBoundingBoxValid () const

void	DisconnectDisplay ()

virtual const iview::CScreenTransform &	GetViewToScreenTransform () const

Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.

Static Protected Member Functions
static const ControlPoints &	GetControlPoints ()
	Generate transformed points using given transformation.

static void	GetTransformedPoints (const ControlPoints &points, ControlPoints &result, const i2d::CAffineTransformation2d &transformation)

Additional Inherited Members
Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Interactive shape to visualize i2d::CAffineTransformation2d.

Definition at line 17 of file CAffineTransformation2dShape.h.

Member Typedef Documentation

◆ ControlPoints

typedef i2d::CVector2d iview::CAffineTransformation2dShape::ControlPoints[CONTROL_POINTS_COUNT]

protected

Definition at line 52 of file CAffineTransformation2dShape.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Enumerator
CONTROL_POINTS_COUNT
ACTIVE_POINTS_COUNT

Definition at line 48 of file CAffineTransformation2dShape.h.

◆ ControlPoint

enum iview::CAffineTransformation2dShape::ControlPoint

Enumerator
NO_POINT
POINT1
POINT2
POINT3
POINT4
POINT5
ALL_POINTS

Definition at line 20 of file CAffineTransformation2dShape.h.

Constructor & Destructor Documentation

◆ CAffineTransformation2dShape()

iview::CAffineTransformation2dShape::CAffineTransformation2dShape ( )

Member Function Documentation

◆ BeginLogDrag()

virtual void iview::CAffineTransformation2dShape::BeginLogDrag ( const i2d::CVector2d & reference )

overrideprotectedvirtual

Implements iview::CInteractiveShapeBase.

◆ CalcBoundingBox()

virtual i2d::CRect iview::CAffineTransformation2dShape::CalcBoundingBox ( ) const

overrideprotectedvirtual

Calculate bounding box.

You have to implement this method in your shapes implementations.

Implements iview::CShapeBase.

◆ Draw()

virtual void iview::CAffineTransformation2dShape::Draw ( QPainter & drawContext ) const

overridevirtual

Draw this shape using draw context.

Implements iview::IVisualizable.

◆ GetControlPoints()

static const ControlPoints & iview::CAffineTransformation2dShape::GetControlPoints ( )

staticprotected

Generate transformed points using given transformation.

If there is no transformation, generate default Cartesian coordinate system corner points: begin, X axis end and Y axis end.

Parameters

size	Length of both axes

◆ GetScreenPoints()

void iview::CAffineTransformation2dShape::GetScreenPoints	(	const ControlPoints &	points,
		ControlPoints &	result
	)		const

protected

Transform control points from logical to screen coordinates.

Parameters

transform LogToScreenTransform assigned to the view

◆ GetTransformedPoints()

static void iview::CAffineTransformation2dShape::GetTransformedPoints	(	const ControlPoints &	points,
		ControlPoints &	result,
		const i2d::CAffineTransformation2d &	transformation
	)

staticprotected

◆ IsTouched()

virtual TouchState iview::CAffineTransformation2dShape::IsTouched ( istd::CIndex2d position ) const

overridevirtual

Check, if any shape is touched.

When shape is touched, it return also pointer to this shape.

Returns: touch state for the shape, or iview::IInteractiveShape::TS_NONE, when nothing found.

Reimplemented from iview::CShapeBase.

◆ OnModelAttached()

virtual bool iview::CAffineTransformation2dShape::OnModelAttached	(	imod::IModel *	modelPtr,
		istd::IChangeable::ChangeSet &	changeMask
	)

overridevirtual

Callback invoked when an observable model is about to be attached to this observer.

This method is called by the model when attempting to establish an observer relationship. The implementation should:

Validate that the model is of an acceptable type
Set the changeMask to specify which changes to monitor
Return true to accept the attachment, or false to reject it

Parameters

modelPtr	Pointer to the model object being attached. Never nullptr.
changeMask	Output parameter where the observer specifies which change types it wants to be notified about. Set the appropriate change flags using changeMask.Set(changeId). An empty mask means the observer wants all changes.

Returns: true if the model is accepted and attachment succeeds, false to reject the attachment (e.g., if the model is of incompatible type).

Note: After successful attachment, the observer should initialize its state based on the current model data.; The changeMask allows filtering notifications for better performance. Only changes matching the mask will trigger AfterUpdate() calls.

virtual bool OnModelAttached(IModel* modelPtr,
                            istd::IChangeable::ChangeSet& changeMask)
{
       // Type check
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return false;

       // Set up change filtering
       changeMask.Set(CMyModel::CF_DATA_CHANGED);
       changeMask.Set(CMyModel::CF_STATUS_CHANGED);
       // Don't set CF_INTERNAL_CHANGED - we don't care about those

       // Initialize view from current model state
       UpdateViewFromModel(model);
       return true;
}

See also: OnModelDetached(), IsModelAttached(), AfterUpdate()

Reimplemented from iview::CInteractiveShapeBase.

◆ SetActiveControlPoints()

void iview::CAffineTransformation2dShape::SetActiveControlPoints ( ControlPoint points = ALL_POINTS )

Set control points that can be moved by the user (OR'ed ControlPoints).

◆ SetLogDragPosition()

virtual void iview::CAffineTransformation2dShape::SetLogDragPosition ( const i2d::CVector2d & position )

overrideprotectedvirtual

Implements iview::CInteractiveShapeBase.

The documentation for this class was generated from the following file:

Acf/Include/iview/CAffineTransformation2dShape.h
