#include <CInteractiveShapeBase.h>

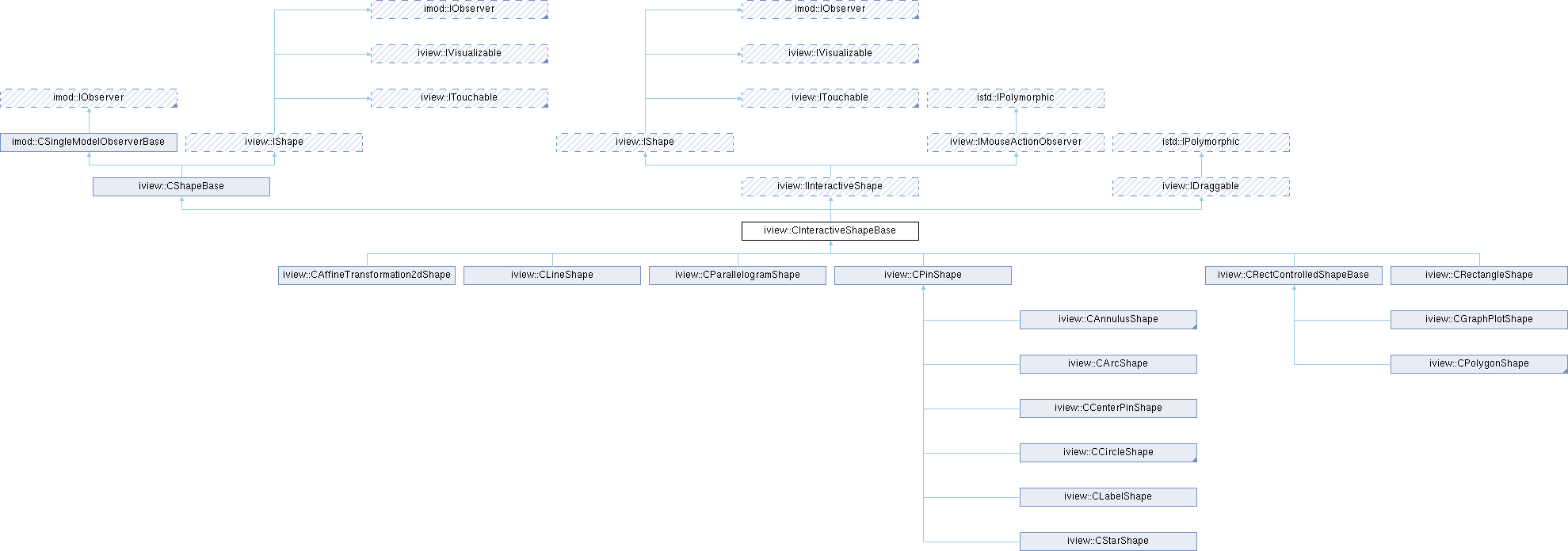

Inheritance diagram for iview::CInteractiveShapeBase:

Public Types
typedef CShapeBase	BaseClass

Public Types inherited from iview::CShapeBase
enum	ShapeTransformMode { STM_VIEW , STM_SHAPE , STM_COMBINE }
	Describe how shape tranformation is interpreted. More...

typedef imod::CSingleModelObserverBase	BaseClass

Public Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType

Public Types inherited from iview::IShape
enum	ChangeFlags { CF_CALIB = 0x3663adf }
	Data model change notification flags. More...

Public Types inherited from iview::ITouchable
enum	TouchState { TS_NONE , TS_INACTIVE , TS_TICKER , TS_DRAGGABLE , TS_AREA , TS_OTHER , TS_LAST = TS_OTHER }
	Enumeration for possible shape touch states. More...

Public Member Functions
	CInteractiveShapeBase ()

	CInteractiveShapeBase (const CInteractiveShapeBase &shape)

virtual	~CInteractiveShapeBase ()

virtual bool	IsEditablePosition () const

virtual void	SetEditablePosition (bool state=true)

virtual bool	IsSelected () const override
	Check, if this shape is selected.

virtual void	SetSelected (bool selectFlag=true) override
	Inform that this object was selected or deselected.

virtual bool	OnMouseButton (istd::CIndex2d position, Qt::MouseButton buttonType, bool downFlag) override
	It is called, when mouse button is pushed down or up on this object.

virtual bool	OnMouseMove (istd::CIndex2d position) override
	It is called, when mouse is moved.

virtual bool	IsDraggable () const override
	Check if drag is enabled.

virtual void	BeginDrag (const istd::CIndex2d &position) override
	Called before dragging is begin.

virtual void	SetDragPosition (const istd::CIndex2d &position) override
	Set new drag position.

virtual void	EndDrag () override
	Called after dragging.

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.

virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.

Public Member Functions inherited from iview::CShapeBase
	CShapeBase ()

	CShapeBase (const CShapeBase &shape)

virtual	~CShapeBase ()

virtual bool	AssignToLayer (int layerType)
	Assign this shape to same layer.

virtual void	Invalidate ()

iview::IDisplay *	GetDisplayPtr () const
	Get access to currently connected display.

ShapeTransformMode	GetTransformMode () const
	Get shape transformation mode.

void	SetTransformMode (ShapeTransformMode mode)
	Set shape transformation mode.

i2d::CVector2d	GetScreenPosition (const i2d::CVector2d &logPosition) const
	Get screen position based on logical position.

i2d::CVector2d	GetLogPosition (const i2d::CVector2d &screenPosition) const
	Get logical position based on screen position.

virtual int	GetLayerType () const override
	Get layer type of this shape object.

virtual i2d::CRect	GetBoundingBox () const override
	Return bounding box in client window coordinates.

virtual void	SetVisible (bool state=true) override
	Make shape to be visible or not.

virtual const IColorSchema *	GetUserColorSchema () const override
	Get color schema from view or user defined.

virtual void	SetUserColorSchema (const IColorSchema *schemaPtr) override
	Set color schema to draw shape.

virtual void	SetDefaultDescription (const QString &description) override
	Set default description will be used to display on console.

virtual void	SetToolTip (const QString &toolTip) override

virtual bool	IsInside (const istd::CIndex2d &screenPosition) const override

virtual bool	IsVisible () const override
	Check, if this object is visible.

virtual bool	IsDisplayAccepted (const IDisplay &display) const override
	Check if this object can be connected to this display.

virtual void	OnConnectDisplay (IDisplay *displayPtr) override
	Called after display is connected.

virtual void	OnDisconnectDisplay (IDisplay *displayPtr) override
	Called after display is disconnected.

virtual bool	OnDisplayChange (const istd::IChangeable::ChangeSet &changeSet) override
	It informs about changes in display.

virtual ITouchable::TouchState	IsTouched (istd::CIndex2d position) const override
	Check, if any shape is touched.

virtual QString	GetShapeDescriptionAt (istd::CIndex2d position) const override
	Get description to shape at specified position.

virtual QString	GetToolTipAt (istd::CIndex2d position) const override
	Get tooltip at specified position.

virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet) override
	Called on update of observed model.

Public Member Functions inherited from imod::CSingleModelObserverBase
	CSingleModelObserverBase ()

virtual	~CSingleModelObserverBase ()

imod::IModel *	GetObservedModel () const
	Get access to observed model.

imod::IModel *	GetModelPtr () const
	Get access to observed model.

void	EnsureModelDetached ()
	Make sure this observer is detached.

void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.

virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iview::IShape
virtual bool	IsAreaTouchAllowed () const

virtual void	SetAreaTouchAllowed (bool=true)

virtual iview::ISelectable::MousePointerMode	UpdateMousePointer (iview::ISelectable::MousePointerMode defaultPointer, ITouchable::TouchState, const istd::CIndex2d &) const

Public Member Functions inherited from iview::IVisualizable
virtual void	Draw (QPainter &drawContext) const =0
	Draw this shape using draw context.

Protected Member Functions
void	BeginTickerDrag ()

void	EndTickerDrag ()

void	UpdateModelChanges ()

int	GetKeysState () const
	Get actual keys state.

int	GetEditMode () const
	Get actual edit mode.

int	GetDisplayMode () const
	Get actual display mode.

void	DrawText (QPainter &drawContext, istd::CIndex2d point, const QString &text) const
	Draw text on a given position.

virtual bool	IsDisplayChangeImportant (const istd::IChangeable::ChangeSet &changeSet) override
	Get display changes mask.

virtual void	BeginLogDrag (const i2d::CVector2d &reference)=0

virtual void	SetLogDragPosition (const i2d::CVector2d &position)=0

Protected Member Functions inherited from iview::CShapeBase
double	GetLocalLineWidth (const i2d::CVector2d &screenPosition) const
	Get line with (in logical coordinates) for single screen position.

virtual void	InvalidateBoundingBox ()
	Invalidate bounding box.

bool	IsDisplayConnected () const
	Check if display is connected.

const IColorSchema &	GetColorSchema () const
	Get color schema for this shape.

i2d::CRect	GetClientRect () const
	Get display client rectangle.

bool	IsBoundingBoxValid () const

void	DisconnectDisplay ()

virtual const iview::CScreenTransform &	GetViewToScreenTransform () const

virtual i2d::CRect	CalcBoundingBox () const =0
	Calculate bounding box.

Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.

Additional Inherited Members
Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Definition at line 22 of file CInteractiveShapeBase.h.

Member Typedef Documentation

◆ BaseClass

typedef CShapeBase iview::CInteractiveShapeBase::BaseClass

Definition at line 28 of file CInteractiveShapeBase.h.

Constructor & Destructor Documentation

◆ CInteractiveShapeBase() [1/2]

iview::CInteractiveShapeBase::CInteractiveShapeBase ( )

◆ CInteractiveShapeBase() [2/2]

iview::CInteractiveShapeBase::CInteractiveShapeBase ( const CInteractiveShapeBase & shape )

◆ ~CInteractiveShapeBase()

virtual iview::CInteractiveShapeBase::~CInteractiveShapeBase ( )

virtual

Member Function Documentation

◆ BeginDrag()

virtual void iview::CInteractiveShapeBase::BeginDrag ( const istd::CIndex2d & reference )

overridevirtual

Called before dragging is begin.

It set also reference value for dragging position.

Implements iview::IDraggable.

◆ BeginLogDrag()

virtual void iview::CInteractiveShapeBase::BeginLogDrag ( const i2d::CVector2d & reference )

protectedpure virtual

Implemented in iview::CAffineTransformation2dShape, iview::CLineShape, iview::CParallelogramShape, iview::CPinShape, iview::CPolygonShape, iview::CRectangleShape, and iview::CRectControlledShapeBase.

◆ BeginTickerDrag()

void iview::CInteractiveShapeBase::BeginTickerDrag ( )

protected

◆ DrawText()

void iview::CInteractiveShapeBase::DrawText	(	QPainter &	drawContext,
		istd::CIndex2d	point,
		const QString &	text
	)		const

protected

Draw text on a given position.

◆ EndDrag()

virtual void iview::CInteractiveShapeBase::EndDrag ( )

overridevirtual

Called after dragging.

Implements iview::IDraggable.

◆ EndTickerDrag()

void iview::CInteractiveShapeBase::EndTickerDrag ( )

protected

◆ GetDisplayMode()

int iview::CInteractiveShapeBase::GetDisplayMode ( ) const

inlineprotected

Get actual display mode.

Note, that display must be connected to use this method.

Definition at line 139 of file CInteractiveShapeBase.h.

References iview::ISelectable::EM_NONE, iview::ISelectable::GetDisplayMode(), iview::CShapeBase::GetDisplayPtr(), and NULL.

◆ GetEditMode()

int iview::CInteractiveShapeBase::GetEditMode ( ) const

inlineprotected

Get actual edit mode.

Note, that display must be connected to use this method.

Definition at line 127 of file CInteractiveShapeBase.h.

References iview::ISelectable::EM_NONE, iview::CShapeBase::GetDisplayPtr(), iview::ISelectable::GetEditMode(), and NULL.

◆ GetKeysState()

int iview::CInteractiveShapeBase::GetKeysState ( ) const

inlineprotected

Get actual keys state.

Note, that display must be connected to use this method.

Definition at line 115 of file CInteractiveShapeBase.h.

References iview::CShapeBase::GetDisplayPtr(), iview::ISelectable::GetKeysState(), and NULL.

◆ IsDisplayChangeImportant()

bool iview::CInteractiveShapeBase::IsDisplayChangeImportant ( const istd::IChangeable::ChangeSet & changeSet )

inlineoverrideprotectedvirtual

Get display changes mask.

Only changes there are in mask will be accepted, rest will be ignored.

Reimplemented from iview::CShapeBase.

Definition at line 153 of file CInteractiveShapeBase.h.

References iview::IDisplay::CF_DISPLAY_MODE, iview::IDisplay::CF_EDIT_MODE, istd::IChangeable::ChangeSet::Contains(), and iview::CShapeBase::IsDisplayChangeImportant().

◆ IsDraggable()

virtual bool iview::CInteractiveShapeBase::IsDraggable ( ) const

overridevirtual

Check if drag is enabled.

Implements iview::IDraggable.

Reimplemented in iview::CPolygonShape.

◆ IsEditablePosition()

bool iview::CInteractiveShapeBase::IsEditablePosition ( ) const

inlinevirtual

Definition at line 101 of file CInteractiveShapeBase.h.

◆ IsSelected()

virtual bool iview::CInteractiveShapeBase::IsSelected ( ) const

overridevirtual

Check, if this shape is selected.

Implements iview::IInteractiveShape.

◆ OnModelAttached()

virtual bool iview::CInteractiveShapeBase::OnModelAttached	(	imod::IModel *	modelPtr,
		istd::IChangeable::ChangeSet &	changeMask
	)

overridevirtual

Callback invoked when an observable model is about to be attached to this observer.

This method is called by the model when attempting to establish an observer relationship. The implementation should:

Validate that the model is of an acceptable type
Set the changeMask to specify which changes to monitor
Return true to accept the attachment, or false to reject it

Parameters

modelPtr	Pointer to the model object being attached. Never nullptr.
changeMask	Output parameter where the observer specifies which change types it wants to be notified about. Set the appropriate change flags using changeMask.Set(changeId). An empty mask means the observer wants all changes.

Returns: true if the model is accepted and attachment succeeds, false to reject the attachment (e.g., if the model is of incompatible type).

Note: After successful attachment, the observer should initialize its state based on the current model data.; The changeMask allows filtering notifications for better performance. Only changes matching the mask will trigger AfterUpdate() calls.

virtual bool OnModelAttached(IModel* modelPtr,
                            istd::IChangeable::ChangeSet& changeMask)
{
       // Type check
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return false;

       // Set up change filtering
       changeMask.Set(CMyModel::CF_DATA_CHANGED);
       changeMask.Set(CMyModel::CF_STATUS_CHANGED);
       // Don't set CF_INTERNAL_CHANGED - we don't care about those

       // Initialize view from current model state
       UpdateViewFromModel(model);
       return true;
}

See also: OnModelDetached(), IsModelAttached(), AfterUpdate()

Reimplemented from iview::CShapeBase.

Reimplemented in iview::CAffineTransformation2dShape, iview::CAnnulusSegmentShape, iview::CAnnulusShape, iview::CArcShape, iview::CCircleShape, iview::CGraphPlotShape, iview::CLabelShape, iview::CLineShape, iview::COrientedCircleShape, iview::CParallelogramShape, iview::CPinShape, iview::CPolygonShape, iview::CPolylineShape, iview::CRectangleShape, and iview::CSplineShape.

◆ OnModelDetached()

virtual bool iview::CInteractiveShapeBase::OnModelDetached ( imod::IModel * modelPtr )

overridevirtual

Callback invoked when an observable model is about to be detached from this observer.

This method is called when the observer-model relationship is being terminated, either explicitly or because the model is being destroyed. The implementation should clean up any state or resources related to this model.

Parameters

modelPtr Pointer to the model object being detached

Returns: true if the detachment was handled successfully, false otherwise

Note: After this call, the observer should not access the model pointer anymore.; This method may be called even if OnModelAttached() previously returned false.; Clean up any cached data or references to this model.

virtual bool OnModelDetached(IModel* modelPtr)
{
       if (m_currentModel == modelPtr) {
              // Clear any cached data
              m_cachedData.clear();
              m_currentModel = nullptr;

              // Update UI to show no model is attached
              ClearDisplay();
              return true;
       }
       return false;
}

See also: OnModelAttached(), IsModelAttached()

Reimplemented from iview::CShapeBase.

◆ OnMouseButton()

virtual bool iview::CInteractiveShapeBase::OnMouseButton	(	istd::CIndex2d	position,
		Qt::MouseButton	buttonType,
		bool	downFlag
	)

overridevirtual

It is called, when mouse button is pushed down or up on this object.

Parameters

position	- position of mouse pointer on client area (picture coords).
downFlag	- true, if mouse button is pushed down, false if pushed up.

Returns: true if this shape should get focus to catch all mouse movements.

Implements iview::IMouseActionObserver.

Reimplemented in iview::CAnnulusSegmentShape, iview::CAnnulusShape, iview::CArcShape, iview::CCenterPinShape, iview::CCircleShape, iview::CLabelShape, iview::CLineShape, iview::CParallelogramShape, iview::CPinShape, iview::CPolygonShape, iview::CPolylineShape, iview::CRectangleShape, iview::CRectControlledShapeBase, and iview::CTubePolylineShape.

◆ OnMouseMove()

virtual bool iview::CInteractiveShapeBase::OnMouseMove ( istd::CIndex2d position )

overridevirtual

It is called, when mouse is moved.

Only objects with focus receive this event.

Parameters

position - position of mouse pointer on client area (picture coords).

Returns: true if this shape should hold focus to catch longer all mouse movements.

Implements iview::IMouseActionObserver.

Reimplemented in iview::CAnnulusSegmentShape, iview::CAnnulusShape, iview::CArcShape, iview::CCenterPinShape, iview::CCircleShape, iview::CLabelShape, iview::CLineShape, iview::CParallelogramShape, iview::CPinShape, iview::CPolygonShape, iview::CRectangleShape, and iview::CTubePolylineShape.

◆ SetDragPosition()

virtual void iview::CInteractiveShapeBase::SetDragPosition ( const istd::CIndex2d & position )

overridevirtual

Set new drag position.

It must be enclosed using BeginDrag() and EndDrag() methods.

Implements iview::IDraggable.

◆ SetEditablePosition()

void iview::CInteractiveShapeBase::SetEditablePosition ( bool state = true )

inlinevirtual

Definition at line 107 of file CInteractiveShapeBase.h.

Referenced by iqt2d::TShapeParamsGuiCompBase< Ui, Shape, ShapeModel >::CreateShape().

◆ SetLogDragPosition()

virtual void iview::CInteractiveShapeBase::SetLogDragPosition ( const i2d::CVector2d & position )

protectedpure virtual

Implemented in iview::CAffineTransformation2dShape, iview::CLineShape, iview::CParallelogramShape, iview::CPinShape, iview::CPolygonShape, iview::CRectangleShape, and iview::CRectControlledShapeBase.

◆ SetSelected()

virtual void iview::CInteractiveShapeBase::SetSelected ( bool selectFlag = true )

overridevirtual

Inform that this object was selected or deselected.

Parameters

selectFlag if true - selection, else deselection.

Implements iview::IInteractiveShape.

◆ UpdateModelChanges()

void iview::CInteractiveShapeBase::UpdateModelChanges ( )

protected

The documentation for this class was generated from the following file:

Acf/Include/iview/CInteractiveShapeBase.h

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

Constructor & Destructor Documentation

◆ CInteractiveShapeBase() [1/2]

◆ CInteractiveShapeBase() [2/2]

◆ ~CInteractiveShapeBase()

Member Function Documentation

◆ BeginDrag()

◆ BeginLogDrag()

◆ BeginTickerDrag()

◆ DrawText()

◆ EndDrag()

◆ EndTickerDrag()

◆ GetDisplayMode()

◆ GetEditMode()

◆ GetKeysState()

◆ IsDisplayChangeImportant()

◆ IsDraggable()

◆ IsEditablePosition()

◆ IsSelected()

◆ OnModelAttached()

◆ OnModelDetached()

◆ OnMouseButton()

◆ OnMouseMove()

◆ SetDragPosition()

◆ SetEditablePosition()

◆ SetLogDragPosition()

◆ SetSelected()

◆ UpdateModelChanges()
