iview::IVisualizable Class Reference

#include <IVisualizable.h>

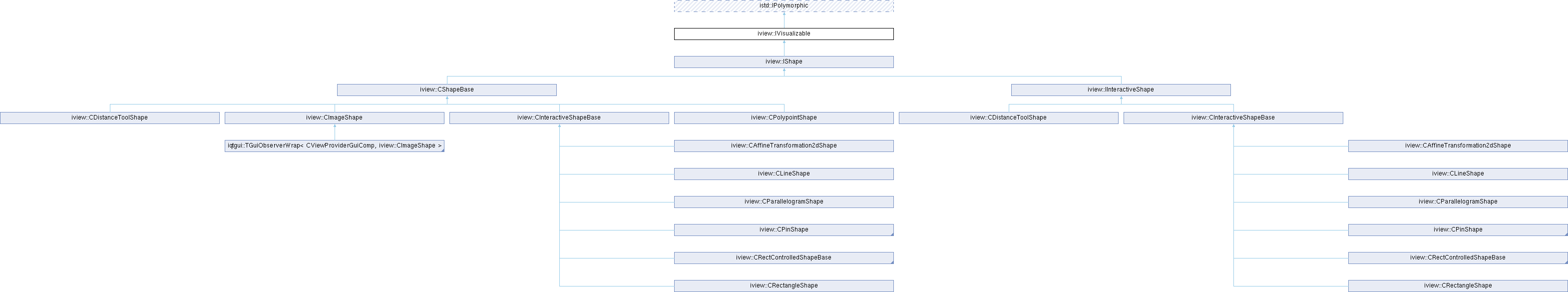

Inheritance diagram for iview::IVisualizable:

Public Member Functions
virtual bool	IsVisible () const =0
	Check, if this object is visible.
virtual bool	IsDisplayAccepted (const IDisplay &display) const =0
	Check if this object can be connected to this display.
virtual void	OnConnectDisplay (IDisplay *displayPtr)=0
	Called after display is connected.
virtual void	OnDisconnectDisplay (IDisplay *displayPtr)=0
	Called after display is disconnected.
virtual void	Draw (QPainter &drawContext) const =0
	Draw this shape using draw context.
virtual bool	OnDisplayChange (const istd::IChangeable::ChangeSet &changeSet)=0
	It informs about changes in display.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Definition at line 20 of file IVisualizable.h.

Member Function Documentation

Draw()

virtual void iview::IVisualizable::Draw ( QPainter &  drawContext ) const

pure virtual

Draw this shape using draw context.

Implemented in iview::CAffineTransformation2dShape, iview::CAnnulusSegmentShape, iview::CAnnulusShape, iview::CArcShape, iview::CCenterPinShape, iview::CCircleShape, iview::CDistanceToolShape, iview::CImageShape, iview::CLabelShape, iview::CLineShape, iview::COrientedCircleShape, iview::CParallelogramShape, iview::CPinShape, iview::CPolygonShape, iview::CPolypointShape, iview::CRectangleShape, iview::CRectControlledShapeBase, and iview::CStarShape.

IsDisplayAccepted()

virtual bool iview::IVisualizable::IsDisplayAccepted ( const IDisplay &  display ) const

pure virtual

Check if this object can be connected to this display.

Implemented in iview::CShapeBase.

IsVisible()

virtual bool iview::IVisualizable::IsVisible ( ) const

pure virtual

Check, if this object is visible.

Implemented in iview::CShapeBase.

OnConnectDisplay()

virtual void iview::IVisualizable::OnConnectDisplay ( IDisplay *  displayPtr )

pure virtual

Called after display is connected.

It can be called only, when display is accepted (

See also

IsDisplayAccepted()).

Parameters

displayPtr

an observer object, which should be informed about all shape changes.

Implemented in iview::CShapeBase.

OnDisconnectDisplay()

virtual void iview::IVisualizable::OnDisconnectDisplay ( IDisplay *  displayPtr )

pure virtual

Called after display is disconnected.

Note, that this display must be previously connected.

Parameters

displayPtr

a disconnected observer object.

Implemented in iview::CShapeBase.

OnDisplayChange()

virtual bool iview::IVisualizable::OnDisplayChange ( const istd::IChangeable::ChangeSet &  changeSet )

pure virtual

It informs about changes in display.

It is called e.g. after view transformation change.

Returns

true, if this change follow shape changes.

Implemented in iview::CShapeBase.

---

The documentation for this class was generated from the following file:

• Acf/Include/iview/IVisualizable.h
