Graphical representation of tube region. More...

#include <CTubePolylineShape.h>

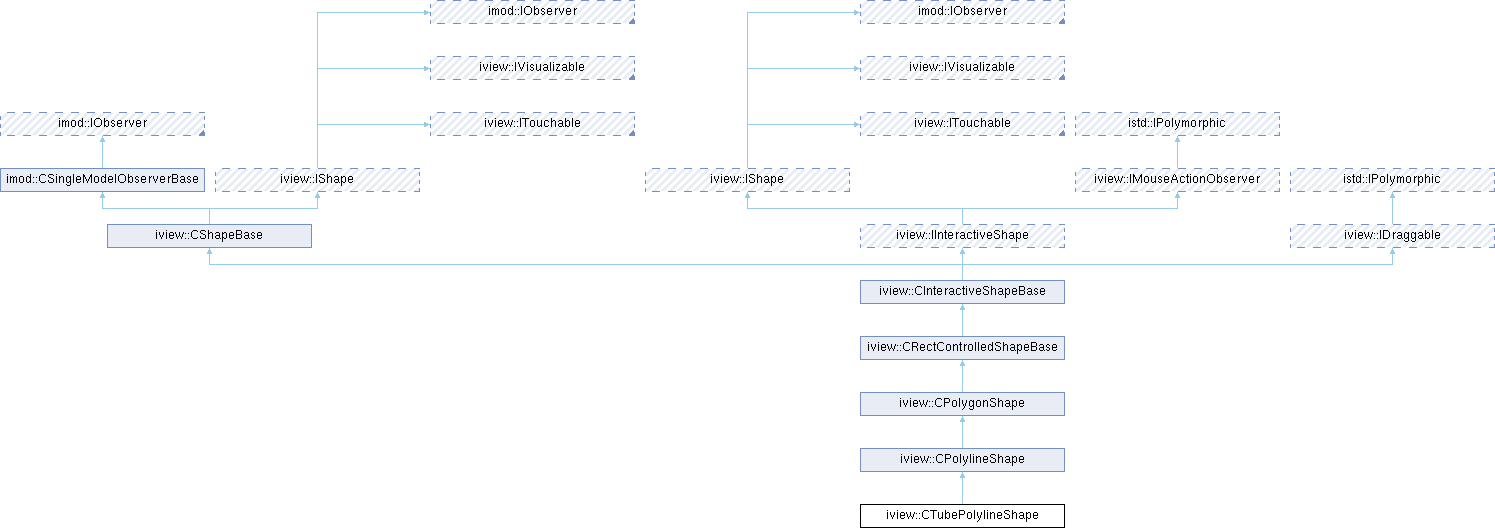

Inheritance diagram for iview::CTubePolylineShape:

Public Types
typedef iview::CPolylineShape	BaseClass

typedef CInteractiveShapeBase	ShapeBaseClass

Public Types inherited from iview::CPolylineShape
typedef CPolygonShape	BaseClass

typedef CInteractiveShapeBase	ShapeBaseClass

Public Types inherited from iview::CPolygonShape
typedef CRectControlledShapeBase	BaseClass

typedef CInteractiveShapeBase	ShapeBaseClass

Public Types inherited from iview::CRectControlledShapeBase
typedef CInteractiveShapeBase	BaseClass

typedef CInteractiveShapeBase	ShapeBaseClass

Public Types inherited from iview::CInteractiveShapeBase
typedef CShapeBase	BaseClass

Public Types inherited from iview::CShapeBase
enum	ShapeTransformMode { STM_VIEW , STM_SHAPE , STM_COMBINE }
	Describe how shape tranformation is interpreted. More...

typedef imod::CSingleModelObserverBase	BaseClass

Public Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType

Public Types inherited from iview::IShape
enum	ChangeFlags { CF_CALIB = 0x3663adf }
	Data model change notification flags. More...

Public Types inherited from iview::ITouchable
enum	TouchState { TS_NONE , TS_INACTIVE , TS_TICKER , TS_DRAGGABLE , TS_AREA , TS_OTHER , TS_LAST = TS_OTHER }
	Enumeration for possible shape touch states. More...

Public Member Functions
	CTubePolylineShape ()

virtual i2d::CRect	CalcBoundingBox () const override
	Calculate bounding box.

virtual bool	OnMouseButton (istd::CIndex2d position, Qt::MouseButton buttonType, bool downFlag) override
	It is called, when mouse button is pushed down or up on this object.

virtual bool	OnMouseMove (istd::CIndex2d position) override
	It is called, when mouse is moved.

virtual TouchState	IsTouched (istd::CIndex2d position) const override
	Check, if any shape is touched.

Public Member Functions inherited from iview::CPolylineShape
	CPolylineShape ()

bool	IsOrientationVisible () const

void	SetOrientationVisible (bool state=true)

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.

virtual QString	GetShapeDescriptionAt (istd::CIndex2d position) const override
	Get description to shape at specified position.

Public Member Functions inherited from iview::CPolygonShape
virtual bool	IsAreaTouchAllowed () const

virtual void	SetAreaTouchAllowed (bool state=true)

virtual bool	IsEditableNodes () const

virtual void	SetEditableNodes (bool state=true)

virtual bool	IsFirstVisible () const
	Check if first point is always visible as ticker.

virtual void	SetFirstVisible (bool state=true)

virtual bool	IsAlwaysMovable () const
	Check if in all edit modes is this shape draggable.

virtual void	SetAlwaysMovable (bool state=true)
	Set flag if in all edit modes is this shape draggable.

virtual bool	IsInside (const istd::CIndex2d &screenPosition) const override

virtual void	Draw (QPainter &drawContext) const override
	Draw this shape using draw context.

virtual bool	IsDraggable () const override
	Check if drag is enabled.

Public Member Functions inherited from iview::CRectControlledShapeBase
	CRectControlledShapeBase ()

virtual bool	IsEditableRotation ()
	Check, if rotation is editable.

virtual void	SetEditableRotation (bool state=true)

virtual bool	IsEditableWidth ()
	Check, if width is editable.

virtual void	SetEditableWidth (bool state=true)

virtual bool	IsEditableHeight ()
	Check, if height is editable.

virtual void	SetEditableHeight (bool state=true)

virtual bool	IsProportionalScaled () const
	Check, if both axis will be scaled proportional.

virtual void	SetProportionalScaled (bool state=true)

virtual void	InvalidateBoundingBox () override
	Invalidate bounding box.

Public Member Functions inherited from iview::CInteractiveShapeBase
	CInteractiveShapeBase ()

	CInteractiveShapeBase (const CInteractiveShapeBase &shape)

virtual	~CInteractiveShapeBase ()

virtual bool	IsEditablePosition () const

virtual void	SetEditablePosition (bool state=true)

virtual bool	IsSelected () const override
	Check, if this shape is selected.

virtual void	SetSelected (bool selectFlag=true) override
	Inform that this object was selected or deselected.

virtual void	BeginDrag (const istd::CIndex2d &position) override
	Called before dragging is begin.

virtual void	SetDragPosition (const istd::CIndex2d &position) override
	Set new drag position.

virtual void	EndDrag () override
	Called after dragging.

virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.

Public Member Functions inherited from iview::CShapeBase
	CShapeBase ()

	CShapeBase (const CShapeBase &shape)

virtual	~CShapeBase ()

virtual bool	AssignToLayer (int layerType)
	Assign this shape to same layer.

virtual void	Invalidate ()

iview::IDisplay *	GetDisplayPtr () const
	Get access to currently connected display.

ShapeTransformMode	GetTransformMode () const
	Get shape transformation mode.

void	SetTransformMode (ShapeTransformMode mode)
	Set shape transformation mode.

i2d::CVector2d	GetScreenPosition (const i2d::CVector2d &logPosition) const
	Get screen position based on logical position.

i2d::CVector2d	GetLogPosition (const i2d::CVector2d &screenPosition) const
	Get logical position based on screen position.

virtual int	GetLayerType () const override
	Get layer type of this shape object.

virtual i2d::CRect	GetBoundingBox () const override
	Return bounding box in client window coordinates.

virtual void	SetVisible (bool state=true) override
	Make shape to be visible or not.

virtual const IColorSchema *	GetUserColorSchema () const override
	Get color schema from view or user defined.

virtual void	SetUserColorSchema (const IColorSchema *schemaPtr) override
	Set color schema to draw shape.

virtual void	SetDefaultDescription (const QString &description) override
	Set default description will be used to display on console.

virtual void	SetToolTip (const QString &toolTip) override

virtual bool	IsVisible () const override
	Check, if this object is visible.

virtual bool	IsDisplayAccepted (const IDisplay &display) const override
	Check if this object can be connected to this display.

virtual void	OnConnectDisplay (IDisplay *displayPtr) override
	Called after display is connected.

virtual void	OnDisconnectDisplay (IDisplay *displayPtr) override
	Called after display is disconnected.

virtual bool	OnDisplayChange (const istd::IChangeable::ChangeSet &changeSet) override
	It informs about changes in display.

virtual QString	GetToolTipAt (istd::CIndex2d position) const override
	Get tooltip at specified position.

virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet) override
	Called on update of observed model.

Public Member Functions inherited from imod::CSingleModelObserverBase
	CSingleModelObserverBase ()

virtual	~CSingleModelObserverBase ()

imod::IModel *	GetObservedModel () const
	Get access to observed model.

imod::IModel *	GetModelPtr () const
	Get access to observed model.

void	EnsureModelDetached ()
	Make sure this observer is detached.

void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.

virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iview::IShape
virtual iview::ISelectable::MousePointerMode	UpdateMousePointer (iview::ISelectable::MousePointerMode defaultPointer, ITouchable::TouchState, const istd::CIndex2d &) const

Protected Types
enum	EditMode { EM_NONE , EM_BASIC , EM_LEFT , EM_RIGHT }

Protected Types inherited from iview::CRectControlledShapeBase
enum	EditNode { EN_NODE1 = 0 , EN_NODE2 , EN_NODE3 , EN_NODE4 , EN_CENTER , EN_MIDDLE12 , EN_MIDDLE23 , EN_MIDDLE34 , EN_MIDDLE41 , EN_ROTATION1 , EN_ROTATION2 , EN_LAST = EN_ROTATION2 }

enum	MouseMode { MM_NONE , MM_ROTATION1 , MM_ROTATION2 , MM_WIDTH1 , MM_WIDTH2 , MM_HEIGHT1 , MM_HEIGHT2 , MM_SIZE1 , MM_SIZE2 , MM_SIZE3 , MM_SIZE4 }

Protected Member Functions
virtual void	DrawCurve (QPainter &drawContext) const override

virtual void	DrawSelectionElements (QPainter &drawContext) const override

virtual void	EnsureValidNodes () const override

virtual bool	IsCurveTouched (istd::CIndex2d position) const override

Protected Member Functions inherited from iview::CPolylineShape
virtual void	DrawArea (QPainter &drawContext) const override

Protected Member Functions inherited from iview::CPolygonShape
virtual i2d::CVector2d	GetSegmentMiddle (int index) const

virtual bool	IsAreaTouched (istd::CIndex2d position) const

virtual void	BeginLogDrag (const i2d::CVector2d &reference) override

virtual void	SetLogDragPosition (const i2d::CVector2d &position) override

Protected Member Functions inherited from iview::CRectControlledShapeBase
void	CalcNodes (const i2d::CAffine2d &parallTransform) const

void	ResetNodes () const

bool	AreNodesValid () const

i2d::CAffine2d	CalcMoveTransform (i2d::CVector2d position, const i2d::CAffine2d &transform)

virtual bool	IsTickerTouched (istd::CIndex2d position) const

virtual void	DrawTickers (QPainter &drawContext) const

virtual void	DrawFigure (QPainter &drawContext) const

bool	IsParallTouched (const i2d::CAffine2d &parallTransform, istd::CIndex2d position) const

i2d::CAffine2d	CalcScaleTransform (const i2d::CVector2d &center, const i2d::CVector2d &isPos, const i2d::CVector2d &shouldPos)

i2d::CAffine2d	CalcSizeTransform (const i2d::CVector2d &center, const i2d::CVector2d &isPos, const i2d::CVector2d &shouldPos)

i2d::CAffine2d	CalcRotatedTransform (const i2d::CVector2d &center, const i2d::CVector2d &isPos, const i2d::CVector2d &shouldPos)

Protected Member Functions inherited from iview::CInteractiveShapeBase
void	BeginTickerDrag ()

void	EndTickerDrag ()

void	UpdateModelChanges ()

int	GetKeysState () const
	Get actual keys state.

int	GetEditMode () const
	Get actual edit mode.

int	GetDisplayMode () const
	Get actual display mode.

void	DrawText (QPainter &drawContext, istd::CIndex2d point, const QString &text) const
	Draw text on a given position.

virtual bool	IsDisplayChangeImportant (const istd::IChangeable::ChangeSet &changeSet) override
	Get display changes mask.

Protected Member Functions inherited from iview::CShapeBase
double	GetLocalLineWidth (const i2d::CVector2d &screenPosition) const
	Get line with (in logical coordinates) for single screen position.

bool	IsDisplayConnected () const
	Check if display is connected.

const IColorSchema &	GetColorSchema () const
	Get color schema for this shape.

i2d::CRect	GetClientRect () const
	Get display client rectangle.

bool	IsBoundingBoxValid () const

void	DisconnectDisplay ()

virtual const iview::CScreenTransform &	GetViewToScreenTransform () const

Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.

Protected Attributes
int	m_editMode

int	m_editedNodeIndex

Protected Attributes inherited from iview::CPolygonShape
int	m_referenceIndex = 0

QVector< i2d::CVector2d >	m_references

i2d::CVector2d	m_castAxis = { 1,0 }

i2d::CAffine2d	m_castTransform

QPolygonF	m_screenPoints

Protected Attributes inherited from iview::CRectControlledShapeBase
MouseMode	m_mouseMode

i2d::CVector2d	m_referencePosition

Additional Inherited Members
Static Public Member Functions inherited from iview::CPolylineShape
static void	DrawOrientationMarker (QPainter &drawContext, const QPen &rightPen, const QBrush &rightBrush, const QPen &leftPen, const QBrush &leftBrush, const i2d::CLine2d &segmentLine, double scale)
	Draw an orientation marker consisting of two triangles (black for outside and white for inside)

static void	DrawOrientationMarker (QPainter &drawContext, const i2d::CVector2d &point, const i2d::CVector2d &direction, double maxWidth, const iview::IColorSchema &colorSchema)

Static Protected Member Functions inherited from iview::CPolygonShape
static const istd::IChangeable::ChangeSet &	GetMoveChangeSet ()

static const istd::IChangeable::ChangeSet &	GetMoveAllChangeSet ()

Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Graphical representation of tube region.

Definition at line 15 of file CTubePolylineShape.h.

Member Typedef Documentation

◆ BaseClass

typedef iview::CPolylineShape iview::CTubePolylineShape::BaseClass

Definition at line 18 of file CTubePolylineShape.h.

◆ ShapeBaseClass

typedef CInteractiveShapeBase iview::CTubePolylineShape::ShapeBaseClass

Definition at line 19 of file CTubePolylineShape.h.

Member Enumeration Documentation

◆ EditMode

enum iview::CTubePolylineShape::EditMode

protected

Enumerator
EM_NONE
EM_BASIC
EM_LEFT
EM_RIGHT

Definition at line 43 of file CTubePolylineShape.h.

Constructor & Destructor Documentation

◆ CTubePolylineShape()

iview::CTubePolylineShape::CTubePolylineShape ( )

Member Function Documentation

◆ CalcBoundingBox()

virtual i2d::CRect iview::CTubePolylineShape::CalcBoundingBox ( ) const

overridevirtual

Calculate bounding box.

You have to implement this method in your shapes implementations.

Reimplemented from iview::CPolylineShape.

◆ DrawCurve()

virtual void iview::CTubePolylineShape::DrawCurve ( QPainter & drawContext ) const

overrideprotectedvirtual

Reimplemented from iview::CPolylineShape.

◆ DrawSelectionElements()

virtual void iview::CTubePolylineShape::DrawSelectionElements ( QPainter & drawContext ) const

overrideprotectedvirtual

Reimplemented from iview::CPolylineShape.

◆ EnsureValidNodes()

virtual void iview::CTubePolylineShape::EnsureValidNodes ( ) const

overrideprotectedvirtual

Reimplemented from iview::CPolygonShape.

◆ IsCurveTouched()

virtual bool iview::CTubePolylineShape::IsCurveTouched ( istd::CIndex2d position ) const

overrideprotectedvirtual

Reimplemented from iview::CPolylineShape.

◆ IsTouched()

virtual TouchState iview::CTubePolylineShape::IsTouched ( istd::CIndex2d position ) const

overridevirtual

Check, if any shape is touched.

When shape is touched, it return also pointer to this shape.

Returns: touch state for the shape, or iview::IInteractiveShape::TS_NONE, when nothing found.

Reimplemented from iview::CPolylineShape.

◆ OnMouseButton()

virtual bool iview::CTubePolylineShape::OnMouseButton	(	istd::CIndex2d	position,
		Qt::MouseButton	buttonType,
		bool	downFlag
	)

overridevirtual

It is called, when mouse button is pushed down or up on this object.

Parameters

position	- position of mouse pointer on client area (picture coords).
downFlag	- true, if mouse button is pushed down, false if pushed up.

Returns: true if this shape should get focus to catch all mouse movements.

Reimplemented from iview::CPolylineShape.

◆ OnMouseMove()

virtual bool iview::CTubePolylineShape::OnMouseMove ( istd::CIndex2d position )

overridevirtual

It is called, when mouse is moved.

Only objects with focus receive this event.

Parameters

position - position of mouse pointer on client area (picture coords).

Returns: true if this shape should hold focus to catch longer all mouse movements.

Reimplemented from iview::CPolygonShape.

Member Data Documentation

◆ m_editedNodeIndex

int iview::CTubePolylineShape::m_editedNodeIndex

protected

Definition at line 52 of file CTubePolylineShape.h.

◆ m_editMode

int iview::CTubePolylineShape::m_editMode

protected

Definition at line 51 of file CTubePolylineShape.h.

The documentation for this class was generated from the following file:

Acf/Include/iview/CTubePolylineShape.h
