iview::IViewLayer Class Reference

Interface for a logical layer in the console view. More...

#include <IViewLayer.h>

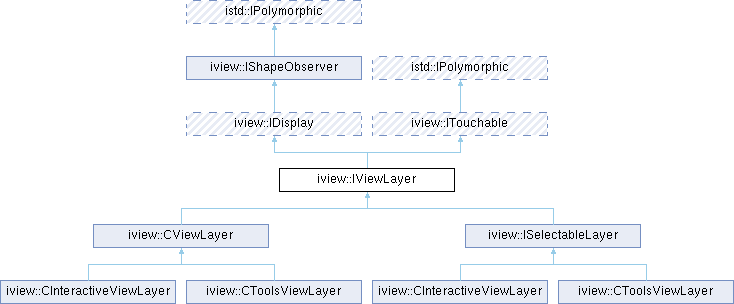

Inheritance diagram for iview::IViewLayer:

Public Types
enum	LayerType {   LT_NONE , LT_BACKGROUND , LT_INACTIVE , LT_ACTIVE ,   LT_CALIBRATION , LT_TOOLS }
typedef QList< IShape * >	Shapes
Public Types inherited from iview::IDisplay
enum	ChangeFlags {   CF_TRANSFORM = 0x3f67360 , CF_COLORS , CF_SIZE , CF_EDIT_MODE ,   CF_DISPLAY_MODE , CS_CONSOLE }
	Define possible display change flags. More...
Public Types inherited from iview::ITouchable
enum	TouchState {   TS_NONE , TS_INACTIVE , TS_TICKER , TS_DRAGGABLE ,   TS_AREA , TS_OTHER , TS_LAST = TS_OTHER }
	Enumeration for possible shape touch states. More...

Public Member Functions
virtual void	OnConnectView (IShapeView *viewPtr)=0
	Called after layer is connected to view.
virtual void	OnDisconnectView (IShapeView *viewPtr)=0
	Called before layer is disconnected from view.
virtual IShapeView *	GetViewPtr () const =0
	Get parent view of this layer.
virtual bool	IsShapeConnected (IShape *shapePtr)=0
	Check, if the shape is connected to the layer.
virtual bool	ConnectShape (IShape *shapePtr)=0
	Connect shape object to view.
virtual int	GetShapesCount () const =0
	Get count of all shapes on this layer.
virtual Shapes	GetShapes () const =0
	Get all shapes on this layer.
virtual void	UpdateAllShapes (const istd::IChangeable::ChangeSet &changeSet)=0
	Send update to all shapes after view changes.
virtual void	DisconnectAllShapes ()=0
	Disconnect all shapes from this layer.
virtual void	DrawShapes (QPainter &drawContext)=0
	Draw all shapes using specified draw context.
virtual bool	IsVisible () const =0
	Check, if this layer is visible.
virtual void	SetVisible (bool state=true)=0
	Make this layer visible.
Public Member Functions inherited from iview::IDisplay
virtual IDisplay *	GetParentDisplayPtr () const =0
	Get parent object of this display.
virtual const iview::CScreenTransform &	GetTransform () const =0
	Return a screen transformation.
virtual i2d::CRect	GetBoundingBox () const =0
	Get bounding box of all object in this display.
virtual i2d::CRect	GetClientRect () const =0
	Get bounding box of client area.
virtual const IColorSchema &	GetColorSchema () const =0
	Get color schema.
virtual void	OnAreaInvalidated (const i2d::CRect &prevArea, const i2d::CRect &newArea)=0
	Invalidate display area.
Public Member Functions inherited from iview::IShapeObserver
virtual void	OnChangeShape (IShape *shapePtr)=0
	Invalidate a shape.
virtual bool	DisconnectShape (IShape *shapePtr)=0
	Disconnect shape object from view.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Public Member Functions inherited from iview::ITouchable
virtual TouchState	IsTouched (istd::CIndex2d position) const =0
	Check, if any shape is touched.
virtual QString	GetShapeDescriptionAt (istd::CIndex2d position) const =0
	Get description to shape at specified position.
virtual QString	GetToolTipAt (istd::CIndex2d position) const =0
	Get tooltip at specified position.

Detailed Description

Interface for a logical layer in the console view.

Definition at line 24 of file IViewLayer.h.

Member Typedef Documentation

Shapes

typedef QList<IShape*> iview::IViewLayer::Shapes

Definition at line 62 of file IViewLayer.h.

Member Enumeration Documentation

LayerType

enum iview::IViewLayer::LayerType

Enumerator
LT_NONE	Layer type is not set.
LT_BACKGROUND	Background layer.
LT_INACTIVE	Layer with inactive shapes. The user interaction with the shapes is impossible.
LT_ACTIVE	Layer with active shapes.
LT_CALIBRATION	Calibration layer.
LT_TOOLS	Tools layer.

Definition at line 29 of file IViewLayer.h.

Member Function Documentation

ConnectShape()

virtual bool iview::IViewLayer::ConnectShape ( IShape *  shapePtr )

pure virtual

Connect shape object to view.

Parameters

shape	a shape object.
active	if true, shape will be active, if false it will be only visible.

Returns

true, if it was possible to connect this shape.

Implemented in iview::CInteractiveViewLayer, and iview::CViewLayer.

DisconnectAllShapes()

virtual void iview::IViewLayer::DisconnectAllShapes ( )

pure virtual

Disconnect all shapes from this layer.

Implemented in iview::CInteractiveViewLayer, and iview::CViewLayer.

DrawShapes()

virtual void iview::IViewLayer::DrawShapes ( QPainter &  drawContext )

pure virtual

Draw all shapes using specified draw context.

Implemented in iview::CInteractiveViewLayer, and iview::CViewLayer.

GetShapes()

virtual Shapes iview::IViewLayer::GetShapes ( ) const

pure virtual

Get all shapes on this layer.

Implemented in iview::CViewLayer.

GetShapesCount()

virtual int iview::IViewLayer::GetShapesCount ( ) const

pure virtual

Get count of all shapes on this layer.

Implemented in iview::CInteractiveViewLayer, and iview::CViewLayer.

GetViewPtr()

virtual IShapeView * iview::IViewLayer::GetViewPtr ( ) const

pure virtual

Get parent view of this layer.

It can be used only when view is connected.

Implemented in iview::CViewLayer.

IsShapeConnected()

virtual bool iview::IViewLayer::IsShapeConnected ( IShape *  shapePtr )

pure virtual

Check, if the shape is connected to the layer.

Implemented in iview::CInteractiveViewLayer, and iview::CViewLayer.

IsVisible()

virtual bool iview::IViewLayer::IsVisible ( ) const

pure virtual

Check, if this layer is visible.

Implemented in iview::CViewLayer.

OnConnectView()

virtual void iview::IViewLayer::OnConnectView ( IShapeView *  viewPtr )

pure virtual

Called after layer is connected to view.

Implemented in iview::CViewLayer.

OnDisconnectView()

virtual void iview::IViewLayer::OnDisconnectView ( IShapeView *  viewPtr )

pure virtual

Called before layer is disconnected from view.

Implemented in iview::CViewLayer.

SetVisible()

virtual void iview::IViewLayer::SetVisible ( bool  state = true )

pure virtual

Make this layer visible.

Implemented in iview::CViewLayer.

UpdateAllShapes()

virtual void iview::IViewLayer::UpdateAllShapes ( const istd::IChangeable::ChangeSet &  changeSet )

pure virtual

Send update to all shapes after view changes.

Implemented in iview::CViewLayer.

---

The documentation for this class was generated from the following file:

• Acf/Include/iview/IViewLayer.h
