iview::ISelectable Class Reference

#include <ISelectable.h>

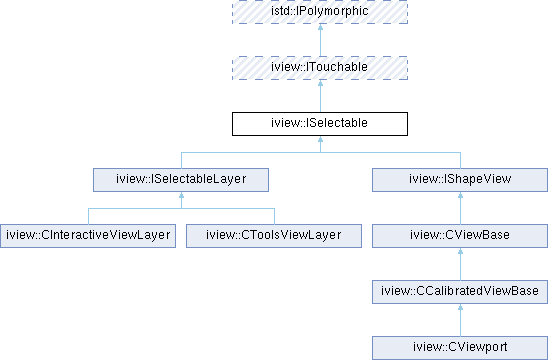

Inheritance diagram for iview::ISelectable:

Public Types
enum	MousePointerMode {   MPM_NONE , MPM_DEFAULT , MPM_DESELECT , MPM_POINTER ,   MPM_WAIT , MPM_CROSS , MPM_HAND , MPM_DRAG ,   MPM_SCREEN_MOVE , MPM_ADD , MPM_LAST }
	Defines possible states of mouse pointer. More...
enum	EditMode {   EM_NONE = 0 , EM_MOVE = 1 , EM_ADD = 2 , EM_REMOVE = 3 ,   EM_LAST = 100 }
	Describes standard edit modes. More...
enum	DisplayMode { DM_DEFAULT = 0 }
	Describes standard display modes. More...
typedef QSet< IInteractiveShape * >	SelectedShapes
Public Types inherited from iview::ITouchable
enum	TouchState {   TS_NONE , TS_INACTIVE , TS_TICKER , TS_DRAGGABLE ,   TS_AREA , TS_OTHER , TS_LAST = TS_OTHER }
	Enumeration for possible shape touch states. More...

Public Member Functions
virtual int	GetSelectedShapesCount () const =0
	Get count of selected shapes.
virtual void	InsertSelectedShapes (SelectedShapes &result) const =0
	Get set of selected shapes.
virtual void	DeselectAllShapes ()=0
	Set all shapes to be deselected.
virtual int	GetKeysState () const =0
	Get state of system keys.
virtual int	GetEditMode () const =0
	Get actual edit mode.
virtual int	GetDisplayMode () const =0
	Get actual display mode.
virtual void	OnShapeFocused (IInteractiveShape *shapePtr)=0
	Called when shape get focus.
virtual void	OnShapeDefocused (IInteractiveShape *shapePtr)=0
	Called when shape loose focus.
virtual void	OnShapeSelected (IInteractiveShape &shape, bool state=true)=0
	It is called after change shape selection state.
Public Member Functions inherited from iview::ITouchable
virtual TouchState	IsTouched (istd::CIndex2d position) const =0
	Check, if any shape is touched.
virtual QString	GetShapeDescriptionAt (istd::CIndex2d position) const =0
	Get description to shape at specified position.
virtual QString	GetToolTipAt (istd::CIndex2d position) const =0
	Get tooltip at specified position.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Definition at line 20 of file ISelectable.h.

Member Typedef Documentation

SelectedShapes

typedef QSet<IInteractiveShape*> iview::ISelectable::SelectedShapes

Definition at line 23 of file ISelectable.h.

Member Enumeration Documentation

DisplayMode

enum iview::ISelectable::DisplayMode

Describes standard display modes.

Enumerator
DM_DEFAULT

Definition at line 58 of file ISelectable.h.

EditMode

enum iview::ISelectable::EditMode

Describes standard edit modes.

Enumerator
EM_NONE
EM_MOVE
EM_ADD
EM_REMOVE
EM_LAST

Definition at line 46 of file ISelectable.h.

MousePointerMode

enum iview::ISelectable::MousePointerMode

Defines possible states of mouse pointer.

Enumerator
MPM_NONE
MPM_DEFAULT
MPM_DESELECT
MPM_POINTER
MPM_WAIT
MPM_CROSS
MPM_HAND
MPM_DRAG
MPM_SCREEN_MOVE
MPM_ADD
MPM_LAST

Definition at line 28 of file ISelectable.h.

Member Function Documentation

DeselectAllShapes()

virtual void iview::ISelectable::DeselectAllShapes ( )

pure virtual

Set all shapes to be deselected.

Implemented in iview::CInteractiveViewLayer, iview::CToolsViewLayer, and iview::CViewBase.

GetDisplayMode()

virtual int iview::ISelectable::GetDisplayMode ( ) const

pure virtual

Get actual display mode.

Implemented in iview::CInteractiveViewLayer, iview::CToolsViewLayer, and iview::CViewBase.

Referenced by iview::CInteractiveShapeBase::GetDisplayMode(), and iview::CInteractiveViewLayer::GetDisplayMode().

GetEditMode()

virtual int iview::ISelectable::GetEditMode ( ) const

pure virtual

Get actual edit mode.

Implemented in iview::CInteractiveViewLayer, iview::CToolsViewLayer, and iview::CViewBase.

Referenced by iview::CInteractiveShapeBase::GetEditMode(), and iview::CInteractiveViewLayer::GetEditMode().

GetKeysState()

virtual int iview::ISelectable::GetKeysState ( ) const

pure virtual

Get state of system keys.

Implemented in iview::CInteractiveViewLayer, iview::CToolsViewLayer, and iview::CViewBase.

Referenced by iview::CInteractiveShapeBase::GetKeysState(), and iview::CInteractiveViewLayer::GetKeysState().

GetSelectedShapesCount()

virtual int iview::ISelectable::GetSelectedShapesCount ( ) const

pure virtual

Get count of selected shapes.

Implemented in iview::CInteractiveViewLayer, iview::CToolsViewLayer, and iview::CViewBase.

InsertSelectedShapes()

virtual void iview::ISelectable::InsertSelectedShapes ( SelectedShapes &  result ) const

pure virtual

Get set of selected shapes.

Implemented in iview::CInteractiveViewLayer, iview::CToolsViewLayer, and iview::CViewBase.

OnShapeDefocused()

virtual void iview::ISelectable::OnShapeDefocused ( IInteractiveShape *  shapePtr )

pure virtual

Called when shape loose focus.

Implemented in iview::CViewBase, iview::CInteractiveViewLayer, and iview::CToolsViewLayer.

OnShapeFocused()

virtual void iview::ISelectable::OnShapeFocused ( IInteractiveShape *  shapePtr )

pure virtual

Called when shape get focus.

Implemented in iview::CViewBase, iview::CInteractiveViewLayer, and iview::CToolsViewLayer.

OnShapeSelected()

virtual void iview::ISelectable::OnShapeSelected ( IInteractiveShape &  shape, bool  state = true  )

pure virtual

It is called after change shape selection state.

Implemented in iview::CInteractiveViewLayer, iview::CToolsViewLayer, and iview::CViewBase.

---

The documentation for this class was generated from the following file:

• Acf/Include/iview/ISelectable.h
