ilog::IMessageConsumer Class Reference

Common interface for a message container consuming information objects (messages). More...

#include <IMessageConsumer.h>

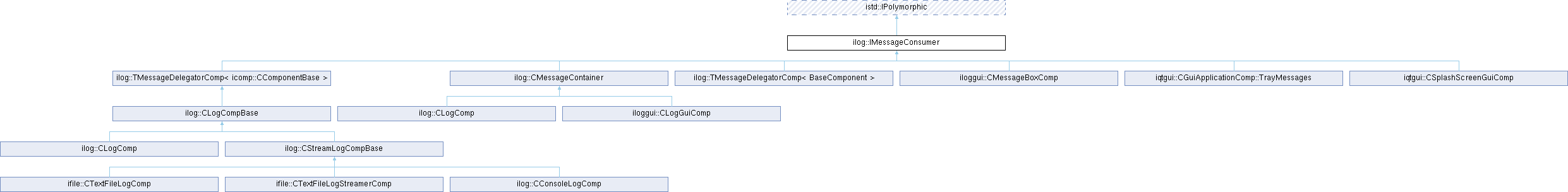

Inheritance diagram for ilog::IMessageConsumer:

Public Types
typedef istd::TSharedInterfacePtr< istd::IInformationProvider >	MessagePtr
	Shared pointer type for message objects.

Public Member Functions
virtual bool	IsMessageSupported (int messageCategory=-1, int messageId=-1, const istd::IInformationProvider *messagePtr=NULL) const =0
	Check if a message is supported by this consumer.
virtual void	AddMessage (const MessagePtr &messagePtr)=0
	Adds a message to this consumer.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Common interface for a message container consuming information objects (messages).

This is the fundamental interface in the ilog library that all message consumers must implement. It provides a standardized way to check message support and add messages to the consumer.

The interface uses a shared pointer (MessagePtr) for message ownership, ensuring automatic memory management. Consumers can be chained together, filtered, or routed based on message properties.

Thread Safety

Implementations must handle thread safety. Most implementations use Qt signals for thread-safe message delivery.

Usage Example

// Create a consumer
istd::TSharedInterfacePtr<ilog::IMessageConsumer> consumer = GetLogConsumer();

// Check if consumer accepts error messages
if (consumer->IsMessageSupported(istd::IInformationProvider::IC_ERROR)) {
    // Create and send error message
    istd::TSharedInterfacePtr<ilog::CMessage> msg(
        new ilog::CMessage(istd::IInformationProvider::IC_ERROR,
                          1001, "Error occurred", "Module"));
    consumer->AddMessage(msg);
}

See also

ilog::CLogComp, ilog::CConsoleLogComp, ilog::CMessageContainer

Definition at line 47 of file IMessageConsumer.h.

Member Typedef Documentation

MessagePtr

typedef istd::TSharedInterfacePtr<istd::IInformationProvider> ilog::IMessageConsumer::MessagePtr

Shared pointer type for message objects.

Definition at line 51 of file IMessageConsumer.h.

Member Function Documentation

AddMessage()

virtual void ilog::IMessageConsumer::AddMessage ( const MessagePtr &  messagePtr )

pure virtual

Adds a message to this consumer.

This method transfers ownership of the message to the consumer via shared pointer. The consumer may store, display, forward, or otherwise process the message.

Most implementations deliver messages asynchronously using Qt signals/slots to ensure thread safety when messages are added from worker threads.

Parameters

messagePtr

Shared pointer to the message. After this call, the message is owned by the shared pointer and will be automatically deleted when no longer referenced.

Note

This method should not throw exceptions. Implementations should handle errors gracefully (e.g., by logging internally or ignoring invalid messages).

Warning

The message object should not be modified after being added to a consumer, as multiple consumers may reference the same message object.

Example

// Create message with shared pointer
istd::TSharedInterfacePtr<ilog::CMessage> msg(
    new ilog::CMessage(
        istd::IInformationProvider::IC_ERROR,
        2001,
        "File not found: config.xml",
        "ConfigLoader"
    )
);

// Add to consumer (ownership transferred)
consumer->AddMessage(msg);

// msg can still be used as shared pointer maintains reference count
// but don't modify the message after adding it

See also

IsMessageSupported()

Implemented in ilog::CMessageContainer, ilog::CLogComp, ilog::CLogCompBase, ilog::TMessageDelegatorComp< BaseComponent >, ilog::TMessageDelegatorComp< icomp::CComponentBase >, iloggui::CLogGuiComp, iloggui::CMessageBoxComp, iqtgui::CGuiApplicationComp::TrayMessages, and iqtgui::CSplashScreenGuiComp.

IsMessageSupported()

virtual bool ilog::IMessageConsumer::IsMessageSupported ( int  messageCategory = -1, int  messageId = -1, const istd::IInformationProvider *  messagePtr = NULL  ) const

pure virtual

Check if a message is supported by this consumer.

This method allows consumers to filter messages based on category, ID, or the complete message object. It's used to determine whether a message should be sent to this consumer before actually adding it.

Parameters

messageCategory

Category of message (IC_NONE, IC_INFO, IC_WARNING, IC_ERROR, IC_CRITICAL) or -1 if category check should be skipped.

See also

istd::IInformationProvider::InformationCategory.

Parameters

messageId	Numeric ID of message or -1 if ID check should be skipped. Message IDs are application-defined for filtering and routing.
messagePtr	Optional pointer to complete message object for detailed inspection, or NULL if not needed. The consumer will not store this pointer.

Returns

true if the message is supported and should be sent to this consumer, false if the message should be filtered out.

Note

Returning false does not indicate an error; it simply means the message doesn't match the consumer's filter criteria.

Example

// Check if consumer accepts warnings
if (consumer->IsMessageSupported(istd::IInformationProvider::IC_WARNING)) {
    // Consumer accepts warnings
}

// Check specific message ID
if (consumer->IsMessageSupported(-1, 5001)) {
    // Consumer accepts message ID 5001
}

// Check complete message
ilog::CMessage msg(istd::IInformationProvider::IC_INFO, 1, "Test", "Source");
if (consumer->IsMessageSupported(-1, -1, &msg)) {
    // Consumer accepts this specific message
}

Implemented in ilog::CLogComp, ilog::CMessageContainer, ilog::CStreamLogCompBase, ilog::TMessageDelegatorComp< BaseComponent >, ilog::TMessageDelegatorComp< icomp::CComponentBase >, iloggui::CLogGuiComp, iloggui::CMessageBoxComp, iqtgui::CGuiApplicationComp::TrayMessages, and iqtgui::CSplashScreenGuiComp.

---

The documentation for this class was generated from the following file:

• Acf/Include/ilog/IMessageConsumer.h
