ilog::TMessageDelegatorComp< BaseComponent > Class Template Reference

Template component that delegates messages to a slave consumer. More...

#include <TMessageDelegatorComp.h>

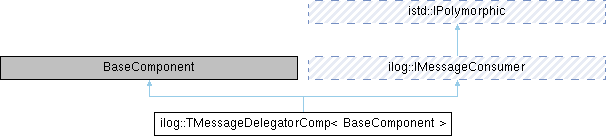

Inheritance diagram for ilog::TMessageDelegatorComp< BaseComponent >:

Public Types
typedef BaseComponent	BaseClass
	Base class typedef.
Public Types inherited from ilog::IMessageConsumer
typedef istd::TSharedInterfacePtr< istd::IInformationProvider >	MessagePtr
	Shared pointer type for message objects.

Public Member Functions
virtual bool	IsMessageSupported (int messageCategory=-1, int messageId=-1, const istd::IInformationProvider *messagePtr=NULL) const override
	Check if a message is supported.
virtual void	AddMessage (const MessagePtr &messagePtr) override
	Forward a message to the slave consumer.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

template<class BaseComponent>
class ilog::TMessageDelegatorComp< BaseComponent >

Template component that delegates messages to a slave consumer.

TMessageDelegatorComp provides message delegation functionality by implementing IMessageConsumer and forwarding all messages to a configurable slave consumer. This enables building chains and hierarchies of message consumers.

The template can be combined with any component base class to add message delegation capability.

Template Parameters

BaseComponent

Base component class to extend with delegation (typically icomp::CComponentBase or derived)

Features

• Implements IMessageConsumer interface
• Forwards all messages to slave consumer
• Component-based configuration
• Supports message filtering by slave
• Can be used to build consumer chains

Component References

• SlaveMessageConsumer: Destination for forwarded messages (IMessageConsumer)

Usage Example

// Create a simple delegator component
class MyDelegator : public ilog::TMessageDelegatorComp<icomp::CComponentBase>
{
public:
    typedef ilog::TMessageDelegatorComp<icomp::CComponentBase> BaseClass;

    I_BEGIN_COMPONENT(MyDelegator);
        // SlaveMessageConsumer reference is inherited
    I_END_COMPONENT;

    // Can add custom processing before/after delegation
    virtual void AddMessage(const MessagePtr& messagePtr) override {
        // Custom processing
        qDebug() << "Forwarding:" << messagePtr->GetInformationDescription();

        // Delegate to slave
        BaseClass::AddMessage(messagePtr);
    }
};

// Configure chain
// MessageSource -> MyDelegator -> FinalConsumer

Component Configuration

<Component Id="Delegator" Class="MyDelegatorClass">
    <Reference Id="SlaveMessageConsumer" Value="FinalConsumer"/>
</Component>

Building Consumer Chains

// Create consumers
istd::TSharedInterfacePtr<ilog::CLogComp> finalLog(new ilog::CLogComp);
istd::TSharedInterfacePtr<MyDelegator> delegator1(new MyDelegator);
istd::TSharedInterfacePtr<MyDelegator> delegator2(new MyDelegator);

// Configure chain: source -> delegator1 -> delegator2 -> finalLog
// delegator1.SlaveMessageConsumer -> delegator2
// delegator2.SlaveMessageConsumer -> finalLog

// Messages sent to delegator1 are forwarded through the chain

See also

ilog::IMessageConsumer, ilog::CLogCompBase

Definition at line 89 of file TMessageDelegatorComp.h.

Member Typedef Documentation

BaseClass

template<class BaseComponent >

typedef BaseComponent ilog::TMessageDelegatorComp< BaseComponent >::BaseClass

Base class typedef.

Definition at line 93 of file TMessageDelegatorComp.h.

Member Function Documentation

AddMessage()

template<class BaseComponent >

void ilog::TMessageDelegatorComp< BaseComponent >::AddMessage ( const MessagePtr &  messagePtr )

overridevirtual

Forward a message to the slave consumer.

If a slave consumer is configured via SlaveMessageConsumer reference, the message is forwarded to it. If no slave is configured, the message is silently discarded.

Parameters

messagePtr

Shared pointer to message to forward

Note

This method does nothing if no slave is configured. Override to add custom behavior when no slave is present.

Implements ilog::IMessageConsumer.

Reimplemented in ilog::CLogComp, and ilog::CLogCompBase.

Definition at line 156 of file TMessageDelegatorComp.h.

IsMessageSupported()

template<class BaseComponent >

bool ilog::TMessageDelegatorComp< BaseComponent >::IsMessageSupported ( int  messageCategory = -1, int  messageId = -1, const istd::IInformationProvider *  messagePtr = NULL  ) const

overridevirtual

Check if a message is supported.

Delegates the check to the slave consumer if present. If no slave is configured, returns true (accepts all messages).

Parameters

messageCategory	Message category to check (or -1)
messageId	Message ID to check (or -1)
messagePtr	Complete message to check (or NULL)

Returns

true if message is supported by slave (or if no slave)

Implements ilog::IMessageConsumer.

Reimplemented in ilog::CLogComp, and ilog::CStreamLogCompBase.

Definition at line 142 of file TMessageDelegatorComp.h.

---

The documentation for this class was generated from the following file:

• Acf/Include/ilog/TMessageDelegatorComp.h
