Complete logging component with message storage and container interface. More...

#include <CLogComp.h>

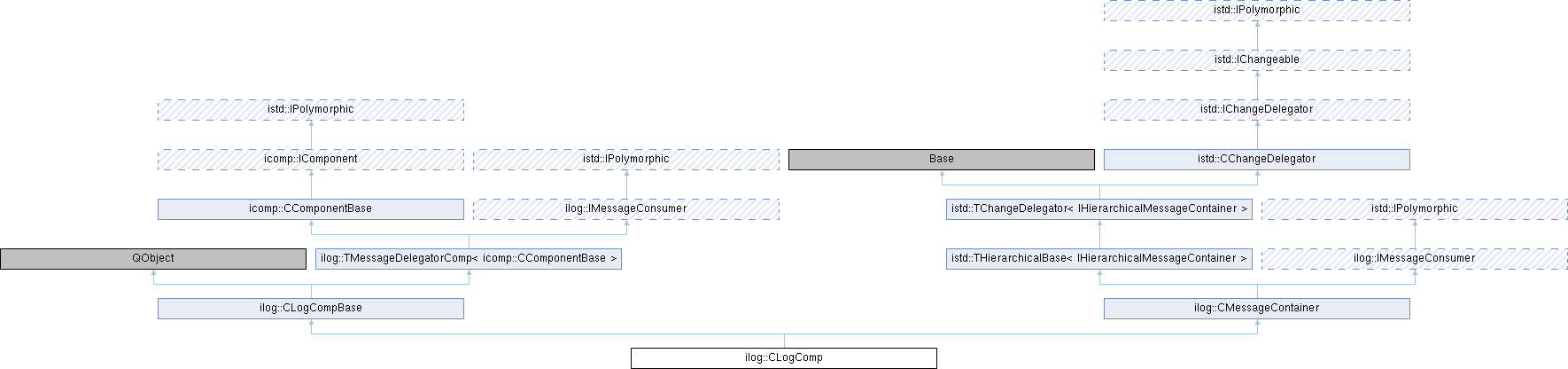

Inheritance diagram for ilog::CLogComp:

Public Types
typedef CLogCompBase	BaseClass
	Base class typedef for component functionality.

typedef ilog::CMessageContainer	BaseClass2
	Base class typedef for container functionality.

Public Types inherited from ilog::CLogCompBase
typedef ilog::TMessageDelegatorComp< icomp::CComponentBase >	BaseClass
	Base class typedef for component functionality.

typedef QObject	BaseClass2
	Base class typedef for QObject functionality.

Public Types inherited from ilog::TMessageDelegatorComp< icomp::CComponentBase >
typedef icomp::CComponentBase	BaseClass
	Base class typedef.

Public Types inherited from ilog::IMessageConsumer
typedef istd::TSharedInterfacePtr< istd::IInformationProvider >	MessagePtr
	Shared pointer type for message objects.

Public Types inherited from istd::THierarchicalBase< IHierarchicalMessageContainer >
typedef istd::TChangeDelegator< IHierarchicalMessageContainer >	BaseClass

Public Types inherited from istd::TChangeDelegator< Base >
typedef Base	BaseClass

typedef CChangeDelegator	BaseClass2

Public Types inherited from istd::CChangeDelegator
typedef istd::IChangeable	BaseClass

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual bool	IsMessageSupported (int messageCategory=-1, int messageId=-1, const istd::IInformationProvider *messagePtr=NULL) const override
	Check if a message is supported.

virtual void	AddMessage (const MessagePtr &messagePtr) override
	Add a message to the log.

Public Member Functions inherited from ilog::CLogCompBase
	CLogCompBase ()
	Default constructor.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from ilog::CMessageContainer
	CMessageContainer ()

	CMessageContainer (const CMessageContainer &container)

CMessageContainer &	operator= (const CMessageContainer &container)

int	GetMessagesCount () const
	Get the number of messages in the container.

virtual void	AddChildContainer (IHierarchicalMessageContainer *childContainerPtr)
	Add a child message container to this object.

void	SetSlaveConsumer (ilog::IMessageConsumer *consumerPtr)
	Set slave message consumer.

void	SetMaxMessageCount (int maxMessageCount=-1)
	Set maximal number of messages in the container.

virtual bool	Serialize (iser::IArchive &archive) override

virtual istd::IInformationProvider::InformationCategory	GetWorstCategory () const override

virtual Messages	GetMessages () const override

virtual void	ClearMessages () override

virtual int	GetChildsCount () const override

virtual IHierarchicalMessageContainer *	GetChild (int index) const override

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	IsEqual (const istd::IChangeable &object) const override
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode) override
	Reset data to its default state.

Public Member Functions inherited from istd::THierarchicalBase< IHierarchicalMessageContainer >
	THierarchicalBase ()

virtual void	SetParentPtr (typename Base::InterfaceType *parentPtr)

virtual int	GetHierarchicalFlags () const override

virtual typename Base::InterfaceType *	GetParent () const override

Public Member Functions inherited from istd::TChangeDelegator< Base >
	TChangeDelegator ()

	TChangeDelegator (istd::IChangeable *slavePtr)

virtual void	OnBeginChanges () override
	Callback function for begin change event.

virtual void	OnEndChanges (const istd::IChangeable::ChangeSet &changeSet) override
	Callback function for end change event.

Public Member Functions inherited from istd::CChangeDelegator
	CChangeDelegator ()

	CChangeDelegator (istd::IChangeable *slavePtr)

virtual void	SetSlavePtr (istd::IChangeable *slavePtr) override
	Sets the slave object pointer for change delegation.

virtual istd::IChangeable *	GetSlavePtr () const override
	Gets the slave object pointer.

Public Member Functions inherited from istd::IChangeable
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Protected Member Functions
virtual void	WriteMessageToLog (const MessagePtr &messagePtr) override
	Process a message by storing it in the container.

virtual void	OnComponentCreated () override
	Called when component is created.

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Additional Inherited Members
Signals inherited from ilog::CLogCompBase
void	EmitAddMessage (const MessagePtr &messagePtr)
	Signal emitted when a message is added.

Static Public Member Functions inherited from ilog::CMessageContainer
template<typename MessageType >
static bool	RegisterMessageType (const QByteArray &messageTypeId=QByteArray())
	Register a new message type.

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Types inherited from ilog::CMessageContainer
typedef QVector< IHierarchicalMessageContainer * >	Childs

Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Protected Attributes inherited from ilog::CMessageContainer
Messages	m_messages

Childs	m_childContainers

ilog::IMessageConsumer *	m_slaveConsumerPtr

int	m_maxMessagesCount

int	m_worstCategory

Protected Attributes inherited from istd::THierarchicalBase< IHierarchicalMessageContainer >
typename Base::InterfaceType *	m_parentPtr

Detailed Description

Complete logging component with message storage and container interface.

CLogComp is a full-featured logging component that combines thread-safe message reception (via CLogCompBase) with message storage (via CMessageContainer). It's one of the most commonly used logging components in the ACF framework.

This component stores received messages and provides the IMessageContainer interface for retrieving, serializing, and managing the stored messages. It supports a configurable maximum message count with automatic pruning when the limit is exceeded.

Features

Thread-safe message addition via signals/slots
Message storage with IMessageContainer interface
Configurable maximum message count
Automatic old message removal when limit reached
Serialization of all stored messages
Message retrieval and clearing
Worst category tracking
Hierarchical container support (via CMessageContainer)

Configuration

Component attributes:

MaxMessageCount: Maximum number of messages to store (default: 1000)
- Set to -1 for unlimited storage (use with caution)
- When limit reached, oldest messages are removed

Usage Example: // Create log component

istd::TSharedInterfacePtr<ilog::CLogComp> log(new ilog::CLogComp);

// Configure maximum messages

// In .acc: MaxMessageCount: 5000

// Add messages (thread-safe)

log->AddMessage(istd::TSharedInterfacePtr<ilog::CMessage>(

new ilog::CMessage(istd::IInformationProvider::IC_INFO,

1001, "Application started", "Main")));

// Retrieve all messages

ilog::IMessageContainer::Messages messages = log->GetMessages();

// Check severity

if (log->GetWorstCategory() >= istd::IInformationProvider::IC_ERROR) {

// Errors occurred

}

// Clear messages

log->ClearMessages();

// Serialize to file

iser::CFileWriteArchive archive("log.dat");

log->Serialize(archive);

ilog::CLogComp
Complete logging component with message storage and container interface.
Definition CLogComp.h:86

ilog::CMessage
Basic implementation of the istd::IInformationProvider interface for log messages.
Definition CMessage.h:80

ilog::IMessageContainer::Messages
std::list< IMessageConsumer::MessagePtr > Messages
List type for storing message shared pointers.
Definition IMessageContainer.h:71

istd::IInformationProvider::IC_ERROR
@ IC_ERROR
Information about error, processing could not be done correctly.
Definition IInformationProvider.h:44

istd::IInformationProvider::IC_INFO
@ IC_INFO
Normal information level.
Definition IInformationProvider.h:36

istd::TSharedInterfacePtr
Shared ownership smart pointer for interface types.
Definition TInterfacePtr.h:507

Component Integration: In ACF component configuration (.acc files):
<Component Id="ApplicationLog" Class="ilog::CLogComp">

<Attribute Id="MaxMessageCount" Value="10000"/>

</Component>

See also: ilog::CLogCompBase, ilog::CMessageContainer, ilog::IMessageContainer

Definition at line 83 of file CLogComp.h.

Member Typedef Documentation

◆ BaseClass

typedef CLogCompBase ilog::CLogComp::BaseClass

Base class typedef for component functionality.

Definition at line 89 of file CLogComp.h.

◆ BaseClass2

typedef ilog::CMessageContainer ilog::CLogComp::BaseClass2

Base class typedef for container functionality.

Definition at line 92 of file CLogComp.h.

Member Function Documentation

◆ AddMessage()

virtual void ilog::CLogComp::AddMessage ( const MessagePtr & messagePtr )

overridevirtual

Add a message to the log.

Thread-safe method that stores the message in the container. If the maximum message count is exceeded, the oldest message is removed first.

Parameters

messagePtr Shared pointer to message to add

Note: This method is asynchronous. The message is queued and processed on the component's thread.

Reimplemented from ilog::CLogCompBase.

◆ IsMessageSupported()

virtual bool ilog::CLogComp::IsMessageSupported	(	int	messageCategory = `-1`,
		int	messageId = `-1`,
		const istd::IInformationProvider *	messagePtr = `NULL`
	)		const

overridevirtual

Check if a message is supported.

Delegates to CMessageContainer's implementation which typically accepts all messages.

Parameters

messageCategory	Message category to check (or -1 for any)
messageId	Message ID to check (or -1 for any)
messagePtr	Complete message to check (or NULL)

Returns: true if message would be accepted

Reimplemented from ilog::TMessageDelegatorComp< icomp::CComponentBase >.

◆ OnComponentCreated()

virtual void ilog::CLogComp::OnComponentCreated ( )

overrideprotectedvirtual

Called when component is created.

Initializes the maximum message count from the component attribute.

Reimplemented from icomp::CComponentBase.

◆ WriteMessageToLog()

virtual void ilog::CLogComp::WriteMessageToLog ( const MessagePtr & messagePtr )

overrideprotectedvirtual

Process a message by storing it in the container.

Called on the component's thread when a message arrives. Adds the message to the internal container (CMessageContainer base class).

Parameters

messagePtr Shared pointer to message to store

Implements ilog::CLogCompBase.

The documentation for this class was generated from the following file:

Acf/Include/ilog/CLogComp.h

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ BaseClass2

Member Function Documentation

◆ AddMessage()

◆ IsMessageSupported()

◆ OnComponentCreated()

◆ WriteMessageToLog()
