ilog::CStreamLogCompBase Class Reference

Base class for stream-based logging components. More...

#include <CStreamLogCompBase.h>

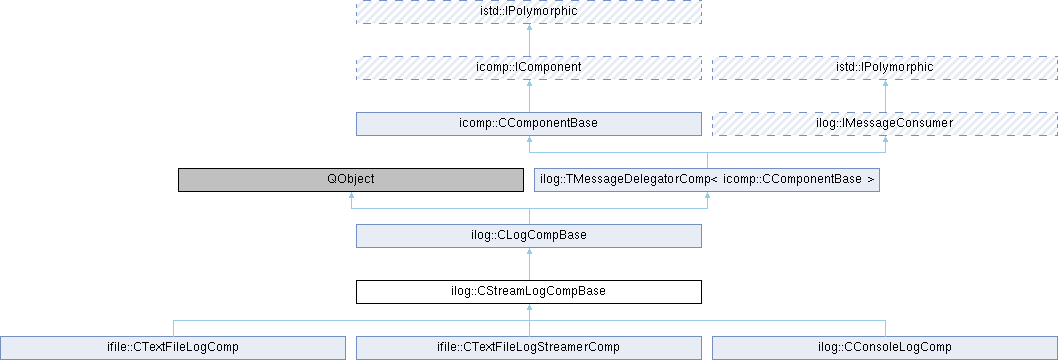

Inheritance diagram for ilog::CStreamLogCompBase:

Public Types
typedef ilog::CLogCompBase	BaseClass
	Base class typedef.
Public Types inherited from ilog::CLogCompBase
typedef ilog::TMessageDelegatorComp< icomp::CComponentBase >	BaseClass
	Base class typedef for component functionality.
typedef QObject	BaseClass2
	Base class typedef for QObject functionality.
Public Types inherited from ilog::TMessageDelegatorComp< icomp::CComponentBase >
typedef icomp::CComponentBase	BaseClass
	Base class typedef.
Public Types inherited from ilog::IMessageConsumer
typedef istd::TSharedInterfacePtr< istd::IInformationProvider >	MessagePtr
	Shared pointer type for message objects.

Public Member Functions
	CStreamLogCompBase ()
istd::IInformationProvider::InformationCategory	GetWorseCategory () const
	Get worse category (highest code) of all outputed messages.
virtual bool	IsMessageSupported (int messageCategory=-1, int messageId=-1, const istd::IInformationProvider *messagePtr=NULL) const override
	Check if a message is supported.
Public Member Functions inherited from ilog::CLogCompBase
	CLogCompBase ()
	Default constructor.
virtual void	AddMessage (const MessagePtr &messagePtr) override
	Add a message to this log component.
Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.
virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.
virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.
virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.
virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	WriteMessageToStream (const istd::IInformationProvider &message)
	Write formatted message to the output stream.
virtual QString	GenerateMessageText (const istd::IInformationProvider &message) const
	Generate formatted message text for the output.
virtual void	WriteText (const QString &text, istd::IInformationProvider::InformationCategory category)=0
	Write a text line to the output stream.
virtual void	WriteMessageToLog (const MessagePtr &messagePtr) override
	Abstract method called to process a message.
virtual void	OnComponentDestroyed () override
Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.
virtual void	OnComponentCreated ()
virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Additional Inherited Members
Signals inherited from ilog::CLogCompBase
void	EmitAddMessage (const MessagePtr &messagePtr)
	Signal emitted when a message is added.
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)
static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Base class for stream-based logging components.

CStreamLogCompBase provides foundation for logging components that output formatted messages to text streams. It handles message filtering by severity, message formatting with customizable elements (category, code, timestamp), and tracks statistics.

Derived classes implement WriteText() to output the formatted message to their specific destination (console, file, network, etc.).

Features

• Severity level filtering (only log messages above minimum category)
• Customizable message formatting:
  • Optional category label ("Info:", "Warning:", "Error:", "Critical:")
  • Optional message ID/code display
  • Optional timestamp with configurable format
• Dot display for filtered messages (shows "." for suppressed messages)
• Worst category tracking (highest severity seen)
• Thread-safe operation via CLogCompBase

Configuration

Component attributes:

• MinCategory: Minimum severity to log (0=all, 1=info+, 2=warning+, 3=error+, 4=critical)
• ShowDots: Show dot (".") for each filtered message (default: false)
• UseCategory: Include category label in output (default: true)
• UseCode: Include message ID in output (default: true)
• UseTimeStamp: Include timestamp in output (default: false)
• TimeFormat: Qt date/time format string (default: "dd.MM hh:mm:ss:zzz")

Message Format

Typical output format (depending on configuration):

[12:34:56.789] Warning (2001): Low disk space - DiskMonitor
Error (5001): Connection failed - NetworkManager
Info: Application started - Main

Usage Example (Derived Class)

class CFileLogComp : public ilog::CStreamLogCompBase
{
public:
    CFileLogComp() : m_file("log.txt") {
        m_file.open(QIODevice::WriteOnly | QIODevice::Text);
    }

protected:
    virtual void WriteText(const QString& text,
                          istd::IInformationProvider::InformationCategory category) override {
        if (m_file.isOpen()) {
            m_file.write(text.toUtf8());
            m_file.flush();
        }
    }

private:
    QFile m_file;
};

See also

ilog::CConsoleLogComp, ilog::CLogCompBase

Definition at line 77 of file CStreamLogCompBase.h.

Member Typedef Documentation

BaseClass

typedef ilog::CLogCompBase ilog::CStreamLogCompBase::BaseClass

Base class typedef.

Definition at line 81 of file CStreamLogCompBase.h.

Constructor & Destructor Documentation

CStreamLogCompBase()

ilog::CStreamLogCompBase::CStreamLogCompBase

(

)

Member Function Documentation

GenerateMessageText()

virtual QString ilog::CStreamLogCompBase::GenerateMessageText ( const istd::IInformationProvider &  message ) const

protectedvirtual

Generate formatted message text for the output.

GetWorseCategory()

istd::IInformationProvider::InformationCategory ilog::CStreamLogCompBase::GetWorseCategory

(

)

const

Get worse category (highest code) of all outputed messages.

IsMessageSupported()

virtual bool ilog::CStreamLogCompBase::IsMessageSupported ( int  messageCategory = -1, int  messageId = -1, const istd::IInformationProvider *  messagePtr = NULL  ) const

overridevirtual

Check if a message is supported.

Delegates the check to the slave consumer if present. If no slave is configured, returns true (accepts all messages).

Parameters

messageCategory	Message category to check (or -1)
messageId	Message ID to check (or -1)
messagePtr	Complete message to check (or NULL)

Returns

true if message is supported by slave (or if no slave)

Reimplemented from ilog::TMessageDelegatorComp< icomp::CComponentBase >.

OnComponentDestroyed()

virtual void ilog::CStreamLogCompBase::OnComponentDestroyed ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

Reimplemented in ifile::CTextFileLogComp, and ifile::CTextFileLogStreamerComp.

WriteMessageToLog()

virtual void ilog::CStreamLogCompBase::WriteMessageToLog ( const MessagePtr &  messagePtr )

overrideprotectedvirtual

Abstract method called to process a message.

Derived classes must implement this to define message handling behavior. This is always called on the component's thread, regardless of which thread called AddMessage().

Parameters

messagePtr

Shared pointer to message to process

Example

virtual void WriteMessageToLog(const MessagePtr& messagePtr) override {
    // Store in container
    m_messages.append(messagePtr);

    // Update UI
    UpdateDisplay();

    // Forward to slave
    if (m_slave) m_slave->AddMessage(messagePtr);
}

Implements ilog::CLogCompBase.

WriteMessageToStream()

virtual void ilog::CStreamLogCompBase::WriteMessageToStream ( const istd::IInformationProvider &  message )

protectedvirtual

Write formatted message to the output stream.

WriteText()

virtual void ilog::CStreamLogCompBase::WriteText ( const QString &  text, istd::IInformationProvider::InformationCategory  category  )

protectedpure virtual

Write a text line to the output stream.

Implemented in ifile::CTextFileLogComp, ifile::CTextFileLogStreamerComp, and ilog::CConsoleLogComp.

---

The documentation for this class was generated from the following file:

• Acf/Include/ilog/CStreamLogCompBase.h
