Console logging component with colored output. More...

#include <CConsoleLogComp.h>

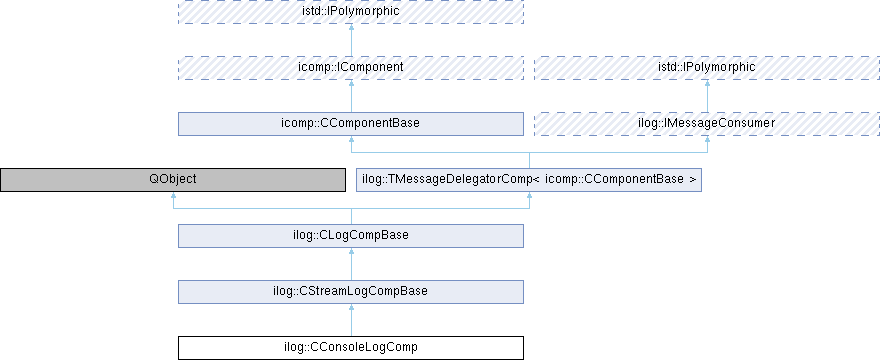

Inheritance diagram for ilog::CConsoleLogComp:

Public Types
typedef CStreamLogCompBase	BaseClass

Public Types inherited from ilog::CStreamLogCompBase
typedef ilog::CLogCompBase	BaseClass
	Base class typedef.

Public Types inherited from ilog::CLogCompBase
typedef ilog::TMessageDelegatorComp< icomp::CComponentBase >	BaseClass
	Base class typedef for component functionality.

typedef QObject	BaseClass2
	Base class typedef for QObject functionality.

Public Types inherited from ilog::TMessageDelegatorComp< icomp::CComponentBase >
typedef icomp::CComponentBase	BaseClass
	Base class typedef.

Public Types inherited from ilog::IMessageConsumer
typedef istd::TSharedInterfacePtr< istd::IInformationProvider >	MessagePtr
	Shared pointer type for message objects.

Protected Member Functions
virtual void	WriteText (const QString &text, istd::IInformationProvider::InformationCategory category) override
	Write a text line to the output stream.

Protected Member Functions inherited from ilog::CStreamLogCompBase
virtual void	WriteMessageToStream (const istd::IInformationProvider &message)
	Write formatted message to the output stream.

virtual QString	GenerateMessageText (const istd::IInformationProvider &message) const
	Generate formatted message text for the output.

virtual void	WriteMessageToLog (const MessagePtr &messagePtr) override
	Abstract method called to process a message.

virtual void	OnComponentDestroyed () override

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentCreated ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Additional Inherited Members
Signals inherited from ilog::CLogCompBase
void	EmitAddMessage (const MessagePtr &messagePtr)
	Signal emitted when a message is added.

Public Member Functions inherited from ilog::CStreamLogCompBase
	CStreamLogCompBase ()

istd::IInformationProvider::InformationCategory	GetWorseCategory () const
	Get worse category (highest code) of all outputed messages.

virtual bool	IsMessageSupported (int messageCategory=-1, int messageId=-1, const istd::IInformationProvider *messagePtr=NULL) const override
	Check if a message is supported.

Public Member Functions inherited from ilog::CLogCompBase
	CLogCompBase ()
	Default constructor.

virtual void	AddMessage (const MessagePtr &messagePtr) override
	Add a message to this log component.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Console logging component with colored output.

CConsoleLogComp outputs log messages to the console (std::wcout) with platform-specific colored output based on message severity. This makes it easy to visually distinguish between info, warnings, and errors when running applications from the command line.

The component uses CStreamLogCompBase for message formatting and filtering, and adds color support for both Windows (via Windows console API) and Unix-like systems (via ANSI escape codes).

Color Scheme

Info/None: Default console color (typically white/gray)
Warning: Yellow/amber text
Error: Red text
Critical: Bright red text

Platform Support

Windows: Uses SetConsoleTextAttribute API
Unix/Linux/macOS: Uses ANSI escape codes (when terminal supports them)

Usage Example: // Create console logger

istd::TSharedInterfacePtr<ilog::CConsoleLogComp> console(

new ilog::CConsoleLogComp);

// Configure formatting

// In .acc:

// MinCategory: 1 (info and above)

// UseCategory: true (show "Warning:", "Error:")

// UseCode: true (show message IDs)

// UseTimeStamp: false (no timestamps)

// Send messages

console->AddMessage(istd::TSharedInterfacePtr<ilog::CMessage>(

new ilog::CMessage(istd::IInformationProvider::IC_INFO,

1001, "Application started", "Main")));

console->AddMessage(istd::TSharedInterfacePtr<ilog::CMessage>(

new ilog::CMessage(istd::IInformationProvider::IC_ERROR,

5001, "Connection failed", "Network")));

// Console output:

// Info (1001): Application started - Main

// Error (5001): Connection failed - Network [in red]

ilog::CConsoleLogComp
Console logging component with colored output.
Definition CConsoleLogComp.h:82

ilog::CMessage
Basic implementation of the istd::IInformationProvider interface for log messages.
Definition CMessage.h:80

istd::IInformationProvider::IC_ERROR
@ IC_ERROR
Information about error, processing could not be done correctly.
Definition IInformationProvider.h:44

istd::IInformationProvider::IC_INFO
@ IC_INFO
Normal information level.
Definition IInformationProvider.h:36

istd::TSharedInterfacePtr
Shared ownership smart pointer for interface types.
Definition TInterfacePtr.h:507

Component Configuration: <Component Id="ConsoleLog" Class="ilog::CConsoleLogComp">

<Attribute Id="MinCategory" Value="1"/>

<Attribute Id="UseCategory" Value="true"/>

<Attribute Id="UseCode" Value="true"/>

<Attribute Id="UseTimeStamp" Value="true"/>

<Attribute Id="TimeFormat" Value="hh:mm:ss"/>

</Component>
