ilog::CLogCompBase Class Reference

Base implementation for logging components using Qt event queue. More...

#include <CLogCompBase.h>

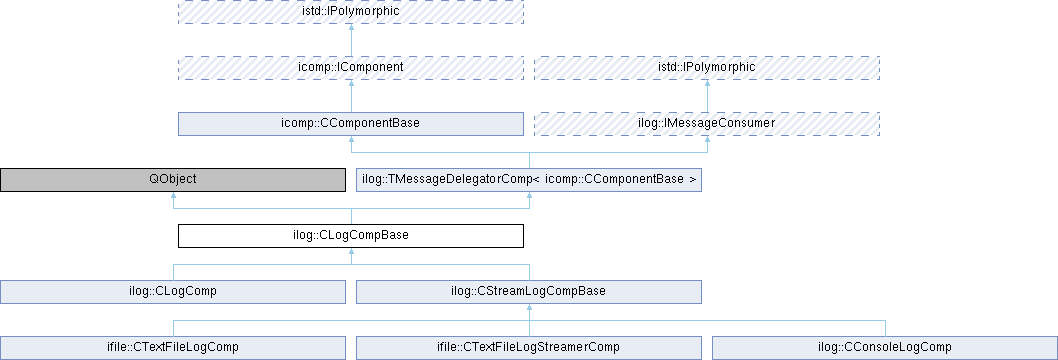

Inheritance diagram for ilog::CLogCompBase:

Public Types
typedef ilog::TMessageDelegatorComp< icomp::CComponentBase >	BaseClass
	Base class typedef for component functionality.
typedef QObject	BaseClass2
	Base class typedef for QObject functionality.
Public Types inherited from ilog::TMessageDelegatorComp< icomp::CComponentBase >
typedef icomp::CComponentBase	BaseClass
	Base class typedef.
Public Types inherited from ilog::IMessageConsumer
typedef istd::TSharedInterfacePtr< istd::IInformationProvider >	MessagePtr
	Shared pointer type for message objects.

Signals
void	EmitAddMessage (const MessagePtr &messagePtr)
	Signal emitted when a message is added.

Public Member Functions
	CLogCompBase ()
	Default constructor.
virtual void	AddMessage (const MessagePtr &messagePtr) override
	Add a message to this log component.
Public Member Functions inherited from ilog::TMessageDelegatorComp< icomp::CComponentBase >
virtual bool	IsMessageSupported (int messageCategory=-1, int messageId=-1, const istd::IInformationProvider *messagePtr=NULL) const override
	Check if a message is supported.
Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.
virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.
virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.
virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.
virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	WriteMessageToLog (const MessagePtr &messagePtr)=0
	Abstract method called to process a message.
Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.
virtual void	OnComponentCreated ()
virtual void	OnComponentDestroyed ()
virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Additional Inherited Members
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)
static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Base implementation for logging components using Qt event queue.

CLogCompBase provides thread-safe message delivery by using Qt signals and slots to transport messages between threads. When AddMessage() is called (potentially from a worker thread), it emits a signal that's delivered on the component's thread where WriteMessageToLog() is called.

This class combines QObject (for signals/slots) with TMessageDelegatorComp to provide both thread-safe message handling and message delegation capabilities.

Derived classes must implement WriteMessageToLog() to define what happens to messages when they arrive.

Thread Safety

AddMessage() is thread-safe and can be called from any thread. The message is queued via Qt's signal/slot mechanism and processed on the component's thread. This makes it safe to log from worker threads to a UI-based log viewer or any other thread-sensitive consumer.

Message Delegation

Inherits from TMessageDelegatorComp, so messages can be forwarded to a slave consumer if configured. This allows chaining multiple log handlers.

Signal/Slot Mechanism

Uses EmitAddMessage signal connected to OnAddMessage slot. Qt handles thread transitions automatically based on the connection type.

Usage Example

// Derive to create custom log component
class MyLogComp : public ilog::CLogCompBase
{
protected:
    virtual void WriteMessageToLog(const MessagePtr& messagePtr) override {
        // Process message on component's thread
        qDebug() << messagePtr->GetInformationDescription();

        // Forward to slave consumer if present
        if (m_slaveMessageConsumerCompPtr.IsValid()) {
            m_slaveMessageConsumerCompPtr->AddMessage(messagePtr);
        }
    }
};

// Usage from any thread
MyLogComp* log = new MyLogComp;
// ... initialize component ...

// Safe to call from worker thread
log->AddMessage(messagePtr);

See also

ilog::CLogComp, ilog::CConsoleLogComp, ilog::CStreamLogCompBase

Definition at line 73 of file CLogCompBase.h.

Member Typedef Documentation

BaseClass

typedef ilog::TMessageDelegatorComp<icomp::CComponentBase> ilog::CLogCompBase::BaseClass

Base class typedef for component functionality.

Definition at line 80 of file CLogCompBase.h.

BaseClass2

typedef QObject ilog::CLogCompBase::BaseClass2

Base class typedef for QObject functionality.

Definition at line 83 of file CLogCompBase.h.

Constructor & Destructor Documentation

CLogCompBase()

ilog::CLogCompBase::CLogCompBase

(

)

Default constructor.

Connects the EmitAddMessage signal to OnAddMessage slot for thread-safe message delivery.

Member Function Documentation

AddMessage()

virtual void ilog::CLogCompBase::AddMessage ( const MessagePtr &  messagePtr )

overridevirtual

Add a message to this log component.

Thread-safe method that can be called from any thread. Emits EmitAddMessage signal which is delivered on the component's thread where OnAddMessage slot processes it.

Parameters

messagePtr

Shared pointer to message to log

Note

This method returns immediately after emitting the signal. Actual message processing happens asynchronously.

Reimplemented from ilog::TMessageDelegatorComp< icomp::CComponentBase >.

Reimplemented in ilog::CLogComp.

EmitAddMessage

void ilog::CLogCompBase::EmitAddMessage ( const MessagePtr &  messagePtr )

signal

Signal emitted when a message is added.

This signal provides thread-safe message delivery. When AddMessage() is called from any thread, this signal is emitted and Qt delivers it to the OnAddMessage slot on the component's thread.

Parameters

messagePtr

Shared pointer to message being added

WriteMessageToLog()

virtual void ilog::CLogCompBase::WriteMessageToLog ( const MessagePtr &  messagePtr )

protectedpure virtual

Abstract method called to process a message.

Derived classes must implement this to define message handling behavior. This is always called on the component's thread, regardless of which thread called AddMessage().

Parameters

messagePtr

Shared pointer to message to process

Example

virtual void WriteMessageToLog(const MessagePtr& messagePtr) override {
    // Store in container
    m_messages.append(messagePtr);

    // Update UI
    UpdateDisplay();

    // Forward to slave
    if (m_slave) m_slave->AddMessage(messagePtr);
}

Implemented in ilog::CLogComp, and ilog::CStreamLogCompBase.

---

The documentation for this class was generated from the following file:

• Acf/Include/ilog/CLogCompBase.h
