Generic fixed-size color implementation template. More...

#include <TComposedColor.h>

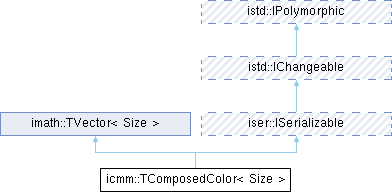

Inheritance diagram for icmm::TComposedColor< Size >:

Public Types
typedef imath::TVector< Size >	BaseClass

typedef BaseClass::Elements	Elements

Public Types inherited from imath::TVector< Size, Element >
typedef Element	ElementType

typedef Element	Elements[Size]

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	TComposedColor ()

	TComposedColor (const BaseClass &value)

	TComposedColor (const imath::CVarVector &vector)

	TComposedColor (const TComposedColor< Size > &color)=default

void	GetRounded (const imath::IDoubleManip &manipulator, TComposedColor< Size > &result)
	Get color after components value rounding with specified precision.

bool	IsRoundedEqual (const TComposedColor< Size > &color, const imath::IDoubleManip &manipulator) const
	Check if two values are equal after rounding.

bool	IsSimilar (const TComposedColor< Size > &color, double tolerance=I_BIG_EPSILON) const
	Allows to compare two colors with tolerance.

bool	IsNormalized () const
	Check if this color value is normalized.

void	Normalize ()
	Make this color to be normalized.

void	GetNormalized (TComposedColor< Size > &result) const
	Get normalized color.

TComposedColor< Size >	operator+ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator- (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator/ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (double value) const

TComposedColor< Size >	operator/ (double value) const

const TComposedColor< Size > &	operator= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator= (double colorValue)

const TComposedColor< Size > &	operator+= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator-= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator/= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (double value)

const TComposedColor< Size > &	operator/= (double value)

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

Public Member Functions inherited from imath::TVector< Size, Element >
	TVector ()
	Creates an uninitialized vector.

	TVector (const TVector< Size, Element > &vector)
	Creates a copy of another vector.

	TVector (std::initializer_list< Element > values)
	Creates a vector from an initializer list.

const Element &	GetElement (int i) const
	Gets the element at the specified index (read-only).

Element &	GetElementRef (int i)
	Gets a reference to the element at the specified index (read-write).

void	SetElement (int i, const Element &value)
	Sets the element at the specified index.

void	SetAllElements (const Element &value)
	Sets all elements to the same value.

void	Reset ()
	Sets all coordinates to zero.

void	Clear ()
	Sets all coordinates to zero.

const TVector< Size, Element >::Elements &	GetElements () const
	Get read-only access to internal element container.

TVector< Size, Element >::Elements &	GetElementsRef ()
	Get access to internal element container.

void	Translate (const TVector< Size, Element > &vector)
	Translates (adds) another vector to this vector.

TVector< Size, Element >	GetTranslated (const TVector< Size, Element > &vector)
	Returns a new vector that is the translation of this vector.

void	GetTranslated (const TVector< Size, Element > &vector, TVector< Size, Element > &result)
	Computes the translated vector and stores it in the result parameter.

void	ScaledCumulate (const TVector< Size, Element > &vector, Element scale)
	Adds a scaled vector to this vector.

bool	IsNull (Element tolerance=I_BIG_EPSILON) const
	Checks if this vector is null (all elements approximately zero).

Element	GetDotProduct (const TVector< Size, Element > &vector) const
	Calculates the dot product with another vector.

Element	GetLength2 () const
	Calculates the squared Euclidean length of the vector.

Element	GetLength () const
	Calculates the Euclidean length (magnitude) of the vector.

Element	GetDistance2 (const TVector< Size, Element > &vector) const
	Calculates the squared distance to another vector.

Element	GetDistance (const TVector< Size, Element > &vector) const
	Calculates the Euclidean distance to another vector.

Element	GetElementsSum () const
	Calculates the sum of all vector elements.

bool	Normalize (Element length=1.0)
	Normalizes the vector to a specified length.

bool	GetNormalized (TVector< Size, Element > &result, Element length=1.0) const
	Returns a normalized copy of this vector with specified length.

void	GetMinimal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with minimal elements values.

void	GetMaximal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with maximal elements values.

bool	Serialize (iser::IArchive &archive)
	Serialize this vector to specified archive.

bool	operator== (const TVector< Size, Element > &vector) const

bool	operator!= (const TVector< Size, Element > &vector) const

bool	operator< (const TVector< Size, Element > &vector) const

bool	operator> (const TVector< Size, Element > &vector) const

bool	operator<= (const TVector< Size, Element > &vector) const

bool	operator>= (const TVector< Size, Element > &vector) const

TVector< Size, Element > &	operator= (const TVector< Size, Element > &vector)=default

TVector< Size, Element >	operator- () const

TVector< Size, Element >	operator+ (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator- (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator* (Element scalar) const

TVector< Size, Element >	operator/ (Element scalar) const

TVector< Size, Element > &	operator+= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator-= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator*= (Element scalar)

TVector< Size, Element > &	operator/= (Element scalar)

const Element &	operator[] (int i) const

Element &	operator[] (int i)

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from imath::TVector< Size, Element >
static int	GetElementsCount ()
	Get number of elements.

static bool	SetElementsCount (int count)
	Set number of elements.

static const TVector< Size, Element > &	GetZero ()
	Get vector with all coordinates set to 0.

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes inherited from imath::TVector< Size, Element >
Elements	m_elements

Detailed Description

template<int Size>
class icmm::TComposedColor< Size >

Generic fixed-size color implementation template.

Purpose

TComposedColor is a template base class for fixed-size color representations. It combines the mathematical vector operations of TVector with color-specific functionality like normalization, rounding, and serialization. This class serves as the foundation for CRgb, CHsv, CCmyk, CLab, and other fixed-size color classes.

Design

TComposedColor<Size> inherits from TVector<Size> and adds:

Normalization: Clamping components to [0, 1] range
Comparison: Fuzzy equality with tolerance
Rounding: Precision control for component values
Serialization: Save/load via IArchive interface
Operators: Color-specific arithmetic operations

Usage Examples

// Example 1: TComposedColor as base for custom colors
// (CRgb, CHsv, etc. inherit from TComposedColor)
class CMyCustomColor : public icmm::TComposedColor<5>
{
public:
       CMyCustomColor(double c1 = 0, double c2 = 0, double c3 = 0,
                     double c4 = 0, double c5 = 0)
       {
              SetElement(0, c1);
              SetElement(1, c2);
              SetElement(2, c3);
              SetElement(3, c4);
              SetElement(4, c5);
       }
};

// Example 2: Normalization (clamping to [0,1])
icmm::CRgb rgb(1.5, -0.2, 0.8);  // Out of range values

if (!rgb.IsNormalized()) {
       rgb.Normalize();  // Now (1.0, 0.0, 0.8)
}

// Example 3: Fuzzy comparison
icmm::CRgb color1(0.5, 0.5, 0.5);
icmm::CRgb color2(0.501, 0.499, 0.502);

bool similar = color1.IsSimilar(color2, 0.01);  // true
bool exact = (color1 == color2);                // false (if == is implemented)

// Example 4: Color arithmetic (inherited from TComposedColor)
icmm::CRgb a(0.8, 0.3, 0.2);
icmm::CRgb b(0.2, 0.5, 0.7);

// Component-wise operations
icmm::CRgb sum = a + b;        // {1.0, 0.8, 0.9}
icmm::CRgb diff = a - b;       // {0.6, -0.2, -0.5}
icmm::CRgb product = a * b;    // {0.16, 0.15, 0.14}
icmm::CRgb scaled = a * 0.5;   // {0.4, 0.15, 0.1}

// Example 5: Serialization
void SaveColor(const icmm::TComposedColor<3>& color,
              const QString& filename)
{
       ifile::CFileWriteArchive archive(filename);
       if (archive.IsOpen()) {
              icmm::TComposedColor<3> copy = color;
              copy.Serialize(archive);
       }
}

void LoadColor(icmm::TComposedColor<3>& color,
              const QString& filename)
{
       ifile::CFileReadArchive archive(filename);
       if (archive.IsOpen()) {
              color.Serialize(archive);
       }
}

// Example 6: Getting normalized copy
icmm::CRgb hdrColor(2.0, 1.5, 0.8);  // HDR values

icmm::CRgb sdrColor;
hdrColor.GetNormalized(sdrColor);  // sdrColor = (1.0, 1.0, 0.8)
// hdrColor unchanged

// Example 7: Conversion from CVarVector
imath::CVarVector varVec(3);
varVec.SetElement(0, 0.5);
varVec.SetElement(1, 0.6);
varVec.SetElement(2, 0.7);

icmm::TComposedColor<3> color(varVec);  // Convert to fixed-size

Inheritance Hierarchy

TComposedColor serves as the base for:

CRgb: TComposedColor<3> - Red, Green, Blue
CHsv: TComposedColor<3> - Hue, Saturation, Value
CCmyk: TComposedColor<4> - Cyan, Magenta, Yellow, Black
CLab: TComposedColor<3> - Lightness, a*, b*
Custom colors: Any fixed-size color representation

Best Practices

Use TComposedColor as a base when creating custom fixed-size colors
Call Normalize() before operations requiring [0,1] range
Use IsSimilar() for fuzzy comparisons (handles floating-point errors)
Prefer fixed-size colors over CVarColor when size is known at compile time
Leverage inherited TVector operations for mathematical operations

Note: Template parameter Size determines the number of color components at compile time, enabling optimizations not possible with CVarColor.

See also: icmm::CVarColor, icmm::CRgb, icmm::CHsv, icmm::CCmyk, icmm::CLab, imath::TVector, iser::ISerializable

Definition at line 141 of file TComposedColor.h.

Member Typedef Documentation

◆ BaseClass

template<int Size>

typedef imath::TVector<Size> icmm::TComposedColor< Size >::BaseClass

Definition at line 144 of file TComposedColor.h.

◆ Elements

template<int Size>

typedef BaseClass::Elements icmm::TComposedColor< Size >::Elements

Definition at line 145 of file TComposedColor.h.

Constructor & Destructor Documentation

◆ TComposedColor() [1/4]

template<int Size>

icmm::TComposedColor< Size >::TComposedColor ( )

inline

Definition at line 216 of file TComposedColor.h.

◆ TComposedColor() [2/4]

template<int Size>

icmm::TComposedColor< Size >::TComposedColor ( const BaseClass & value )

inline

Definition at line 223 of file TComposedColor.h.

◆ TComposedColor() [3/4]

template<int Size>

icmm::TComposedColor< Size >::TComposedColor ( const imath::CVarVector & vector )

inlineexplicit

Definition at line 230 of file TComposedColor.h.

References imath::CVarVector::GetElementsCount().

◆ TComposedColor() [4/4]

template<int Size>

icmm::TComposedColor< Size >::TComposedColor ( const TComposedColor< Size > & color )

default

Member Function Documentation

◆ GetNormalized()

template<int Size>

void icmm::TComposedColor< Size >::GetNormalized ( TComposedColor< Size > & result ) const

Get normalized color.

Normalized values have all components in the range [0, 1].

Definition at line 469 of file TComposedColor.h.

References icmm::TComposedColor< Size >::Normalize().

◆ GetRounded()

template<int Size>

void icmm::TComposedColor< Size >::GetRounded	(	const imath::IDoubleManip &	manipulator,
		TComposedColor< Size > &	result
	)

Get color after components value rounding with specified precision.

Parameters

manipulator	manipulator object used to round single components.
result	result object.

Definition at line 430 of file TComposedColor.h.

References imath::TIValueManip< ValueType >::GetRounded().

◆ IsNormalized()

template<int Size>

bool icmm::TComposedColor< Size >::IsNormalized ( ) const

inline

Check if this color value is normalized.

Normalized values have all components in the range [0, 1].

Definition at line 251 of file TComposedColor.h.

◆ IsRoundedEqual()

template<int Size>

bool icmm::TComposedColor< Size >::IsRoundedEqual	(	const TComposedColor< Size > &	color,
		const imath::IDoubleManip &	manipulator
	)		const

Check if two values are equal after rounding.

Parameters

color	second color to comparision.
manipulator	value manipulator used to round single components.

Definition at line 439 of file TComposedColor.h.

References imath::TIValueManip< ValueType >::AreValuesEqual().

◆ IsSimilar()

template<int Size>

bool icmm::TComposedColor< Size >::IsSimilar	(	const TComposedColor< Size > &	color,
		double	tolerance = `I_BIG_EPSILON`
	)		const

inline

Allows to compare two colors with tolerance.

Definition at line 244 of file TComposedColor.h.

◆ Normalize()

template<int Size>

void icmm::TComposedColor< Size >::Normalize ( )

Make this color to be normalized.

Normalized values have all components in the range [0, 1].

Definition at line 452 of file TComposedColor.h.

Referenced by icmm::TComposedColor< Size >::GetNormalized().

◆ operator*() [1/2]

template<int Size>

TComposedColor< Size > icmm::TComposedColor< Size >::operator* ( const TComposedColor< Size > & color ) const

inline

Definition at line 292 of file TComposedColor.h.

◆ operator*() [2/2]

template<int Size>

TComposedColor< Size > icmm::TComposedColor< Size >::operator* ( double value ) const

inline

Definition at line 318 of file TComposedColor.h.

◆ operator*=() [1/2]

template<int Size>

const TComposedColor< Size > & icmm::TComposedColor< Size >::operator*= ( const TComposedColor< Size > & color )

inline

Definition at line 384 of file TComposedColor.h.

◆ operator*=() [2/2]

template<int Size>

const TComposedColor< Size > & icmm::TComposedColor< Size >::operator*= ( double value )

inline

Definition at line 410 of file TComposedColor.h.

◆ operator+()

template<int Size>

TComposedColor< Size > icmm::TComposedColor< Size >::operator+ ( const TComposedColor< Size > & color ) const

inline

Definition at line 266 of file TComposedColor.h.

◆ operator+=()

template<int Size>

const TComposedColor< Size > & icmm::TComposedColor< Size >::operator+= ( const TComposedColor< Size > & color )

inline

Definition at line 366 of file TComposedColor.h.

◆ operator-()

template<int Size>

TComposedColor< Size > icmm::TComposedColor< Size >::operator- ( const TComposedColor< Size > & color ) const

inline

Definition at line 279 of file TComposedColor.h.

◆ operator-=()

template<int Size>

const TComposedColor< Size > & icmm::TComposedColor< Size >::operator-= ( const TComposedColor< Size > & color )

inline

Definition at line 375 of file TComposedColor.h.

◆ operator/() [1/2]

template<int Size>

TComposedColor< Size > icmm::TComposedColor< Size >::operator/ ( const TComposedColor< Size > & color ) const

inline

Definition at line 305 of file TComposedColor.h.

◆ operator/() [2/2]

template<int Size>

TComposedColor< Size > icmm::TComposedColor< Size >::operator/ ( double value ) const

inline

Definition at line 331 of file TComposedColor.h.

◆ operator/=() [1/2]

template<int Size>

const TComposedColor< Size > & icmm::TComposedColor< Size >::operator/= ( const TComposedColor< Size > & color )

inline

Definition at line 397 of file TComposedColor.h.

◆ operator/=() [2/2]

template<int Size>

const TComposedColor< Size > & icmm::TComposedColor< Size >::operator/= ( double value )

inline

Definition at line 419 of file TComposedColor.h.

◆ operator=() [1/2]

template<int Size>

const TComposedColor< Size > & icmm::TComposedColor< Size >::operator= ( const TComposedColor< Size > & color )

inline

Definition at line 344 of file TComposedColor.h.

◆ operator=() [2/2]

template<int Size>

const TComposedColor< Size > & icmm::TComposedColor< Size >::operator= ( double colorValue )

inline

Definition at line 355 of file TComposedColor.h.

◆ Serialize()

template<int Size>

bool icmm::TComposedColor< Size >::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

Reimplemented in icmm::CCmy, icmm::CCmyk, icmm::CHsv, icmm::CLab, and icmm::CRgb.

Definition at line 480 of file TComposedColor.h.

References iser::IArchive::BeginMultiTag(), iser::IArchive::BeginTag(), iser::IArchive::EndTag(), iser::IArchive::IsStoring(), NULL, iser::IArchive::Process(), iser::CArchiveTag::TT_LEAF, and iser::CArchiveTag::TT_MULTIPLE.

The documentation for this class was generated from the following file:

Acf/Include/icmm/TComposedColor.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Purpose

Design

Usage Examples

Inheritance Hierarchy

Best Practices

Member Typedef Documentation

◆ BaseClass

◆ Elements

Constructor & Destructor Documentation

◆ TComposedColor() [1/4]

◆ TComposedColor() [2/4]

◆ TComposedColor() [3/4]

◆ TComposedColor() [4/4]

Member Function Documentation

◆ GetNormalized()

◆ GetRounded()

◆ IsNormalized()

◆ IsRoundedEqual()

◆ IsSimilar()

◆ Normalize()

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator+()

◆ operator+=()

◆ operator-()

◆ operator-=()

◆ operator/() [1/2]

◆ operator/() [2/2]

◆ operator/=() [1/2]

◆ operator/=() [2/2]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ Serialize()
