Primitive for representation of HSV (Hue, Saturation, Value) color values. More...

#include <CHsv.h>

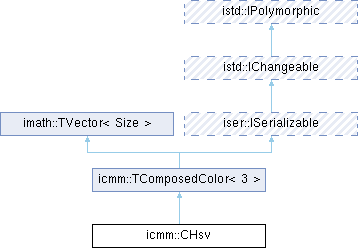

Inheritance diagram for icmm::CHsv:

Public Types
enum	ComponentIndex { CI_HUE , CI_SATURATION , CI_VALUE , CI_LAST = CI_VALUE }

typedef TComposedColor< 3 >	BaseClass

Public Types inherited from icmm::TComposedColor< 3 >
typedef imath::TVector< Size >	BaseClass

typedef BaseClass::Elements	Elements

Public Types inherited from imath::TVector< Size, Element >
typedef Element	ElementType

typedef Element	Elements[Size]

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CHsv (double h=0.0, double s=0.0, double v=0.0)

	CHsv (const CHsv &color)

	CHsv (const imath::CVarVector &vector)

double	GetHue () const

void	SetHue (double value)

double	GetSaturation () const

void	SetSaturation (double value)

double	GetValue () const

void	SetValue (double value)

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

CHsv	operator+ (const CHsv &color) const

CHsv	operator- (const CHsv &color) const

CHsv	operator* (const CHsv &color) const

CHsv	operator/ (const CHsv &color) const

CHsv	operator* (double value) const

CHsv	operator/ (double value) const

CHsv &	operator= (const CHsv &color)

const CHsv &	operator+= (const CHsv &color)

const CHsv &	operator-= (const CHsv &color)

const CHsv &	operator*= (const CHsv &color)

const CHsv &	operator/= (const CHsv &color)

const CHsv &	operator*= (double value)

const CHsv &	operator/= (double value)

Public Member Functions inherited from icmm::TComposedColor< 3 >
	TComposedColor ()

	TComposedColor (const BaseClass &value)

	TComposedColor (const imath::CVarVector &vector)

	TComposedColor (const TComposedColor< Size > &color)=default

void	GetRounded (const imath::IDoubleManip &manipulator, TComposedColor< Size > &result)
	Get color after components value rounding with specified precision.

bool	IsRoundedEqual (const TComposedColor< Size > &color, const imath::IDoubleManip &manipulator) const
	Check if two values are equal after rounding.

bool	IsSimilar (const TComposedColor< Size > &color, double tolerance=I_BIG_EPSILON) const
	Allows to compare two colors with tolerance.

bool	IsNormalized () const
	Check if this color value is normalized.

void	Normalize ()
	Make this color to be normalized.

void	GetNormalized (TComposedColor< Size > &result) const
	Get normalized color.

TComposedColor< Size >	operator+ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator- (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (double value) const

TComposedColor< Size >	operator/ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator/ (double value) const

const TComposedColor< Size > &	operator= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator= (double colorValue)

const TComposedColor< Size > &	operator+= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator-= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (double value)

const TComposedColor< Size > &	operator/= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator/= (double value)

Public Member Functions inherited from imath::TVector< Size, Element >
	TVector ()
	Creates an uninitialized vector.

	TVector (const TVector< Size, Element > &vector)
	Creates a copy of another vector.

	TVector (std::initializer_list< Element > values)
	Creates a vector from an initializer list.

const Element &	GetElement (int i) const
	Gets the element at the specified index (read-only).

Element &	GetElementRef (int i)
	Gets a reference to the element at the specified index (read-write).

void	SetElement (int i, const Element &value)
	Sets the element at the specified index.

void	SetAllElements (const Element &value)
	Sets all elements to the same value.

void	Reset ()
	Sets all coordinates to zero.

void	Clear ()
	Sets all coordinates to zero.

const TVector< Size, Element >::Elements &	GetElements () const
	Get read-only access to internal element container.

TVector< Size, Element >::Elements &	GetElementsRef ()
	Get access to internal element container.

void	Translate (const TVector< Size, Element > &vector)
	Translates (adds) another vector to this vector.

TVector< Size, Element >	GetTranslated (const TVector< Size, Element > &vector)
	Returns a new vector that is the translation of this vector.

void	GetTranslated (const TVector< Size, Element > &vector, TVector< Size, Element > &result)
	Computes the translated vector and stores it in the result parameter.

void	ScaledCumulate (const TVector< Size, Element > &vector, Element scale)
	Adds a scaled vector to this vector.

bool	IsNull (Element tolerance=I_BIG_EPSILON) const
	Checks if this vector is null (all elements approximately zero).

Element	GetDotProduct (const TVector< Size, Element > &vector) const
	Calculates the dot product with another vector.

Element	GetLength2 () const
	Calculates the squared Euclidean length of the vector.

Element	GetLength () const
	Calculates the Euclidean length (magnitude) of the vector.

Element	GetDistance2 (const TVector< Size, Element > &vector) const
	Calculates the squared distance to another vector.

Element	GetDistance (const TVector< Size, Element > &vector) const
	Calculates the Euclidean distance to another vector.

Element	GetElementsSum () const
	Calculates the sum of all vector elements.

bool	Normalize (Element length=1.0)
	Normalizes the vector to a specified length.

bool	GetNormalized (TVector< Size, Element > &result, Element length=1.0) const
	Returns a normalized copy of this vector with specified length.

void	GetMinimal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with minimal elements values.

void	GetMaximal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with maximal elements values.

bool	Serialize (iser::IArchive &archive)
	Serialize this vector to specified archive.

bool	operator== (const TVector< Size, Element > &vector) const

bool	operator!= (const TVector< Size, Element > &vector) const

bool	operator< (const TVector< Size, Element > &vector) const

bool	operator> (const TVector< Size, Element > &vector) const

bool	operator<= (const TVector< Size, Element > &vector) const

bool	operator>= (const TVector< Size, Element > &vector) const

TVector< Size, Element > &	operator= (const TVector< Size, Element > &vector)=default

TVector< Size, Element >	operator- () const

TVector< Size, Element >	operator+ (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator- (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator* (Element scalar) const

TVector< Size, Element >	operator/ (Element scalar) const

TVector< Size, Element > &	operator+= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator-= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator*= (Element scalar)

TVector< Size, Element > &	operator/= (Element scalar)

const Element &	operator[] (int i) const

Element &	operator[] (int i)

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from imath::TVector< Size, Element >
static int	GetElementsCount ()
	Get number of elements.

static bool	SetElementsCount (int count)
	Set number of elements.

static const TVector< Size, Element > &	GetZero ()
	Get vector with all coordinates set to 0.

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes inherited from imath::TVector< Size, Element >
Elements	m_elements

Detailed Description

Primitive for representation of HSV (Hue, Saturation, Value) color values.

Purpose

CHsv represents colors in the HSV color model, which is more intuitive for human color selection than RGB. HSV separates color (hue) from intensity (value) and colorfulness (saturation), making it easier to create color pickers, adjust brightness, or perform color-based image processing.

HSV Color Model

HSV consists of three cylindrical coordinates:

Hue (H): The color type, represented as an angle [0, 1] where:
- 0.0 / 1.0 = Red
- ~0.167 = Yellow
- ~0.333 = Green
- ~0.5 = Cyan
- ~0.667 = Blue
- ~0.833 = Magenta
Saturation (S): Color intensity [0, 1]:
- 0.0 = Gray (no color)
- 1.0 = Pure, vivid color
Value (V): Brightness [0, 1]:
- 0.0 = Black
- 1.0 = Bright color

Usage Examples

// Example 1: Creating HSV colors
icmm::CHsv red(0.0, 1.0, 1.0);        // Pure red
icmm::CHsv yellow(0.167, 1.0, 1.0);   // Pure yellow
icmm::CHsv green(0.333, 1.0, 1.0);    // Pure green
icmm::CHsv cyan(0.5, 1.0, 1.0);       // Pure cyan
icmm::CHsv blue(0.667, 1.0, 1.0);     // Pure blue
icmm::CHsv magenta(0.833, 1.0, 1.0);  // Pure magenta

icmm::CHsv pastelBlue(0.667, 0.3, 0.9);   // Low saturation = pastel
icmm::CHsv darkRed(0.0, 1.0, 0.3);        // Low value = dark
icmm::CHsv gray(0.0, 0.0, 0.5);           // Zero saturation = gray

// Example 2: Accessing and modifying components
icmm::CHsv color;
color.SetHue(0.5);          // Cyan hue
color.SetSaturation(0.7);   // Fairly saturated
color.SetValue(0.9);        // Bright

double h = color.GetHue();
double s = color.GetSaturation();
double v = color.GetValue();

// Example 3: Adjusting brightness
icmm::CHsv AdjustBrightness(const icmm::CHsv& color, double factor)
{
       icmm::CHsv result = color;
       result.SetValue(color.GetValue() * factor);
       // Clamp to [0, 1]
       if (result.GetValue() > 1.0) result.SetValue(1.0);
       if (result.GetValue() < 0.0) result.SetValue(0.0);
       return result;
}

icmm::CHsv original(0.667, 0.8, 0.6);  // Blue
icmm::CHsv brighter = AdjustBrightness(original, 1.5);
icmm::CHsv darker = AdjustBrightness(original, 0.5);

// Example 4: Adjusting saturation
icmm::CHsv ChangeSaturation(const icmm::CHsv& color, double newSat)
{
       icmm::CHsv result = color;
       result.SetSaturation(qBound(0.0, newSat, 1.0));
       return result;
}

// Make more vivid
icmm::CHsv vivid = ChangeSaturation(original, 1.0);
// Make more pastel
icmm::CHsv pastel = ChangeSaturation(original, 0.3);
// Make grayscale
icmm::CHsv gray = ChangeSaturation(original, 0.0);

// Example 5: Hue rotation (color shift)
icmm::CHsv RotateHue(const icmm::CHsv& color, double rotation)
{
       icmm::CHsv result = color;
       double newHue = color.GetHue() + rotation;
       // Wrap around [0, 1)
       while (newHue >= 1.0) newHue -= 1.0;
       while (newHue < 0.0) newHue += 1.0;
       result.SetHue(newHue);
       return result;
}

icmm::CHsv red(0.0, 1.0, 1.0);
icmm::CHsv complementary = RotateHue(red, 0.5);  // Cyan (opposite)
icmm::CHsv analogous = RotateHue(red, 0.083);    // Orange (nearby)

// Example 6: Creating color harmonies
QList<icmm::CHsv> CreateTriadicHarmony(const icmm::CHsv& base)
{
       QList<icmm::CHsv> colors;
       colors.append(base);
       colors.append(RotateHue(base, 1.0 / 3.0));  // 120 degrees
       colors.append(RotateHue(base, 2.0 / 3.0));  // 240 degrees
       return colors;
}

// Example 7: RGB to HSV conversion
icmm::CHsv ConvertRgbToHsv(const icmm::CRgb& rgb)
{
       icmm::CRgbColorModel rgbModel;
       // Use transformation for conversion
       // (actual implementation uses color transformation)
       // ...
}

// Example 8: Color wheel generation
QList<icmm::CHsv> GenerateColorWheel(int steps)
{
       QList<icmm::CHsv> colors;
       for (int i = 0; i < steps; ++i) {
              double hue = static_cast<double>(i) / steps;
              colors.append(icmm::CHsv(hue, 1.0, 1.0));
       }
       return colors;
}

// Example 9: Creating a color picker
icmm::CHsv SelectColorFromWheel(double angle,      // 0-360 degrees
                                double distance,   // 0-1 from center
                                double brightness) // 0-1
{
       double hue = angle / 360.0;
       double saturation = distance;
       double value = brightness;
       return icmm::CHsv(hue, saturation, value);
}

HSV Advantages

Intuitive: Matches human color perception better than RGB
Easy adjustments: Brightness and saturation can be modified independently
Color selection: Natural for color pickers (color wheel + brightness slider)
Image processing: Useful for color-based segmentation and filtering
Color harmonies: Easy to create complementary, analogous, triadic schemes

HSV vs RGB

HSV: Better for user interfaces and artistic color selection
RGB: Better for display, calculation, and blending
Conversion: RGB <-> HSV transformations are available but have cost
Storage: Store in the space where most operations will occur

Best Practices

Use HSV for color pickers and user-facing color selection
Convert to RGB for rendering and display
Hue is circular - handle wraparound when rotating
At V=0 (black) or S=0 (gray), hue is undefined
For perceptual operations, consider using Lab color space instead

Note

Component values are normalized to [0, 1] range where:

Hue: 0.0-1.0 represents 0 degrees-360 degrees
Saturation: 0.0 (gray) to 1.0 (pure color)
Value: 0.0 (black) to 1.0 (bright)

See also: icmm::TComposedColor, icmm::CRgb, icmm::CHsvToRgbTransformation, icmm::CRgbToHsvTranformation

Definition at line 181 of file CHsv.h.

Member Typedef Documentation

◆ BaseClass

typedef TComposedColor<3> icmm::CHsv::BaseClass

Definition at line 184 of file CHsv.h.

Member Enumeration Documentation

◆ ComponentIndex

enum icmm::CHsv::ComponentIndex

Enumerator
CI_HUE
CI_SATURATION
CI_VALUE
CI_LAST

Definition at line 186 of file CHsv.h.

Constructor & Destructor Documentation

◆ CHsv() [1/3]

icmm::CHsv::CHsv	(	double	h = `0.0`,
		double	s = `0.0`,
		double	v = `0.0`
	)

inline

Definition at line 231 of file CHsv.h.

References CI_HUE, CI_SATURATION, CI_VALUE, and imath::TVector< Size, Element >::SetElement().

◆ CHsv() [2/3]

icmm::CHsv::CHsv ( const CHsv & color )

inline

Definition at line 239 of file CHsv.h.

◆ CHsv() [3/3]

icmm::CHsv::CHsv ( const imath::CVarVector & vector )

inline

Definition at line 245 of file CHsv.h.

Member Function Documentation

◆ GetHue()

double icmm::CHsv::GetHue ( ) const

inline

Definition at line 253 of file CHsv.h.

References CI_HUE, and imath::TVector< Size, Element >::GetElement().

◆ GetSaturation()

double icmm::CHsv::GetSaturation ( ) const

inline

Definition at line 265 of file CHsv.h.

References CI_SATURATION, and imath::TVector< Size, Element >::GetElement().

◆ GetValue()

double icmm::CHsv::GetValue ( ) const

inline

Definition at line 277 of file CHsv.h.

References CI_VALUE, and imath::TVector< Size, Element >::GetElement().

◆ operator*() [1/2]

CHsv icmm::CHsv::operator* ( const CHsv & color ) const

inline

Definition at line 311 of file CHsv.h.

◆ operator*() [2/2]

CHsv icmm::CHsv::operator* ( double value ) const

inline

Definition at line 331 of file CHsv.h.

◆ operator*=() [1/2]

const CHsv & icmm::CHsv::operator*= ( const CHsv & color )

inline

Definition at line 375 of file CHsv.h.

References icmm::TComposedColor< 3 >::operator*=().

◆ operator*=() [2/2]

const CHsv & icmm::CHsv::operator*= ( double value )

inline

Definition at line 391 of file CHsv.h.

References icmm::TComposedColor< 3 >::operator*=().

◆ operator+()

CHsv icmm::CHsv::operator+ ( const CHsv & color ) const

inline

Definition at line 291 of file CHsv.h.

◆ operator+=()

const CHsv & icmm::CHsv::operator+= ( const CHsv & color )

inline

Definition at line 359 of file CHsv.h.

References icmm::TComposedColor< 3 >::operator+=().

◆ operator-()

CHsv icmm::CHsv::operator- ( const CHsv & color ) const

inline

Definition at line 301 of file CHsv.h.

◆ operator-=()

const CHsv & icmm::CHsv::operator-= ( const CHsv & color )

inline

Definition at line 367 of file CHsv.h.

References icmm::TComposedColor< 3 >::operator-=().

◆ operator/() [1/2]

CHsv icmm::CHsv::operator/ ( const CHsv & color ) const

inline

Definition at line 321 of file CHsv.h.

◆ operator/() [2/2]

CHsv icmm::CHsv::operator/ ( double value ) const

inline

Definition at line 341 of file CHsv.h.

◆ operator/=() [1/2]

const CHsv & icmm::CHsv::operator/= ( const CHsv & color )

inline

Definition at line 383 of file CHsv.h.

References icmm::TComposedColor< 3 >::operator/=().

◆ operator/=() [2/2]

const CHsv & icmm::CHsv::operator/= ( double value )

inline

Definition at line 399 of file CHsv.h.

References icmm::TComposedColor< 3 >::operator/=().

◆ operator=()

CHsv & icmm::CHsv::operator= ( const CHsv & color )

inline

Definition at line 351 of file CHsv.h.

References icmm::TComposedColor< 3 >::operator=().

◆ Serialize()

virtual bool icmm::CHsv::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Reimplemented from icmm::TComposedColor< 3 >.

◆ SetHue()

void icmm::CHsv::SetHue ( double value )

inline

Definition at line 259 of file CHsv.h.

References CI_HUE, and imath::TVector< Size, Element >::SetElement().

◆ SetSaturation()

void icmm::CHsv::SetSaturation ( double value )

inline

Definition at line 271 of file CHsv.h.

References CI_SATURATION, and imath::TVector< Size, Element >::SetElement().

◆ SetValue()

void icmm::CHsv::SetValue ( double value )

inline

Definition at line 283 of file CHsv.h.

References CI_VALUE, and imath::TVector< Size, Element >::SetElement().

The documentation for this class was generated from the following file:

Acf/Include/icmm/CHsv.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Purpose

HSV Color Model

Usage Examples

HSV Advantages

HSV vs RGB

Best Practices

Member Typedef Documentation

◆ BaseClass

Member Enumeration Documentation

◆ ComponentIndex

Constructor & Destructor Documentation

◆ CHsv() [1/3]

◆ CHsv() [2/3]

◆ CHsv() [3/3]

Member Function Documentation

◆ GetHue()

◆ GetSaturation()

◆ GetValue()

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator+()

◆ operator+=()

◆ operator-()

◆ operator-=()

◆ operator/() [1/2]

◆ operator/() [2/2]

◆ operator/=() [1/2]

◆ operator/=() [2/2]

◆ operator=()

◆ Serialize()

◆ SetHue()

◆ SetSaturation()

◆ SetValue()
