Primitive for representation of RGB color values. More...

#include <CRgb.h>

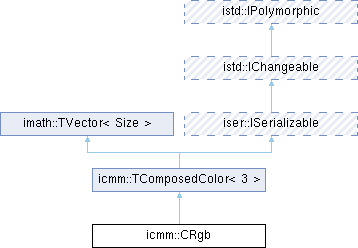

Inheritance diagram for icmm::CRgb:

Public Types
enum	ComponentIndex { CI_RED , CI_GREEN , CI_BLUE , CI_LAST = CI_BLUE }

typedef TComposedColor< 3 >	BaseClass

Public Types inherited from icmm::TComposedColor< 3 >
typedef imath::TVector< Size >	BaseClass

typedef BaseClass::Elements	Elements

Public Types inherited from imath::TVector< Size, Element >
typedef Element	ElementType

typedef Element	Elements[Size]

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CRgb (double r=0.0, double g=0.0, double b=0.0)

	CRgb (const CRgb &color)

double	GetRed () const

void	SetRed (double value)

double	GetGreen () const

void	SetGreen (double value)

double	GetBlue () const

void	SetBlue (double value)

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

CRgb	operator+ (const CRgb &color) const

CRgb	operator- (const CRgb &color) const

CRgb	operator* (const CRgb &color) const

CRgb	operator/ (const CRgb &color) const

CRgb	operator* (double value) const

CRgb	operator/ (double value) const

CRgb &	operator= (const CRgb &color)

const CRgb &	operator+= (const CRgb &color)

const CRgb &	operator-= (const CRgb &color)

const CRgb &	operator*= (const CRgb &color)

const CRgb &	operator/= (const CRgb &color)

const CRgb &	operator*= (double value)

const CRgb &	operator/= (double value)

Public Member Functions inherited from icmm::TComposedColor< 3 >
	TComposedColor ()

	TComposedColor (const BaseClass &value)

	TComposedColor (const imath::CVarVector &vector)

	TComposedColor (const TComposedColor< Size > &color)=default

void	GetRounded (const imath::IDoubleManip &manipulator, TComposedColor< Size > &result)
	Get color after components value rounding with specified precision.

bool	IsRoundedEqual (const TComposedColor< Size > &color, const imath::IDoubleManip &manipulator) const
	Check if two values are equal after rounding.

bool	IsSimilar (const TComposedColor< Size > &color, double tolerance=I_BIG_EPSILON) const
	Allows to compare two colors with tolerance.

bool	IsNormalized () const
	Check if this color value is normalized.

void	Normalize ()
	Make this color to be normalized.

void	GetNormalized (TComposedColor< Size > &result) const
	Get normalized color.

TComposedColor< Size >	operator+ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator- (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (double value) const

TComposedColor< Size >	operator/ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator/ (double value) const

const TComposedColor< Size > &	operator= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator= (double colorValue)

const TComposedColor< Size > &	operator+= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator-= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (double value)

const TComposedColor< Size > &	operator/= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator/= (double value)

Public Member Functions inherited from imath::TVector< Size, Element >
	TVector ()
	Creates an uninitialized vector.

	TVector (const TVector< Size, Element > &vector)
	Creates a copy of another vector.

	TVector (std::initializer_list< Element > values)
	Creates a vector from an initializer list.

const Element &	GetElement (int i) const
	Gets the element at the specified index (read-only).

Element &	GetElementRef (int i)
	Gets a reference to the element at the specified index (read-write).

void	SetElement (int i, const Element &value)
	Sets the element at the specified index.

void	SetAllElements (const Element &value)
	Sets all elements to the same value.

void	Reset ()
	Sets all coordinates to zero.

void	Clear ()
	Sets all coordinates to zero.

const TVector< Size, Element >::Elements &	GetElements () const
	Get read-only access to internal element container.

TVector< Size, Element >::Elements &	GetElementsRef ()
	Get access to internal element container.

void	Translate (const TVector< Size, Element > &vector)
	Translates (adds) another vector to this vector.

TVector< Size, Element >	GetTranslated (const TVector< Size, Element > &vector)
	Returns a new vector that is the translation of this vector.

void	GetTranslated (const TVector< Size, Element > &vector, TVector< Size, Element > &result)
	Computes the translated vector and stores it in the result parameter.

void	ScaledCumulate (const TVector< Size, Element > &vector, Element scale)
	Adds a scaled vector to this vector.

bool	IsNull (Element tolerance=I_BIG_EPSILON) const
	Checks if this vector is null (all elements approximately zero).

Element	GetDotProduct (const TVector< Size, Element > &vector) const
	Calculates the dot product with another vector.

Element	GetLength2 () const
	Calculates the squared Euclidean length of the vector.

Element	GetLength () const
	Calculates the Euclidean length (magnitude) of the vector.

Element	GetDistance2 (const TVector< Size, Element > &vector) const
	Calculates the squared distance to another vector.

Element	GetDistance (const TVector< Size, Element > &vector) const
	Calculates the Euclidean distance to another vector.

Element	GetElementsSum () const
	Calculates the sum of all vector elements.

bool	Normalize (Element length=1.0)
	Normalizes the vector to a specified length.

bool	GetNormalized (TVector< Size, Element > &result, Element length=1.0) const
	Returns a normalized copy of this vector with specified length.

void	GetMinimal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with minimal elements values.

void	GetMaximal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with maximal elements values.

bool	Serialize (iser::IArchive &archive)
	Serialize this vector to specified archive.

bool	operator== (const TVector< Size, Element > &vector) const

bool	operator!= (const TVector< Size, Element > &vector) const

bool	operator< (const TVector< Size, Element > &vector) const

bool	operator> (const TVector< Size, Element > &vector) const

bool	operator<= (const TVector< Size, Element > &vector) const

bool	operator>= (const TVector< Size, Element > &vector) const

TVector< Size, Element > &	operator= (const TVector< Size, Element > &vector)=default

TVector< Size, Element >	operator- () const

TVector< Size, Element >	operator+ (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator- (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator* (Element scalar) const

TVector< Size, Element >	operator/ (Element scalar) const

TVector< Size, Element > &	operator+= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator-= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator*= (Element scalar)

TVector< Size, Element > &	operator/= (Element scalar)

const Element &	operator[] (int i) const

Element &	operator[] (int i)

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from imath::TVector< Size, Element >
static int	GetElementsCount ()
	Get number of elements.

static bool	SetElementsCount (int count)
	Set number of elements.

static const TVector< Size, Element > &	GetZero ()
	Get vector with all coordinates set to 0.

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes inherited from imath::TVector< Size, Element >
Elements	m_elements

Detailed Description

Primitive for representation of RGB color values.

Purpose

CRgb represents a color in the RGB (Red, Green, Blue) additive color model. This is the standard color representation for displays, digital images, and light-based color mixing. Each component typically ranges from 0.0 (no intensity) to 1.0 (full intensity), though values outside this range are permitted for HDR (High Dynamic Range) applications.

RGB Color Model

RGB is an additive color model where colors are created by adding together red, green, and blue light:

Red + Green = Yellow
Red + Blue = Magenta
Green + Blue = Cyan
Red + Green + Blue = White
No light (0,0,0) = Black

Usage Examples

// Example 1: Creating RGB colors
icmm::CRgb black(0.0, 0.0, 0.0);
icmm::CRgb white(1.0, 1.0, 1.0);
icmm::CRgb red(1.0, 0.0, 0.0);
icmm::CRgb green(0.0, 1.0, 0.0);
icmm::CRgb blue(0.0, 0.0, 1.0);
icmm::CRgb yellow(1.0, 1.0, 0.0);
icmm::CRgb magenta(1.0, 0.0, 1.0);
icmm::CRgb cyan(0.0, 1.0, 1.0);
icmm::CRgb gray(0.5, 0.5, 0.5);

// Example 2: Accessing and modifying components
icmm::CRgb color;
color.SetRed(0.8);
color.SetGreen(0.3);
color.SetBlue(0.2);

double r = color.GetRed();
double g = color.GetGreen();
double b = color.GetBlue();

// Example 3: Color arithmetic
icmm::CRgb color1(0.8, 0.3, 0.2);
icmm::CRgb color2(0.2, 0.5, 0.7);

// Add colors (lighten)
icmm::CRgb lighter = color1 + color2;  // {1.0, 0.8, 0.9}

// Multiply colors (darken/tint)
icmm::CRgb tinted = color1 * color2;   // {0.16, 0.15, 0.14}

// Scale color (adjust brightness)
icmm::CRgb brighter = color1 * 1.5;    // {1.2, 0.45, 0.3} (HDR)
icmm::CRgb dimmer = color1 * 0.5;      // {0.4, 0.15, 0.1}

// Example 4: Color blending
icmm::CRgb BlendColors(const icmm::CRgb& a,
                       const icmm::CRgb& b,
                       double t)  // t in [0, 1]
{
       // Linear interpolation
       return a * (1.0 - t) + b * t;
}

icmm::CRgb startColor(1.0, 0.0, 0.0);  // Red
icmm::CRgb endColor(0.0, 0.0, 1.0);    // Blue
icmm::CRgb midColor = BlendColors(startColor, endColor, 0.5);  // Purple

// Example 5: Grayscale conversion
double ToGrayscale(const icmm::CRgb& color)
{
       // Perceptual grayscale (ITU-R BT.709)
       return 0.2126 * color.GetRed() +
              0.7152 * color.GetGreen() +
              0.0722 * color.GetBlue();
}

// Example 6: Color clamping
icmm::CRgb ClampToValidRange(const icmm::CRgb& color)
{
       icmm::CRgb result = color;
       result.SetRed(qBound(0.0, color.GetRed(), 1.0));
       result.SetGreen(qBound(0.0, color.GetGreen(), 1.0));
       result.SetBlue(qBound(0.0, color.GetBlue(), 1.0));
       return result;
}

// Example 7: Serialization
void SaveColor(const icmm::CRgb& color, const QString& filename)
{
       ifile::CFileWriteArchive archive(filename);
       if (archive.IsOpen()) {
              icmm::CRgb copy = color;
              copy.Serialize(archive);
       }
}

void LoadColor(icmm::CRgb& color, const QString& filename)
{
       ifile::CFileReadArchive archive(filename);
       if (archive.IsOpen()) {
              color.Serialize(archive);
       }
}

// Example 8: Gamma correction
icmm::CRgb ApplyGamma(const icmm::CRgb& linear, double gamma)
{
       return icmm::CRgb(
              qPow(linear.GetRed(), 1.0 / gamma),
              qPow(linear.GetGreen(), 1.0 / gamma),
              qPow(linear.GetBlue(), 1.0 / gamma)
       );
}

icmm::CRgb RemoveGamma(const icmm::CRgb& srgb, double gamma)
{
       return icmm::CRgb(
              qPow(srgb.GetRed(), gamma),
              qPow(srgb.GetGreen(), gamma),
              qPow(srgb.GetBlue(), gamma)
       );
}

Component Range

Standard Range: [0.0, 1.0] for SDR (Standard Dynamic Range)
- 0.0 = no intensity (black)
- 1.0 = full intensity (white or pure color)
Extended Range: Values > 1.0 are valid for HDR applications
Negative Values: Generally invalid but not prevented by the class

Supported Operations

Arithmetic: +, -, *, / (component-wise)
Scaling: *, / with scalar values
Assignment: =, +=, -=, *=, /=
Serialization: Save/load via IArchive

Best Practices

Use [0.0, 1.0] range for standard applications
Clamp values before display to avoid artifacts
Consider gamma correction for perceptual operations
Use color spaces like Lab for perceptual blending
Be aware RGB is device-dependent without color profile

Note: Component values are stored as doubles and typically range from 0.0 to 1.0, though values outside this range are permitted.

See also: icmm::TComposedColor, icmm::CRgbColorModel, icmm::CHsv, icmm::CSRgbColor

Definition at line 167 of file CRgb.h.

Member Typedef Documentation

◆ BaseClass

typedef TComposedColor<3> icmm::CRgb::BaseClass

Definition at line 170 of file CRgb.h.

Member Enumeration Documentation

◆ ComponentIndex

enum icmm::CRgb::ComponentIndex

Enumerator
CI_RED
CI_GREEN
CI_BLUE
CI_LAST

Definition at line 172 of file CRgb.h.

Constructor & Destructor Documentation

◆ CRgb() [1/2]

icmm::CRgb::CRgb	(	double	r = `0.0`,
		double	g = `0.0`,
		double	b = `0.0`
	)

inline

Definition at line 216 of file CRgb.h.

References CI_BLUE, CI_GREEN, CI_RED, and imath::TVector< Size, Element >::SetElement().

◆ CRgb() [2/2]

icmm::CRgb::CRgb ( const CRgb & color )

inline

Definition at line 224 of file CRgb.h.

Member Function Documentation

◆ GetBlue()

double icmm::CRgb::GetBlue ( ) const

inline

Definition at line 256 of file CRgb.h.

References CI_BLUE, and imath::TVector< Size, Element >::GetElement().

◆ GetGreen()

double icmm::CRgb::GetGreen ( ) const

inline

Definition at line 244 of file CRgb.h.

References CI_GREEN, and imath::TVector< Size, Element >::GetElement().

◆ GetRed()

double icmm::CRgb::GetRed ( ) const

inline

Definition at line 232 of file CRgb.h.

References CI_RED, and imath::TVector< Size, Element >::GetElement().

◆ operator*() [1/2]

CRgb icmm::CRgb::operator* ( const CRgb & color ) const

inline

Definition at line 290 of file CRgb.h.

◆ operator*() [2/2]

CRgb icmm::CRgb::operator* ( double value ) const

inline

Definition at line 310 of file CRgb.h.

◆ operator*=() [1/2]

const CRgb & icmm::CRgb::operator*= ( const CRgb & color )

inline

Definition at line 354 of file CRgb.h.

References icmm::TComposedColor< 3 >::operator*=().

◆ operator*=() [2/2]

const CRgb & icmm::CRgb::operator*= ( double value )

inline

Definition at line 370 of file CRgb.h.

References icmm::TComposedColor< 3 >::operator*=().

◆ operator+()

CRgb icmm::CRgb::operator+ ( const CRgb & color ) const

inline

Definition at line 270 of file CRgb.h.

◆ operator+=()

const CRgb & icmm::CRgb::operator+= ( const CRgb & color )

inline

Definition at line 338 of file CRgb.h.

References icmm::TComposedColor< 3 >::operator+=().

◆ operator-()

CRgb icmm::CRgb::operator- ( const CRgb & color ) const

inline

Definition at line 280 of file CRgb.h.

◆ operator-=()

const CRgb & icmm::CRgb::operator-= ( const CRgb & color )

inline

Definition at line 346 of file CRgb.h.

References icmm::TComposedColor< 3 >::operator-=().

◆ operator/() [1/2]

CRgb icmm::CRgb::operator/ ( const CRgb & color ) const

inline

Definition at line 300 of file CRgb.h.

◆ operator/() [2/2]

CRgb icmm::CRgb::operator/ ( double value ) const

inline

Definition at line 320 of file CRgb.h.

◆ operator/=() [1/2]

const CRgb & icmm::CRgb::operator/= ( const CRgb & color )

inline

Definition at line 362 of file CRgb.h.

References icmm::TComposedColor< 3 >::operator/=().

◆ operator/=() [2/2]

const CRgb & icmm::CRgb::operator/= ( double value )

inline

Definition at line 378 of file CRgb.h.

References icmm::TComposedColor< 3 >::operator/=().

◆ operator=()

CRgb & icmm::CRgb::operator= ( const CRgb & color )

inline

Definition at line 330 of file CRgb.h.

References icmm::TComposedColor< 3 >::operator=().

◆ Serialize()

virtual bool icmm::CRgb::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Reimplemented from icmm::TComposedColor< 3 >.

◆ SetBlue()

void icmm::CRgb::SetBlue ( double value )

inline

Definition at line 262 of file CRgb.h.

References CI_BLUE, and imath::TVector< Size, Element >::SetElement().

◆ SetGreen()

void icmm::CRgb::SetGreen ( double value )

inline

Definition at line 250 of file CRgb.h.

References CI_GREEN, and imath::TVector< Size, Element >::SetElement().

◆ SetRed()

void icmm::CRgb::SetRed ( double value )

inline

Definition at line 238 of file CRgb.h.

References CI_RED, and imath::TVector< Size, Element >::SetElement().

The documentation for this class was generated from the following file:

Acf/Include/icmm/CRgb.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Purpose

RGB Color Model

Usage Examples

Component Range

Supported Operations

Best Practices

Member Typedef Documentation

◆ BaseClass

Member Enumeration Documentation

◆ ComponentIndex

Constructor & Destructor Documentation

◆ CRgb() [1/2]

◆ CRgb() [2/2]

Member Function Documentation

◆ GetBlue()

◆ GetGreen()

◆ GetRed()

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator+()

◆ operator+=()

◆ operator-()

◆ operator-=()

◆ operator/() [1/2]

◆ operator/() [2/2]

◆ operator/=() [1/2]

◆ operator/=() [2/2]

◆ operator=()

◆ Serialize()

◆ SetBlue()

◆ SetGreen()

◆ SetRed()
