Primitive for representation of CMY color value. More...

#include <CCmy.h>

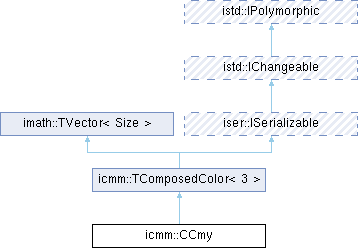

Inheritance diagram for icmm::CCmy:

Public Types
enum	ComponentIndex { CI_CYAN , CI_MAGENTA , CI_YELLOW , CI_LAST = CI_YELLOW }

typedef TComposedColor< 3 >	BaseClass

Public Types inherited from icmm::TComposedColor< 3 >
typedef imath::TVector< Size >	BaseClass

typedef BaseClass::Elements	Elements

Public Types inherited from imath::TVector< Size, Element >
typedef Element	ElementType

typedef Element	Elements[Size]

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CCmy (double c=0.0, double m=0.0, double y=0.0)

	CCmy (const CCmy &color)

double	GetC () const

void	SetC (double value)

double	GetM () const

void	SetM (double value)

double	GetY () const

void	SetY (double value)

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

CCmy	operator+ (const CCmy &color) const

CCmy	operator- (const CCmy &color) const

CCmy	operator* (const CCmy &color) const

CCmy	operator/ (const CCmy &color) const

CCmy	operator* (double value) const

CCmy	operator/ (double value) const

CCmy &	operator= (const CCmy &color)

const CCmy &	operator+= (const CCmy &color)

const CCmy &	operator-= (const CCmy &color)

const CCmy &	operator*= (const CCmy &color)

const CCmy &	operator/= (const CCmy &color)

const CCmy &	operator*= (double value)

const CCmy &	operator/= (double value)

Public Member Functions inherited from icmm::TComposedColor< 3 >
	TComposedColor ()

	TComposedColor (const BaseClass &value)

	TComposedColor (const imath::CVarVector &vector)

	TComposedColor (const TComposedColor< Size > &color)=default

void	GetRounded (const imath::IDoubleManip &manipulator, TComposedColor< Size > &result)
	Get color after components value rounding with specified precision.

bool	IsRoundedEqual (const TComposedColor< Size > &color, const imath::IDoubleManip &manipulator) const
	Check if two values are equal after rounding.

bool	IsSimilar (const TComposedColor< Size > &color, double tolerance=I_BIG_EPSILON) const
	Allows to compare two colors with tolerance.

bool	IsNormalized () const
	Check if this color value is normalized.

void	Normalize ()
	Make this color to be normalized.

void	GetNormalized (TComposedColor< Size > &result) const
	Get normalized color.

TComposedColor< Size >	operator+ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator- (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (double value) const

TComposedColor< Size >	operator/ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator/ (double value) const

const TComposedColor< Size > &	operator= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator= (double colorValue)

const TComposedColor< Size > &	operator+= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator-= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (double value)

const TComposedColor< Size > &	operator/= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator/= (double value)

Public Member Functions inherited from imath::TVector< Size, Element >
	TVector ()
	Creates an uninitialized vector.

	TVector (const TVector< Size, Element > &vector)
	Creates a copy of another vector.

	TVector (std::initializer_list< Element > values)
	Creates a vector from an initializer list.

const Element &	GetElement (int i) const
	Gets the element at the specified index (read-only).

Element &	GetElementRef (int i)
	Gets a reference to the element at the specified index (read-write).

void	SetElement (int i, const Element &value)
	Sets the element at the specified index.

void	SetAllElements (const Element &value)
	Sets all elements to the same value.

void	Reset ()
	Sets all coordinates to zero.

void	Clear ()
	Sets all coordinates to zero.

const TVector< Size, Element >::Elements &	GetElements () const
	Get read-only access to internal element container.

TVector< Size, Element >::Elements &	GetElementsRef ()
	Get access to internal element container.

void	Translate (const TVector< Size, Element > &vector)
	Translates (adds) another vector to this vector.

TVector< Size, Element >	GetTranslated (const TVector< Size, Element > &vector)
	Returns a new vector that is the translation of this vector.

void	GetTranslated (const TVector< Size, Element > &vector, TVector< Size, Element > &result)
	Computes the translated vector and stores it in the result parameter.

void	ScaledCumulate (const TVector< Size, Element > &vector, Element scale)
	Adds a scaled vector to this vector.

bool	IsNull (Element tolerance=I_BIG_EPSILON) const
	Checks if this vector is null (all elements approximately zero).

Element	GetDotProduct (const TVector< Size, Element > &vector) const
	Calculates the dot product with another vector.

Element	GetLength2 () const
	Calculates the squared Euclidean length of the vector.

Element	GetLength () const
	Calculates the Euclidean length (magnitude) of the vector.

Element	GetDistance2 (const TVector< Size, Element > &vector) const
	Calculates the squared distance to another vector.

Element	GetDistance (const TVector< Size, Element > &vector) const
	Calculates the Euclidean distance to another vector.

Element	GetElementsSum () const
	Calculates the sum of all vector elements.

bool	Normalize (Element length=1.0)
	Normalizes the vector to a specified length.

bool	GetNormalized (TVector< Size, Element > &result, Element length=1.0) const
	Returns a normalized copy of this vector with specified length.

void	GetMinimal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with minimal elements values.

void	GetMaximal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with maximal elements values.

bool	Serialize (iser::IArchive &archive)
	Serialize this vector to specified archive.

bool	operator== (const TVector< Size, Element > &vector) const

bool	operator!= (const TVector< Size, Element > &vector) const

bool	operator< (const TVector< Size, Element > &vector) const

bool	operator> (const TVector< Size, Element > &vector) const

bool	operator<= (const TVector< Size, Element > &vector) const

bool	operator>= (const TVector< Size, Element > &vector) const

TVector< Size, Element > &	operator= (const TVector< Size, Element > &vector)=default

TVector< Size, Element >	operator- () const

TVector< Size, Element >	operator+ (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator- (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator* (Element scalar) const

TVector< Size, Element >	operator/ (Element scalar) const

TVector< Size, Element > &	operator+= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator-= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator*= (Element scalar)

TVector< Size, Element > &	operator/= (Element scalar)

const Element &	operator[] (int i) const

Element &	operator[] (int i)

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from imath::TVector< Size, Element >
static int	GetElementsCount ()
	Get number of elements.

static bool	SetElementsCount (int count)
	Set number of elements.

static const TVector< Size, Element > &	GetZero ()
	Get vector with all coordinates set to 0.

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes inherited from imath::TVector< Size, Element >
Elements	m_elements

Detailed Description

Primitive for representation of CMY color value.

Please note, that normal components values are in range [0, 1].

Definition at line 18 of file CCmy.h.

Member Typedef Documentation

◆ BaseClass

typedef TComposedColor<3> icmm::CCmy::BaseClass

Definition at line 21 of file CCmy.h.

Member Enumeration Documentation

◆ ComponentIndex

enum icmm::CCmy::ComponentIndex

Enumerator
CI_CYAN
CI_MAGENTA
CI_YELLOW
CI_LAST

Definition at line 23 of file CCmy.h.

Constructor & Destructor Documentation

◆ CCmy() [1/2]

icmm::CCmy::CCmy	(	double	c = `0.0`,
		double	m = `0.0`,
		double	y = `0.0`
	)

inline

Definition at line 67 of file CCmy.h.

References CI_CYAN, CI_MAGENTA, CI_YELLOW, and imath::TVector< Size, Element >::SetElement().

◆ CCmy() [2/2]

icmm::CCmy::CCmy ( const CCmy & color )

inline

Definition at line 75 of file CCmy.h.

Member Function Documentation

◆ GetC()

double icmm::CCmy::GetC ( ) const

inline

Definition at line 83 of file CCmy.h.

References CI_CYAN, and imath::TVector< Size, Element >::GetElement().

◆ GetM()

double icmm::CCmy::GetM ( ) const

inline

Definition at line 95 of file CCmy.h.

References CI_MAGENTA, and imath::TVector< Size, Element >::GetElement().

◆ GetY()

double icmm::CCmy::GetY ( ) const

inline

Definition at line 107 of file CCmy.h.

References CI_YELLOW, and imath::TVector< Size, Element >::GetElement().

◆ operator*() [1/2]

CCmy icmm::CCmy::operator* ( const CCmy & color ) const

◆ operator*() [2/2]

CCmy icmm::CCmy::operator* ( double value ) const

◆ operator*=() [1/2]

const CCmy & icmm::CCmy::operator*= ( const CCmy & color )

inline

Definition at line 145 of file CCmy.h.

References icmm::TComposedColor< 3 >::operator*=().

◆ operator*=() [2/2]

const CCmy & icmm::CCmy::operator*= ( double value )

inline

Definition at line 161 of file CCmy.h.

References icmm::TComposedColor< 3 >::operator*=().

◆ operator+()

CCmy icmm::CCmy::operator+ ( const CCmy & color ) const

◆ operator+=()

const CCmy & icmm::CCmy::operator+= ( const CCmy & color )

inline

Definition at line 129 of file CCmy.h.

References icmm::TComposedColor< 3 >::operator+=().

◆ operator-()

CCmy icmm::CCmy::operator- ( const CCmy & color ) const

◆ operator-=()

const CCmy & icmm::CCmy::operator-= ( const CCmy & color )

inline

Definition at line 137 of file CCmy.h.

References icmm::TComposedColor< 3 >::operator-=().

◆ operator/() [1/2]

CCmy icmm::CCmy::operator/ ( const CCmy & color ) const

◆ operator/() [2/2]

CCmy icmm::CCmy::operator/ ( double value ) const

◆ operator/=() [1/2]

const CCmy & icmm::CCmy::operator/= ( const CCmy & color )

inline

Definition at line 153 of file CCmy.h.

References icmm::TComposedColor< 3 >::operator/=().

◆ operator/=() [2/2]

const CCmy & icmm::CCmy::operator/= ( double value )

inline

Definition at line 169 of file CCmy.h.

References icmm::TComposedColor< 3 >::operator/=().

◆ operator=()

CCmy & icmm::CCmy::operator= ( const CCmy & color )

inline

Definition at line 121 of file CCmy.h.

References icmm::TComposedColor< 3 >::operator=().

◆ Serialize()

virtual bool icmm::CCmy::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Reimplemented from icmm::TComposedColor< 3 >.

◆ SetC()

void icmm::CCmy::SetC ( double value )

inline

Definition at line 89 of file CCmy.h.

References CI_CYAN, and imath::TVector< Size, Element >::SetElement().

◆ SetM()

void icmm::CCmy::SetM ( double value )

inline

Definition at line 101 of file CCmy.h.

References CI_MAGENTA, and imath::TVector< Size, Element >::SetElement().

◆ SetY()

void icmm::CCmy::SetY ( double value )

inline

Definition at line 113 of file CCmy.h.

References CI_YELLOW, and imath::TVector< Size, Element >::SetElement().

The documentation for this class was generated from the following file:

Acf/Include/icmm/CCmy.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

Member Enumeration Documentation

◆ ComponentIndex

Constructor & Destructor Documentation

◆ CCmy() [1/2]

◆ CCmy() [2/2]

Member Function Documentation

◆ GetC()

◆ GetM()

◆ GetY()

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator+()

◆ operator+=()

◆ operator-()

◆ operator-=()

◆ operator/() [1/2]

◆ operator/() [2/2]

◆ operator/=() [1/2]

◆ operator/=() [2/2]

◆ operator=()

◆ Serialize()

◆ SetC()

◆ SetM()

◆ SetY()
