Primitive for representation of CMYK (Cyan, Magenta, Yellow, Black) color values. More...

#include <CCmyk.h>

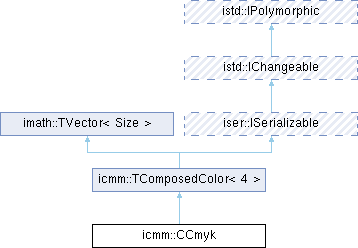

Inheritance diagram for icmm::CCmyk:

Public Types
enum	ComponentIndex { CI_CYAN , CI_MAGENTA , CI_YELLOW , CI_BLACK , CI_LAST = CI_BLACK }

typedef TComposedColor< 4 >	BaseClass

Public Types inherited from icmm::TComposedColor< 4 >
typedef imath::TVector< Size >	BaseClass

typedef BaseClass::Elements	Elements

Public Types inherited from imath::TVector< Size, Element >
typedef Element	ElementType

typedef Element	Elements[Size]

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CCmyk (double c=0.0, double m=0.0, double y=0.0, double k=0.0)

	CCmyk (const CCmyk &color)

double	GetC () const

void	SetC (double value)

double	GetM () const

void	SetM (double value)

double	GetY () const

void	SetY (double value)

double	GetK () const

void	SetK (double value)

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

CCmyk	operator+ (const CCmyk &color) const

CCmyk	operator- (const CCmyk &color) const

CCmyk	operator* (const CCmyk &color) const

CCmyk	operator/ (const CCmyk &color) const

CCmyk	operator* (double value) const

CCmyk	operator/ (double value) const

CCmyk &	operator= (const CCmyk &color)

const CCmyk &	operator+= (const CCmyk &color)

const CCmyk &	operator-= (const CCmyk &color)

const CCmyk &	operator*= (const CCmyk &color)

const CCmyk &	operator/= (const CCmyk &color)

const CCmyk &	operator*= (double value)

const CCmyk &	operator/= (double value)

Public Member Functions inherited from icmm::TComposedColor< 4 >
	TComposedColor ()

	TComposedColor (const BaseClass &value)

	TComposedColor (const imath::CVarVector &vector)

	TComposedColor (const TComposedColor< Size > &color)=default

void	GetRounded (const imath::IDoubleManip &manipulator, TComposedColor< Size > &result)
	Get color after components value rounding with specified precision.

bool	IsRoundedEqual (const TComposedColor< Size > &color, const imath::IDoubleManip &manipulator) const
	Check if two values are equal after rounding.

bool	IsSimilar (const TComposedColor< Size > &color, double tolerance=I_BIG_EPSILON) const
	Allows to compare two colors with tolerance.

bool	IsNormalized () const
	Check if this color value is normalized.

void	Normalize ()
	Make this color to be normalized.

void	GetNormalized (TComposedColor< Size > &result) const
	Get normalized color.

TComposedColor< Size >	operator+ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator- (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator* (double value) const

TComposedColor< Size >	operator/ (const TComposedColor< Size > &color) const

TComposedColor< Size >	operator/ (double value) const

const TComposedColor< Size > &	operator= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator= (double colorValue)

const TComposedColor< Size > &	operator+= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator-= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator*= (double value)

const TComposedColor< Size > &	operator/= (const TComposedColor< Size > &color)

const TComposedColor< Size > &	operator/= (double value)

Public Member Functions inherited from imath::TVector< Size, Element >
	TVector ()
	Creates an uninitialized vector.

	TVector (const TVector< Size, Element > &vector)
	Creates a copy of another vector.

	TVector (std::initializer_list< Element > values)
	Creates a vector from an initializer list.

const Element &	GetElement (int i) const
	Gets the element at the specified index (read-only).

Element &	GetElementRef (int i)
	Gets a reference to the element at the specified index (read-write).

void	SetElement (int i, const Element &value)
	Sets the element at the specified index.

void	SetAllElements (const Element &value)
	Sets all elements to the same value.

void	Reset ()
	Sets all coordinates to zero.

void	Clear ()
	Sets all coordinates to zero.

const TVector< Size, Element >::Elements &	GetElements () const
	Get read-only access to internal element container.

TVector< Size, Element >::Elements &	GetElementsRef ()
	Get access to internal element container.

void	Translate (const TVector< Size, Element > &vector)
	Translates (adds) another vector to this vector.

TVector< Size, Element >	GetTranslated (const TVector< Size, Element > &vector)
	Returns a new vector that is the translation of this vector.

void	GetTranslated (const TVector< Size, Element > &vector, TVector< Size, Element > &result)
	Computes the translated vector and stores it in the result parameter.

void	ScaledCumulate (const TVector< Size, Element > &vector, Element scale)
	Adds a scaled vector to this vector.

bool	IsNull (Element tolerance=I_BIG_EPSILON) const
	Checks if this vector is null (all elements approximately zero).

Element	GetDotProduct (const TVector< Size, Element > &vector) const
	Calculates the dot product with another vector.

Element	GetLength2 () const
	Calculates the squared Euclidean length of the vector.

Element	GetLength () const
	Calculates the Euclidean length (magnitude) of the vector.

Element	GetDistance2 (const TVector< Size, Element > &vector) const
	Calculates the squared distance to another vector.

Element	GetDistance (const TVector< Size, Element > &vector) const
	Calculates the Euclidean distance to another vector.

Element	GetElementsSum () const
	Calculates the sum of all vector elements.

bool	Normalize (Element length=1.0)
	Normalizes the vector to a specified length.

bool	GetNormalized (TVector< Size, Element > &result, Element length=1.0) const
	Returns a normalized copy of this vector with specified length.

void	GetMinimal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with minimal elements values.

void	GetMaximal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with maximal elements values.

bool	Serialize (iser::IArchive &archive)
	Serialize this vector to specified archive.

bool	operator== (const TVector< Size, Element > &vector) const

bool	operator!= (const TVector< Size, Element > &vector) const

bool	operator< (const TVector< Size, Element > &vector) const

bool	operator> (const TVector< Size, Element > &vector) const

bool	operator<= (const TVector< Size, Element > &vector) const

bool	operator>= (const TVector< Size, Element > &vector) const

TVector< Size, Element > &	operator= (const TVector< Size, Element > &vector)=default

TVector< Size, Element >	operator- () const

TVector< Size, Element >	operator+ (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator- (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator* (Element scalar) const

TVector< Size, Element >	operator/ (Element scalar) const

TVector< Size, Element > &	operator+= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator-= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator*= (Element scalar)

TVector< Size, Element > &	operator/= (Element scalar)

const Element &	operator[] (int i) const

Element &	operator[] (int i)

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from imath::TVector< Size, Element >
static int	GetElementsCount ()
	Get number of elements.

static bool	SetElementsCount (int count)
	Set number of elements.

static const TVector< Size, Element > &	GetZero ()
	Get vector with all coordinates set to 0.

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Protected Attributes inherited from imath::TVector< Size, Element >
Elements	m_elements

Detailed Description

Primitive for representation of CMYK (Cyan, Magenta, Yellow, Black) color values.

Purpose

CCmyk represents colors in the CMYK subtractive color model, which is the standard for color printing and physical media. Unlike RGB (additive), CMYK works by subtracting colors from white light, as inks absorb certain wavelengths. The K (Key/Black) component is added for practical printing reasons - combining CMY inks doesn't produce true black and uses excessive ink.

CMYK Color Model

CMYK is a subtractive color model where colors are created by absorbing light:

Cyan (C): Absorbs red light, reflects blue and green
Magenta (M): Absorbs green light, reflects red and blue
Yellow (Y): Absorbs blue light, reflects red and green
Black (K): Key plate, provides true black and reduces ink usage

Color mixing:**
Cyan + Magenta = Blue
Cyan + Yellow = Green
Magenta + Yellow = Red
Cyan + Magenta + Yellow = Dark Brown (not true black)
Full Black component (K=1.0) = True Black

Usage Examples

// Example 1: Creating CMYK colors
icmm::CCmyk white(0.0, 0.0, 0.0, 0.0);    // No ink
icmm::CCmyk black(0.0, 0.0, 0.0, 1.0);    // Full black ink
icmm::CCmyk cyan(1.0, 0.0, 0.0, 0.0);     // Pure cyan
icmm::CCmyk magenta(0.0, 1.0, 0.0, 0.0);  // Pure magenta
icmm::CCmyk yellow(0.0, 0.0, 1.0, 0.0);   // Pure yellow

// Mixed colors
icmm::CCmyk blue(1.0, 1.0, 0.0, 0.0);     // Cyan + Magenta
icmm::CCmyk green(1.0, 0.0, 1.0, 0.0);    // Cyan + Yellow
icmm::CCmyk red(0.0, 1.0, 1.0, 0.0);      // Magenta + Yellow

// Example 2: Component access
icmm::CCmyk color;
color.SetC(0.2);  // 20% cyan
color.SetM(0.5);  // 50% magenta
color.SetY(0.8);  // 80% yellow
color.SetK(0.1);  // 10% black

double cyan = color.GetC();
double magenta = color.GetM();
double yellow = color.GetY();
double black = color.GetK();

// Example 3: RGB to CMYK conversion (naive approach)
icmm::CCmyk RgbToCmykNaive(const icmm::CRgb& rgb)
{
       // Simple CMY conversion
       double c = 1.0 - rgb.GetRed();
       double m = 1.0 - rgb.GetGreen();
       double y = 1.0 - rgb.GetBlue();

       // Extract black component (UCR - Under Color Removal)
       double k = qMin(c, qMin(m, y));

       // Reduce CMY by black amount
       if (k < 1.0) {
              c = (c - k) / (1.0 - k);
              m = (m - k) / (1.0 - k);
              y = (y - k) / (1.0 - k);
       } else {
              c = m = y = 0.0;
       }

       return icmm::CCmyk(c, m, y, k);
}

// Example 4: Estimating ink coverage
double GetInkCoverage(const icmm::CCmyk& color)
{
       // Total ink as percentage (400% max for CMYK)
       return (color.GetC() + color.GetM() +
               color.GetY() + color.GetK()) * 100.0;
}

icmm::CCmyk richBlack(0.6, 0.4, 0.4, 1.0);  // Rich black
double coverage = GetInkCoverage(richBlack);  // 240%

// Example 5: Checking ink limits
bool IsWithinInkLimit(const icmm::CCmyk& color, double maxCoverage = 3.0)
{
       double total = color.GetC() + color.GetM() +
                     color.GetY() + color.GetK();
       return total <= maxCoverage;
}

// Example 6: Creating rich black
icmm::CCmyk CreateRichBlack(double blackAmount = 1.0,
                            double cmy = 0.4)
{
       // Rich black uses CMY + K for deeper black
       return icmm::CCmyk(cmy, cmy, cmy, blackAmount);
}

icmm::CCmyk standardBlack = CreateRichBlack(1.0, 0.0);   // Pure K
icmm::CCmyk richBlack = CreateRichBlack(1.0, 0.4);       // K + CMY

// Example 7: Gray component replacement (GCR)
icmm::CCmyk ApplyGCR(const icmm::CCmyk& color, double gcrAmount)
{
       // Find minimum CMY value
       double minCMY = qMin(color.GetC(), qMin(color.GetM(), color.GetY()));

       // Replace with black
       double addBlack = minCMY * gcrAmount;

       return icmm::CCmyk(
              color.GetC() - addBlack,
              color.GetM() - addBlack,
              color.GetY() - addBlack,
              color.GetK() + addBlack
       );
}

// Example 8: Spot color separation
struct SpotColorData {
       QString name;
       icmm::CCmyk processEquivalent;
       double angle;  // Screen angle for printing
};

SpotColorData CreateSpotColor(const QString& name,
                              const icmm::CCmyk& cmyk)
{
       SpotColorData spot;
       spot.name = name;
       spot.processEquivalent = cmyk;
       spot.angle = 45.0;  // Default angle
       return spot;
}

CMYK and Printing

Ink Coverage:**

Total ink coverage (TAC) is typically limited to 240-340%
High coverage causes drying problems and paper saturation
GCR (Gray Component Replacement) reduces CMY, increases K
UCR (Under Color Removal) removes CMY where K exists

Black Generation:**
Process Black: K=1.0, C=M=Y=0 (standard black)
Rich Black: K=1.0 with some CMY (deeper, richer black)
Super Black: Maximum K with CMY support (photography)

Screen Angles:**
Cyan: 105 degrees, Magenta: 75 degrees, Yellow: 90 degrees, Black: 45 degrees
Prevents moire patterns in halftone printing

Best Practices

Monitor ink coverage - keep TAC below printer limits
Use rich black for large dark areas
Apply GCR/UCR for better print quality and ink economy
Convert from RGB using proper ICC profiles, not naive algorithms
Test colors on actual print media - screen won't match exactly
Consider paper type - coated vs. uncoated affects color
Use CMYK color model class with proper transformations for accuracy

Limitations

Smaller color gamut than RGB (can't reproduce all screen colors)
Device-dependent (varies by printer, ink, paper)
Not suitable for screen display - convert to RGB
Requires careful color management for accuracy

Note: Component values range from 0.0 (no ink) to 1.0 (full ink coverage)

See also: icmm::TComposedColor, icmm::CCmykColorModel, icmm::CRgb, icmm::CRgbToCmykTransformation, icmm::CCmykToRgbTransformation

Definition at line 190 of file CCmyk.h.

Member Typedef Documentation

◆ BaseClass

typedef TComposedColor<4> icmm::CCmyk::BaseClass

Definition at line 193 of file CCmyk.h.

Member Enumeration Documentation

◆ ComponentIndex

enum icmm::CCmyk::ComponentIndex

Enumerator
CI_CYAN
CI_MAGENTA
CI_YELLOW
CI_BLACK
CI_LAST

Definition at line 195 of file CCmyk.h.

Constructor & Destructor Documentation

◆ CCmyk() [1/2]

icmm::CCmyk::CCmyk	(	double	c = `0.0`,
		double	m = `0.0`,
		double	y = `0.0`,
		double	k = `0.0`
	)

inline

Definition at line 242 of file CCmyk.h.

References CI_BLACK, CI_CYAN, CI_MAGENTA, CI_YELLOW, and imath::TVector< Size, Element >::SetElement().

◆ CCmyk() [2/2]

icmm::CCmyk::CCmyk ( const CCmyk & color )

inline

Definition at line 251 of file CCmyk.h.

Member Function Documentation

◆ GetC()

double icmm::CCmyk::GetC ( ) const

inline

Definition at line 259 of file CCmyk.h.

References CI_CYAN, and imath::TVector< Size, Element >::GetElement().

◆ GetK()

double icmm::CCmyk::GetK ( ) const

inline

Definition at line 295 of file CCmyk.h.

References CI_BLACK, and imath::TVector< Size, Element >::GetElement().

◆ GetM()

double icmm::CCmyk::GetM ( ) const

inline

Definition at line 271 of file CCmyk.h.

References CI_MAGENTA, and imath::TVector< Size, Element >::GetElement().

◆ GetY()

double icmm::CCmyk::GetY ( ) const

inline

Definition at line 283 of file CCmyk.h.

References CI_YELLOW, and imath::TVector< Size, Element >::GetElement().

◆ operator*() [1/2]

CCmyk icmm::CCmyk::operator* ( const CCmyk & color ) const

inline

Definition at line 329 of file CCmyk.h.

◆ operator*() [2/2]

CCmyk icmm::CCmyk::operator* ( double value ) const

inline

Definition at line 349 of file CCmyk.h.

◆ operator*=() [1/2]

const CCmyk & icmm::CCmyk::operator*= ( const CCmyk & color )

inline

Definition at line 393 of file CCmyk.h.

References icmm::TComposedColor< 4 >::operator*=().

◆ operator*=() [2/2]

const CCmyk & icmm::CCmyk::operator*= ( double value )

inline

Definition at line 409 of file CCmyk.h.

References icmm::TComposedColor< 4 >::operator*=().

◆ operator+()

CCmyk icmm::CCmyk::operator+ ( const CCmyk & color ) const

inline

Definition at line 309 of file CCmyk.h.

◆ operator+=()

const CCmyk & icmm::CCmyk::operator+= ( const CCmyk & color )

inline

Definition at line 377 of file CCmyk.h.

References icmm::TComposedColor< 4 >::operator+=().

◆ operator-()

CCmyk icmm::CCmyk::operator- ( const CCmyk & color ) const

inline

Definition at line 319 of file CCmyk.h.

◆ operator-=()

const CCmyk & icmm::CCmyk::operator-= ( const CCmyk & color )

inline

Definition at line 385 of file CCmyk.h.

References icmm::TComposedColor< 4 >::operator-=().

◆ operator/() [1/2]

CCmyk icmm::CCmyk::operator/ ( const CCmyk & color ) const

inline

Definition at line 339 of file CCmyk.h.

◆ operator/() [2/2]

CCmyk icmm::CCmyk::operator/ ( double value ) const

inline

Definition at line 359 of file CCmyk.h.

◆ operator/=() [1/2]

const CCmyk & icmm::CCmyk::operator/= ( const CCmyk & color )

inline

Definition at line 401 of file CCmyk.h.

References icmm::TComposedColor< 4 >::operator/=().

◆ operator/=() [2/2]

const CCmyk & icmm::CCmyk::operator/= ( double value )

inline

Definition at line 417 of file CCmyk.h.

References icmm::TComposedColor< 4 >::operator/=().

◆ operator=()

CCmyk & icmm::CCmyk::operator= ( const CCmyk & color )

inline

Definition at line 369 of file CCmyk.h.

References icmm::TComposedColor< 4 >::operator=().

◆ Serialize()

virtual bool icmm::CCmyk::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Reimplemented from icmm::TComposedColor< 4 >.

◆ SetC()

void icmm::CCmyk::SetC ( double value )

inline

Definition at line 265 of file CCmyk.h.

References CI_CYAN, and imath::TVector< Size, Element >::SetElement().

◆ SetK()

void icmm::CCmyk::SetK ( double value )

inline

Definition at line 301 of file CCmyk.h.

References CI_BLACK, and imath::TVector< Size, Element >::SetElement().

◆ SetM()

void icmm::CCmyk::SetM ( double value )

inline

Definition at line 277 of file CCmyk.h.

References CI_MAGENTA, and imath::TVector< Size, Element >::SetElement().

◆ SetY()

void icmm::CCmyk::SetY ( double value )

inline

Definition at line 289 of file CCmyk.h.

References CI_YELLOW, and imath::TVector< Size, Element >::SetElement().

The documentation for this class was generated from the following file:

Acf/Include/icmm/CCmyk.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Purpose

CMYK Color Model

Usage Examples

CMYK and Printing

Best Practices

Limitations

Member Typedef Documentation

◆ BaseClass

Member Enumeration Documentation

◆ ComponentIndex

Constructor & Destructor Documentation

◆ CCmyk() [1/2]

◆ CCmyk() [2/2]

Member Function Documentation

◆ GetC()

◆ GetK()

◆ GetM()

◆ GetY()

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator+()

◆ operator+=()

◆ operator-()

◆ operator-=()

◆ operator/() [1/2]

◆ operator/() [2/2]

◆ operator/=() [1/2]

◆ operator/=() [2/2]

◆ operator=()

◆ Serialize()

◆ SetC()

◆ SetK()

◆ SetM()

◆ SetY()
