Implementation of fixed-size mathematical vector with specified type of elements. More...

#include <TVector.h>

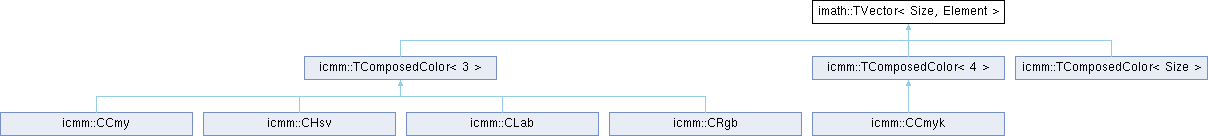

Inheritance diagram for imath::TVector< Size, Element >:

Public Types
typedef Element	ElementType

typedef Element	Elements[Size]

Public Member Functions
	TVector ()
	Creates an uninitialized vector.

	TVector (const TVector< Size, Element > &vector)
	Creates a copy of another vector.

	TVector (std::initializer_list< Element > values)
	Creates a vector from an initializer list.

const Element &	GetElement (int i) const
	Gets the element at the specified index (read-only).

Element &	GetElementRef (int i)
	Gets a reference to the element at the specified index (read-write).

void	SetElement (int i, const Element &value)
	Sets the element at the specified index.

void	SetAllElements (const Element &value)
	Sets all elements to the same value.

void	Reset ()
	Sets all coordinates to zero.

void	Clear ()
	Sets all coordinates to zero.

const TVector< Size, Element >::Elements &	GetElements () const
	Get read-only access to internal element container.

TVector< Size, Element >::Elements &	GetElementsRef ()
	Get access to internal element container.

void	Translate (const TVector< Size, Element > &vector)
	Translates (adds) another vector to this vector.

TVector< Size, Element >	GetTranslated (const TVector< Size, Element > &vector)
	Returns a new vector that is the translation of this vector.

void	GetTranslated (const TVector< Size, Element > &vector, TVector< Size, Element > &result)
	Computes the translated vector and stores it in the result parameter.

void	ScaledCumulate (const TVector< Size, Element > &vector, Element scale)
	Adds a scaled vector to this vector.

bool	IsNull (Element tolerance=I_BIG_EPSILON) const
	Checks if this vector is null (all elements approximately zero).

Element	GetDotProduct (const TVector< Size, Element > &vector) const
	Calculates the dot product with another vector.

Element	GetLength2 () const
	Calculates the squared Euclidean length of the vector.

Element	GetLength () const
	Calculates the Euclidean length (magnitude) of the vector.

Element	GetDistance2 (const TVector< Size, Element > &vector) const
	Calculates the squared distance to another vector.

Element	GetDistance (const TVector< Size, Element > &vector) const
	Calculates the Euclidean distance to another vector.

Element	GetElementsSum () const
	Calculates the sum of all vector elements.

bool	Normalize (Element length=1.0)
	Normalizes the vector to a specified length.

bool	GetNormalized (TVector< Size, Element > &result, Element length=1.0) const
	Returns a normalized copy of this vector with specified length.

void	GetMinimal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with minimal elements values.

void	GetMaximal (const TVector< Size, Element > &vector, TVector< Size, Element > &result) const
	Get vector with maximal elements values.

bool	Serialize (iser::IArchive &archive)
	Serialize this vector to specified archive.

bool	operator== (const TVector< Size, Element > &vector) const

bool	operator!= (const TVector< Size, Element > &vector) const

bool	operator< (const TVector< Size, Element > &vector) const

bool	operator> (const TVector< Size, Element > &vector) const

bool	operator<= (const TVector< Size, Element > &vector) const

bool	operator>= (const TVector< Size, Element > &vector) const

TVector< Size, Element > &	operator= (const TVector< Size, Element > &vector)=default

TVector< Size, Element >	operator- () const

TVector< Size, Element >	operator+ (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator- (const TVector< Size, Element > &vector) const

TVector< Size, Element >	operator* (Element scalar) const

TVector< Size, Element >	operator/ (Element scalar) const

TVector< Size, Element > &	operator+= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator-= (const TVector< Size, Element > &vector)

TVector< Size, Element > &	operator*= (Element scalar)

TVector< Size, Element > &	operator/= (Element scalar)

const Element &	operator[] (int i) const

Element &	operator[] (int i)

Static Public Member Functions
static int	GetElementsCount ()
	Get number of elements.

static bool	SetElementsCount (int count)
	Set number of elements.

static const TVector< Size, Element > &	GetZero ()
	Get vector with all coordinates set to 0.

Protected Attributes
Elements	m_elements

Detailed Description

template<int Size, class Element = double>
class imath::TVector< Size, Element >

Implementation of fixed-size mathematical vector with specified type of elements.

Purpose

TVector is a template class that provides a generic implementation of fixed-size mathematical vectors. It supports common vector operations like addition, scaling, dot product, normalization, and distance calculations. The vector size is determined at compile-time, enabling efficient memory layout and operations.

Template Parameters

Size: The number of elements in the vector (compile-time constant)
Element: The type of each vector element (default: double). Common types include float, double, int, or any numeric type.

Usage Examples

// Create a 3D vector with double precision
imath::TVector<3, double> vec3d;
vec3d.SetElement(0, 1.0);
vec3d.SetElement(1, 2.0);
vec3d.SetElement(2, 3.0);

// Create a 2D vector with float precision using initializer list
imath::TVector<2, float> vec2f = {3.0f, 4.0f};

// Calculate vector length
double length = vec3d.GetLength();  // sqrt(1^2 + 2^2 + 3^2) = sqrt(14)

// Normalize vector to unit length
imath::TVector<3, double> unitVec = vec3d;
if (unitVec.Normalize()) {
       // Now unitVec has length 1.0
}

// Dot product of two vectors
imath::TVector<3, double> other = {1.0, 0.0, 0.0};
double dotProduct = vec3d.GetDotProduct(other);  // 1.0 * 1.0 = 1.0

// Calculate distance between two points
imath::TVector<2, float> point1 = {0.0f, 0.0f};
imath::TVector<2, float> point2 = {3.0f, 4.0f};
float distance = point1.GetDistance(point2);  // 5.0

// Vector addition
imath::TVector<2, float> result = point1;
result.Translate(point2);  // result is now {3.0f, 4.0f}

// Check if vector is null (all zeros)
imath::TVector<3, double> zero;
zero.Clear();
if (zero.IsNull()) {
       // Vector is all zeros
}

Common Operations

Element access: GetElement(), SetElement(), GetElements()
Initialization: Clear(), Reset(), SetAllElements()
Arithmetic: Translate(), ScaledCumulate()
Metrics: GetLength(), GetLength2(), GetDistance(), GetDotProduct()
Normalization: Normalize(), GetNormalized()
Comparison: IsNull()
Operators: +, -, *, /, ==, != (if implemented)

See also: imath::TFastVector, imath::CVarVector, i3d::CVector3d

Definition at line 94 of file TVector.h.

Member Typedef Documentation

◆ Elements

template<int Size, class Element = double>

typedef Element imath::TVector< Size, Element >::Elements[Size]

Definition at line 98 of file TVector.h.

◆ ElementType

template<int Size, class Element = double>

typedef Element imath::TVector< Size, Element >::ElementType

Definition at line 97 of file TVector.h.

Constructor & Destructor Documentation

◆ TVector() [1/3]

template<int Size, class Element >

imath::TVector< Size, Element >::TVector ( )

inline

Creates an uninitialized vector.

This constructor creates a vector with the specified size but does not initialize the element values. The element values will contain undefined data until explicitly set using SetElement(), SetAllElements(), or other initialization methods.

Note: For better performance, use this constructor when you plan to immediately initialize all elements anyway.; If you need a zero-initialized vector, call Clear() or SetAllElements(0) after construction.

See also: Clear(), SetAllElements()

Definition at line 513 of file TVector.h.

◆ TVector() [2/3]

template<int Size, class Element >

imath::TVector< Size, Element >::TVector ( const TVector< Size, Element > & vector )

inline

Creates a copy of another vector.

Parameters

vector The source vector to copy from. All elements will be copied to this new vector.

Definition at line 519 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ TVector() [3/3]

template<int Size, class Element >

imath::TVector< Size, Element >::TVector ( std::initializer_list< Element > values )

inline

Creates a vector from an initializer list.

Allows convenient initialization using brace syntax. If the initializer list contains fewer elements than Size, remaining elements are default-initialized (typically to zero for numeric types). If the list contains more elements than Size, only the first Size elements are used.

Parameters

values Initializer list of element values

// Create a 3D vector
TVector<3, double> v = {1.0, 2.0, 3.0};

// Partial initialization (remaining elements are 0)
TVector<5, int> v2 = {1, 2};  // v2 = {1, 2, 0, 0, 0}

Definition at line 528 of file TVector.h.

Member Function Documentation

◆ Clear()

template<int Size, class Element >

void imath::TVector< Size, Element >::Clear ( )

inline

Sets all coordinates to zero.

Equivalent to SetAllElements(0) and Reset().

See also: Reset(), SetAllElements()

Definition at line 585 of file TVector.h.

◆ GetDistance()

template<int Size, class Element >

Element imath::TVector< Size, Element >::GetDistance ( const TVector< Size, Element > & vector ) const

inline

Calculates the Euclidean distance to another vector.

Parameters

vector The other vector (point)

Returns: The Euclidean distance between this vector and the given vector

TVector<2, double> p1 = {0.0, 0.0};
TVector<2, double> p2 = {3.0, 4.0};
double dist = p1.GetDistance(p2);  // 5.0

See also: GetDistance2(), GetLength()

Definition at line 681 of file TVector.h.

◆ GetDistance2()

template<int Size, class Element >

Element imath::TVector< Size, Element >::GetDistance2 ( const TVector< Size, Element > & vector ) const

inline

Calculates the squared distance to another vector.

More efficient than GetDistance() when only relative distances need to be compared, as it avoids the square root operation.

Parameters

vector The other vector (point)

Returns: The squared Euclidean distance

See also: GetDistance(), GetLength2()

Definition at line 674 of file TVector.h.

◆ GetDotProduct()

template<int Size, class Element >

Element imath::TVector< Size, Element >::GetDotProduct ( const TVector< Size, Element > & vector ) const

inline

Calculates the dot product with another vector.

The dot product is defined as: sum(this[i] * vector[i]) for all i. It measures the similarity of direction between two vectors.

Parameters

vector The other vector for dot product calculation

Returns: The scalar dot product value

TVector<3, double> v1 = {1.0, 0.0, 0.0};
TVector<3, double> v2 = {0.0, 1.0, 0.0};
double dot = v1.GetDotProduct(v2);  // 0.0 (perpendicular vectors)

TVector<3, double> v3 = {2.0, 0.0, 0.0};
double dot2 = v1.GetDotProduct(v3);  // 2.0 (parallel vectors)

See also: GetLength(), Normalize()

Definition at line 647 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

Referenced by i3d::Geometry::GetAngleBetweenVectors(), i3d::Geometry::GetSignedAngleBetweenVectors(), i3d::CPlane3d::GetSignedDistance(), and i3d::Geometry::ProjectVectorOntoVector().

◆ GetElement()

template<int Size, class Element >

const Element & imath::TVector< Size, Element >::GetElement ( int i ) const

inline

Gets the element at the specified index (read-only).

Parameters

i	Zero-based index of the element to retrieve (0 <= i < Size)

Returns: Const reference to the element at index i

Note: No bounds checking is performed in release builds. Accessing out-of-bounds indices results in undefined behavior.

See also: GetElementRef(), SetElement()

Definition at line 546 of file TVector.h.

◆ GetElementRef()

template<int Size, class Element >

Element & imath::TVector< Size, Element >::GetElementRef ( int i )

inline

Gets a reference to the element at the specified index (read-write).

Returns a non-const reference allowing direct modification of the element.

Parameters

i	Zero-based index of the element (0 <= i < Size)

Returns: Reference to the element at index i

TVector<3, double> v;
v.GetElementRef(0) = 1.0;  // Direct assignment
v.GetElementRef(1) += 2.0;  // Direct modification

See also: GetElement(), SetElement()

Definition at line 553 of file TVector.h.

◆ GetElements()

template<int Size, class Element >

const TVector< Size, Element >::Elements & imath::TVector< Size, Element >::GetElements ( ) const

inline

Get read-only access to internal element container.

Definition at line 594 of file TVector.h.

◆ GetElementsCount()

template<int Size, class Element >

int imath::TVector< Size, Element >::GetElementsCount ( )

inlinestatic

Get number of elements.

Definition at line 904 of file TVector.h.

Referenced by icmm::qHash().

◆ GetElementsRef()

template<int Size, class Element >

TVector< Size, Element >::Elements & imath::TVector< Size, Element >::GetElementsRef ( )

inline

Get access to internal element container.

Definition at line 601 of file TVector.h.

◆ GetElementsSum()

template<int Size, class Element >

Element imath::TVector< Size, Element >::GetElementsSum ( ) const

Calculates the sum of all vector elements.

Returns: Sum of all element values

TVector<4, int> v = {1, 2, 3, 4};

int sum = v.GetElementsSum(); // 10

imath::TVector::GetElementsSum

Element GetElementsSum() const

Calculates the sum of all vector elements.

Definition TVector.h:927

Definition at line 927 of file TVector.h.

◆ GetLength()

template<int Size, class Element >

Element imath::TVector< Size, Element >::GetLength ( ) const

inline

Calculates the Euclidean length (magnitude) of the vector.

Returns sqrt(sum(element[i]^2)) for all i.

Returns: The length of the vector

TVector<2, double> v = {3.0, 4.0};

double length = v.GetLength(); // 5.0

See also: GetLength2(), Normalize()

Definition at line 667 of file TVector.h.

Referenced by i3d::Geometry::GetDistance(), i3d::CLine3d::GetLength(), and i3d::Geometry::GetTriangleArea().

◆ GetLength2()

template<int Size, class Element >

Element imath::TVector< Size, Element >::GetLength2 ( ) const

inline

Calculates the squared Euclidean length of the vector.

Returns sum(element[i]^2) for all i. This is more efficient than GetLength() when only relative lengths need to be compared, as it avoids the square root operation.

Returns: The squared length of the vector

See also: GetLength(), GetDistance2()

Definition at line 660 of file TVector.h.

Referenced by i2d::CLine2d::GetAlphaAndCastDistance(), i2d::CLine2d::GetCastAlpha(), and i3d::Geometry::ProjectVectorOntoVector().

◆ GetMaximal()

template<int Size, class Element >

void imath::TVector< Size, Element >::GetMaximal	(	const TVector< Size, Element > &	vector,
		TVector< Size, Element > &	result
	)		const

Get vector with maximal elements values.

Definition at line 989 of file TVector.h.

References imath::TVector< Size, Element >::GetElement(), and imath::TVector< Size, Element >::SetElement().

◆ GetMinimal()

template<int Size, class Element >

void imath::TVector< Size, Element >::GetMinimal	(	const TVector< Size, Element > &	vector,
		TVector< Size, Element > &	result
	)		const

Get vector with minimal elements values.

Definition at line 980 of file TVector.h.

References imath::TVector< Size, Element >::GetElement(), and imath::TVector< Size, Element >::SetElement().

◆ GetNormalized()

template<int Size, class Element >

bool imath::TVector< Size, Element >::GetNormalized	(	TVector< Size, Element > &	result,
		Element	length = `1.0`
	)		const

Returns a normalized copy of this vector with specified length.

Creates a new vector with the same direction as this vector but with the specified length. The original vector is not modified.

Parameters

result	Output parameter that receives the normalized vector
length	The desired length for the normalized vector (default: 1.0)

Returns: true if normalization succeeded, false if this vector's length was zero

TVector<2, double> v = {3.0, 4.0};
TVector<2, double> unit;
if (v.GetNormalized(unit)) {
       // unit is {0.6, 0.8}, v is unchanged
}

See also: Normalize()

Definition at line 960 of file TVector.h.

References I_BIG_EPSILON, and imath::TVector< Size, Element >::m_elements.

◆ GetTranslated() [1/2]

template<int Size, class Element >

TVector< Size, Element > imath::TVector< Size, Element >::GetTranslated ( const TVector< Size, Element > & vector )

Returns a new vector that is the translation of this vector.

Parameters

vector The vector to add

Returns: A new vector containing the sum of this vector and the given vector

See also: Translate(), GetTranslated(const TVector<Size, Element>&, TVector<Size, Element>&)

Definition at line 617 of file TVector.h.

◆ GetTranslated() [2/2]

template<int Size, class Element >

void imath::TVector< Size, Element >::GetTranslated	(	const TVector< Size, Element > &	vector,
		TVector< Size, Element > &	result
	)

Computes the translated vector and stores it in the result parameter.

Parameters

vector	The vector to add to this vector
result	Output parameter that receives the translated vector

See also: Translate(), GetTranslated(const TVector<Size, Element>&)

Definition at line 624 of file TVector.h.

◆ GetZero()

template<int Size, class Element >

const TVector< Size, Element > & imath::TVector< Size, Element >::GetZero ( )

inlinestatic

Get vector with all coordinates set to 0.

Definition at line 918 of file TVector.h.

◆ IsNull()

template<int Size, class Element >

bool imath::TVector< Size, Element >::IsNull ( Element tolerance = I_BIG_EPSILON ) const

inline

Checks if this vector is null (all elements approximately zero).

Parameters

tolerance The maximum absolute value for each element to be considered zero. Default is I_BIG_EPSILON (typically 1e-6 for double precision).

Returns: true if all elements have absolute value less than or equal to tolerance

TVector<3, double> v = {0.0, 0.0000001, 0.0};
bool isNull = v.IsNull();  // true with default tolerance
bool isExactNull = v.IsNull(0.0);  // false, middle element is not exactly zero

See also: Clear(), Reset()

Definition at line 640 of file TVector.h.

◆ Normalize()

template<int Size, class Element >

bool imath::TVector< Size, Element >::Normalize ( Element length = 1.0 )

Normalizes the vector to a specified length.

Scales the vector so that its length becomes the specified value. If the current length is zero (or very close to zero), the operation fails.

Parameters

length The desired length after normalization (default: 1.0 for unit vector)

Returns: true if normalization succeeded, false if the vector length was zero

TVector<2, double> v = {3.0, 4.0};  // length = 5.0
if (v.Normalize()) {
       // v is now {0.6, 0.8} with length 1.0
}

TVector<3, double> v2 = {1.0, 2.0, 3.0};
if (v2.Normalize(10.0)) {
       // v2 now has length 10.0 but same direction
}

See also: GetNormalized(), GetLength()

Definition at line 940 of file TVector.h.

References I_BIG_EPSILON.

◆ operator!=()

template<int Size, class Element >

bool imath::TVector< Size, Element >::operator!= ( const TVector< Size, Element > & vector ) const

inline

Definition at line 702 of file TVector.h.

◆ operator*()

template<int Size, class Element >

TVector< Size, Element > imath::TVector< Size, Element >::operator* ( Element scalar ) const

inline

Definition at line 856 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator*=()

template<int Size, class Element >

TVector< Size, Element > & imath::TVector< Size, Element >::operator*= ( Element scalar )

inline

Definition at line 795 of file TVector.h.

◆ operator+()

template<int Size, class Element >

TVector< Size, Element > imath::TVector< Size, Element >::operator+ ( const TVector< Size, Element > & vector ) const

inline

Definition at line 830 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator+=()

template<int Size, class Element >

TVector< Size, Element > & imath::TVector< Size, Element >::operator+= ( const TVector< Size, Element > & vector )

inline

Definition at line 773 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator-() [1/2]

template<int Size, class Element >

TVector< Size, Element > imath::TVector< Size, Element >::operator- ( ) const

inline

Definition at line 817 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator-() [2/2]

template<int Size, class Element >

TVector< Size, Element > imath::TVector< Size, Element >::operator- ( const TVector< Size, Element > & vector ) const

inline

Definition at line 843 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator-=()

template<int Size, class Element >

TVector< Size, Element > & imath::TVector< Size, Element >::operator-= ( const TVector< Size, Element > & vector )

inline

Definition at line 784 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator/()

template<int Size, class Element >

TVector< Size, Element > imath::TVector< Size, Element >::operator/ ( Element scalar ) const

inline

Definition at line 869 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator/=()

template<int Size, class Element >

TVector< Size, Element > & imath::TVector< Size, Element >::operator/= ( Element scalar )

inline

Definition at line 806 of file TVector.h.

◆ operator<()

template<int Size, class Element >

bool imath::TVector< Size, Element >::operator< ( const TVector< Size, Element > & vector ) const

Definition at line 709 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator<=()

template<int Size, class Element >

bool imath::TVector< Size, Element >::operator<= ( const TVector< Size, Element > & vector ) const

Definition at line 741 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator=()

template<int Size, class Element = double>

TVector< Size, Element > & imath::TVector< Size, Element >::operator= ( const TVector< Size, Element > & vector )

default

◆ operator==()

template<int Size, class Element >

bool imath::TVector< Size, Element >::operator== ( const TVector< Size, Element > & vector ) const

inline

Definition at line 690 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator>()

template<int Size, class Element >

bool imath::TVector< Size, Element >::operator> ( const TVector< Size, Element > & vector ) const

Definition at line 725 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator>=()

template<int Size, class Element >

bool imath::TVector< Size, Element >::operator>= ( const TVector< Size, Element > & vector ) const

Definition at line 757 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ operator[]() [1/2]

template<int Size, class Element >

Element & imath::TVector< Size, Element >::operator[] ( int i )

Definition at line 892 of file TVector.h.

◆ operator[]() [2/2]

template<int Size, class Element >

const Element & imath::TVector< Size, Element >::operator[] ( int i ) const

Definition at line 882 of file TVector.h.

◆ Reset()

template<int Size, class Element >

void imath::TVector< Size, Element >::Reset ( )

inline

Sets all coordinates to zero.

Equivalent to SetAllElements(0). This method is provided for compatibility with other vector implementations.

See also: Clear(), SetAllElements()

Definition at line 576 of file TVector.h.

◆ ScaledCumulate()

template<int Size, class Element >

void imath::TVector< Size, Element >::ScaledCumulate	(	const TVector< Size, Element > &	vector,
		Element	scale
	)

inline

Adds a scaled vector to this vector.

Performs the operation: this[i] += vector[i] * scale for all i. This is equivalent to Translate(vector * scale) but may be more efficiently implemented.

Parameters

vector	The vector to add (scaled)
scale	The scaling factor to apply to the vector before addition

TVector<2, double> v1 = {1.0, 2.0};
TVector<2, double> v2 = {3.0, 4.0};
v1.ScaledCumulate(v2, 2.0);  // v1 is now {7.0, 10.0} = {1+3*2, 2+4*2}

See also: Translate()

Definition at line 631 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

◆ Serialize()

template<int Size, class Element >

bool imath::TVector< Size, Element >::Serialize ( iser::IArchive & archive )

Serialize this vector to specified archive.

Definition at line 998 of file TVector.h.

References iser::IArchive::Process().

◆ SetAllElements()

template<int Size, class Element >

void imath::TVector< Size, Element >::SetAllElements ( const Element & value )

inline

Sets all elements to the same value.

Parameters

value The value to assign to all vector elements

TVector<5, int> v;

v.SetAllElements(7); // All elements are now 7

imath::TVector::SetAllElements

void SetAllElements(const Element &value)

Sets all elements to the same value.

Definition TVector.h:567

See also: Clear(), Reset()

Definition at line 567 of file TVector.h.

◆ SetElement()

template<int Size, class Element >

void imath::TVector< Size, Element >::SetElement	(	int	i,
		const Element &	value
	)

inline

Sets the element at the specified index.

Parameters

i	Zero-based index of the element to set (0 <= i < Size)
value	The new value for the element

See also: GetElement(), GetElementRef()

Definition at line 560 of file TVector.h.

Referenced by icmm::CCmy::CCmy(), icmm::CCmyk::CCmyk(), icmm::CHsv::CHsv(), icmm::CLab::CLab(), icmm::CRgb::CRgb(), imath::TVector< Size, Element >::GetMaximal(), imath::TVector< Size, Element >::GetMinimal(), icmm::CLab::SetA(), icmm::CLab::SetB(), icmm::CRgb::SetBlue(), icmm::CCmy::SetC(), icmm::CCmyk::SetC(), icmm::CRgb::SetGreen(), icmm::CHsv::SetHue(), icmm::CCmyk::SetK(), icmm::CLab::SetL(), icmm::CCmy::SetM(), icmm::CCmyk::SetM(), icmm::CRgb::SetRed(), icmm::CHsv::SetSaturation(), icmm::CHsv::SetValue(), icmm::CCmy::SetY(), and icmm::CCmyk::SetY().

◆ SetElementsCount()

template<int Size, class Element >

bool imath::TVector< Size, Element >::SetElementsCount ( int count )

inlinestatic

Set number of elements.

This method is provided for template implementations.

Parameters

count number of elements.

Returns: true, if the number of set elements equals template parameter.

Definition at line 911 of file TVector.h.

◆ Translate()

template<int Size, class Element >

void imath::TVector< Size, Element >::Translate ( const TVector< Size, Element > & vector )

inline

Translates (adds) another vector to this vector.

Performs element-wise addition: this[i] += vector[i] for all i.

Parameters

vector The vector to add to this vector

TVector<2, double> v1 = {1.0, 2.0};
TVector<2, double> v2 = {3.0, 4.0};
v1.Translate(v2);  // v1 is now {4.0, 6.0}

See also: GetTranslated(), ScaledCumulate()

Definition at line 608 of file TVector.h.

References imath::TVector< Size, Element >::m_elements.

Member Data Documentation

◆ m_elements

template<int Size, class Element = double>

Elements imath::TVector< Size, Element >::m_elements

protected

Definition at line 501 of file TVector.h.

The documentation for this class was generated from the following file:

Acf/Include/imath/TVector.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Purpose

Template Parameters

Usage Examples

Common Operations

Member Typedef Documentation

◆ Elements

◆ ElementType

Constructor & Destructor Documentation

◆ TVector() [1/3]

◆ TVector() [2/3]

◆ TVector() [3/3]

Member Function Documentation

◆ Clear()

◆ GetDistance()

◆ GetDistance2()

◆ GetDotProduct()

◆ GetElement()

◆ GetElementRef()

◆ GetElements()

◆ GetElementsCount()

◆ GetElementsRef()

◆ GetElementsSum()

◆ GetLength()

◆ GetLength2()

◆ GetMaximal()

◆ GetMinimal()

◆ GetNormalized()

◆ GetTranslated() [1/2]

◆ GetTranslated() [2/2]

◆ GetZero()

◆ IsNull()

◆ Normalize()

◆ operator!=()

◆ operator*()

◆ operator*=()

◆ operator+()

◆ operator+=()

◆ operator-() [1/2]

◆ operator-() [2/2]

◆ operator-=()

◆ operator/()

◆ operator/=()

◆ operator<()

◆ operator<=()

◆ operator=()

◆ operator==()

◆ operator>()

◆ operator>=()

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ Reset()

◆ ScaledCumulate()

◆ Serialize()

◆ SetAllElements()

◆ SetElement()

◆ SetElementsCount()

◆ Translate()

Member Data Documentation

◆ m_elements
