Implementation of a arc as a component. More...

#include <CArcComp.h>

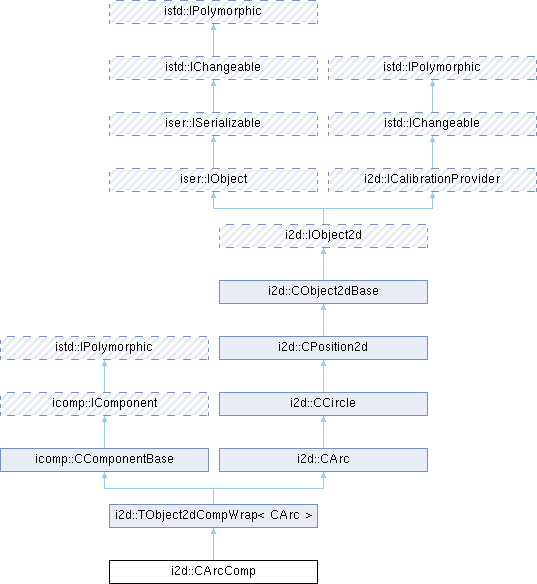

Inheritance diagram for i2d::CArcComp:

Public Types
typedef TObject2dCompWrap< CArc >	BaseClass

Public Types inherited from i2d::TObject2dCompWrap< CArc >
typedef icomp::CComponentBase	BaseClass

typedef CArc	BaseClass2

Public Types inherited from i2d::CArc
typedef CCircle	BaseClass

Public Types inherited from i2d::CCircle
typedef CPosition2d	BaseClass

Public Types inherited from i2d::IObject2d
enum	ChangeFlags { CF_OBJECT_POSITION = 0x6ba340 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Protected Member Functions
virtual void	OnComponentCreated () override

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Additional Inherited Members
Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from i2d::CArc
	CArc ()
	Construct an empty arc object.

	CArc (double startAngle, double endAngle, const double radius, const CVector2d &center)
	Construct an arc with specified parameters.

double	GetStartAngle () const
	Get the starting angle of the arc.

void	SetStartAngle (double angle)
	Set the starting angle of the arc.

double	GetEndAngle () const
	Get the ending angle of the arc.

void	SetEndAngle (double angle)
	Set the ending angle of the arc.

bool	operator== (const CArc &arc) const
	Compare this arc with another arc for equality.

bool	operator!= (const CArc &arc) const
	Compare this arc with another arc for inequality.

CVector2d	GetPositionFromAlpha (double alpha) const
	Get position of point using normed 'alpha' value.

virtual CRectangle	GetBoundingBox () const override
	Get bounding box of this shape.

virtual bool	Transform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Transform this object using some transformation.

virtual bool	InvTransform (const ITransformation2d &transformation, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) override
	Do inverse transformation of this object.

virtual bool	GetTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate transformation of the object into second one.

virtual bool	GetInvTransformed (const ITransformation2d &transformation, IObject2d &result, ITransformation2d::ExactnessMode mode=ITransformation2d::EM_NONE, double *errorFactorPtr=NULL) const override
	Calulate inverse transformation of the object into second one.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

Public Member Functions inherited from i2d::CCircle
	CCircle ()

	CCircle (double radius, const CVector2d &center)

double	GetRadius () const

void	SetRadius (double radius)

bool	operator== (const CCircle &circle) const

bool	operator!= (const CCircle &circle) const

virtual bool	ConvertToPolygon (i2d::CPolygon &result, int segmentsCount=0) const
	Performs conversion of the circle splitting it to segmentsCount segments to the polygon result.

bool	IsIntersectedBy (const CCircle &circle, bool isFilled=false) const
	Check if this circle is intersected by another circle (or disk).

bool	IsIntersectedBy (const CLine2d &line, bool isFilled=false) const
	Check if this circle is intersected by line.

int	GetIntersectionAlphas (const CLine2d &line, double result[2]) const
	Get points of intersection circle by line.

int	GetIntersectionPoints (const CLine2d &line, i2d::CVector2d &result1, i2d::CVector2d &result2) const
	Get points of intersection circle by line.

virtual QByteArray	GetFactoryId () const override

Public Member Functions inherited from i2d::CPosition2d
	CPosition2d ()

	CPosition2d (const CVector2d &center)

const CVector2d &	GetPosition () const

void	SetPosition (const CVector2d &position)

void	Translate (const i2d::CVector2d &vector)

CPosition2d	GetTranslated (const i2d::CVector2d &vector) const

virtual CVector2d	GetCenter () const override
	Returns center of this 2D-object.

virtual void	MoveCenterTo (const CVector2d &position) override
	Move object to position `position`.

virtual bool	IsEqual (const istd::IChangeable &object) const override
	Compare this object with another object.

Public Member Functions inherited from i2d::CObject2dBase
	CObject2dBase ()

	CObject2dBase (const CObject2dBase &object2d)

	CObject2dBase (CObject2dBase &&object2d)

CObject2dBase &	operator= (const CObject2dBase &object2d)

CObject2dBase &	operator= (CObject2dBase &&object2d)

virtual const ICalibration2d *	GetCalibration () const override
	Get access to transformation object, which transforms a local logical coordinate system to global one.

virtual void	SetCalibration (const ICalibration2d *calibrationPtr, bool releaseFlag=false) override
	Set calibration of this object.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Public Member Functions inherited from istd::IChangeable
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Static Public Member Functions inherited from i2d::CCircle
static QByteArray	GetTypeName ()

Static Public Member Functions inherited from i2d::CPosition2d
static QByteArray	GetTypeName ()

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Protected Attributes inherited from i2d::CArc
double	m_startAngle

double	m_endAngle

Protected Attributes inherited from i2d::CCircle
double	m_radius

Protected Attributes inherited from i2d::CPosition2d
CVector2d	m_position

Static Protected Attributes inherited from i2d::CObject2dBase
static const ChangeSet	s_objectMovedChange

static const ChangeSet	s_objectModifiedChange

Detailed Description

Implementation of a arc as a component.

It gives the possibility to define a arc model via component attributes.

Definition at line 18 of file CArcComp.h.

Member Typedef Documentation

◆ BaseClass

typedef TObject2dCompWrap<CArc> i2d::CArcComp::BaseClass

Definition at line 21 of file CArcComp.h.

Member Function Documentation

◆ OnComponentCreated()

virtual void i2d::CArcComp::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from i2d::TObject2dCompWrap< CArc >.

The documentation for this class was generated from the following file:

Acf/Include/i2d/CArcComp.h
