i2d::TObject2dCompWrap< BaseObject2d > Class Template Reference

Base class for all components implementing 2D objects. More...

#include <TObject2dCompWrap.h>

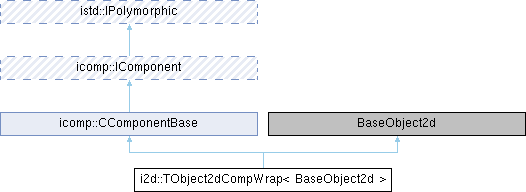

Inheritance diagram for i2d::TObject2dCompWrap< BaseObject2d >:

Public Types
typedef icomp::CComponentBase	BaseClass
typedef BaseObject2d	BaseClass2

Protected Member Functions
virtual void	OnComponentCreated () override
Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.
virtual void	OnComponentDestroyed ()
virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Additional Inherited Members
Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.
virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.
virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.
virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.
virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)
static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

template<class BaseObject2d>
class i2d::TObject2dCompWrap< BaseObject2d >

Base class for all components implementing 2D objects.

The template parameter BaseObject2d should be set to non-component 2D object implementing interface i2d::IObject2d.

Definition at line 20 of file TObject2dCompWrap.h.

Member Typedef Documentation

BaseClass

template<class BaseObject2d >

typedef icomp::CComponentBase i2d::TObject2dCompWrap< BaseObject2d >::BaseClass

Definition at line 23 of file TObject2dCompWrap.h.

BaseClass2

template<class BaseObject2d >

typedef BaseObject2d i2d::TObject2dCompWrap< BaseObject2d >::BaseClass2

Definition at line 24 of file TObject2dCompWrap.h.

Member Function Documentation

OnComponentCreated()

template<class BaseObject2d >

void i2d::TObject2dCompWrap< BaseObject2d >::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

Reimplemented in i2d::CAnnulusComp, i2d::CAnnulusSegmentComp, i2d::CArcComp, i2d::CCircleComp, i2d::CLine2dComp, i2d::COrientedCircleComp, i2d::CParallelogramComp, i2d::CPolygonComp, i2d::CPolylineComp, i2d::CPosition2dComp, i2d::CQuadrangleComp, i2d::CRectangleComp, and i2d::CTubePolylineComp.

Definition at line 49 of file TObject2dCompWrap.h.

References NULL.

---

The documentation for this class was generated from the following file:

• Acf/Include/i2d/TObject2dCompWrap.h
