Basic implementation for a single model observer with binding to concrete data object interface. More...

#include <TSingleModelObserverBase.h>

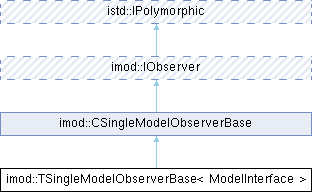

Inheritance diagram for imod::TSingleModelObserverBase< ModelInterface >:

Public Types
typedef CSingleModelObserverBase	BaseClass

typedef ModelInterface	ModelType

Public Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType

Public Member Functions
	TSingleModelObserverBase ()

ModelInterface *	GetObservedObject () const
	Get instance of observed object.

ModelInterface *	GetObjectPtr () const
	Get instance of observed object.

bool	AttachOrSetObject (ModelInterface *objectPtr)
	Attach to model of object or set object pointer, if no connection is possible.

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.

virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.

Public Member Functions inherited from imod::CSingleModelObserverBase
	CSingleModelObserverBase ()

virtual	~CSingleModelObserverBase ()

imod::IModel *	GetObservedModel () const
	Get access to observed model.

imod::IModel *	GetModelPtr () const
	Get access to observed model.

void	EnsureModelDetached ()
	Make sure this observer is detached.

void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.

virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual ModelInterface *	CastFromModel (imod::IModel *modelPtr) const

Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.

virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet)
	Called on update of observed model.

Additional Inherited Members
Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

template<class ModelInterface>
class imod::TSingleModelObserverBase< ModelInterface >

Basic implementation for a single model observer with binding to concrete data object interface.

Definition at line 27 of file TSingleModelObserverBase.h.

Member Typedef Documentation

◆ BaseClass

template<class ModelInterface >

typedef CSingleModelObserverBase imod::TSingleModelObserverBase< ModelInterface >::BaseClass

Definition at line 30 of file TSingleModelObserverBase.h.

◆ ModelType

template<class ModelInterface >

typedef ModelInterface imod::TSingleModelObserverBase< ModelInterface >::ModelType

Definition at line 31 of file TSingleModelObserverBase.h.

Constructor & Destructor Documentation

◆ TSingleModelObserverBase()

template<class ModelInterface >

imod::TSingleModelObserverBase< ModelInterface >::TSingleModelObserverBase ( )

Definition at line 65 of file TSingleModelObserverBase.h.

References NULL.

Member Function Documentation

◆ AttachOrSetObject()

template<class ModelInterface >

bool imod::TSingleModelObserverBase< ModelInterface >::AttachOrSetObject ( ModelInterface * objectPtr )

Attach to model of object or set object pointer, if no connection is possible.

Definition at line 86 of file TSingleModelObserverBase.h.

References imod::IModel::AttachObserver(), and NULL.

◆ CastFromModel()

template<class ModelInterface >

ModelInterface * imod::TSingleModelObserverBase< ModelInterface >::CastFromModel ( imod::IModel * modelPtr ) const

protectedvirtual

Reimplemented in idoc::CSerializedUndoManagerComp.

Definition at line 147 of file TSingleModelObserverBase.h.

◆ GetObjectPtr()

template<class ModelInterface >

ModelInterface * imod::TSingleModelObserverBase< ModelInterface >::GetObjectPtr ( ) const

Get instance of observed object.

Deprecated:: use GetObservedObject instead.

Definition at line 79 of file TSingleModelObserverBase.h.

◆ GetObservedObject()

template<class ModelInterface >

ModelInterface * imod::TSingleModelObserverBase< ModelInterface >::GetObservedObject ( ) const

Get instance of observed object.

Definition at line 72 of file TSingleModelObserverBase.h.

◆ OnModelAttached()

template<class ModelInterface >

bool imod::TSingleModelObserverBase< ModelInterface >::OnModelAttached	(	imod::IModel *	modelPtr,
		istd::IChangeable::ChangeSet &	changeMask
	)

overridevirtual

Callback invoked when an observable model is about to be attached to this observer.

This method is called by the model when attempting to establish an observer relationship. The implementation should:

Validate that the model is of an acceptable type
Set the changeMask to specify which changes to monitor
Return true to accept the attachment, or false to reject it

Parameters

modelPtr	Pointer to the model object being attached. Never nullptr.
changeMask	Output parameter where the observer specifies which change types it wants to be notified about. Set the appropriate change flags using changeMask.Set(changeId). An empty mask means the observer wants all changes.

Returns: true if the model is accepted and attachment succeeds, false to reject the attachment (e.g., if the model is of incompatible type).

Note: After successful attachment, the observer should initialize its state based on the current model data.; The changeMask allows filtering notifications for better performance. Only changes matching the mask will trigger AfterUpdate() calls.

virtual bool OnModelAttached(IModel* modelPtr,
                            istd::IChangeable::ChangeSet& changeMask)
{
       // Type check
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return false;

       // Set up change filtering
       changeMask.Set(CMyModel::CF_DATA_CHANGED);
       changeMask.Set(CMyModel::CF_STATUS_CHANGED);
       // Don't set CF_INTERNAL_CHANGED - we don't care about those

       // Initialize view from current model state
       UpdateViewFromModel(model);
       return true;
}

See also: OnModelDetached(), IsModelAttached(), AfterUpdate()

Reimplemented from imod::CSingleModelObserverBase.

Definition at line 106 of file TSingleModelObserverBase.h.

References I_IF_DEBUG, and NULL.

◆ OnModelDetached()

template<class ModelInterface >

bool imod::TSingleModelObserverBase< ModelInterface >::OnModelDetached ( imod::IModel * modelPtr )

overridevirtual

Callback invoked when an observable model is about to be detached from this observer.

This method is called when the observer-model relationship is being terminated, either explicitly or because the model is being destroyed. The implementation should clean up any state or resources related to this model.

Parameters

modelPtr Pointer to the model object being detached

Returns: true if the detachment was handled successfully, false otherwise

Note: After this call, the observer should not access the model pointer anymore.; This method may be called even if OnModelAttached() previously returned false.; Clean up any cached data or references to this model.

virtual bool OnModelDetached(IModel* modelPtr)
{
       if (m_currentModel == modelPtr) {
              // Clear any cached data
              m_cachedData.clear();
              m_currentModel = nullptr;

              // Update UI to show no model is attached
              ClearDisplay();
              return true;
       }
       return false;
}
