Provide set of user actions needed to manage documents in MVC (Model View Controller) concept. More...

#include <IDocumentManager.h>

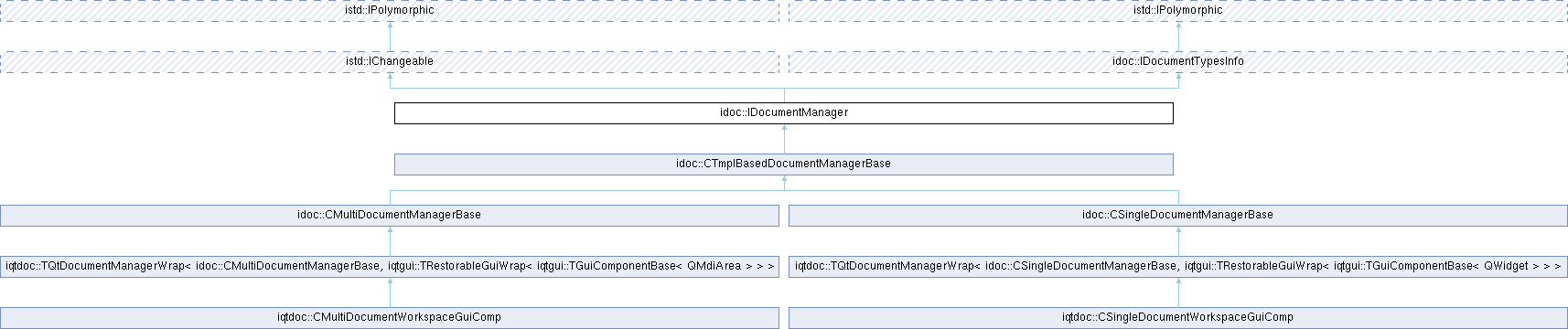

Inheritance diagram for idoc::IDocumentManager:

Classes
struct	DocumentInfo
	Information about a document managed by the document manager. More...

Public Types
enum	ChangeFlags { CF_DOCUMENT_RENAMED = 0x834d670 , CF_DOCUMENT_CREATED , CF_DOCUMENT_REMOVED , CF_DOCUMENT_COUNT_CHANGED , CF_VIEW_ACTIVATION_CHANGED }
	Possible changes in the manager data model. More...

enum	OperationFlags { OF_FILE_NEW = 0x0001 , OF_FILE_OPEN = 0x0002 , OF_FILE_SAVE = 0x0004 , OF_FILE_SAVE_AS = 0x0008 , OF_KNOWN_PATH = 0x0010 }
	Flags describing possible operations that can be performed by the document manager. More...

typedef QMap< QString, QByteArray >	FileToTypeMap
	Map from file path to document type ID's.

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Types inherited from idoc::IDocumentTypesInfo
enum	SupportedFeatures { SF_NEW_DOCUMENT = 0x0001 , SF_EDIT_DOCUMENT = 0x0010 , SF_DEFAULT = 0xffff }
	Enumeration for supported types of operations with documents. More...

typedef QVector< QByteArray >	Ids
	Type definition for document type ID collections.

Public Member Functions
virtual int	GetAllowedOperationFlags (const istd::IPolymorphic *viewPtr=NULL) const =0
	Get flags of allowed operations.

virtual idoc::IUndoManager *	GetUndoManagerForDocument (const istd::IChangeable *documentPtr) const =0
	Return undo manager for document `documentPtr`.

virtual int	GetDocumentsCount () const =0
	Get number of opened documents.

virtual istd::IChangeable &	GetDocumentFromIndex (int index, DocumentInfo *documentInfoPtr=NULL) const =0
	Get document at specified index.

virtual int	GetViewsCount (int documentIndex) const =0
	Get number of view for specified document.

virtual istd::IPolymorphic *	GetViewFromIndex (int documentIndex, int viewIndex) const =0
	Get single view using its and document indices.

virtual istd::IPolymorphic *	GetActiveView () const =0
	Return the active document.

virtual void	SetActiveView (istd::IPolymorphic *viewPtr)=0
	Indicate that some view is active now.

virtual istd::IChangeable *	GetDocumentFromView (const istd::IPolymorphic &view, DocumentInfo *documentInfoPtr=NULL) const =0
	Return the document assigned to view.

virtual istd::IPolymorphic *	AddViewToDocument (const istd::IChangeable &document, const QByteArray &viewTypeId=QByteArray())=0
	Add a new view to the document.

virtual QByteArray	GetDocumentTypeId (const istd::IChangeable &document) const =0
	Get ID of document type managed by this object.

virtual bool	InsertNewDocument (const QByteArray &documentTypeId, bool createView=true, const QByteArray &viewTypeId="", istd::IChangeableSharedPtr newDocumentPtr=nullptr, bool beQuiet=false, bool ignoredPtr=NULL)=0
	Creates a new document with the document ID `documentTypeId`.

virtual bool	OpenDocument (const QByteArray documentTypeIdPtr=NULL, const QString fileNamePtr=NULL, bool createView=true, const QByteArray &viewTypeId="", istd::IChangeableSharedPtr documentPtr=nullptr, FileToTypeMap loadedMapPtr=NULL, bool beQuiet=false, bool ignoredPtr=NULL, ibase::IProgressManager progressManagerPtr=NULL)=0
	Opens document(s) from the file list.

virtual bool	SaveDocument (int documentIndex=-1, bool requestFileName=false, FileToTypeMap savedMapPtr=NULL, bool beQuiet=false, bool ignoredPtr=NULL, ibase::IProgressManager *progressManagerPtr=NULL)=0
	Save document.

virtual bool	SaveDirtyDocuments (bool beQuiet=false, bool *ignoredPtr=NULL)=0
	Ask user (optional) and save all dirty (changed) documents.

virtual bool	CloseDocument (int documentIndex=-1, bool beQuiet=false, bool *ignoredPtr=NULL)=0
	Close document and all its views.

virtual bool	CloseView (istd::IPolymorphic viewPtr=NULL, bool beQuiet=false, bool ignoredPtr=NULL)=0
	Close view.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from idoc::IDocumentTypesInfo
virtual bool	IsFeatureSupported (int featureFlags, const QByteArray &documentTypeId) const =0
	Return `true`, if the feature(s) is supported by this document template.

virtual Ids	GetDocumentTypeIds () const =0
	Get list of supported document type IDs.

virtual QString	GetDocumentTypeName (const QByteArray &documentTypeId) const =0
	Get human readable name of some document type ID.

virtual ifile::IFileTypeInfo *	GetDocumentFileTypeInfo (const QByteArray &documentTypeId) const =0
	Get file type information object for some selected document type.

virtual Ids	GetDocumentTypeIdsForFile (const QString &filePath) const =0
	Get list of supported document IDs that can handle the specified file.

virtual QString	GetDefaultDirectory (const QString &sugestedDir="", const QByteArray *documentTypeIdPtr=NULL) const =0
	Return default directory for specified document type.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Provide set of user actions needed to manage documents in MVC (Model View Controller) concept.

The document manager is the central component in the ACF document/view architecture. It manages the lifecycle of documents and their associated views, handles file operations (new, open, save, close), and maintains the document state.

Key responsibilities:

Document lifecycle management (create, open, save, close)
View management and activation
Undo/redo support per document
File persistence integration
Recent files tracking
Document type identification

The manager supports both single and multi-document interfaces (SDI/MDI). For SDI applications, typically only one document is active at a time. For MDI applications, multiple documents can be open simultaneously with one being active.

Usage Example: // Get the document manager from application

idoc::IDocumentManager* docMgr = GetDocumentManager();

// Create a new document

QByteArray docTypeId = "TextDocument";

if (docMgr->InsertNewDocument(docTypeId, true)) {

// Document created successfully with a view

}

// Open an existing document

QString filePath = "/path/to/document.txt";

if (docMgr->OpenDocument(&docTypeId, &filePath, true)) {

// Document opened and view created

}

// Save the active document

if (docMgr->SaveDocument()) {

// Document saved successfully

}

// Get information about all open documents

int count = docMgr->GetDocumentsCount();

for (int i = 0; i < count; ++i) {

idoc::IDocumentManager::DocumentInfo info;

istd::IChangeable& doc = docMgr->GetDocumentFromIndex(i, &info);

qDebug() << "Document:" << info.filePath << "Type:" << info.documentTypeId << "Dirty:" << info.isDirty;

}

// Close the active document

docMgr->CloseDocument(-1, false); // -1 = active document, false = ask user to save

idoc::IDocumentManager
Provide set of user actions needed to manage documents in MVC (Model View Controller) concept.
Definition IDocumentManager.h:87

idoc::IDocumentManager::SaveDocument
virtual bool SaveDocument(int documentIndex=-1, bool requestFileName=false, FileToTypeMap *savedMapPtr=NULL, bool beQuiet=false, bool *ignoredPtr=NULL, ibase::IProgressManager *progressManagerPtr=NULL)=0
Save document.

idoc::IDocumentManager::OpenDocument
virtual bool OpenDocument(const QByteArray *documentTypeIdPtr=NULL, const QString *fileNamePtr=NULL, bool createView=true, const QByteArray &viewTypeId="", istd::IChangeableSharedPtr *documentPtr=nullptr, FileToTypeMap *loadedMapPtr=NULL, bool beQuiet=false, bool *ignoredPtr=NULL, ibase::IProgressManager *progressManagerPtr=NULL)=0
Opens document(s) from the file list.

idoc::IDocumentManager::GetDocumentFromIndex
virtual istd::IChangeable & GetDocumentFromIndex(int index, DocumentInfo *documentInfoPtr=NULL) const =0
Get document at specified index.

idoc::IDocumentManager::CloseDocument
virtual bool CloseDocument(int documentIndex=-1, bool beQuiet=false, bool *ignoredPtr=NULL)=0
Close document and all its views.

idoc::IDocumentManager::InsertNewDocument
virtual bool InsertNewDocument(const QByteArray &documentTypeId, bool createView=true, const QByteArray &viewTypeId="", istd::IChangeableSharedPtr *newDocumentPtr=nullptr, bool beQuiet=false, bool *ignoredPtr=NULL)=0
Creates a new document with the document ID documentTypeId.

idoc::IDocumentManager::GetDocumentsCount
virtual int GetDocumentsCount() const =0
Get number of opened documents.

istd::IChangeable
Common interface for data model objects, which can be changed.
Definition IChangeable.h:28

idoc::IDocumentManager::DocumentInfo
Information about a document managed by the document manager.
Definition IDocumentManager.h:121

idoc::IDocumentManager::DocumentInfo::documentTypeId
QByteArray documentTypeId
Type identifier of the document.
Definition IDocumentManager.h:123

idoc::IDocumentManager::DocumentInfo::isDirty
bool isDirty
True if document has unsaved changes.
Definition IDocumentManager.h:124

idoc::IDocumentManager::DocumentInfo::filePath
QString filePath
Full file path of the document, empty if not saved yet.
Definition IDocumentManager.h:122

See also: IDocumentTemplate, IUndoManager, IDocumentMetaInfo

Definition at line 84 of file IDocumentManager.h.

Member Typedef Documentation

◆ FileToTypeMap

typedef QMap<QString, QByteArray> idoc::IDocumentManager::FileToTypeMap

Map from file path to document type ID's.

Used for tracking loaded files and their associated document types.

Definition at line 144 of file IDocumentManager.h.

Member Enumeration Documentation

◆ ChangeFlags

enum idoc::IDocumentManager::ChangeFlags

Possible changes in the manager data model.

These flags are used to notify observers about specific changes in the document manager state.

Enumerator
CF_DOCUMENT_RENAMED	A document has been renamed or its file path has changed.
CF_DOCUMENT_CREATED	A new document has been created.
CF_DOCUMENT_REMOVED	A document has been removed from the manager.
CF_DOCUMENT_COUNT_CHANGED	The total number of managed documents has changed.
CF_VIEW_ACTIVATION_CHANGED	The active view has changed to a different view.

Definition at line 93 of file IDocumentManager.h.

◆ OperationFlags

enum idoc::IDocumentManager::OperationFlags

Flags describing possible operations that can be performed by the document manager.

These flags indicate which file operations are currently supported.

Enumerator
OF_FILE_NEW	New document creation is supported.
OF_FILE_OPEN	Opening existing documents is supported.
OF_FILE_SAVE	Saving documents is supported.
OF_FILE_SAVE_AS	Save As operation is supported.
OF_KNOWN_PATH	Document has a known file path.

Definition at line 131 of file IDocumentManager.h.

Member Function Documentation

◆ AddViewToDocument()

virtual istd::IPolymorphic * idoc::IDocumentManager::AddViewToDocument	(	const istd::IChangeable &	document,
		const QByteArray &	viewTypeId = `QByteArray()`
	)

pure virtual

Add a new view to the document.

Parameters

document	document instance
viewTypeId	ID of view type, if it will be created.

Returns: Created view object

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ CloseDocument()

virtual bool idoc::IDocumentManager::CloseDocument	(	int	documentIndex = `-1`,
		bool	beQuiet = `false`,
		bool *	ignoredPtr = `NULL`
	)

pure virtual

Close document and all its views.

Parameters

documentIndex	optional index of document to close, if negative then current active document will be closed.
beQuiet	if true, no user interaction will be done. Typically user will be asked for saving document.
ignoredPtr	optional return flag indicating that closing was aborted by user.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ CloseView()

virtual bool idoc::IDocumentManager::CloseView	(	istd::IPolymorphic *	viewPtr = `NULL`,
		bool	beQuiet = `false`,
		bool *	ignoredPtr = `NULL`
	)

pure virtual

Close view.

Parameters

viewPtr	pointer to view should be closed or `NULL` if current active view should be closed.
beQuiet	if true, no user interaction will be done. Typically user will be asked for saving document.
ignoredPtr	optional return flag indicating that closing was aborted by user.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ GetActiveView()

virtual istd::IPolymorphic * idoc::IDocumentManager::GetActiveView ( ) const

pure virtual

Return the active document.

If no document is active, the function return a NULL

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ GetAllowedOperationFlags()

virtual int idoc::IDocumentManager::GetAllowedOperationFlags ( const istd::IPolymorphic * viewPtr = NULL ) const

pure virtual

Get flags of allowed operations.

Parameters

viewPtr Optional pointer to a specific view to check operations for. If NULL, checks operations for the active view/document.

Returns: Bitwise OR of OperationFlags indicating which operations are currently allowed.

Example: int flags = docMgr->GetAllowedOperationFlags();

if (flags & idoc::IDocumentManager::OF_FILE_NEW) {

// New document creation is supported

}

if (flags & idoc::IDocumentManager::OF_FILE_SAVE) {

// Saving is available

}

idoc::IDocumentManager::OF_FILE_NEW
@ OF_FILE_NEW
New document creation is supported.
Definition IDocumentManager.h:133

idoc::IDocumentManager::OF_FILE_SAVE
@ OF_FILE_SAVE
Saving documents is supported.
Definition IDocumentManager.h:135

Implemented in idoc::CTmplBasedDocumentManagerBase.

◆ GetDocumentFromIndex()

virtual istd::IChangeable & idoc::IDocumentManager::GetDocumentFromIndex	(	int	index,
		DocumentInfo *	documentInfoPtr = `NULL`
	)		const

pure virtual

Get document at specified index.

Parameters

index	Zero-based index of document (0 to GetDocumentsCount()-1).
documentInfoPtr	Optional pointer to receive additional information about the document.

Returns: Reference to the document at the specified index.

Example: for (int i = 0; i < docMgr->GetDocumentsCount(); ++i) {

idoc::IDocumentManager::DocumentInfo info;

istd::IChangeable& doc = docMgr->GetDocumentFromIndex(i, &info);

qDebug() << "Document" << i << "path:" << info.filePath;

}

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ GetDocumentFromView()

virtual istd::IChangeable * idoc::IDocumentManager::GetDocumentFromView	(	const istd::IPolymorphic &	view,
		DocumentInfo *	documentInfoPtr = `NULL`
	)		const

pure virtual

Return the document assigned to view.

Parameters

view	view object.
documentInfoPtr	optional return value describing some additional informations about document.

Returns: pointer to assigned document, or NULL if no document for this view exists.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ GetDocumentsCount()

virtual int idoc::IDocumentManager::GetDocumentsCount ( ) const

pure virtual

Get number of opened documents.

Returns: The total count of currently open documents managed by this manager.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ GetDocumentTypeId()

virtual QByteArray idoc::IDocumentManager::GetDocumentTypeId ( const istd::IChangeable & document ) const

pure virtual

Get ID of document type managed by this object.

Returns: ID of document type or empty string if no document is found.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ GetUndoManagerForDocument()

virtual idoc::IUndoManager * idoc::IDocumentManager::GetUndoManagerForDocument ( const istd::IChangeable * documentPtr ) const

pure virtual

Return undo manager for document documentPtr.

Parameters

documentPtr Pointer to the document to get undo manager for.

Returns: Pointer to the undo manager associated with this document, or NULL if no undo manager exists.

Each document can have its own undo manager to track and reverse changes.

Example: istd::IChangeable* doc = docMgr->GetDocumentFromView(*view);

idoc::IUndoManager* undoMgr = docMgr->GetUndoManagerForDocument(doc);

if (undoMgr && undoMgr->GetAvailableUndoSteps() > 0) {

undoMgr->DoUndo();

}

idoc::IUndoManager
Interface providing UNDO/REDO functionality.
Definition IUndoManager.h:70

idoc::IUndoManager::DoUndo
virtual bool DoUndo(int steps=1)=0
Process UNDO steps.

idoc::IUndoManager::GetAvailableUndoSteps
virtual int GetAvailableUndoSteps() const =0
Get number of available UNDO levels.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ GetViewFromIndex()

virtual istd::IPolymorphic * idoc::IDocumentManager::GetViewFromIndex	(	int	documentIndex,
		int	viewIndex
	)		const

pure virtual

Get single view using its and document indices.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ GetViewsCount()

virtual int idoc::IDocumentManager::GetViewsCount ( int documentIndex ) const

pure virtual

Get number of view for specified document.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ InsertNewDocument()

virtual bool idoc::IDocumentManager::InsertNewDocument	(	const QByteArray &	documentTypeId,
		bool	createView = `true`,
		const QByteArray &	viewTypeId = `""`,
		istd::IChangeableSharedPtr *	newDocumentPtr = `nullptr`,
		bool	beQuiet = `false`,
		bool *	ignoredPtr = `NULL`
	)

pure virtual

Creates a new document with the document ID documentTypeId.

Parameters

documentTypeId	ID of document type.
createView	if true, view will be automatically created.
viewTypeId	ID of view type, if it will be created.
newDocumentPtr	optional pointer where new created document will be returned.
beQuiet	if true, no user interaction will be done.
ignoredPtr	optional return flag indicating that creating was aborted by user.

Returns: true, if success.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ OpenDocument()

virtual bool idoc::IDocumentManager::OpenDocument	(	const QByteArray *	documentTypeIdPtr = `NULL`,
		const QString *	fileNamePtr = `NULL`,
		bool	createView = `true`,
		const QByteArray &	viewTypeId = `""`,
		istd::IChangeableSharedPtr *	documentPtr = `nullptr`,
		FileToTypeMap *	loadedMapPtr = `NULL`,
		bool	beQuiet = `false`,
		bool *	ignoredPtr = `NULL`,
		ibase::IProgressManager *	progressManagerPtr = `NULL`
	)

pure virtual

Opens document(s) from the file list.

Parameters

documentTypeIdPtr	optional ID of document type. If it is NULL, document type will be found automatically.
fileNamePtr	file name.
createView	if true, view will be automatically created.
viewTypeId	ID of view type, if it will be created.
loadedMapPtr	optional list of loaded files and its document type ID's.
beQuiet	if true, no user interaction will be done.
ignoredPtr	optional return flag indicating that opening was aborted by user.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ SaveDirtyDocuments()

virtual bool idoc::IDocumentManager::SaveDirtyDocuments	(	bool	beQuiet = `false`,
		bool *	ignoredPtr = `NULL`
	)

pure virtual

Ask user (optional) and save all dirty (changed) documents.

Parameters

beQuiet	if true, no user interaction will be done. Typically user will be asked for saving document.
ignoredPtr	optional return flag indicating that process was aborted by user.

Returns: true if all documents were saved and are not dirty now.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ SaveDocument()

virtual bool idoc::IDocumentManager::SaveDocument	(	int	documentIndex = `-1`,
		bool	requestFileName = `false`,
		FileToTypeMap *	savedMapPtr = `NULL`,
		bool	beQuiet = `false`,
		bool *	ignoredPtr = `NULL`,
		ibase::IProgressManager *	progressManagerPtr = `NULL`
	)

pure virtual

Save document.

Parameters

documentIndex	optional index of document to save, if negative then current active document will be saved.
requestFileName	if true, file name will be always requested by user.
savedMapPtr	optional list of files will be extended with currently saved file.
beQuiet	if true, no user interaction will be done.
ignoredPtr	optional return flag indicating that saving was aborted by user.

Implemented in idoc::CMultiDocumentManagerBase, and idoc::CSingleDocumentManagerBase.

◆ SetActiveView()

virtual void idoc::IDocumentManager::SetActiveView ( istd::IPolymorphic * viewPtr )

pure virtual

Indicate that some view is active now.

Implemented in idoc::CMultiDocumentManagerBase, iqtdoc::CMultiDocumentWorkspaceGuiComp, and iqtdoc::CSingleDocumentWorkspaceGuiComp.

The documentation for this class was generated from the following file:

Acf/Include/idoc/IDocumentManager.h

Classes

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ FileToTypeMap

Member Enumeration Documentation

◆ ChangeFlags

◆ OperationFlags

Member Function Documentation

◆ AddViewToDocument()

◆ CloseDocument()

◆ CloseView()

◆ GetActiveView()

◆ GetAllowedOperationFlags()

◆ GetDocumentFromIndex()

◆ GetDocumentFromView()

◆ GetDocumentsCount()

◆ GetDocumentTypeId()

◆ GetUndoManagerForDocument()

◆ GetViewFromIndex()

◆ GetViewsCount()

◆ InsertNewDocument()

◆ OpenDocument()

◆ SaveDirtyDocuments()

◆ SaveDocument()

◆ SetActiveView()
