Common implementation of the general device-based, substractive color model based on the list of colorants. More...

#include <CSubstractiveColorModel.h>

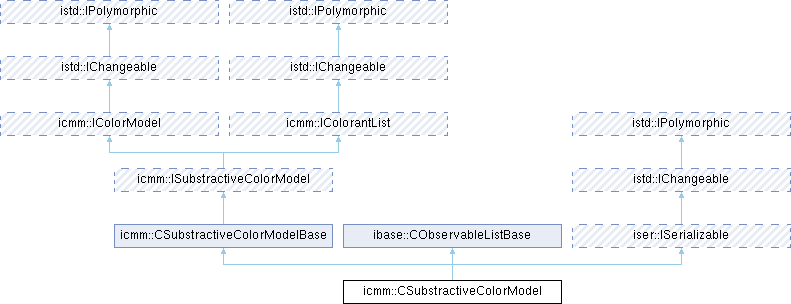

Inheritance diagram for icmm::CSubstractiveColorModel:

Classes
struct	ColorantInfo

Public Types
typedef CSubstractiveColorModelBase	BaseClass

typedef CObservableListBase	BaseClass2

Public Types inherited from icmm::IColorModel
enum	ModelType { MT_HSI , MT_HSV , MT_HSL , MI_YIQ , MI_YUV , MI_YCBCR , MT_RGB , MT_COLORANTS , MT_LUV , MT_LAB , MT_LCH , MT_XYZ , MT_YXY , MI_SPECTRAL , MI_USER = 1024 }

enum	ModelClass { MC_DEVICE_DEPENDENT , MC_DEVICE_INDEPENDENT }

enum	ColorSpaceClass { CSC_ADDITIVE , CSC_SUBSTRACTIVE , CSC_PERCEPTUAL }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Types inherited from icmm::IColorantList
typedef QString	ColorantId

typedef QStringList	ColorantIds

Public Types inherited from ibase::CObservableListBase
enum	ChangeFlags { CF_ELEMENT_ADDED = 0x382b230 , CF_ELEMENT_REMOVED , CF_ELEMENT_UPDATED , CF_RESET }

Public Member Functions
	CSubstractiveColorModel ()

	CSubstractiveColorModel (const ColorantIds &colorantIds)

	CSubstractiveColorModel (const CSubstractiveColorModel &other)

	CSubstractiveColorModel (const ISubstractiveColorModel &other)

CSubstractiveColorModel &	operator= (const CSubstractiveColorModel &other)

bool	operator== (const CSubstractiveColorModel &ref) const

bool	operator!= (const CSubstractiveColorModel &ref) const

bool	ContainsColorant (const ColorantId &colorantId) const
	Returns `true` if the colorant with the given ID exists in the color model.

bool	InsertColorant (const ColorantId &colorantId, ColorantUsage usage, int index=-1)
	Insert a new colorant at the given position.

bool	RemoveColorant (const ColorantId &colorantId)
	Remove a colorant with the given ID.

bool	SetColorantUsage (const ColorantId &colorantId, ColorantUsage usage)
	Set a colorant usage for an existing colorant.

bool	SetColorantId (const ColorantId &colorantId, const ColorantId &newColorantId)
	Set a new ID for an existing colorant.

bool	AppendColorModel (const ISubstractiveColorModel &other)
	Append colorants from from another model to this one.

bool	HasProcessColorants () const
	Check if the color model contains process colorants.

bool	HasEcg () const
	Check if the color model contains ECG colorants.

bool	HasSpot () const
	Check if the color model contains any spot colors.

ColorantIds	GetProcessColorants () const
	Get the list of process colors in this color model.

ColorantIds	GetEcgColorants () const
	Get the list of ECG colorants in this color model.

ColorantIds	GetSpotColorants () const
	Get the list of spot colors in this color model.

virtual std::unique_ptr< ISubstractiveColorModel >	CreateSubspaceModel (const QStringList &colorantIds) const override
	Create ColorModel of the subspace.

virtual ColorantIds	GetColorantIds () const override
	Get the list of colorant-IDs.

virtual ColorantUsage	GetColorantUsage (const ColorantId &colorantId) const override
	Get type of the colorant with the given ID.

virtual bool	Serialize (iser::IArchive &archive) override
	Load or store state of this object as a archive stream.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

Public Member Functions inherited from icmm::CSubstractiveColorModelBase
	CSubstractiveColorModelBase ()

const icmm::CTristimulusSpecification &	GetPreviewSpec () const

void	SetPreviewSpec (const ITristimulusSpecification &previewSpec)

void	SetColorantPreview (const ColorantId &colorantId, const icmm::CLab &preview)

virtual ModelType	GetModelType () const override
	Gets the type of the color model.

virtual ModelClass	GetModelClass () const override
	Gets the classification of the color model.

virtual ColorSpaceClass	GetColorSpaceClass () const override
	Gets the classification of the color space defined by this model.

virtual int	GetColorSpaceDimensionality () const override
	Gets the dimensionality (number of components) of the color space.

virtual const imath::IUnitInfo *	GetColorSpaceComponentInfo (int componentIndex) const override
	Gets mathematical unit information for a color model component.

virtual QString	GetColorSpaceComponentName (int componentIndex) const override
	Gets the human-readable name of a color model component.

virtual const icmm::IColorTransformation *	CreateColorTranformation (const IColorModel &otherColorModel, const QByteArray &transformationId=QByteArray()) const override
	Creates a color transformation for conversion to another color model.

virtual bool	GetColorantVisualInfo (const ColorantId &colorantId, icmm::ICieLabColor &preview) const override
	Get visual information/preview for the given colorant.

Public Member Functions inherited from icmm::IColorModel
virtual IColorSpecification::ConstColorSpecPtr	GetSpecification () const
	Gets the color specification for this model, if available.

Public Member Functions inherited from istd::IChangeable
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from iser::ISerializable
virtual quint32	GetMinimalVersion (int versionId) const
	Get minimal needed version to correct storing of this data.

Static Public Member Functions
static std::unique_ptr< ISubstractiveColorModel >	CreateSubspaceModelFrom (const CSubstractiveColorModelBase &model, const QStringList &colorantIds)

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Types
typedef ibase::TContainer< ColorantInfo >	ColorantInfoList

Protected Types inherited from icmm::CSubstractiveColorModelBase
typedef QMap< ColorantId, icmm::CLab >	ColorantPreviewMap
	Mapping between a colorant and corresponding Lab value for its solid value.

Protected Member Functions
int	FindColorantIndex (const ColorantId &colorantId) const

bool	SerializeColorantInfo (iser::IArchive &archive, ColorantInfo &colorantInfo, const iser::CArchiveTag *parentTagPtr) const

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Static Protected Member Functions
static icmm::ColorantUsage	GetDefaultUsageFromColorantName (const ColorantId &colorantId)

static ColorantId	GetEcgGreen ()

static ColorantId	GetEcgOrange ()

static ColorantId	GetEcgViolet ()

static ColorantId	GetEcgRed ()

static ColorantId	GetEcgBlue ()

Static Protected Member Functions inherited from ibase::CObservableListBase
static istd::IChangeable::ChangeSet	ElementAddChanges (qsizetype index)

static istd::IChangeable::ChangeSet	ElementRemoveChanges (qsizetype index)

static istd::IChangeable::ChangeSet	ElementUpdatedChanges (qsizetype index)

Additional Inherited Members
Static Public Attributes inherited from ibase::CObservableListBase
static const QByteArray	CN_INDEX_ID = QByteArrayLiteral("INDEX")

Protected Attributes inherited from icmm::CSubstractiveColorModelBase
icmm::CTristimulusSpecification	m_previewSpec
	Tristimulus specification used for all colorants in the color model.

ColorantPreviewMap	m_colorantPreviewMap

Detailed Description

Common implementation of the general device-based, substractive color model based on the list of colorants.

All kinds of colorants (Process, ECG and Spot) can be combined in this color model.

Definition at line 22 of file CSubstractiveColorModel.h.

Member Typedef Documentation

◆ BaseClass

typedef CSubstractiveColorModelBase icmm::CSubstractiveColorModel::BaseClass

Definition at line 28 of file CSubstractiveColorModel.h.

◆ BaseClass2

typedef CObservableListBase icmm::CSubstractiveColorModel::BaseClass2

Definition at line 29 of file CSubstractiveColorModel.h.

◆ ColorantInfoList

typedef ibase::TContainer<ColorantInfo> icmm::CSubstractiveColorModel::ColorantInfoList

protected

Definition at line 140 of file CSubstractiveColorModel.h.

Constructor & Destructor Documentation

◆ CSubstractiveColorModel() [1/4]

icmm::CSubstractiveColorModel::CSubstractiveColorModel ( )

◆ CSubstractiveColorModel() [2/4]

icmm::CSubstractiveColorModel::CSubstractiveColorModel ( const ColorantIds & colorantIds )

◆ CSubstractiveColorModel() [3/4]

icmm::CSubstractiveColorModel::CSubstractiveColorModel ( const CSubstractiveColorModel & other )

◆ CSubstractiveColorModel() [4/4]

icmm::CSubstractiveColorModel::CSubstractiveColorModel ( const ISubstractiveColorModel & other )

Member Function Documentation

◆ AppendColorModel()

bool icmm::CSubstractiveColorModel::AppendColorModel ( const ISubstractiveColorModel & other )

Append colorants from from another model to this one.

Returns: Returns true, if the operation was succesful or false otherwise.

◆ CloneMe()

virtual istd::TUniqueInterfacePtr< istd::IChangeable > icmm::CSubstractiveColorModel::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from istd::IChangeable.

◆ ContainsColorant()

bool icmm::CSubstractiveColorModel::ContainsColorant ( const ColorantId & colorantId ) const

Returns true if the colorant with the given ID exists in the color model.

◆ CopyFrom()

virtual bool icmm::CSubstractiveColorModel::CopyFrom	(	const istd::IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Copy this object from another one.

Default implementation in istd::IChangeable does nothing.

Reimplemented from icmm::CSubstractiveColorModelBase.

◆ CreateSubspaceModel()

virtual std::unique_ptr< ISubstractiveColorModel > icmm::CSubstractiveColorModel::CreateSubspaceModel ( const QStringList & colorantIds ) const

overridevirtual

Create ColorModel of the subspace.

Implements icmm::ISubstractiveColorModel.

◆ CreateSubspaceModelFrom()

static std::unique_ptr< ISubstractiveColorModel > icmm::CSubstractiveColorModel::CreateSubspaceModelFrom	(	const CSubstractiveColorModelBase &	model,
		const QStringList &	colorantIds
	)

static

◆ FindColorantIndex()

int icmm::CSubstractiveColorModel::FindColorantIndex ( const ColorantId & colorantId ) const

protected

◆ GetColorantIds()

virtual ColorantIds icmm::CSubstractiveColorModel::GetColorantIds ( ) const

overridevirtual

Get the list of colorant-IDs.

Implements icmm::IColorantList.

◆ GetColorantUsage()

virtual ColorantUsage icmm::CSubstractiveColorModel::GetColorantUsage ( const ColorantId & colorantId ) const

overridevirtual

Get type of the colorant with the given ID.

Implements icmm::IColorantList.

◆ GetDefaultUsageFromColorantName()

static icmm::ColorantUsage icmm::CSubstractiveColorModel::GetDefaultUsageFromColorantName ( const ColorantId & colorantId )

staticprotected

◆ GetEcgBlue()

static ColorantId icmm::CSubstractiveColorModel::GetEcgBlue ( )

staticprotected

◆ GetEcgColorants()

ColorantIds icmm::CSubstractiveColorModel::GetEcgColorants ( ) const

Get the list of ECG colorants in this color model.

◆ GetEcgGreen()

static ColorantId icmm::CSubstractiveColorModel::GetEcgGreen ( )

staticprotected

◆ GetEcgOrange()

static ColorantId icmm::CSubstractiveColorModel::GetEcgOrange ( )

staticprotected

◆ GetEcgRed()

static ColorantId icmm::CSubstractiveColorModel::GetEcgRed ( )

staticprotected

◆ GetEcgViolet()

static ColorantId icmm::CSubstractiveColorModel::GetEcgViolet ( )

staticprotected

◆ GetProcessColorants()

ColorantIds icmm::CSubstractiveColorModel::GetProcessColorants ( ) const

Get the list of process colors in this color model.

◆ GetSpotColorants()

ColorantIds icmm::CSubstractiveColorModel::GetSpotColorants ( ) const

Get the list of spot colors in this color model.

◆ GetSupportedOperations()

virtual int icmm::CSubstractiveColorModel::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from icmm::CSubstractiveColorModelBase.

◆ HasEcg()

bool icmm::CSubstractiveColorModel::HasEcg ( ) const

Check if the color model contains ECG colorants.

◆ HasProcessColorants()

bool icmm::CSubstractiveColorModel::HasProcessColorants ( ) const

Check if the color model contains process colorants.

◆ HasSpot()

bool icmm::CSubstractiveColorModel::HasSpot ( ) const

Check if the color model contains any spot colors.

◆ InsertColorant()

bool icmm::CSubstractiveColorModel::InsertColorant	(	const ColorantId &	colorantId,
		ColorantUsage	usage,
		int	index = `-1`
	)

Insert a new colorant at the given position.

If a colorant with the same colorant-ID already exists, the method will fail.

Parameters

index Position, where the new colorant will be inserted. A negative value means the new colorant will be inserted at the end of the colorant list.

◆ operator!=()

bool icmm::CSubstractiveColorModel::operator!= ( const CSubstractiveColorModel & ref ) const

◆ operator=()

CSubstractiveColorModel & icmm::CSubstractiveColorModel::operator= ( const CSubstractiveColorModel & other )

◆ operator==()

bool icmm::CSubstractiveColorModel::operator== ( const CSubstractiveColorModel & ref ) const

◆ RemoveColorant()

bool icmm::CSubstractiveColorModel::RemoveColorant ( const ColorantId & colorantId )

Remove a colorant with the given ID.

Returns: Returns true, if the operation was succesful or false otherwise.

◆ Serialize()

virtual bool icmm::CSubstractiveColorModel::Serialize ( iser::IArchive & archive )

overridevirtual

Load or store state of this object as a archive stream.

Type of operation is depending on archive type.

See also: iser::IArchive

Implements iser::ISerializable.

◆ SerializeColorantInfo()

bool icmm::CSubstractiveColorModel::SerializeColorantInfo	(	iser::IArchive &	archive,
		ColorantInfo &	colorantInfo,
		const iser::CArchiveTag *	parentTagPtr
	)		const

protected

◆ SetColorantId()

bool icmm::CSubstractiveColorModel::SetColorantId	(	const ColorantId &	colorantId,
		const ColorantId &	newColorantId
	)

Set a new ID for an existing colorant.

◆ SetColorantUsage()

bool icmm::CSubstractiveColorModel::SetColorantUsage	(	const ColorantId &	colorantId,
		ColorantUsage	usage
	)

Set a colorant usage for an existing colorant.

The documentation for this class was generated from the following file:

Acf/Include/icmm/CSubstractiveColorModel.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ BaseClass2

◆ ColorantInfoList

Constructor & Destructor Documentation

◆ CSubstractiveColorModel() [1/4]

◆ CSubstractiveColorModel() [2/4]

◆ CSubstractiveColorModel() [3/4]

◆ CSubstractiveColorModel() [4/4]

Member Function Documentation

◆ AppendColorModel()

◆ CloneMe()

◆ ContainsColorant()

◆ CopyFrom()

◆ CreateSubspaceModel()

◆ CreateSubspaceModelFrom()

◆ FindColorantIndex()

◆ GetColorantIds()

◆ GetColorantUsage()

◆ GetDefaultUsageFromColorantName()

◆ GetEcgBlue()

◆ GetEcgColorants()

◆ GetEcgGreen()

◆ GetEcgOrange()

◆ GetEcgRed()

◆ GetEcgViolet()

◆ GetProcessColorants()

◆ GetSpotColorants()

◆ GetSupportedOperations()

◆ HasEcg()

◆ HasProcessColorants()

◆ HasSpot()

◆ InsertColorant()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ RemoveColorant()

◆ Serialize()

◆ SerializeColorantInfo()

◆ SetColorantId()

◆ SetColorantUsage()
