Common interface for a colorant list used in a substractive color model. More...
#include <IColorantList.h>

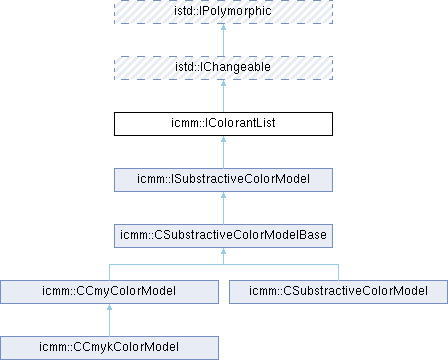

Inheritance diagram for icmm::IColorantList:
Public Types | |
| typedef QString | ColorantId |
| typedef QStringList | ColorantIds |
 Public Types inherited from istd::IChangeable | |
| enum | ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO } |
| Data model change notification flags. More... | |
| enum | SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 } |
| Flags for supported operations. More... | |
| enum | CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT } |
| Control how relationship betweeen objects are interpreted. More... | |
| typedef QMultiMap< QByteArray, QVariant > | ChangeInfoMap |
Public Member Functions | |
| virtual ColorantIds | GetColorantIds () const =0 |
| Get the list of colorant-IDs. | |
| virtual ColorantUsage | GetColorantUsage (const ColorantId &colorantId) const =0 |
| Get type of the colorant with the given ID. | |
| Public Member Functions inherited from istd::IChangeable | |
| virtual int | GetSupportedOperations () const |
| Get set of flags for supported operations. | |
| virtual bool | CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) |
| Copy this object from another one. | |
| virtual bool | IsEqual (const IChangeable &object) const |
| Compare this object with another object. | |
| virtual istd::TUniqueInterfacePtr< istd::IChangeable > | CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const |
| Make a copy of this object. | |
| virtual bool | ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) |
| Reset data to its default state. | |
| virtual void | BeginChanges (const ChangeSet &changeSet) |
| Starts the change transaction. | |
| virtual void | EndChanges (const ChangeSet &changeSet) |
| Ends the change transaction. | |
| virtual void | BeginChangeGroup (const ChangeSet &changeSet) |
| Starts group of changes. | |
| virtual void | EndChangeGroup (const ChangeSet &changeSet) |
| Ends group of changes. | |
| Public Member Functions inherited from istd::IPolymorphic | |
| virtual | ~IPolymorphic () |
Additional Inherited Members | |
| Static Public Member Functions inherited from istd::IChangeable | |
| static const ChangeSet & | GetNoChanges () |
| Get empty set of changes. | |
| static const ChangeSet & | GetAnyChange () |
| Get anonymous change set. | |
| static const ChangeSet & | GetAllChanges () |
| Get anonymous change set. | |
| static const ChangeSet & | GetDelegatedChanges () |
| Get delegated change set. | |
| Protected Member Functions inherited from istd::IChangeable | |
| virtual void | OnBeginChanges () |
| Callback function for begin change event. | |
| virtual void | OnEndChanges (const ChangeSet &changeSet) |
| Callback function for end change event. | |
Detailed Description
Common interface for a colorant list used in a substractive color model.
Definition at line 17 of file IColorantList.h.
Member Typedef Documentation
◆ ColorantId
| typedef QString icmm::IColorantList::ColorantId |
Definition at line 20 of file IColorantList.h.
◆ ColorantIds
| typedef QStringList icmm::IColorantList::ColorantIds |
Definition at line 21 of file IColorantList.h.
Member Function Documentation
◆ GetColorantIds()
|
pure virtual |
Get the list of colorant-IDs.
Implemented in icmm::CCmyColorModel, icmm::CCmykColorModel, and icmm::CSubstractiveColorModel.
◆ GetColorantUsage()
|
pure virtual |
Get type of the colorant with the given ID.
Implemented in icmm::CCmyColorModel, icmm::CCmykColorModel, and icmm::CSubstractiveColorModel.
The documentation for this class was generated from the following file:
- Acf/Include/icmm/IColorantList.h
