icmm::IColorTransformation Class Reference

Basic interface for color transformations between color models. More...

#include <IColorTransformation.h>

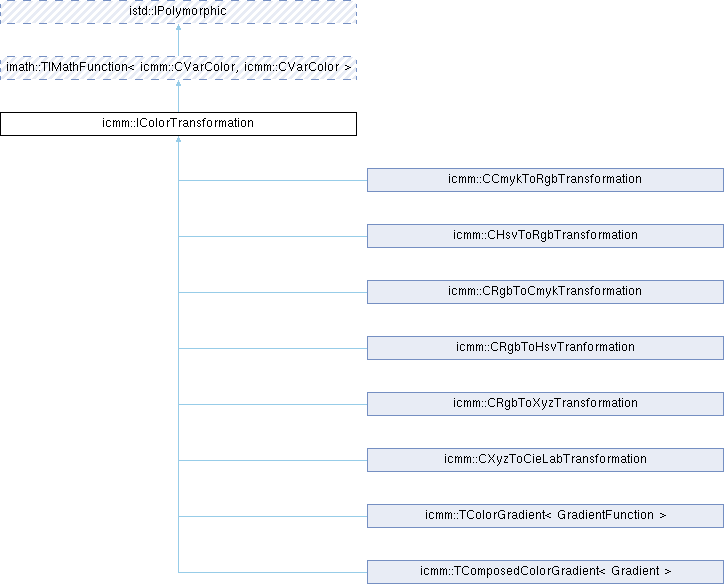

Inheritance diagram for icmm::IColorTransformation:

Additional Inherited Members
Public Types inherited from imath::TIMathFunction< icmm::CVarColor, icmm::CVarColor >
typedef icmm::CVarColor	ArgumentType
typedef icmm::CVarColor	ResultType
Public Member Functions inherited from imath::TIMathFunction< icmm::CVarColor, icmm::CVarColor >
virtual bool	GetValueAt (const icmm::CVarColor &argument, icmm::CVarColor &result) const=0
	Get function value for specified argument value.
virtual icmm::CVarColor	GetValueAt (const icmm::CVarColor &argument) const=0
	Get function value for specified argument value.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

Basic interface for color transformations between color models.

Purpose

IColorTransformation defines a mathematical function that converts colors from one color model to another. It extends TIMathFunction to provide color-specific transformation capabilities, taking a CVarColor as input and producing a CVarColor as output.

Transformation Types

Common color transformations include:

• RGB <-> HSV: Conversion between RGB and HSV color spaces
• RGB <-> CMYK: Conversion for display vs. print
• RGB -> XYZ -> Lab: Device-dependent to perceptually uniform space
• Spectral -> XYZ: Full spectral data to tristimulus values
• Any -> XYZ -> Any: XYZ often serves as an intermediate color space

Usage Examples

// Example 1: Basic color transformation
void ConvertRgbToHsv(const icmm::CRgb& rgb)
{
       // Get source and target models
       icmm::CRgbColorModel rgbModel;
       icmm::CHsvColorModel hsvModel;

       // Create transformation
       const IColorTransformation* transform =
              rgbModel.CreateColorTranformation(hsvModel);

       if (transform) {
              // Convert RGB to CVarColor
              icmm::CVarColor rgbColor(3);
              rgbColor.SetElement(0, rgb.GetRed());
              rgbColor.SetElement(1, rgb.GetGreen());
              rgbColor.SetElement(2, rgb.GetBlue());

              // Apply transformation
              icmm::CVarColor hsvColor;
              if (transform->Calculate(rgbColor, hsvColor)) {
                     // Extract HSV components
                     double hue = hsvColor.GetElement(0);
                     double saturation = hsvColor.GetElement(1);
                     double value = hsvColor.GetElement(2);

                     qDebug() << "H:" << hue
                              << "S:" << saturation
                              << "V:" << value;
              }

              delete transform;
       }
}

// Example 2: Batch color conversion
void ConvertColorPalette(const QList<icmm::CVarColor>& sourceColors,
                         icmm::ConstColorModelPtr sourceModel,
                         icmm::ConstColorModelPtr targetModel)
{
       // Create transformation once
       const IColorTransformation* transform =
              sourceModel->CreateColorTranformation(*targetModel);

       if (!transform) {
              qWarning() << "No transformation available";
              return;
       }

       // Convert all colors using same transformation
       QList<icmm::CVarColor> results;
       for (const icmm::CVarColor& color : sourceColors) {
              icmm::CVarColor result;
              if (transform->Calculate(color, result)) {
                     results.append(result);
              }
       }

       delete transform;

       // Process converted colors
       ProcessColors(results);
}

// Example 3: Color space conversion chain
icmm::CVarColor ConvertRgbToLab(const icmm::CVarColor& rgb)
{
       // RGB -> XYZ -> Lab (common conversion path)
       icmm::CRgbColorModel rgbModel;
       icmm::CXyzColorModel xyzModel;  // Hypothetical
       icmm::CCieLabColorModel labModel;

       // First: RGB to XYZ
       const IColorTransformation* rgbToXyz =
              rgbModel.CreateColorTranformation(xyzModel);

       icmm::CVarColor xyz;
       if (rgbToXyz && rgbToXyz->Calculate(rgb, xyz)) {
              delete rgbToXyz;

              // Second: XYZ to Lab
              const IColorTransformation* xyzToLab =
                     xyzModel.CreateColorTranformation(labModel);

              icmm::CVarColor lab;
              if (xyzToLab && xyzToLab->Calculate(xyz, lab)) {
                     delete xyzToLab;
                     return lab;
              }
              delete xyzToLab;
       } else {
              delete rgbToXyz;
       }

       return icmm::CVarColor();  // Return empty on failure
}

// Example 4: Transformation with error handling
bool TransformColor(const icmm::CVarColor& input,
                   icmm::CVarColor& output,
                   const IColorTransformation* transform)
{
       if (!transform) {
              qWarning() << "Null transformation";
              return false;
       }

       if (!transform->Calculate(input, output)) {
              qWarning() << "Transformation failed";
              return false;
       }

       // Validate output
       int components = output.GetElementsCount();
       if (components == 0) {
              qWarning() << "Invalid output color";
              return false;
       }

       return true;
}

Performance Considerations

• Cache transformations: Creating transformations has overhead; reuse them when converting multiple colors
• Direct transformations: Some conversions (RGB<->HSV) are direct and fast
• Indirect transformations: Others go through XYZ as intermediate, slower
• Memory management: Always delete transformation objects when done

Accuracy Considerations

• Color transformations may involve approximations
• Some conversions are lossy (RGB -> CMYK -> RGB may not round-trip exactly)
• Device-dependent models (RGB, CMYK) need calibration for accuracy
• Use device-independent spaces (Lab, XYZ) for accurate color matching

See also

icmm::IColorModel, icmm::CVarColor, imath::TIMathFunction, icmm::CRgbToHsvTranformation, icmm::CRgbToCmykTransformation

Definition at line 174 of file IColorTransformation.h.

---

The documentation for this class was generated from the following file:

• Acf/Include/icmm/IColorTransformation.h
