#include <CSubstractiveColorModelBase.h>

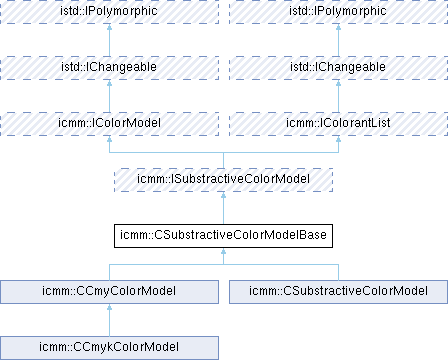

Inheritance diagram for icmm::CSubstractiveColorModelBase:

Public Member Functions
	CSubstractiveColorModelBase ()

const icmm::CTristimulusSpecification &	GetPreviewSpec () const

void	SetPreviewSpec (const ITristimulusSpecification &previewSpec)

void	SetColorantPreview (const ColorantId &colorantId, const icmm::CLab &preview)

virtual ModelType	GetModelType () const override
	Gets the type of the color model.

virtual ModelClass	GetModelClass () const override
	Gets the classification of the color model.

virtual ColorSpaceClass	GetColorSpaceClass () const override
	Gets the classification of the color space defined by this model.

virtual int	GetColorSpaceDimensionality () const override
	Gets the dimensionality (number of components) of the color space.

virtual const imath::IUnitInfo *	GetColorSpaceComponentInfo (int componentIndex) const override
	Gets mathematical unit information for a color model component.

virtual QString	GetColorSpaceComponentName (int componentIndex) const override
	Gets the human-readable name of a color model component.

virtual const icmm::IColorTransformation *	CreateColorTranformation (const IColorModel &otherColorModel, const QByteArray &transformationId=QByteArray()) const override
	Creates a color transformation for conversion to another color model.

virtual bool	GetColorantVisualInfo (const ColorantId &colorantId, icmm::ICieLabColor &preview) const override
	Get visual information/preview for the given colorant.

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override
	Copy this object from another one.

Public Member Functions inherited from icmm::ISubstractiveColorModel
virtual std::unique_ptr< ISubstractiveColorModel >	CreateSubspaceModel (const QStringList &colorantIds) const =0
	Create ColorModel of the subspace.

Public Member Functions inherited from icmm::IColorModel
virtual IColorSpecification::ConstColorSpecPtr	GetSpecification () const
	Gets the color specification for this model, if available.

Public Member Functions inherited from istd::IChangeable
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from icmm::IColorantList
virtual ColorantIds	GetColorantIds () const =0
	Get the list of colorant-IDs.

virtual ColorantUsage	GetColorantUsage (const ColorantId &colorantId) const =0
	Get type of the colorant with the given ID.

Protected Types
typedef QMap< ColorantId, icmm::CLab >	ColorantPreviewMap
	Mapping between a colorant and corresponding Lab value for its solid value.

Protected Attributes
icmm::CTristimulusSpecification	m_previewSpec
	Tristimulus specification used for all colorants in the color model.

ColorantPreviewMap	m_colorantPreviewMap

Additional Inherited Members
Public Types inherited from icmm::IColorModel
enum	ModelType { MT_HSI , MT_HSV , MT_HSL , MI_YIQ , MI_YUV , MI_YCBCR , MT_RGB , MT_COLORANTS , MT_LUV , MT_LAB , MT_LCH , MT_XYZ , MT_YXY , MI_SPECTRAL , MI_USER = 1024 }

enum	ModelClass { MC_DEVICE_DEPENDENT , MC_DEVICE_INDEPENDENT }

enum	ColorSpaceClass { CSC_ADDITIVE , CSC_SUBSTRACTIVE , CSC_PERCEPTUAL }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Types inherited from icmm::IColorantList
typedef QString	ColorantId

typedef QStringList	ColorantIds

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Definition at line 18 of file CSubstractiveColorModelBase.h.

Member Typedef Documentation

◆ ColorantPreviewMap

typedef QMap<ColorantId, icmm::CLab> icmm::CSubstractiveColorModelBase::ColorantPreviewMap

protected

Mapping between a colorant and corresponding Lab value for its solid value.

Definition at line 54 of file CSubstractiveColorModelBase.h.

Constructor & Destructor Documentation

◆ CSubstractiveColorModelBase()

icmm::CSubstractiveColorModelBase::CSubstractiveColorModelBase ( )

Member Function Documentation

◆ CopyFrom()

virtual bool icmm::CSubstractiveColorModelBase::CopyFrom	(	const istd::IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Copy this object from another one.

Default implementation in istd::IChangeable does nothing.

Reimplemented from istd::IChangeable.

Reimplemented in icmm::CSubstractiveColorModel.

◆ CreateColorTranformation()

virtual const icmm::IColorTransformation * icmm::CSubstractiveColorModelBase::CreateColorTranformation	(	const IColorModel &	otherColorModel,
		const QByteArray &	transformationId = `QByteArray()`
	)		const

overridevirtual

Creates a color transformation for conversion to another color model.

Constructs and returns a transformation object that can convert colors from this model to the specified target model. The transformation may be direct or may internally use intermediate color spaces (typically XYZ).

Parameters

otherColorModel	The target color model to convert to
transformationId	Optional identifier for a specific transformation algorithm. Empty (default) uses the standard transformation.

Returns: Pointer to the created IColorTransformation, or nullptr if no transformation is available. Caller owns the returned pointer and must delete it when done.

Note: The returned transformation is newly allocated. Delete it after use.; Returns nullptr if no transformation path exists between the models.; For repeated conversions, cache the transformation for performance.

// Create RGB to Lab transformation
icmm::CRgbColorModel rgbModel;
icmm::CCieLabColorModel labModel;

const IColorTransformation* transform =
       rgbModel.CreateColorTranformation(labModel);

if (transform) {
       // Use transformation
       icmm::CVarColor rgbColor(3);
       rgbColor.SetElement(0, 1.0);  // Red
       rgbColor.SetElement(1, 0.0);  // Green
       rgbColor.SetElement(2, 0.0);  // Blue

       icmm::CVarColor labColor;
       transform->Calculate(rgbColor, labColor);

       delete transform;  // Clean up
}

See also: IColorTransformation, CVarColor

Implements icmm::IColorModel.

◆ GetColorantVisualInfo()

virtual bool icmm::CSubstractiveColorModelBase::GetColorantVisualInfo	(	const ColorantId &	colorantId,
		icmm::ICieLabColor &	preview
	)		const

overridevirtual

Get visual information/preview for the given colorant.

Implements icmm::ISubstractiveColorModel.

◆ GetColorSpaceClass()

virtual ColorSpaceClass icmm::CSubstractiveColorModelBase::GetColorSpaceClass ( ) const

overridevirtual

Gets the classification of the color space defined by this model.

Indicates the physical basis of color mixing: additive (light-based), subtractive (pigment-based), or perceptual (human perception-based).

Returns: ColorSpaceClass classification

See also: ColorSpaceClass, GetModelType()

Implements icmm::IColorModel.

◆ GetColorSpaceComponentInfo()

virtual const imath::IUnitInfo * icmm::CSubstractiveColorModelBase::GetColorSpaceComponentInfo ( int componentIndex ) const

overridevirtual

Gets mathematical unit information for a color model component.

Returns information about the mathematical unit, range, and properties of the specified component (axis) in the color space.

Parameters

componentIndex Zero-based index of the component (0 to dimensionality-1)

Returns: Pointer to IUnitInfo describing the component's unit, or nullptr if index is invalid. The pointer is owned by the color model.

Note: Most color components range from 0.0 to 1.0, but some (like Lab) have different ranges (L: 0-100, a: -128 to 127, b: -128 to 127).

const imath::IUnitInfo* info = model->GetColorSpaceComponentInfo(0);
if (info) {
       double minVal = info->GetMinValue();
       double maxVal = info->GetMaxValue();
       QString unit = info->GetUnitName();
}

See also: GetColorSpaceComponentName(), GetColorSpaceDimensionality()

Implements icmm::IColorModel.

◆ GetColorSpaceComponentName()

virtual QString icmm::CSubstractiveColorModelBase::GetColorSpaceComponentName ( int componentIndex ) const

overridevirtual

Gets the human-readable name of a color model component.

Returns the name of the component at the specified index, such as "Red", "Green", "Blue" for RGB, or "Lightness", "a*", "b*" for Lab.

Parameters

componentIndex Zero-based index of the component

Returns: Component name as a QString, or empty string if index is invalid

// Get RGB component names
icmm::CRgbColorModel rgb;
QString name0 = rgb.GetColorSpaceComponentName(0);  // "Red"
QString name1 = rgb.GetColorSpaceComponentName(1);  // "Green"
QString name2 = rgb.GetColorSpaceComponentName(2);  // "Blue"

See also: GetColorSpaceComponentInfo(), GetColorSpaceDimensionality()

Implements icmm::IColorModel.

◆ GetColorSpaceDimensionality()

virtual int icmm::CSubstractiveColorModelBase::GetColorSpaceDimensionality ( ) const

overridevirtual

Gets the dimensionality (number of components) of the color space.

Returns the number of values needed to represent a color in this model. Common values are 3 (RGB, HSV, Lab) or 4 (CMYK). Spectral models may have higher dimensionality.

Returns: Number of components/dimensions in the color space

// RGB has 3 components
icmm::CRgbColorModel rgbModel;
int dims = rgbModel.GetColorSpaceDimensionality();  // returns 3

// CMYK has 4 components
icmm::CCmykColorModel cmykModel;
dims = cmykModel.GetColorSpaceDimensionality();  // returns 4

See also: GetColorSpaceComponentName(), GetColorSpaceComponentInfo()

Implements icmm::IColorModel.

◆ GetModelClass()

virtual ModelClass icmm::CSubstractiveColorModelBase::GetModelClass ( ) const

overridevirtual

Gets the classification of the color model.

Indicates whether the color model is device-dependent or device-independent. Device-dependent models (RGB, CMYK) produce different colors on different devices, while device-independent models (XYZ, Lab) represent absolute colors.

Returns: ModelClass classification

See also: ModelClass, GetModelType()

Implements icmm::IColorModel.

◆ GetModelType()

virtual ModelType icmm::CSubstractiveColorModelBase::GetModelType ( ) const

overridevirtual

Gets the type of the color model.

Returns the specific type identifier for this color model (e.g., MT_RGB, MT_CMYK). This identifies the mathematical representation and component structure.

Returns: The ModelType enumeration value identifying this color model

See also: ModelType, GetModelClass(), GetColorSpaceClass()

Implements icmm::IColorModel.

◆ GetPreviewSpec()

const icmm::CTristimulusSpecification & icmm::CSubstractiveColorModelBase::GetPreviewSpec ( ) const

◆ GetSupportedOperations()

virtual int icmm::CSubstractiveColorModelBase::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from istd::IChangeable.

Reimplemented in icmm::CSubstractiveColorModel.

◆ SetColorantPreview()

void icmm::CSubstractiveColorModelBase::SetColorantPreview	(	const ColorantId &	colorantId,
		const icmm::CLab &	preview
	)

◆ SetPreviewSpec()

void icmm::CSubstractiveColorModelBase::SetPreviewSpec ( const ITristimulusSpecification & previewSpec )

Member Data Documentation

◆ m_colorantPreviewMap

ColorantPreviewMap icmm::CSubstractiveColorModelBase::m_colorantPreviewMap

protected

Definition at line 55 of file CSubstractiveColorModelBase.h.

◆ m_previewSpec

icmm::CTristimulusSpecification icmm::CSubstractiveColorModelBase::m_previewSpec

protected

Tristimulus specification used for all colorants in the color model.

Definition at line 49 of file CSubstractiveColorModelBase.h.

The documentation for this class was generated from the following file:

Acf/Include/icmm/CSubstractiveColorModelBase.h

Public Member Functions

Protected Types

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ColorantPreviewMap

Constructor & Destructor Documentation

◆ CSubstractiveColorModelBase()

Member Function Documentation

◆ CopyFrom()

◆ CreateColorTranformation()

◆ GetColorantVisualInfo()

◆ GetColorSpaceClass()

◆ GetColorSpaceComponentInfo()

◆ GetColorSpaceComponentName()

◆ GetColorSpaceDimensionality()

◆ GetModelClass()

◆ GetModelType()

◆ GetPreviewSpec()

◆ GetSupportedOperations()

◆ SetColorantPreview()

◆ SetPreviewSpec()

Member Data Documentation

◆ m_colorantPreviewMap

◆ m_previewSpec
