Implementation of RGB-to-HSV color transformation. More...

#include <CRgbToHsvTranformation.h>

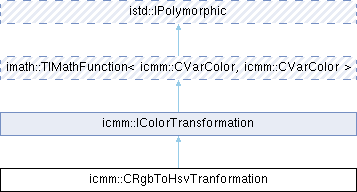

Inheritance diagram for icmm::CRgbToHsvTranformation:

Public Member Functions
virtual bool	GetValueAt (const ArgumentType &argument, ResultType &result) const override
	Get function value for specified argument value.

virtual ResultType	GetValueAt (const ArgumentType &argument) const override
	Get function value for specified argument value.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Public Types inherited from imath::TIMathFunction< icmm::CVarColor, icmm::CVarColor >
typedef icmm::CVarColor	ArgumentType

typedef icmm::CVarColor	ResultType

Detailed Description

Implementation of RGB-to-HSV color transformation.

Purpose

CRgbToHsvTranformation converts colors from RGB (Red, Green, Blue) color space to HSV (Hue, Saturation, Value) color space. HSV is more intuitive for color selection and manipulation, representing colors in terms of their hue (color type), saturation (color intensity), and value (brightness).

Conversion Algorithm

The RGB to HSV conversion involves:

Finding min/max: Determine minimum and maximum RGB components
Calculate Value: V = max(R, G, B)
Calculate Saturation: S = (max - min) / max (if max != 0)
Calculate Hue: Based on which component is maximum:
- If R is max: H = (G - B) / (max - min)
- If G is max: H = 2 + (B - R) / (max - min)
- If B is max: H = 4 + (R - G) / (max - min)
- Then: H = H * 60 degrees (and add 360 degrees if negative)

Usage Examples

// Example 1: Basic RGB to HSV conversion
icmm::CRgbToHsvTranformation rgbToHsv;

// Create RGB color (orange)
icmm::CVarColor rgb(3);
rgb.SetElement(0, 1.0);   // Red
rgb.SetElement(1, 0.5);   // Green
rgb.SetElement(2, 0.0);   // Blue

// Convert to HSV
icmm::CVarColor hsv;
if (rgbToHsv.GetValueAt(rgb, hsv)) {
       double hue = hsv.GetElement(0);         // ~30 degrees (orange hue)
       double saturation = hsv.GetElement(1);  // 1.0 (fully saturated)
       double value = hsv.GetElement(2);       // 1.0 (maximum brightness)
}

// Example 2: Converting multiple colors
QList<icmm::CVarColor> ConvertRgbListToHsv(
       const QList<icmm::CVarColor>& rgbColors)
{
       icmm::CRgbToHsvTranformation transform;
       QList<icmm::CVarColor> hsvColors;

       for (const icmm::CVarColor& rgb : rgbColors) {
              icmm::CVarColor hsv = transform.GetValueAt(rgb);
              hsvColors.append(hsv);
       }

       return hsvColors;
}

// Example 3: Analyzing color properties via HSV
struct ColorProperties {
       bool isGrayscale;
       bool isBright;
       double dominantHue;
};

ColorProperties AnalyzeRgbColor(const icmm::CVarColor& rgb)
{
       icmm::CRgbToHsvTranformation rgbToHsv;
       icmm::CVarColor hsv = rgbToHsv.GetValueAt(rgb);

       ColorProperties props;

       // Check if grayscale (low saturation)
       props.isGrayscale = (hsv.GetElement(1) < 0.1);  // Saturation < 10%

       // Check if bright
       props.isBright = (hsv.GetElement(2) > 0.5);     // Value > 50%

       // Get dominant hue
       props.dominantHue = hsv.GetElement(0);           // Hue in degrees

       return props;
}

// Example 4: Color picker implementation
icmm::CVarColor GetColorFromPicker(double hue, double saturation, double value)
{
       // Create HSV color
       icmm::CVarColor hsv(3);
       hsv.SetElement(0, hue);         // 0-360 degrees
       hsv.SetElement(1, saturation);  // 0-1
       hsv.SetElement(2, value);       // 0-1

       // Convert to RGB for rendering
       icmm::CHsvToRgbTransformation hsvToRgb;
       icmm::CVarColor rgb = hsvToRgb.GetValueAt(hsv);

       return rgb;
}

// Example 5: Detecting dominant colors
QString GetDominantColorName(const icmm::CVarColor& rgb)
{
       icmm::CRgbToHsvTranformation rgbToHsv;
       icmm::CVarColor hsv = rgbToHsv.GetValueAt(rgb);

       double hue = hsv.GetElement(0);
       double sat = hsv.GetElement(1);
       double val = hsv.GetElement(2);

       // Check for grayscale first
       if (sat < 0.1) {
              if (val < 0.3) return "Black";
              if (val > 0.7) return "White";
              return "Gray";
       }

       // Determine color from hue
       if (hue < 30 || hue >= 330) return "Red";
       if (hue < 90) return "Yellow";
       if (hue < 150) return "Green";
       if (hue < 210) return "Cyan";
       if (hue < 270) return "Blue";
       return "Magenta";
}

// Example 6: Brightness adjustment (via HSV)
icmm::CVarColor AdjustBrightness(const icmm::CVarColor& rgb,
                                 double brightnessFactor)
{
       // Convert to HSV
       icmm::CRgbToHsvTranformation rgbToHsv;
       icmm::CVarColor hsv = rgbToHsv.GetValueAt(rgb);

       // Adjust value (brightness)
       double value = hsv.GetElement(2) * brightnessFactor;
       value = qBound(0.0, value, 1.0);  // Clamp to [0, 1]
       hsv.SetElement(2, value);

       // Convert back to RGB
       icmm::CHsvToRgbTransformation hsvToRgb;
       return hsvToRgb.GetValueAt(hsv);
}

// Example 7: Saturation boost
icmm::CVarColor BoostSaturation(const icmm::CVarColor& rgb)
{
       icmm::CRgbToHsvTranformation rgbToHsv;
       icmm::CVarColor hsv = rgbToHsv.GetValueAt(rgb);

       // Increase saturation
       double sat = hsv.GetElement(1) * 1.5;  // 50% increase
       sat = qMin(sat, 1.0);  // Clamp to 1.0
       hsv.SetElement(1, sat);

       // Convert back
       icmm::CHsvToRgbTransformation hsvToRgb;
       return hsvToRgb.GetValueAt(hsv);
}

Applications

Color pickers: HSV is more intuitive for UI color selection
Image processing: Adjusting brightness/saturation independently
Color analysis: Identifying dominant hues and properties
Color harmonies: Creating complementary/triadic color schemes
Color correction: Selective hue adjustments
Computer vision: Color-based object detection

Value Ranges

Input (RGB):**

Red, Green, Blue: [0.0, 1.0]

Output (HSV):**
Hue: [0.0, 360.0] degrees
Saturation: [0.0, 1.0]
Value: [0.0, 1.0]

Best Practices

Use HSV for intuitive color manipulation
Convert to HSV, adjust, convert back to RGB for display
Check saturation for grayscale detection
Use hue ranges for color classification
Cache transformation object for batch conversions
Remember: HSV is device-dependent (uses RGB as input)

Note: The name contains a typo "Tranformation" instead of "Transformation" but is kept for API compatibility.

See also: icmm::CHsvToRgbTransformation, icmm::IColorTransformation, icmm::CRgb, icmm::CHsv, icmm::CRgbColorModel

Definition at line 203 of file CRgbToHsvTranformation.h.

Member Function Documentation

◆ GetValueAt() [1/2]

virtual ResultType icmm::CRgbToHsvTranformation::GetValueAt ( const ArgumentType & argument ) const

overridevirtual

Get function value for specified argument value.

This overloaded menthod is provided only for convinence.

Parameters

argument function argument.

Returns: function value for specified argument.

Implements imath::TIMathFunction< icmm::CVarColor, icmm::CVarColor >.

◆ GetValueAt() [2/2]

virtual bool icmm::CRgbToHsvTranformation::GetValueAt	(	const ArgumentType &	argument,
		ResultType &	result
	)		const
